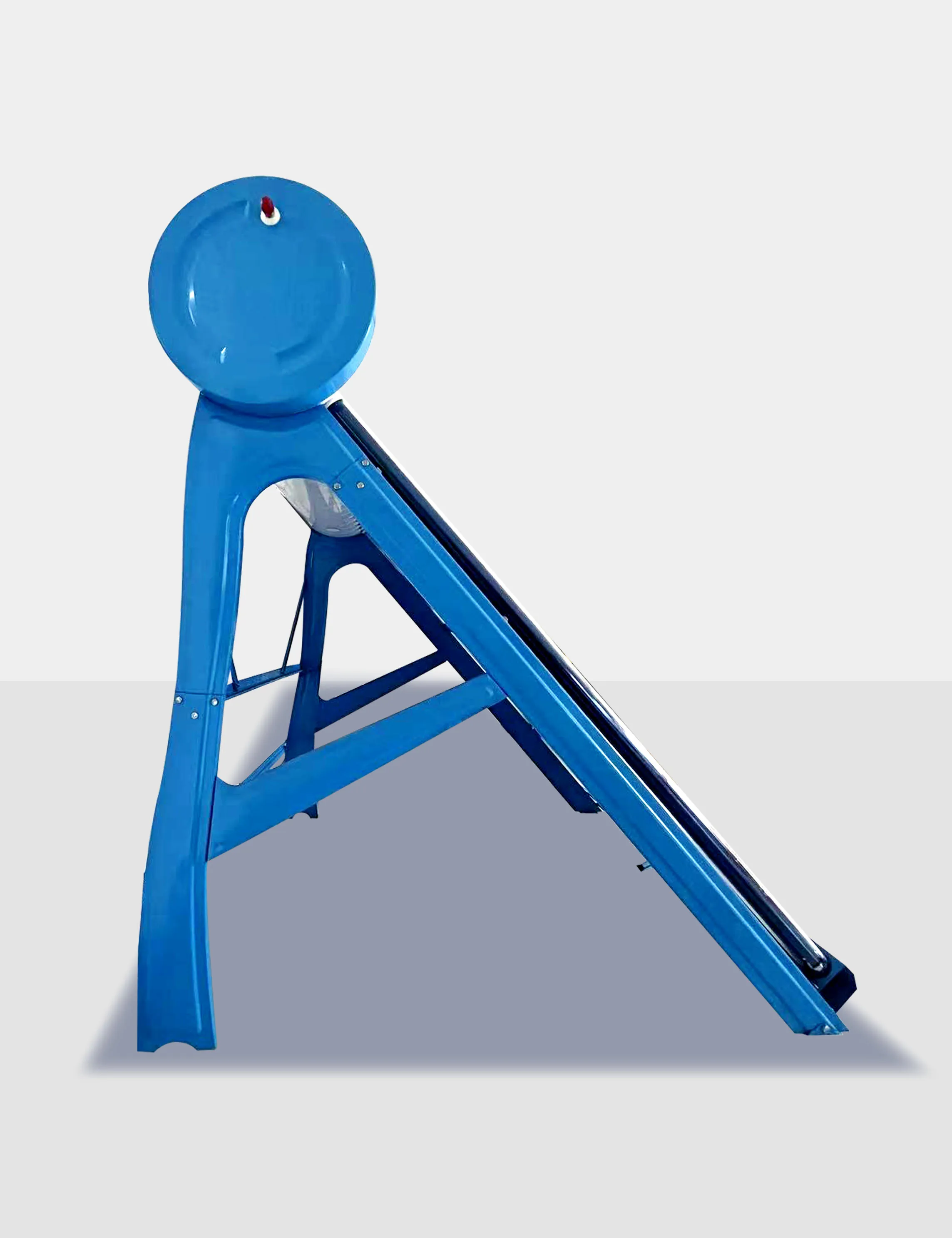

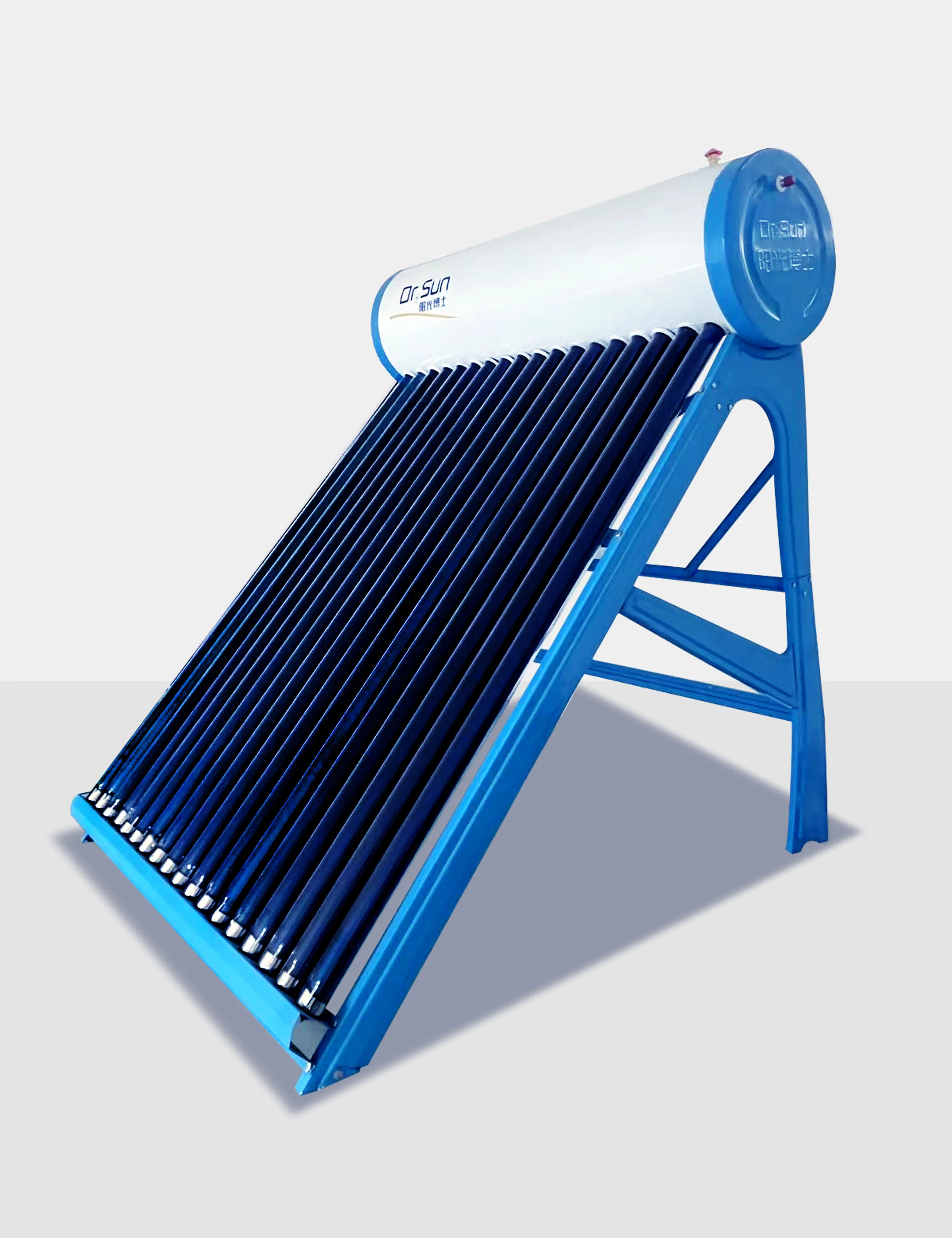

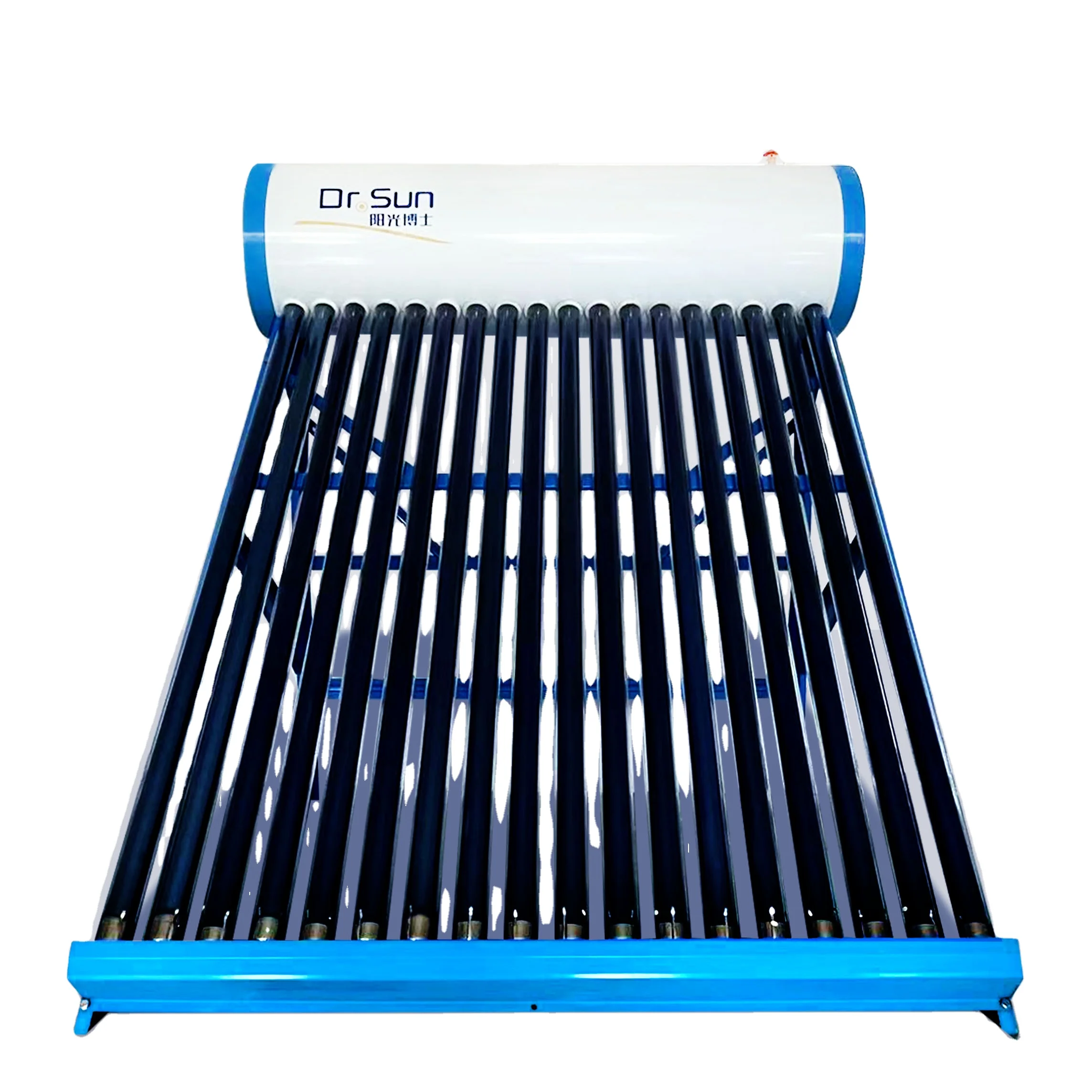

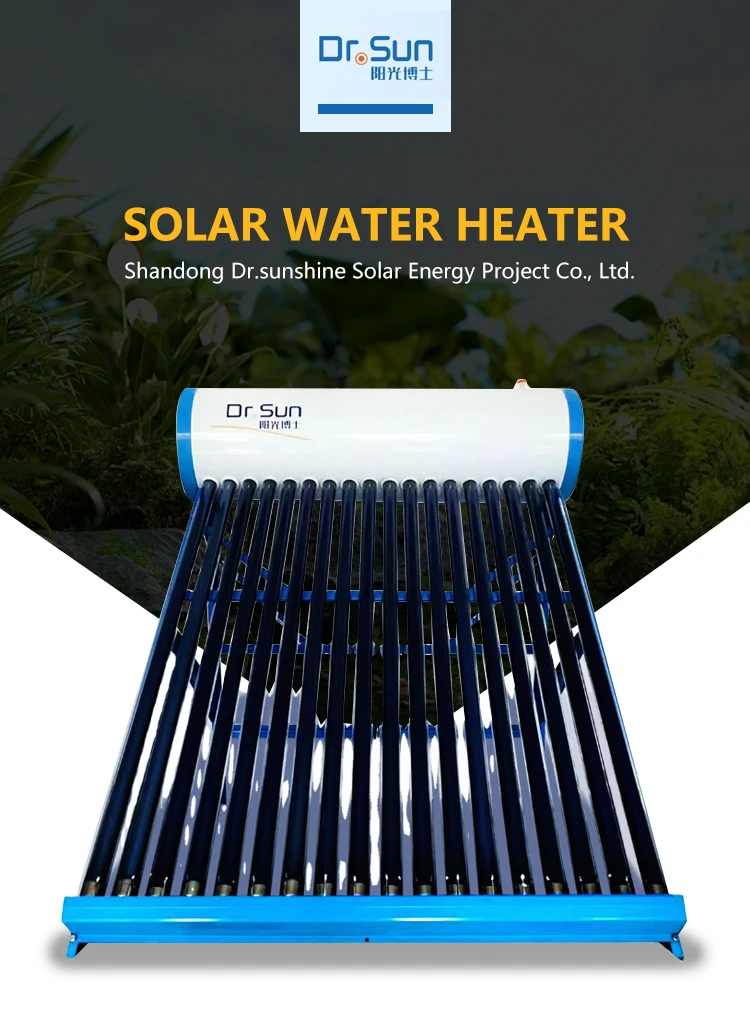

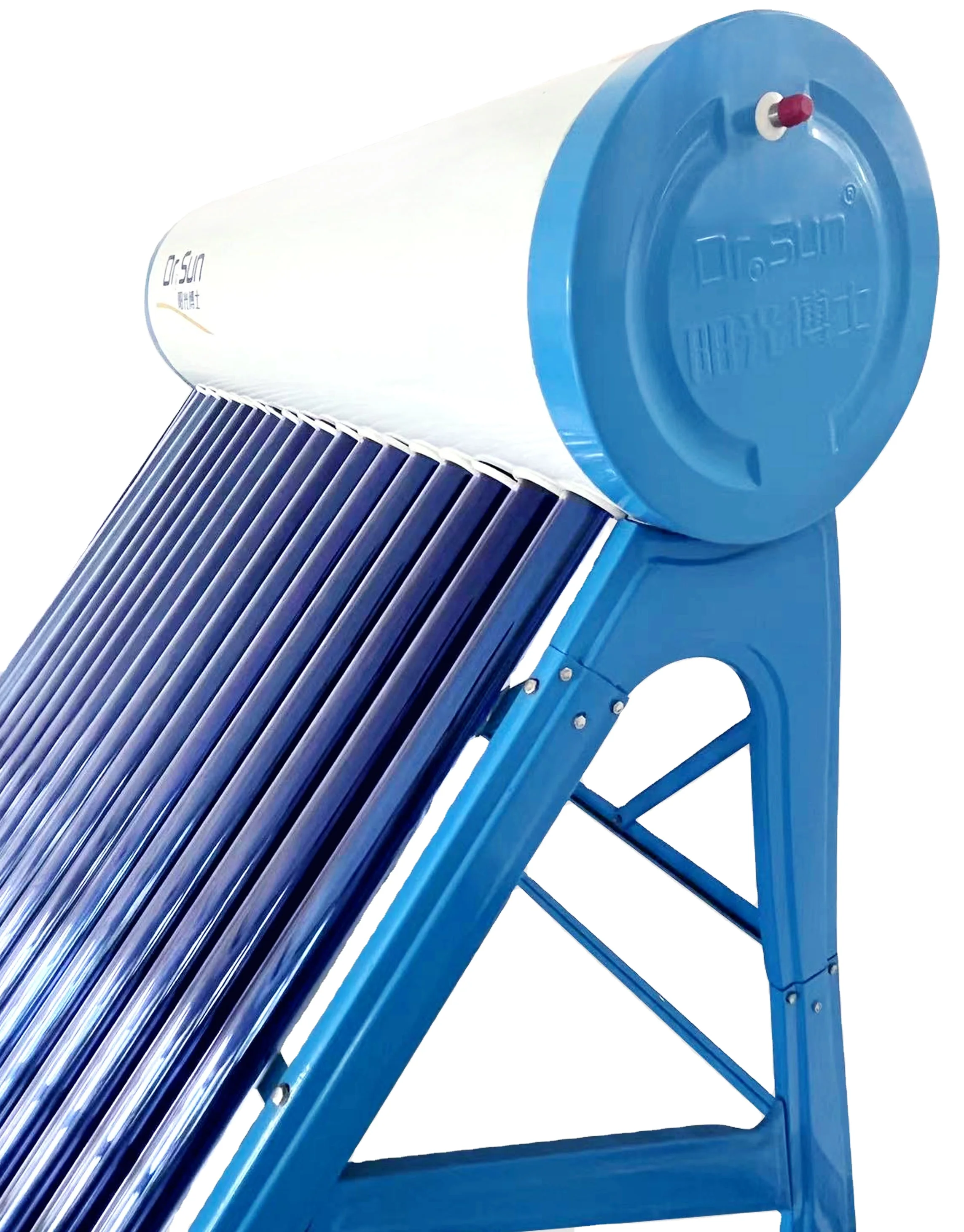

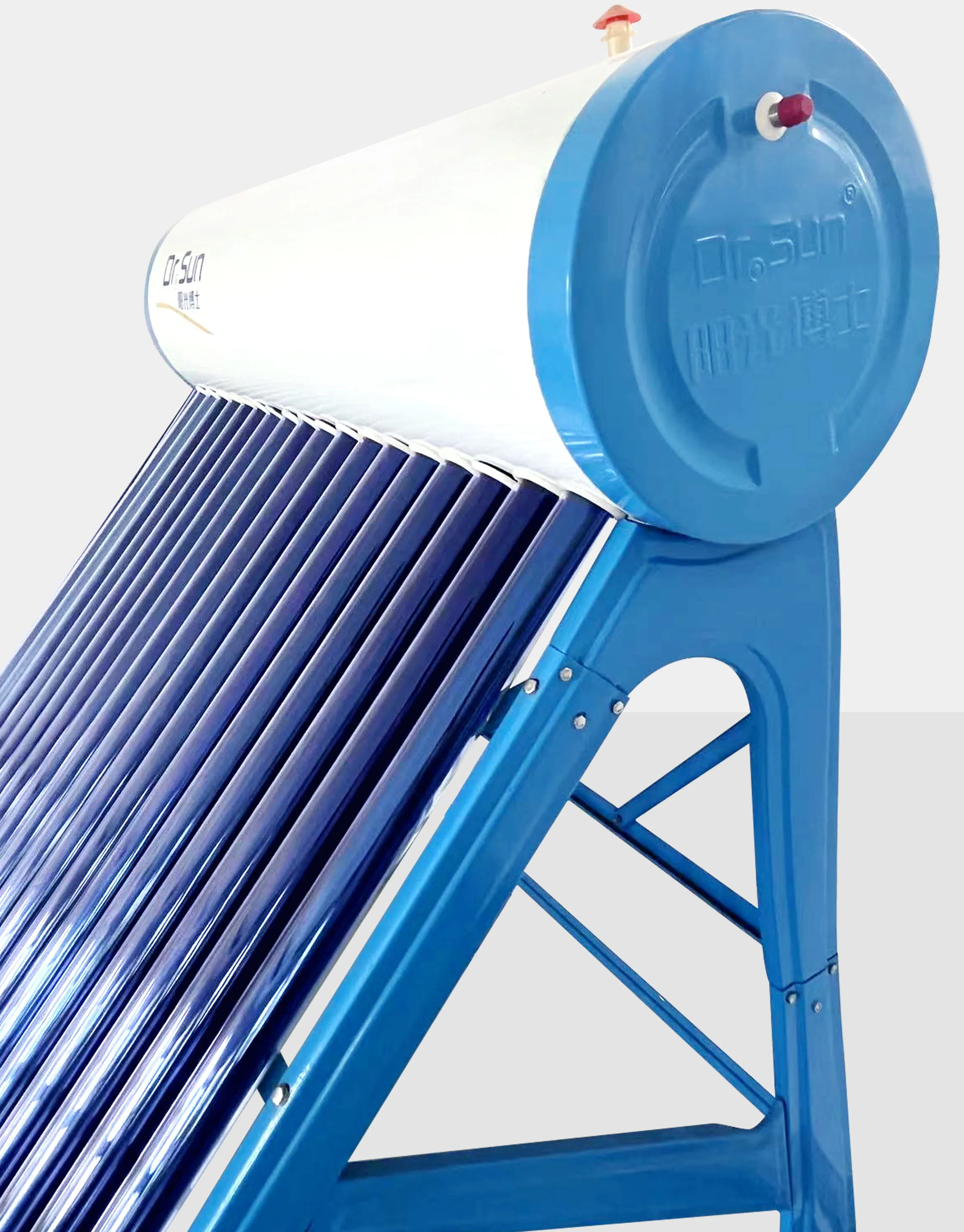

Electric Evacuated Tube Solar Water Heater Collector for Outdoor Household and Hotel Use with Split Connection Type
Electric Evacuated Tube Solar Water Heater Collector for Outdoor Household and Hotel Use with Split Connection Type
Electric Evacuated Tube Solar Water Heater Collector for Outdoor Household and Hotel Use with Split Connection Type
Electric Evacuated Tube Solar Water Heater Collector for Outdoor Household and Hotel Use with Split Connection Type
Electric Evacuated Tube Solar Water Heater Collector for Outdoor Household and Hotel Use with Split Connection Type
Electric Evacuated Tube Solar Water Heater Collector for Outdoor Household and Hotel Use with Split Connection Type
Electric Evacuated Tube Solar Water Heater Collector for Outdoor Household and Hotel Use with Split Connection Type

Electric Evacuated Tube Solar Water Heater Collector for Outdoor Household and Hotel Use with Split Connection Type

Share on (1601358593565):


Price:$105.00-175.00

Quantity:


Product Overview

Description









Product Details

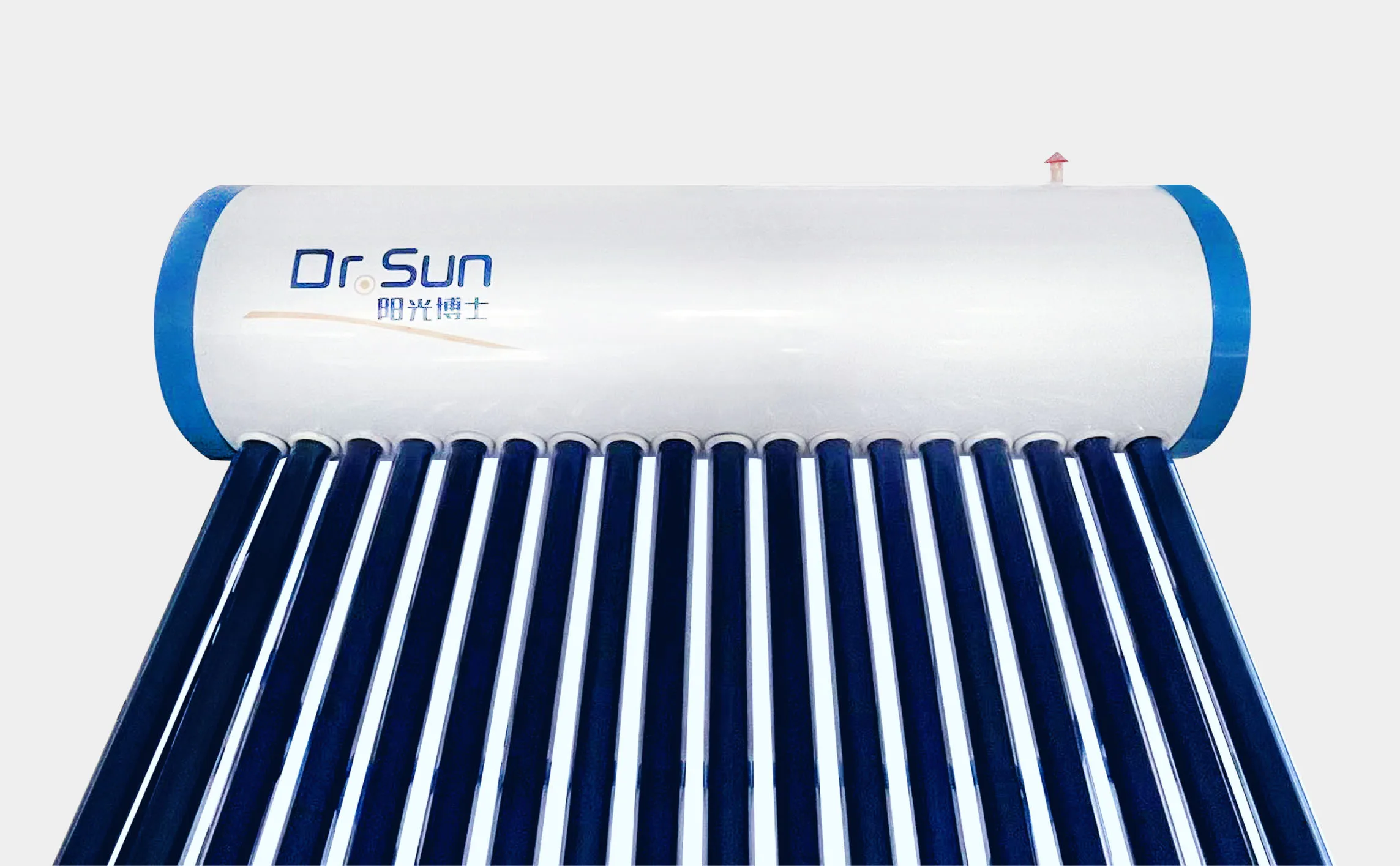

The inner tank is made of SUS304-2B food grade stainless steel, the thickness of 041, automatic seamless technology.
The outer tank is made of 032 thick galvanized color coated steel plate.
The insulation layer thickness for the temperature difference in various regions to provide 50mm/60mm/70mm optional.

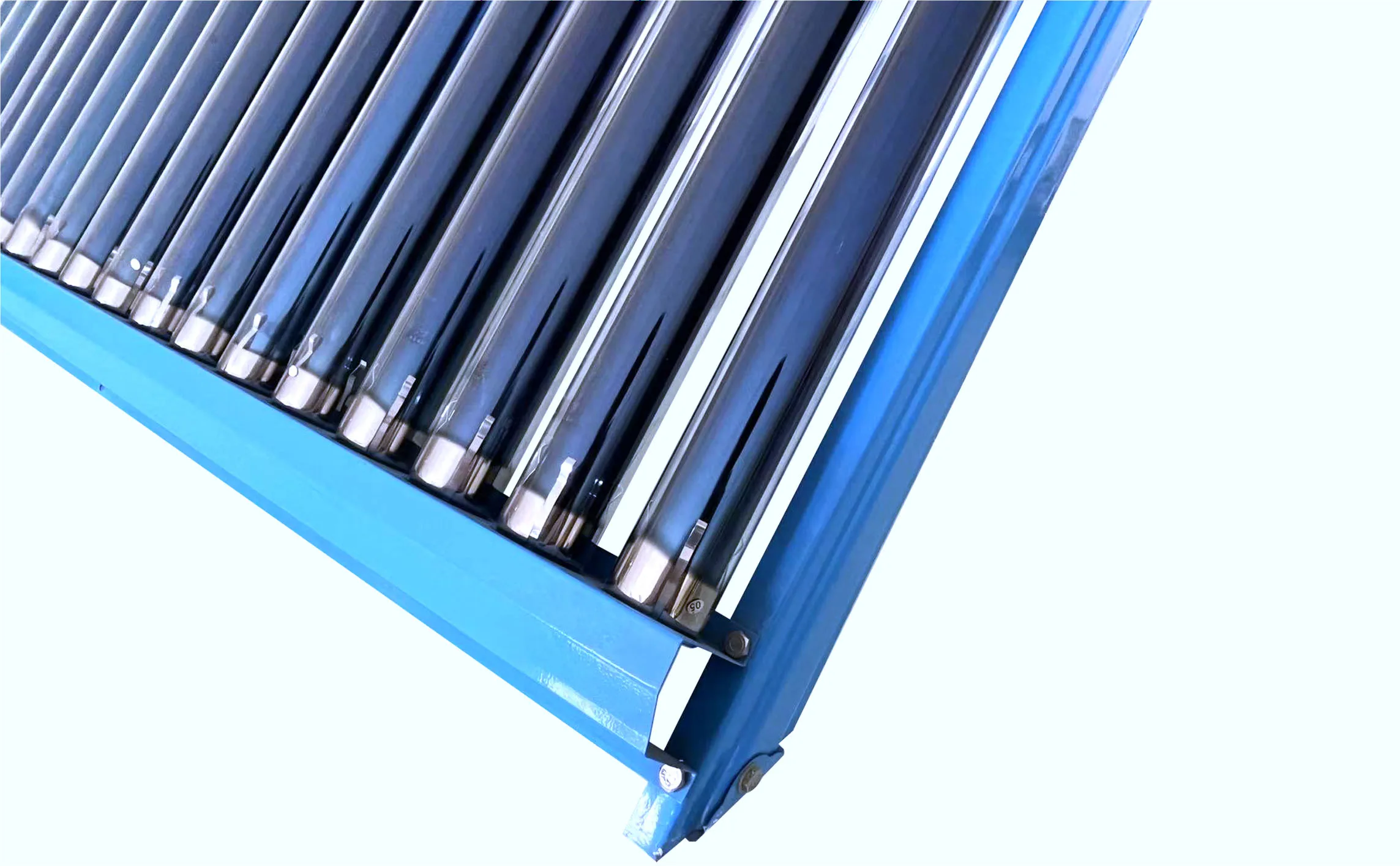

High-quality galvanized steel spray, surface after oxidation treatment steel plate width ≥ 100mm, Thickness ≥ 1.2mm.
Using hot-dip galvanized bolts or stainless steel bolts.slope or flat installing.
58-1800, high borosilicate glass 3.3, high temperature up to380°C, positive impact of 25mm hail will not be damaged.
Heat absorption ratio 0.92, emission ratio 0.023, air drying performance parameters 250m2°C /kw, average heat loss 0.58W/ m2°C, vacuum degree up to 5*10-4Pa.




Specifications
External Dimension
Water Tank       (L)
Effective Heat Collection Area
(㎡)
Vacuum Tube Spacing
( mm)
Package Size
L
W
H
58*1.8*16
1340*1430*1710
117
1.96
75
1420
485
515
58*1.8*16
1410*1430*1710
123
2.13
80
1490
485
515
58*1.8*18
1490*1430*1710
131
2.21
75
1570
485
515
58*1.8*18
1570*1430*1710
138
2.39
80
1650
485
515
58*1.8*20
1640*1430*1710
145
2.46
75
1720
485
515
58*1.8*20
1730*1430*1710
152
2.67
80
1810
485
515
58*1.8*24
1940*1430*1710
173
3.02
75
2020
485
515
58*1.8*24
2050*1430*1710
182
3.21
80
2130
485
515
58*1.8*30
2390*1430*1710
215
3.78
75
2470
485
515
58*1.8*30
2530*1430*1710
226
4.02
80
2610
485
515
58*1.8*36
2840*1430*1710
267
4.55
75
2920
485
515
58*1.8*36
3010*1430*1710
284
4.85
80
3090
485
515












Shandong Dr. Sunshine Solar Energy Project Co., Ltd. is a global provider of comprehensive intelligent solutions fornew energy systems, a national high-tech enterprise with integrating research and development, testing, manu-facturing, marketing and promotion of solar heat collector, heat pump and multi-energy complementary systemsand other products. The enterprise has focused on the complementary research and development of solar energy+ various energy sources for more than 20 yearsTo provide customers with comprehensive energy systemone-stop solutions, fully meet the civil, commercial, industrial applications involved in new energy hot water,heating, refrigeration, industrial thermal energy, power generation and other needs, products sold in more than30 provinces and cities in China and exported to Japan, taly, india and other more than 10 countries and regions.is the enterprise with photothermal key technology and leading comprehensive development and application .










Q: Are you a factory or trading company?
A: We are factory in China.

Q: What's the shipping method and delivery time?
A: Shipped by sea express. Need 20 to 40 days by sea.

Q: How to get the price list?
A:Price list Pls Email/call/fax to us with you like items name together with you details (name,detailsaddress,telephone,etc),we
will send to you as soon as possible.

Q: Do you have a custom service?
A: We can customize according to your needs, you are welcome to consult us with your requirements .

If you have another question, pls feel free to contact us.
