Made In China Backhoe loaders Chinese mini small backhoe excavator loader Best value

Share on (1601358663407):


Price:$1,800.00-2,000.00

Quantity:


Product Overview

Description



Product Description

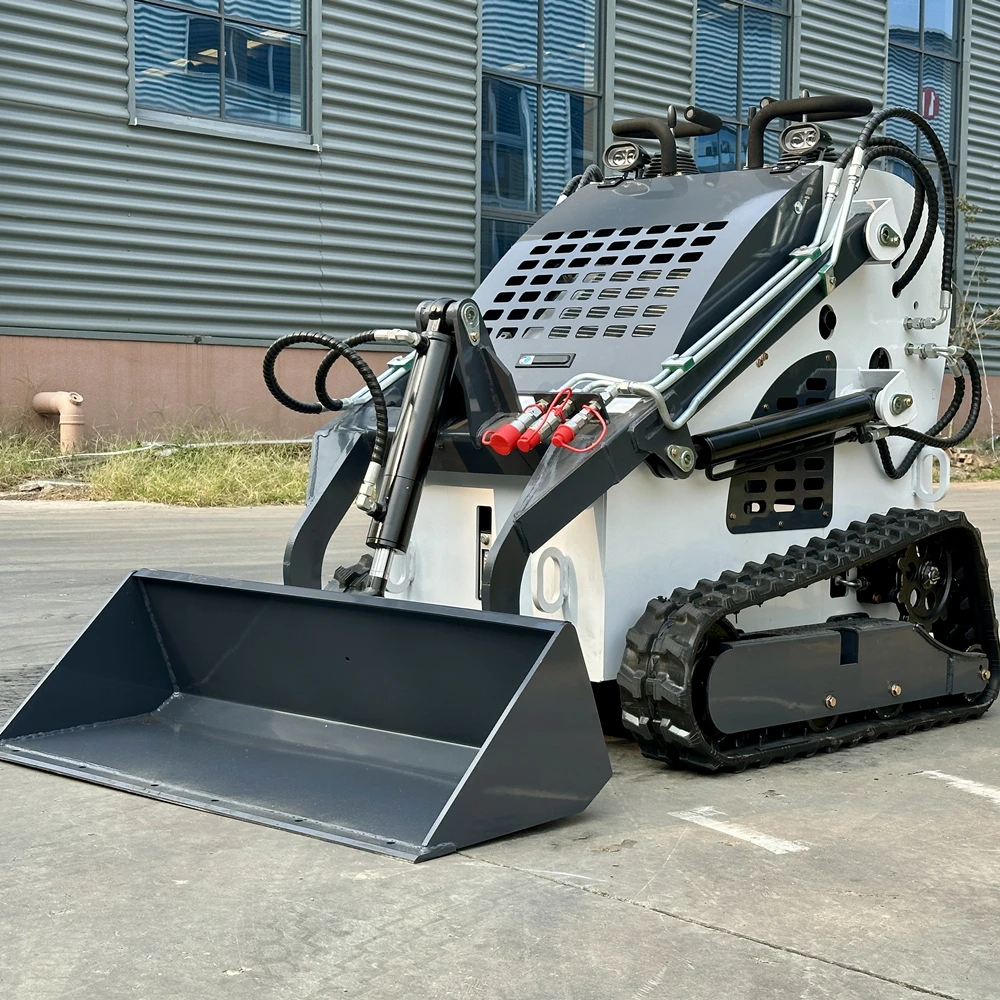

The small skid steer loader is a compact and versatile engineering machinery mainly used in various fields such as construction, road maintenance, and agricultural production

Compared with traditional loaders, it has the following advantages:
1. Compact and flexible: Small skid steer loaders are small in size and light in weight, making them easy to operate in narrow construction sites or indoor spaces.
2. Strong versatility: The small skid steer loader can be configured with different accessories and interfaces according to needs to achieve multiple functions, such as excavating, leveling, pushing soil, pile driving, tamping, etc., which can be easily replaced.
3. Simple and easy to learn: The operation of the small skid steer loader is relatively simple, and only short technical training is needed to get started.
4. Eco-friendly and energy-saving: Since the small skid steer loader adopts electric or hybrid power, the noise and tailpipe emissions during operation are lower, which meets environmental protection and energy-saving requirements.
5. Low maintenance cost: Small skid steer loaders usually have a simple structure, relatively few parts, and are easy to disassemble, making them easy to maintain and reduce operating costs. Therefore, the small skid steer loader has become an important tool in various fields such as construction, road maintenance, and agricultural production, and is highly favored by users.




Product Paramenters


Performance
CTHB-SK380
Maximum Lifting Capacity
380 kg ( lb)
Standard Lifting Capacity
300 kg ( lb)
Travel Speed (Forward)
6.6 km/hr (4.1 mph)
Travel Speed (Reverse)
4.7 km/hr (2.9 mph)
Operating Weight (with bucket)
900 kg ( lb)
Ground Pressure
3.9 psi (27.3kPa)
Hydraulic Pump Capacity
45.4 L/min ( 12 gpm)
Motor Rotation Speed
3600 rpm
Braking System
Hydraulic Closed Brake
Hydraulic Oil Tank Capacity
25 L ( gal)
Air Intake
Normally Aspirated
Oil Flow
50 L/min ( gpm)
Oil Pressure
180 bar
Electrical System
12 V
Battery Capacity
36 Ah
Engine
Engine Brand Option
RATO/B&S/KOOP
Emission Standard Option (Tier 4)
EPA/Euro5
Engine Fuel/Cooling
Diesel/Air-Cooling
Engine Capacity/HP
16.8KW/23HP
Engine Displacement/Cylinders
739 cc/2
Fuel Tank Capacity
25 L ( gal)
Demensions
Length (with bucket)
2285 mm
Machine Height
1300 mm
Height to Bucket Hinge Pin
1880 mm
Max Lifting Height
2100 mm
Height From Machine Bottom to Ground
110 mm
Standard Bucket Width
1150 mm
Machine Width
1150 mm
Bucket Capacity
0.15 m³


Products Detail


There are three types loader :
Triangular track type
Parallel track type
Wheel Loader

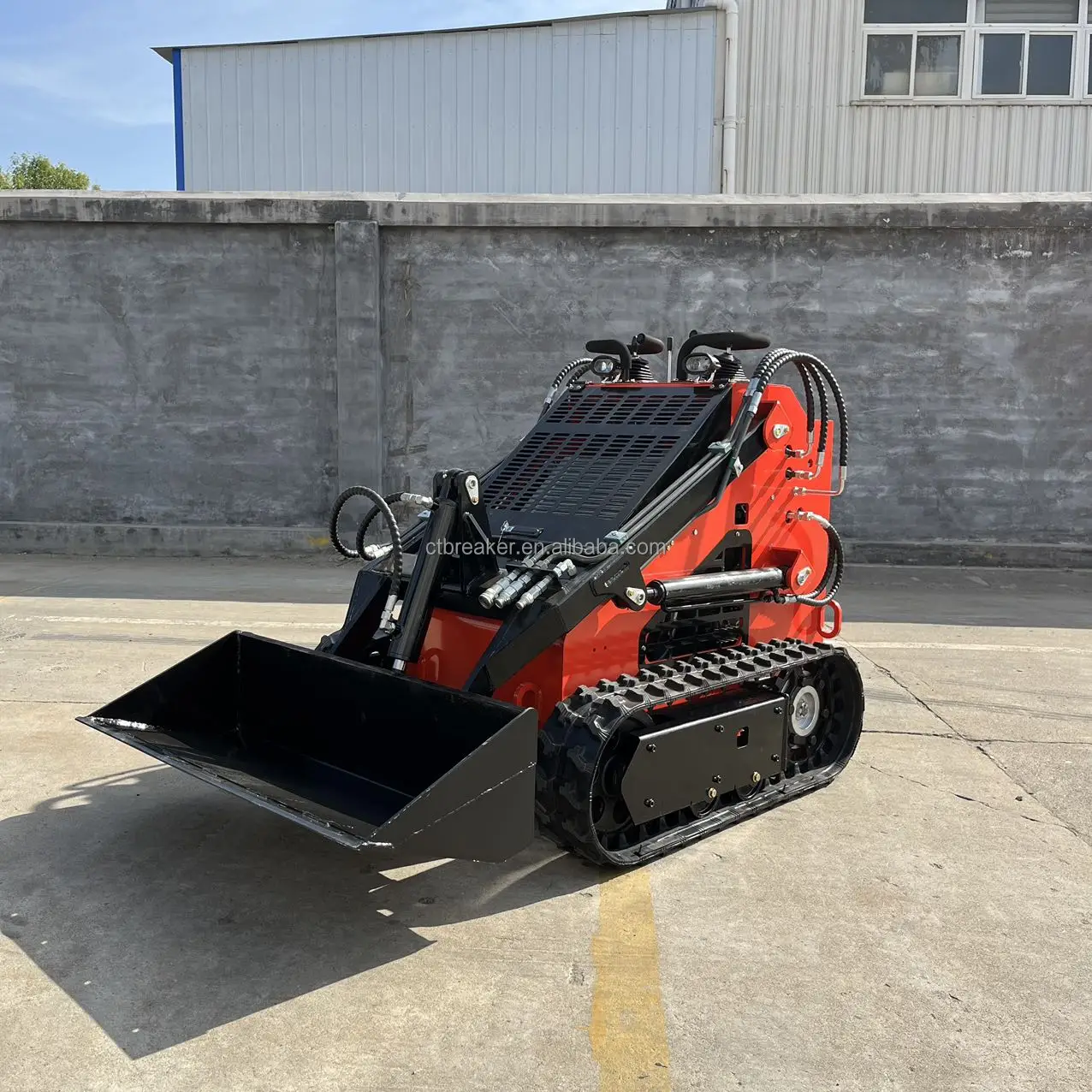

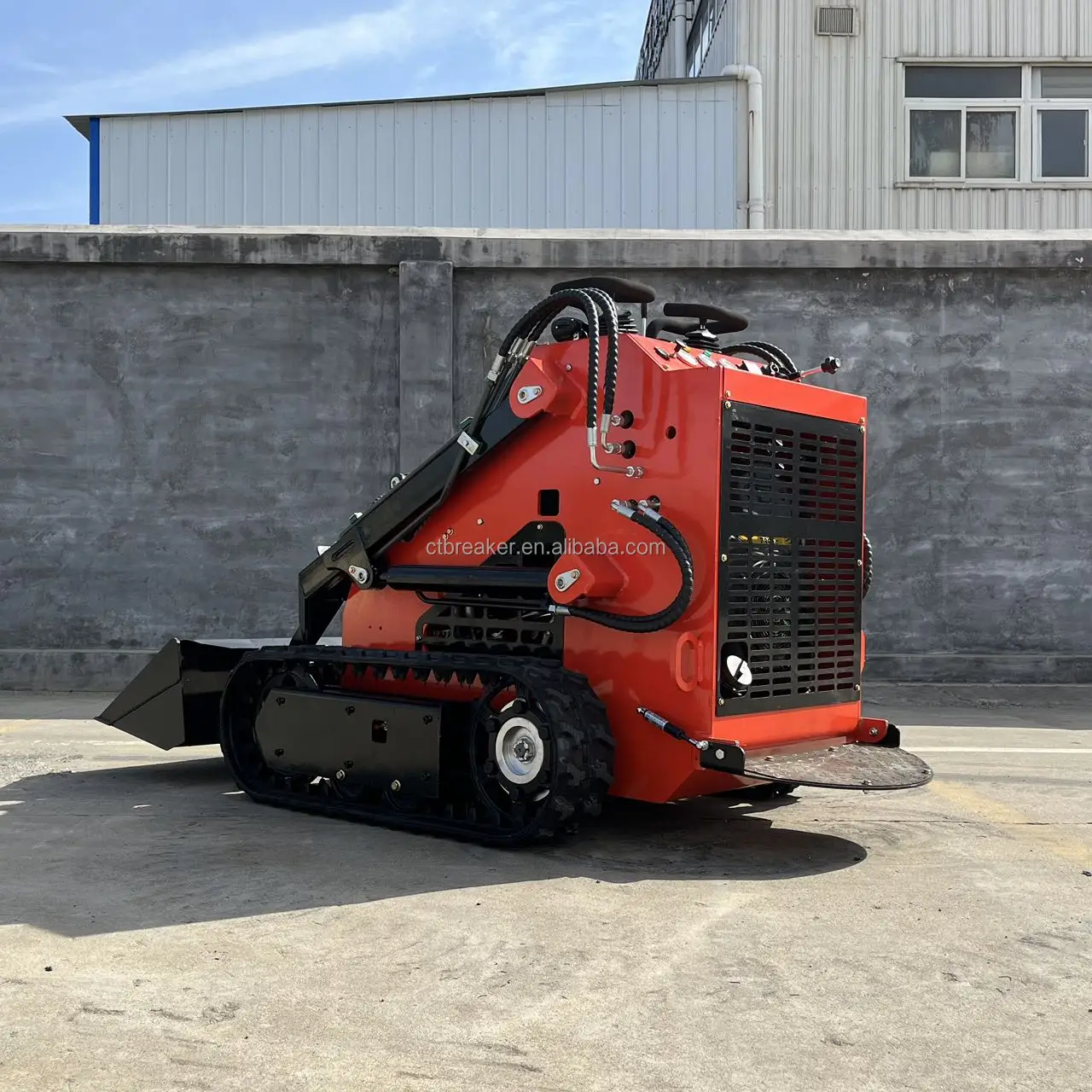

Triangular track type
Triangular track: It is the most stable among the three types when passing through uneven roads or climbing slopes/stairs. It has the best passability.






Parallel track type
Parallel tracks: between triangular tracks and wheel tracks; faster than triangular tracks but slower than wheel tracks.






Wheel Loader
Wheel type: four wheels, fast road speed.






Certifications



Our company's products have passed various global professional certifications such as CE, ISO, BV, SGS, etc.




Exhibition


Our Team
We participate in exhibitions in the United States, Japan, Australia, Saudi Arabia, Germany, France and so on .To increase company
publicity and help local agents promote brand awareness .
