High Quality Aluminum Foil Label Rewinding Sticker Plastic Label Inspection Slitting Machine
- Category: >>>
- Supplier: Hangzhou Prime Intelligent Technology Co. Ltd.Hangzhou Ltd.
Share on (1601358770464):
Product Overview
Description
Product Description

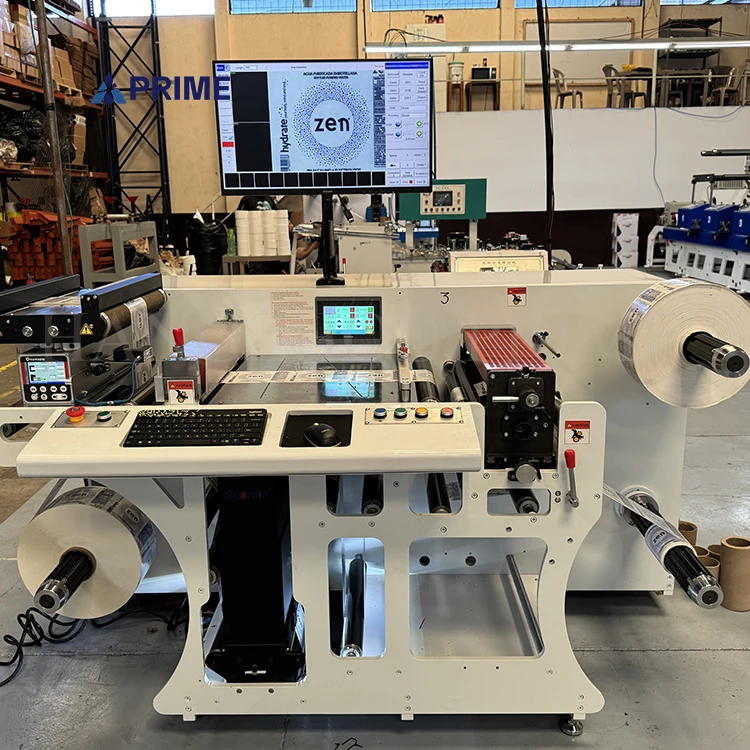

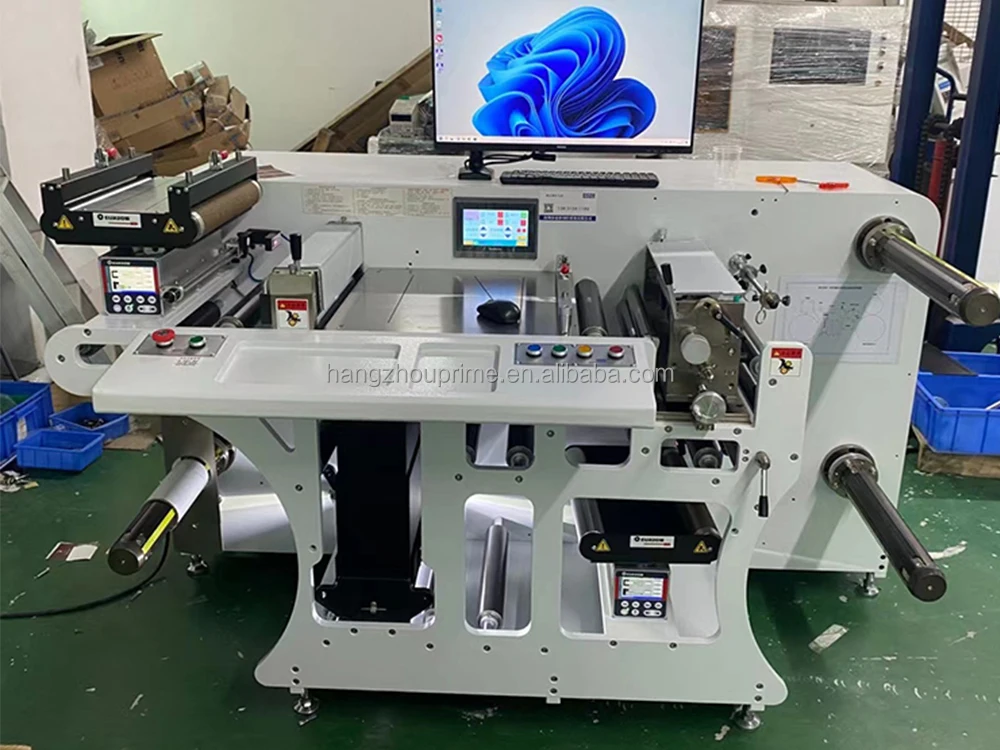

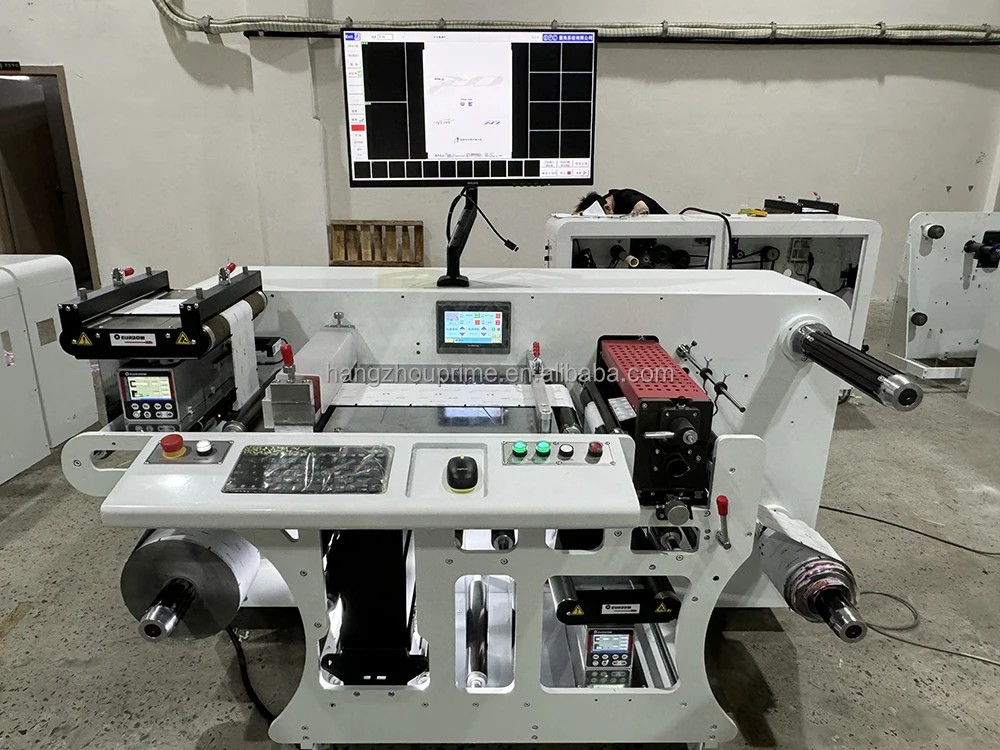

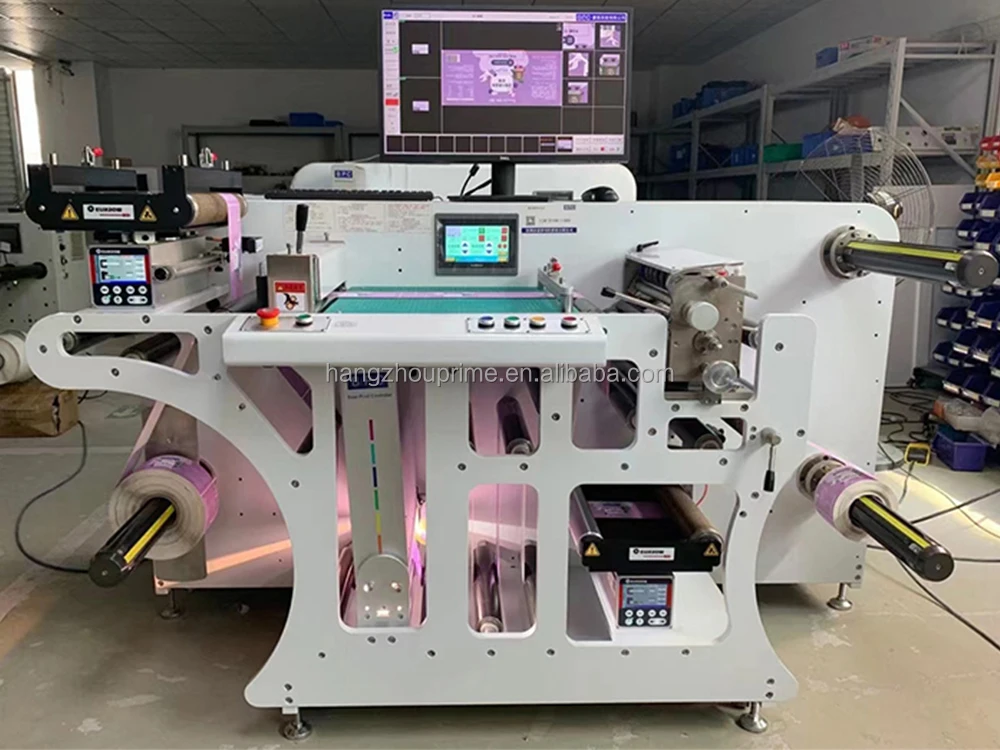

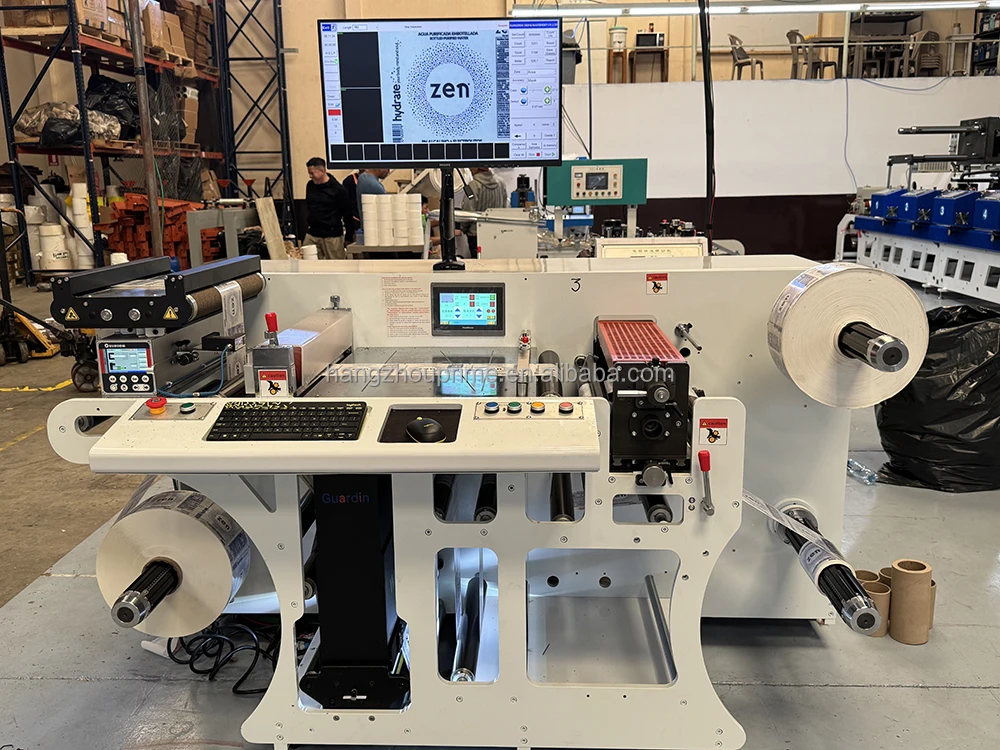

High Quality Aluminum Foil Label Rewinding Sticker Plastic Label Inspection Slitting Machine
The traditional slitting and quality inspection must be completed in two operations. Using this machine, it can be manually operated in one step, and the slitting and quality inspection work can be completed simultaneously, which can greatly save labor time and production equipment costs. Greatly improve efficiency, reduce waste of personnel costs and waste of material costs, the device is simple to operate, efficient, and low-cost, so that your company can better enhance its competitiveness and product quality assurance.
Specification
Model | PM-JBJ-350/450 |
Power supply | 220V 50/60HZ |
Power | 8KW |
Max. Unwinding Width | 330mm |
Max. Detection Size | 320*300mm |
Mini. Detection Size | 50*30mm |
Max. Unwinding Diameter | 700mm |
Max. Rewinding Diameter | 600mm |
Detection Speed | 120 meters/minute (depending on label size, detection content, and detection accuracy, The speed varies, the minimum detection defect is 1mm square) |
High Precision Detection Speed | 50 meters/minute (speed varies according to label size, detection content, detection accuracy) |
Individual Striping Speed | 160 meters/minute |

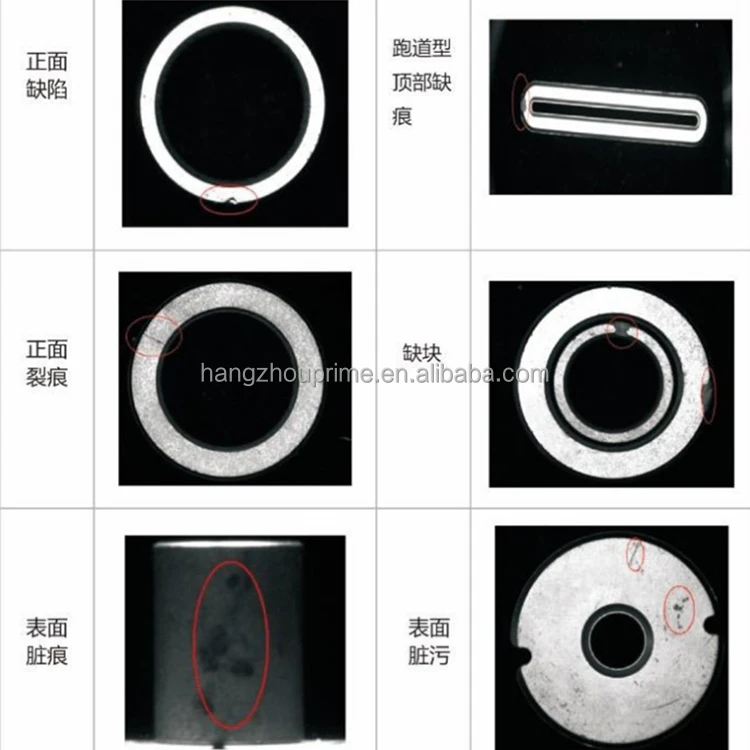

Defect Detection | Pasted characters, missing printing, dirty spots, overprint deviation, color difference, hot stamping, defects |
Barcode Detection | One-dimensional code, EN8, EN13, EN39, EN128, (line spacing ≥ 1.5mm) QR code (size>10*10mm) The barcode must be clear and will vary according to the label content), and does not contain deformable codes. |
Barcode Detection Speed | 80 pieces/second (varies according to different printing conditions) |
Weight | 1600kg |
Machine size | 1900* 1160*1680mm |
Details Images
Unwinding Unit
Rewinding Unit

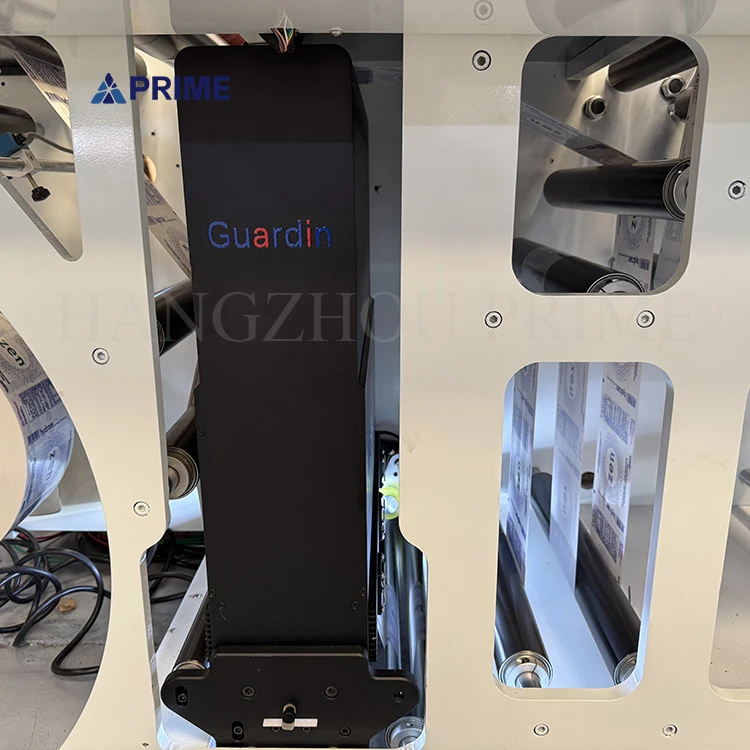

Detection Camera
Detection Screen

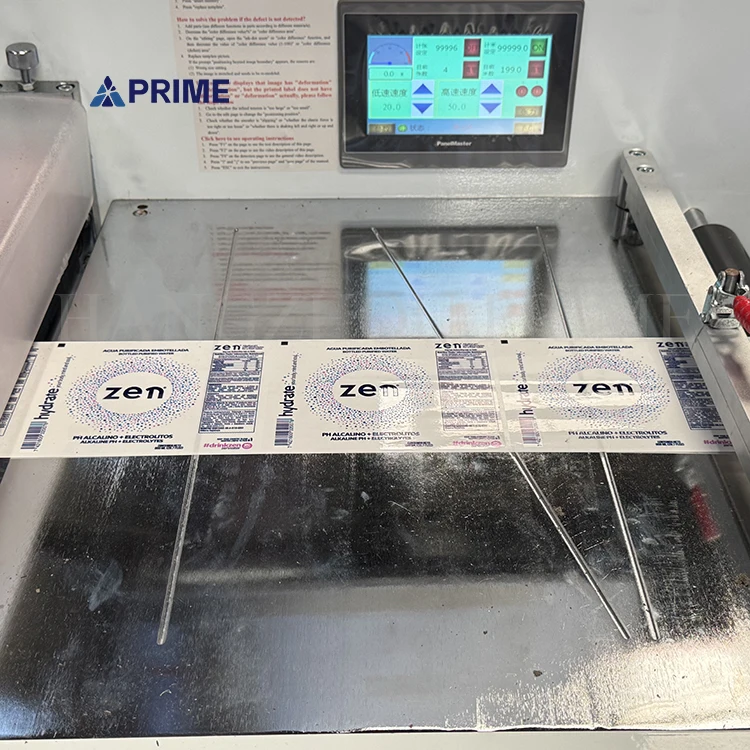

Detection Work Table
PLC Control Panel
Can detect variable code, QR code

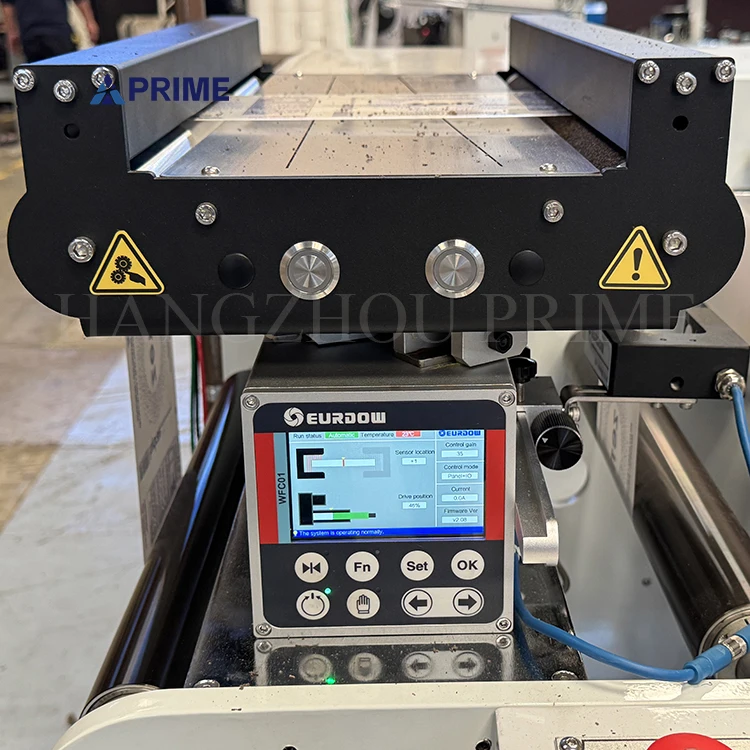

Web Guide System

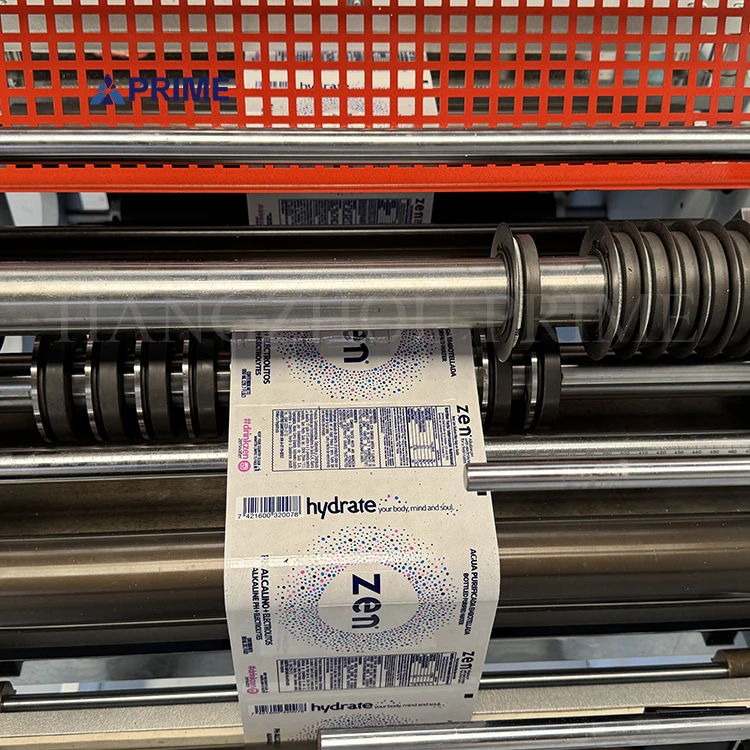

Slitting Unit
Program Storage
Electrical box

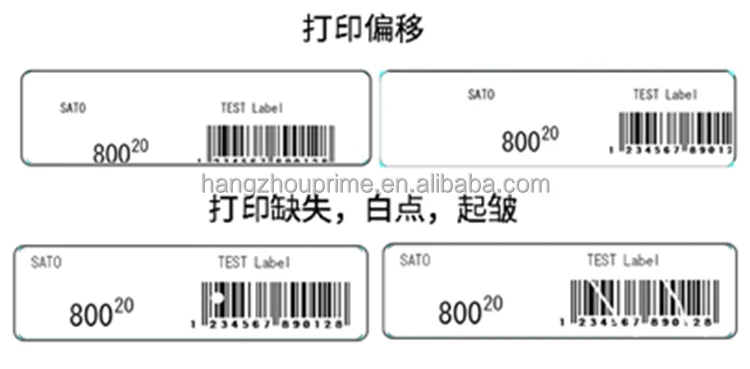

Samples
Our Factory
Packing & Delivery
FAQ
1. Q: Are you trading company?
A: We are the professional manufacture for printing machines.
2. Q: How does your factory do regarding quality control?
A: Quality is priority. We always regard great importance to quality controlling from the very small thing (even a small screw we will choose the best quality) from the beginning.
3. Q: What is your after-sales service?
A: Our after-sales service is first class. We have a powerful team to help you solve problems.The Warranty is one year and if the machine is damaged by natural not by human, we can send the new parts to you for free.
4. Q: What is the terms of payment you accept?
A: 30% T/T in advance, 70% T/T balance before delivery. We also accept L/C and Western Union.
A: We are the professional manufacture for printing machines.
2. Q: How does your factory do regarding quality control?
A: Quality is priority. We always regard great importance to quality controlling from the very small thing (even a small screw we will choose the best quality) from the beginning.
3. Q: What is your after-sales service?
A: Our after-sales service is first class. We have a powerful team to help you solve problems.The Warranty is one year and if the machine is damaged by natural not by human, we can send the new parts to you for free.
4. Q: What is the terms of payment you accept?
A: 30% T/T in advance, 70% T/T balance before delivery. We also accept L/C and Western Union.
