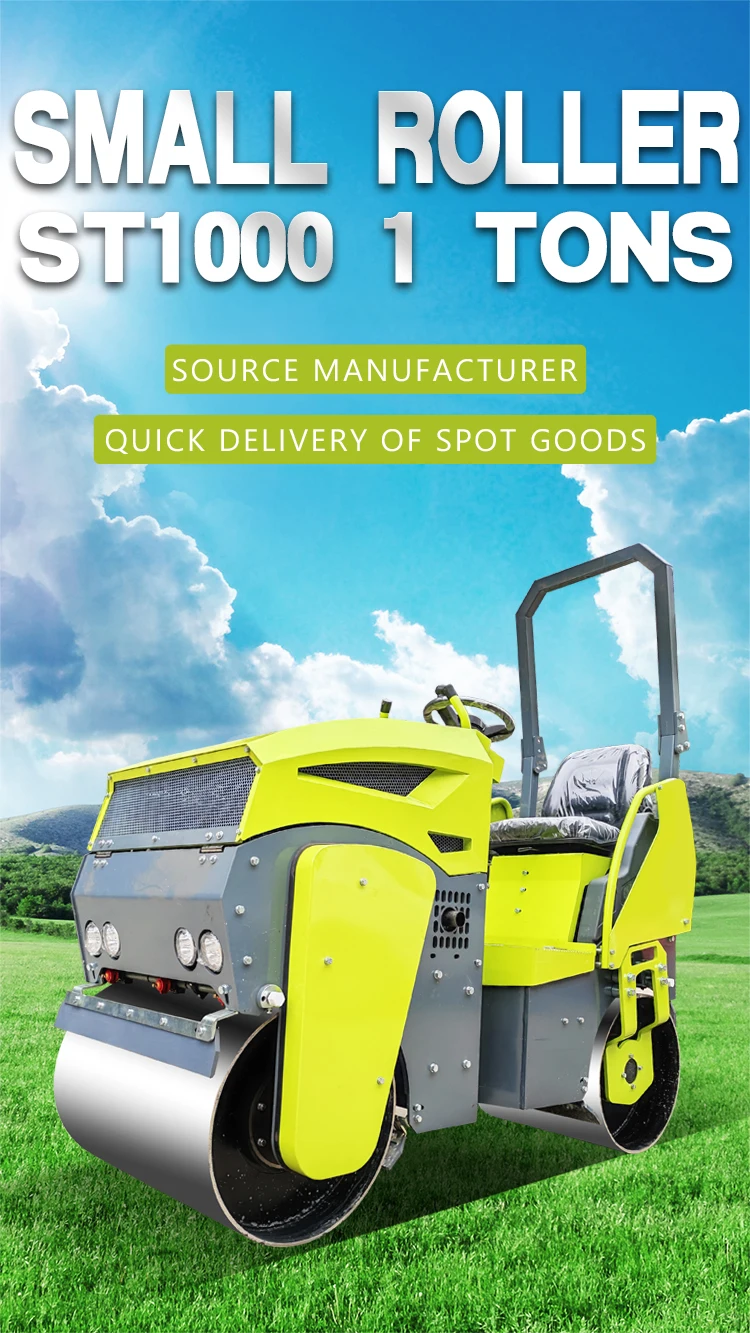

Mini Hydraulic Full Ride On Asphalt Roller Double Drum Vibratory Vibratory Earth Road Roller Asphalt
- Category: >>>
- Supplier: Shandong Storike Engineering Machinery Co. Ltd.Shandong Ltd.
Share on (1601358821477):
Product Overview
Description
Specification
FEATURES
● Equipped with famous brand engine, could guarantee quality stability and excellent performance.
● Hawkeye-shaped body design, wide field of vision and beautiful appearance
● Used international famous brand hydraulic pump and motor, which can be steplessly shifted and walk forward and backward.
● LED display instrument panel and Ergonomic chair.
● Assembled with, working light and warning light, could work at night.
● Passed CE, SGS and ISO certification and won Red Star Award design
● The steel wheels are equipped with outline marker lamps, could ensure the safety of the operator.
● Equipped with famous brand engine, could guarantee quality stability and excellent performance.
● Hawkeye-shaped body design, wide field of vision and beautiful appearance
● Used international famous brand hydraulic pump and motor, which can be steplessly shifted and walk forward and backward.
● LED display instrument panel and Ergonomic chair.
● Assembled with, working light and warning light, could work at night.
● Passed CE, SGS and ISO certification and won Red Star Award design
● The steel wheels are equipped with outline marker lamps, could ensure the safety of the operator.
Model | ST1000 | ST1200 | ST1500 | |||
Operating Weight | 1000 kg | 1200 kg | 1500 kg | |||
Static linear load | 56/77 N/cm | 69.5/68 N/cm | 82 N/cm | |||
Dimensions | ||||||
Size | 1780*825*1985 mm | 1940*930*2125 mm | 2150*1050*2465 mm | |||
Turning radius(outer) | 2600 mm | 2800 mm | 3850 mm | |||
Drum size | 500*700 mm *2 | 560*800 mm*2 | 560*900 mm*2 | |||
Wheel base | 1230 mm | 1356 mm | 1515 mm | |||
Engine | ||||||
Model | Honda/ Changchai | Changchai | Yanmar | |||
Power | 9.7/6 KW | 8.1 KW | 14.7 KW | |||
Rating speed | 3600 rpm | 3600 rpm | 3600 rpm | |||
Driving Character Istics | ||||||
Walking speed | 0-5 Km/h | 0-5 Km/h | 0-6 Km/h | |||
Climbing ability | 30 % | 30 % | 30-35 % | |||
Steering | ||||||
Steering mode | Hydraulic steering | Hydraulic steering | Hydraulic cylinder, articulated steering | |||
Steering system | Swing articulated | Swing articulated | Swing articulated | |||
Exciter System | ||||||
Vibrating drum | Front | Front | Front | |||
Driving Form | Mechanical transmission electromagnetic clutch | Hydraulic motors | Hydraulic motors | |||
Frequency | 65 HZ | 65 HZ | 65 HZ | |||
Amplitude | 0.5 mm | 0.5 mm | 0.5 mm | |||
Centrifugal force | 20 KN | 22 KN | 25 KN | |||
Sprinkler System | ||||||
Type of sprinkling | Pressure | Pressure | Pressure | |||
Capacities | ||||||
Hydraulic oil | 15 L | 22 L | 45 L | |||
Fuel | 5.5-6.5 L | 5.5 L | 36 L | |||
Water | 67 L | 65 L | 160 L | |||
