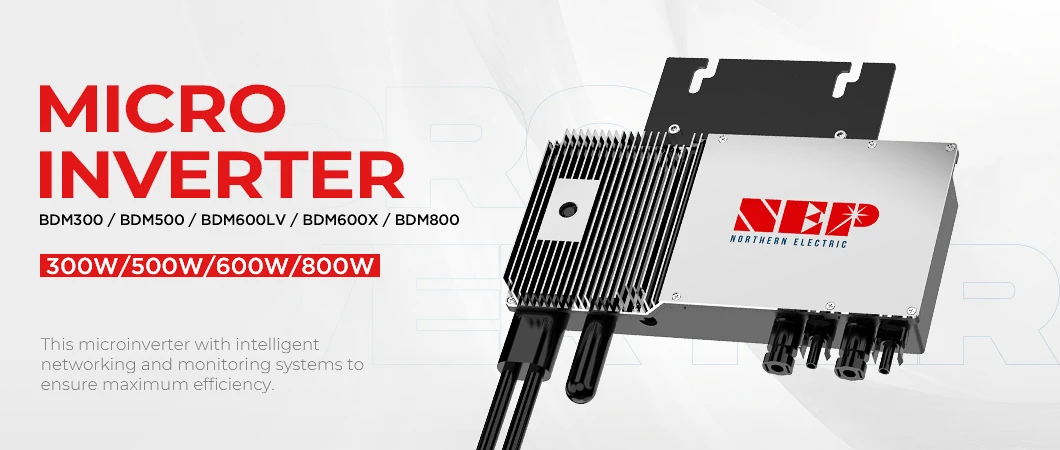

Hot Sale Nep 600W 800W Micro Inverter Low Price Hybrid Micro Inverter on Grid
- Category: >>>
- Supplier: Sail Solar Energy Co. Ltd.Sail Ltd.
Share on (1601358936956):
Product Overview
Description
Products Description
Model | BDM 300 | BDM 500 | BDM 600 | BDM 800 | |||
Recommended Max PV Power | 450W | 750W | 450W*2 | 600W*2 | |||
Max DC Open Circuit Voltage | 60V | ||||||
Max DC Input Current | 14A | 15.5A | 14A*2 | 17A*2 | |||
MPPT Tracking Accuracy | >99.5% | 2X19.5A | 2X19.5A | 4×19.5A | |||
MPPT Tracking Range | 22-55V | 35-55V | 22-55V | 22-55V | |||
Isc PV (absolute maximum) | 18A | 14A | 18A*2 | 20A*2 | |||
Maximum Inverter Backfeed Current to the Array | 0A | 800W | 1000W | 2000W | |||
Rated AC Output Power | 300W | 500W | 500W | 800W | |||
Nominal Power Grid Voltage | 240V/208V/230V | ||||||
Allowable Power Grid Voltage | 211-264*/ 183-228*/ Configurable | ||||||
THD | <3% (at rated power) | ||||||
Nominal Frequency (Hz) | 50HZ/60HZ | ||||||
Maximum Output Fault Current (Aac) | 2.2A PEAK | 4.4A PEAK | 4.4A PEAK | 9.6A PEAK | |||
Maximum Number of Units Per Branch (20A) (All NEC adjustment factors have been considered) | 15/13/14 | 7/6/6 | 7/6/7 | 5/5/5 | |||
Weighted Averaged Efficiency (CEC) | 95.5% | ||||||
Protection | Over/Under Voltage; Over/Under Frequency; Anti-Islanding; Over Current; Reverse DC Polarity; Overload Protection | ||||||
Protection Degree | NEMA-6 / IP-66 / IP-67 | ||||||
Ambient Temperature | -40°F to +149°F (-40°C to +65°C) | ||||||
Operating Temperature | -40°F to +185°F (-40°C to +85°C) | ||||||
Display | LED LIGHT | ||||||
Comunications | Power Line | ||||||
Dimension (W-H-D) | 7.09” x7.32” x 0.98” (180x186x25 mm) | 10.91”x5.20”x1.97”(277x132x50 mm) | 10.91”x5.20”x1.97”(277x132x50 mm) | 8.8”x8.2”x1.38” (268x250x42 mm) | |||
Weight (including AC cable) | 3.3 lbs. (1.5 kg) | 8.8 Ibs. (4.0 kg) | 6.4 Ibs. (2.9 kg) | 6.4 Ibs. (2.9 kg) | |||
Environment Category | Indoor and outdoor | ||||||
Wet Location | Suitable | ||||||
Pollution Degree | PD3 | ||||||
Overvoltage Category | II(PV), III (AC MAINS) | ||||||
Product Safety Compliance | UL 1741 CSA C22.2 No. 107.1; IEC/EN 62109-1 IEC/EN 62109-2 | ||||||
Grid Code Compliance* (Refer to the label for the detailed grid code compliance) | IEEE 1547; VDE-AR-N 4105* VDE V 0126-1-1/A1 G83/2, CEI 021 AS 4777.2 & AS 4777.3,EN50438 | ||||||

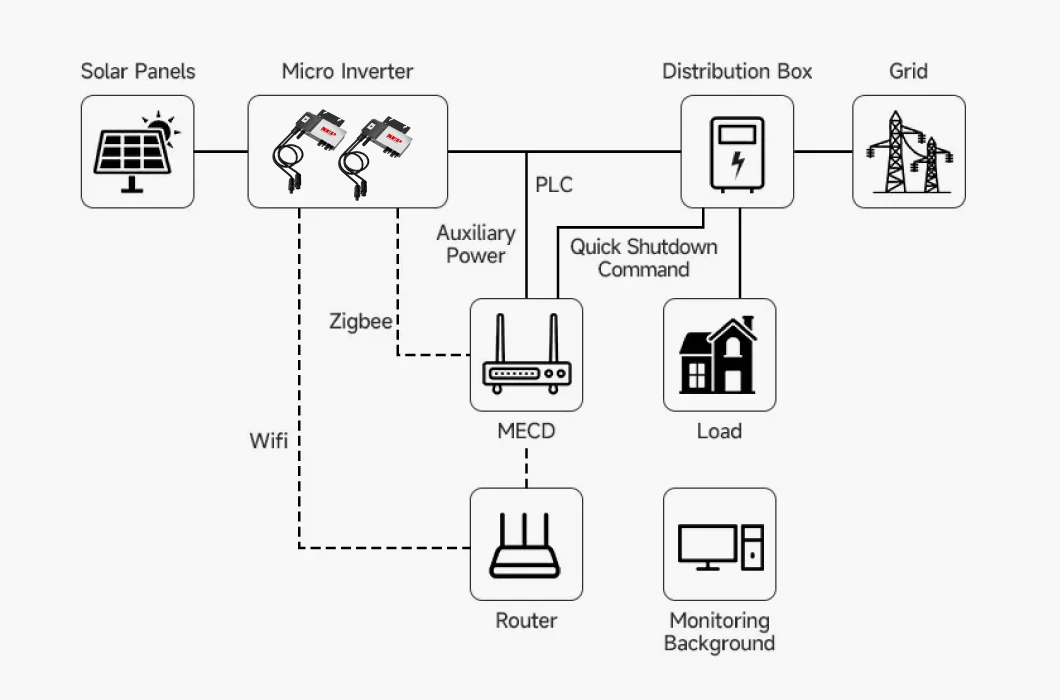

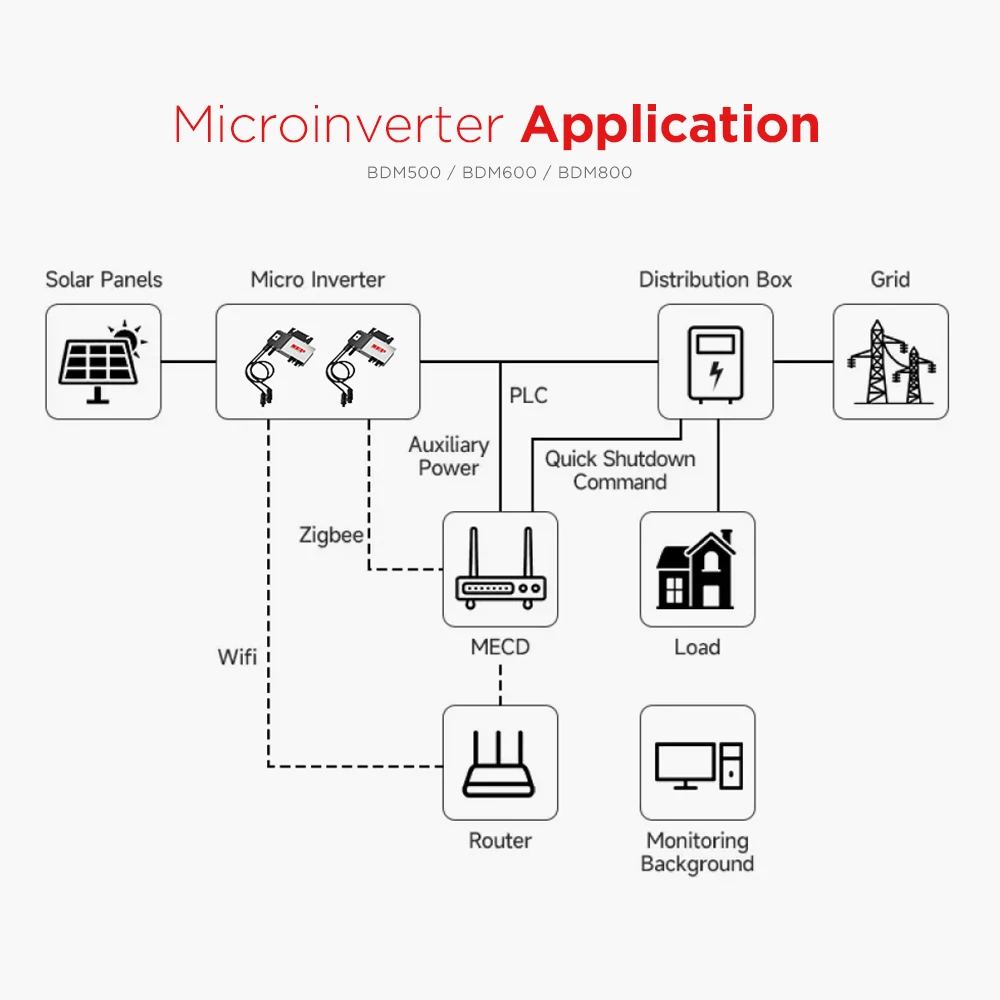

System Connection
How does this work?
The above illustration shows basic application on of this inverter. It also includes following devices to have a Complete running system.
- Generator or Utility
- PV modules
Consult with your system integrator for other possible system architectures depending on your requirements. This inverter can power all kinds of appliances in home or office environment, including motor type appliances such as refrigerator and air conditioner.

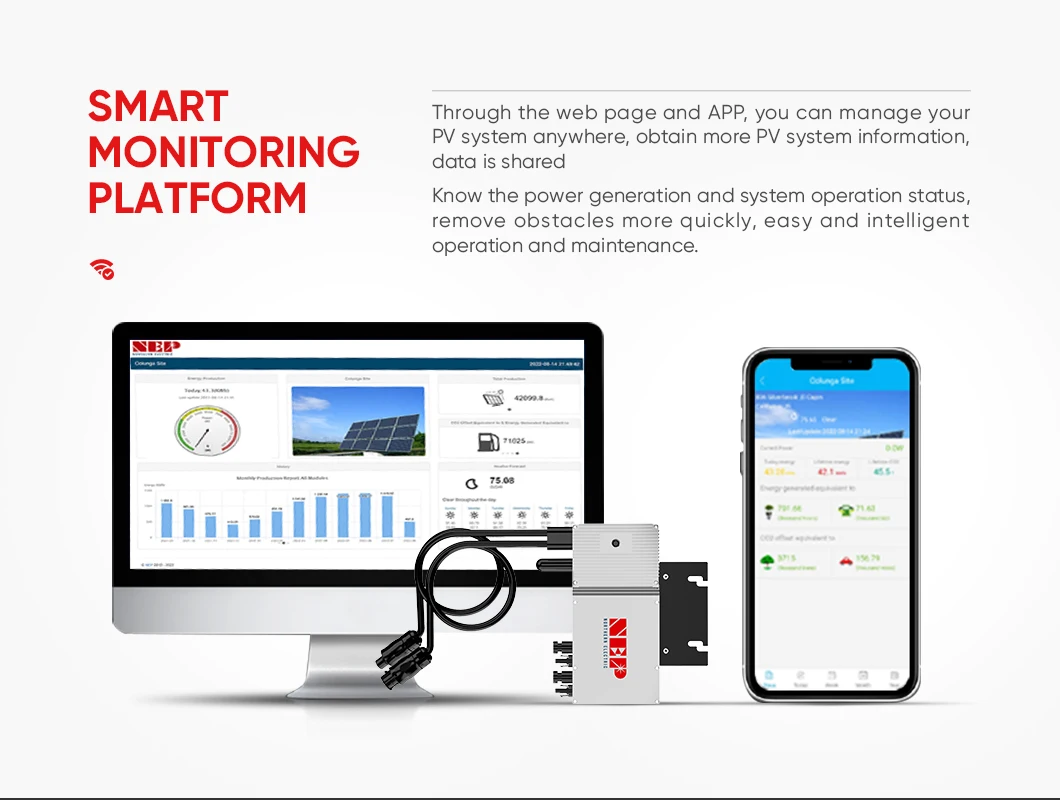

Intelligent Monitoring
* Open station supports one-click installation and registration
* Problem support one-click dispatch and navigation
* Safe operation, traceable logs, etc
* Support full lifecycle data storage to ensure data security and reliability
* Problem support one-click dispatch and navigation
* Safe operation, traceable logs, etc
* Support full lifecycle data storage to ensure data security and reliability

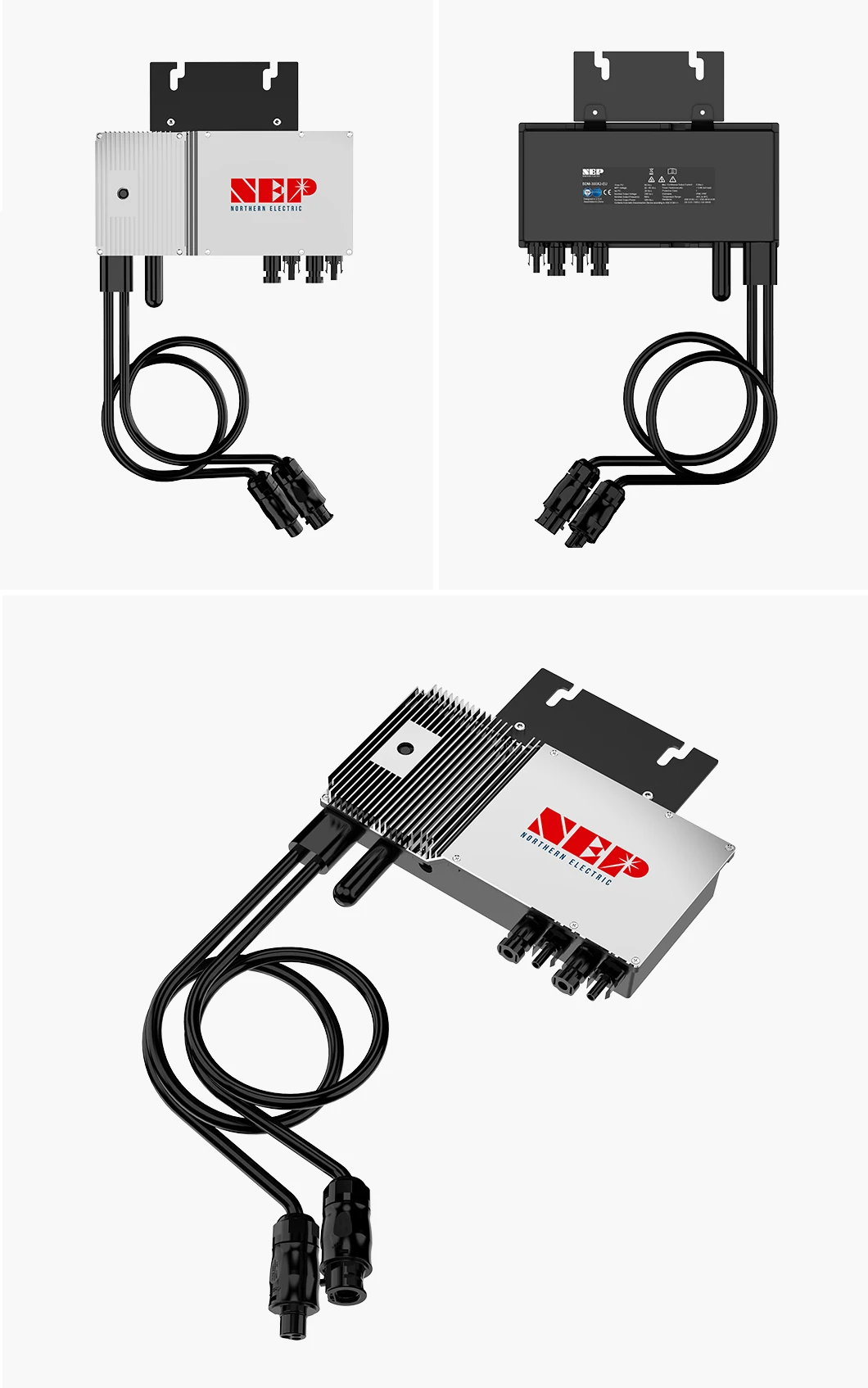

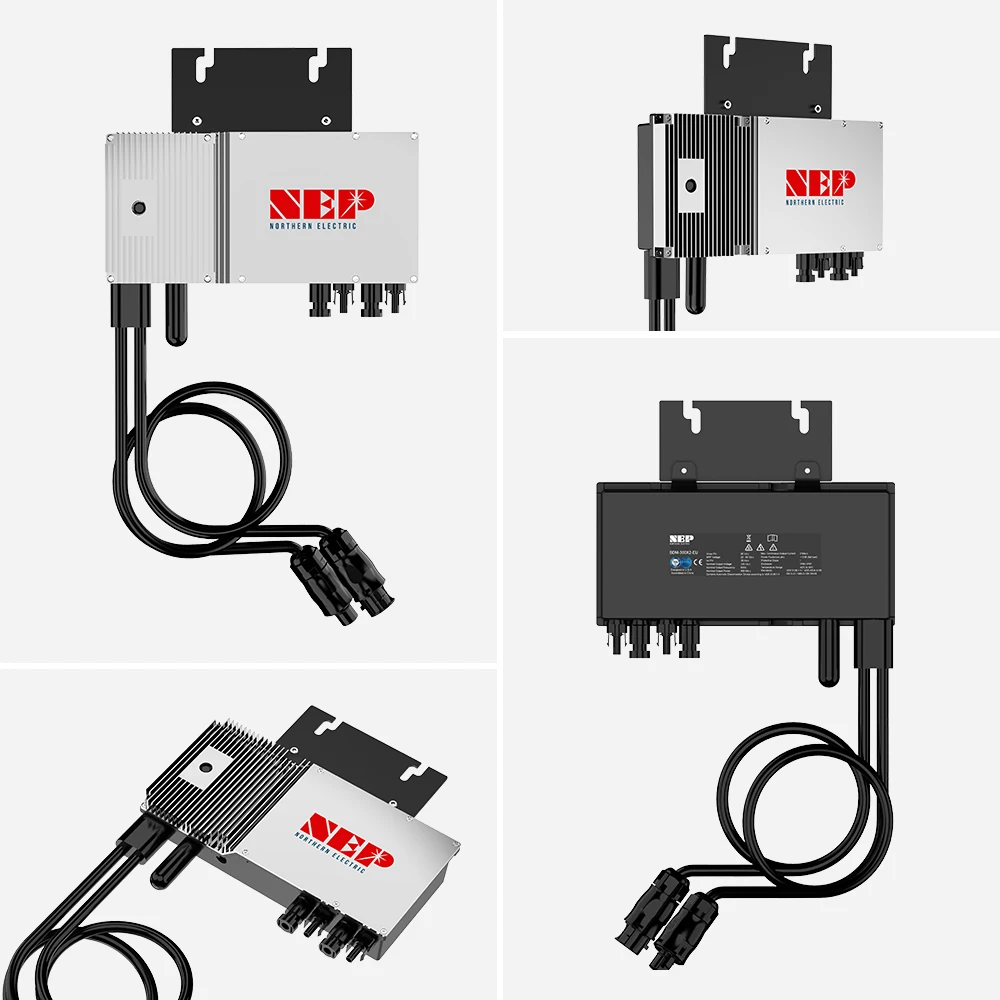

Details Images

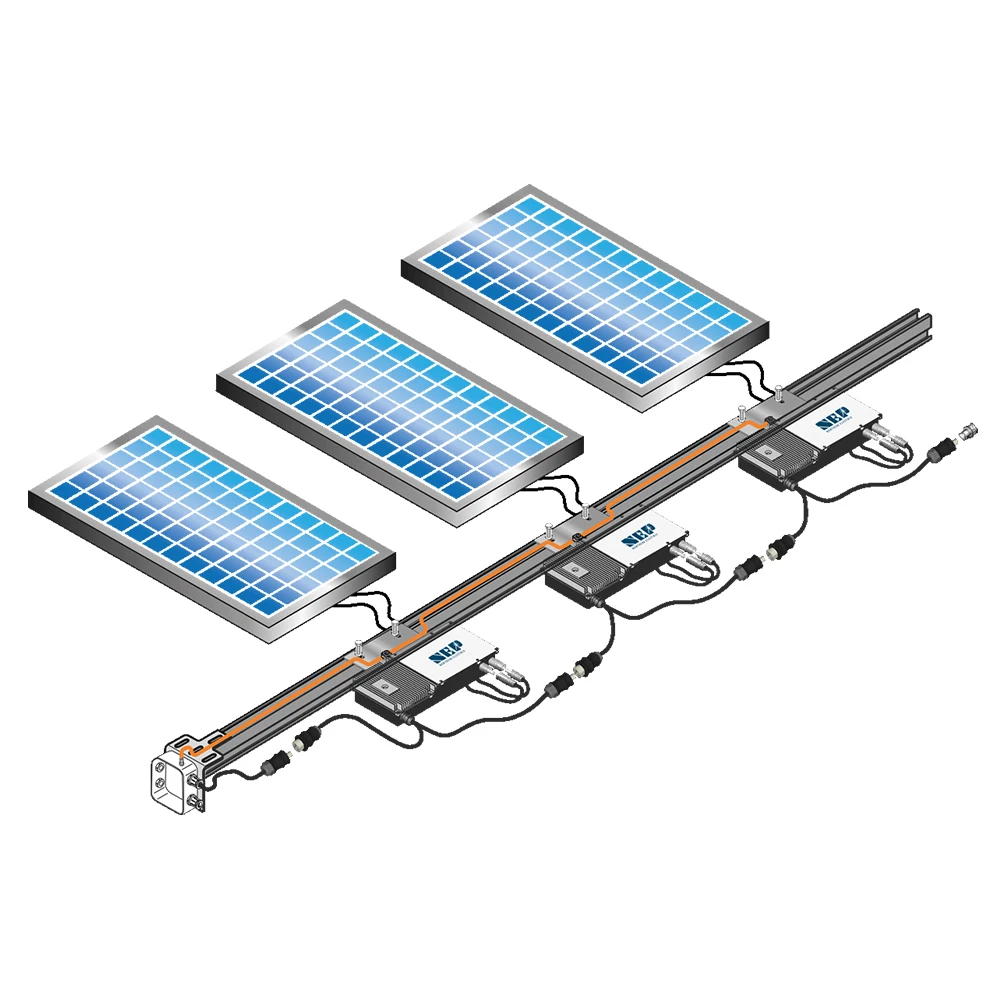

-Simple to install.
The Microinverter is placed in the same structure as the solar panels and the cable connections are made through its own connectors.
-High efficiency and excellent profits.
-High efficiency and excellent profits.
With maximum conversion efficiency of up to 95.5%. Take full advantage of the power of solar energy with MPPT technology.
-Innovation.
Creating impact with innovation, which is why at NEP, with 10 years of experience, we want to continue to revolutionize and contribute to the care of the environment.

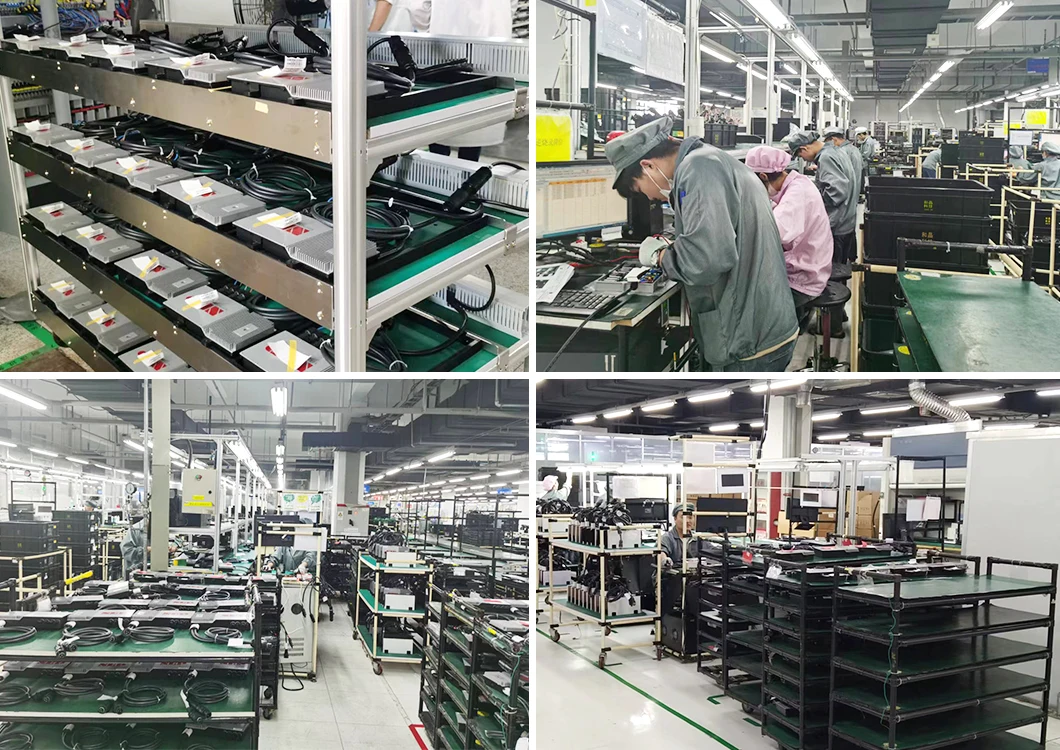

Our Factory
11 years of engineering and management experience in leading companies.
The company’s mission is to develop cutting-edge clean energy technologies and provide state-of-the-art solar inverter products to its customers.
Package and Delivery
Packing Details : In carton on pallet or wooden box
Delivery Details : 5-15 working days
Delivery Details : 5-15 working days

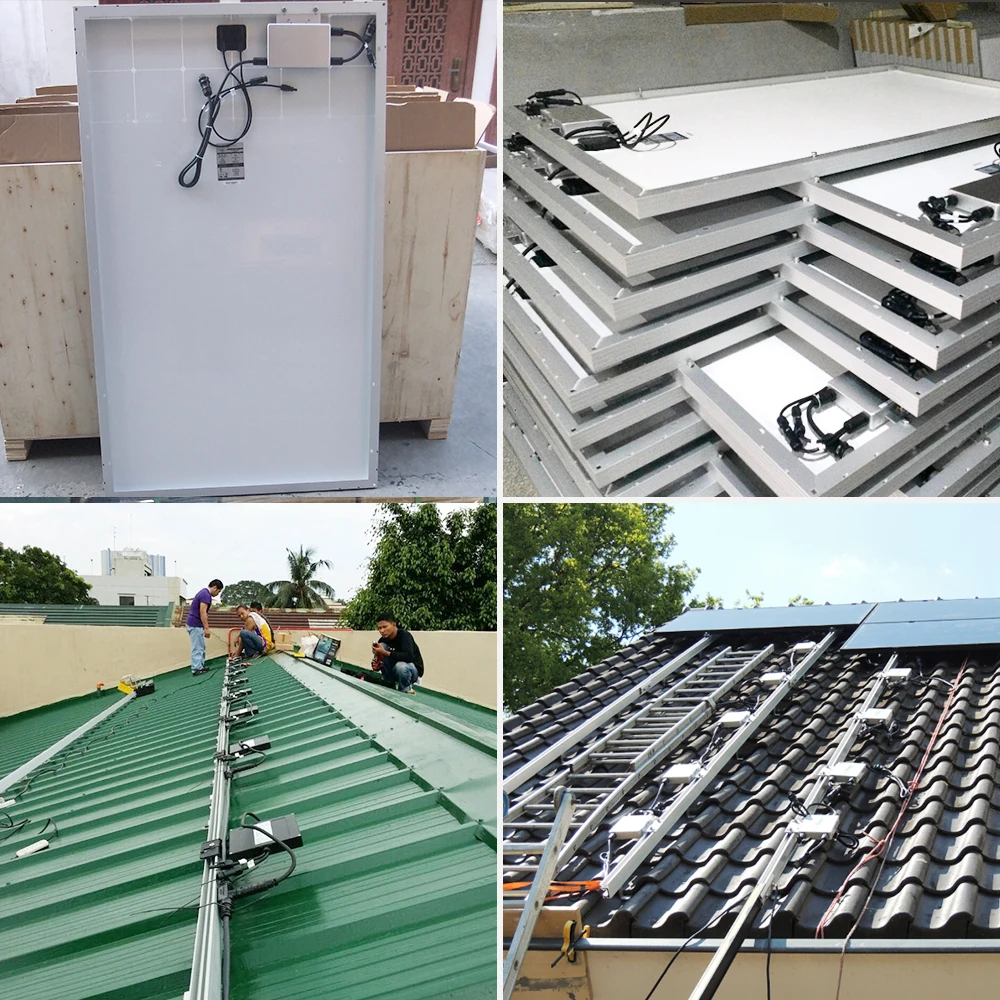

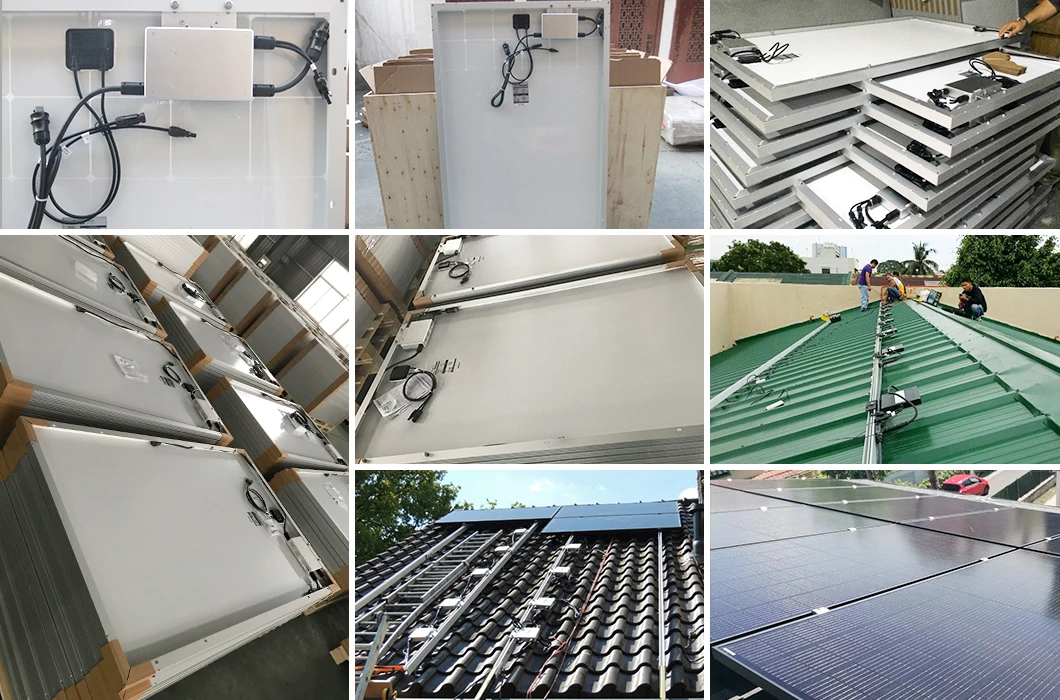

Projects
NEP Micro Inverter Solar Systems All Over the World
Contact
Cel/WhatsApp/Wechat: +86 186 5518 6412 Email: Draymond(at)sailsolarpv.com
