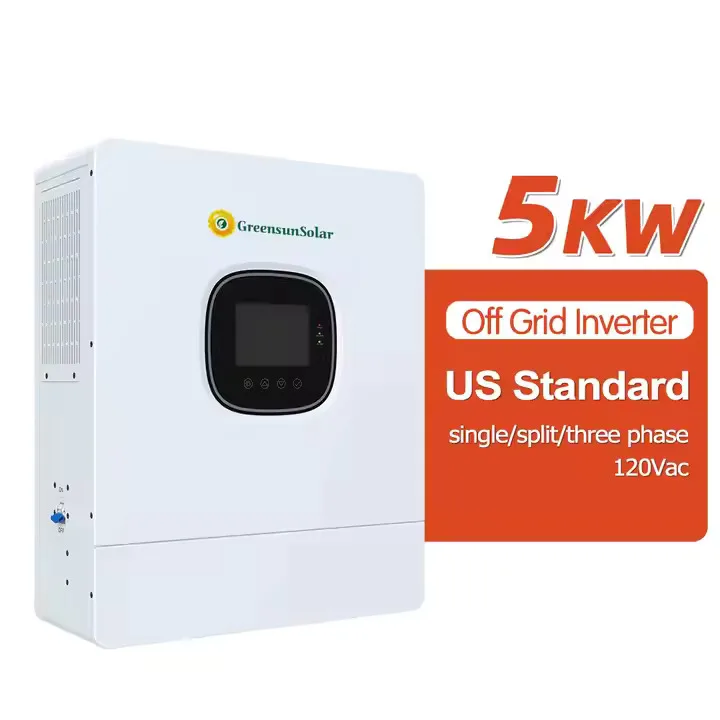

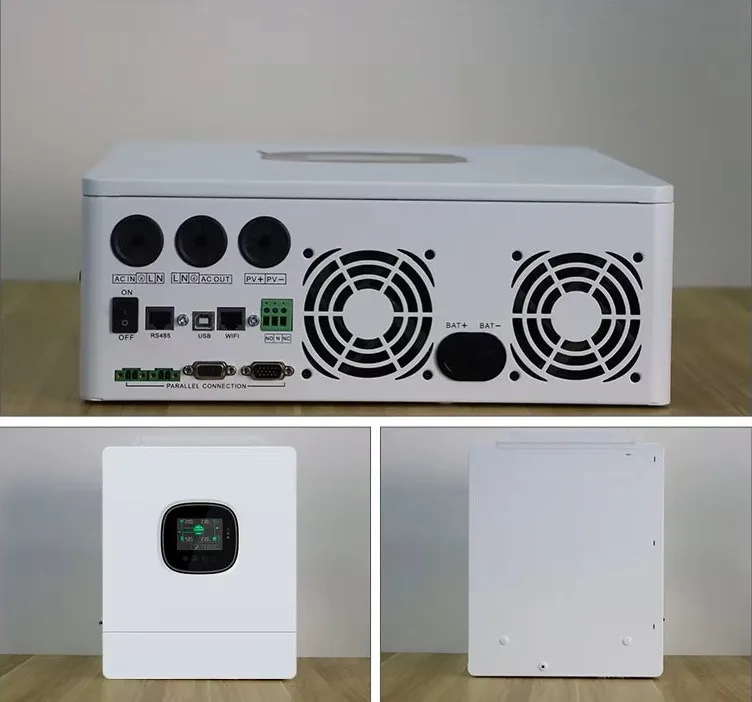

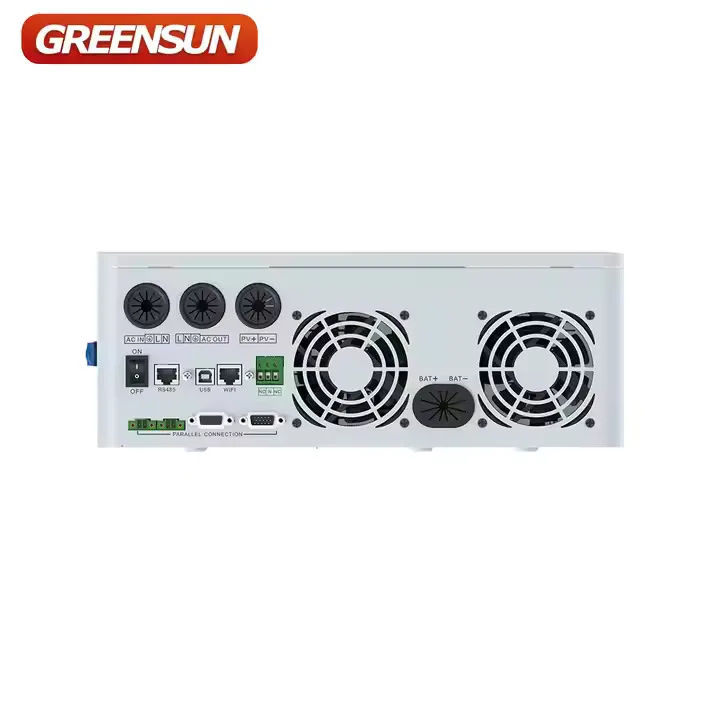

Greensun Customized version energy storage off grid 5kw 48v single phase inverter 5kw solar power system for home
- Category: >>>
- Supplier: Greensun Solar PowerGreensun Power
Share on (1601358968360):
Product Overview
Description
Product Description
Specification
5kw off grid inverter(US version) | ||||||||||
Models | GSYP 5K-S | SPI-5K-UP | SPI-6K-UP | SPI-6.5K-UP | SPI-10K-UP | |||||
INVERTER OUTPUT | ||||||||||
Rated Output Power | 5KW | 5KW | 6KW | 6.5KW | 10KW | |||||
Max. peak power | 10000W | 10,000VA | 12,000VA | 13,000VA | 20,000VA | |||||
Output Voltage | 230Vac, single-phase or three-phase when in parallel | |||||||||
Load Capacity of Motors | 4HP | |||||||||
Output Frequency | 50/60Hz | |||||||||
Output Wave | Pure Sine Wave | |||||||||
Transfer Time | 10ms | |||||||||
BATTRY | ||||||||||
Battery Type | Li-ion / Lead-acid | |||||||||
Rated Battery Voltage | 48Vdc | |||||||||
Battery Voltage Range | 40～60Vdc | |||||||||
Max. PV Charging Current | 100A | 110A | 130A | 140A | 200A | |||||
Max. Mains / Generator Charging Current | 60A | 60A | 70A | 80A | 120A | |||||
Max. Hybrid Charging Current | 100A | 110A | 130A | 140A | 200A | |||||
PV INPUT | ||||||||||
Num. of MPPT | 1 | |||||||||
Max. PV Array Power(W) | 5,000W | 5,500+5,500 | ||||||||
Max. Input Current(A) | 22A | 22+22 | ||||||||
Max. Open-circuit Voltage(Vdc) | 500V | 550+550 | ||||||||
UTILITY / GENERATOR INPUT | ||||||||||
Input Voltage Range | 120~500Vac | |||||||||
Input Frequency | 50/60Hz | |||||||||
Parallel Interface | Support Parallel | 63A | ||||||||
Packing & Delivery

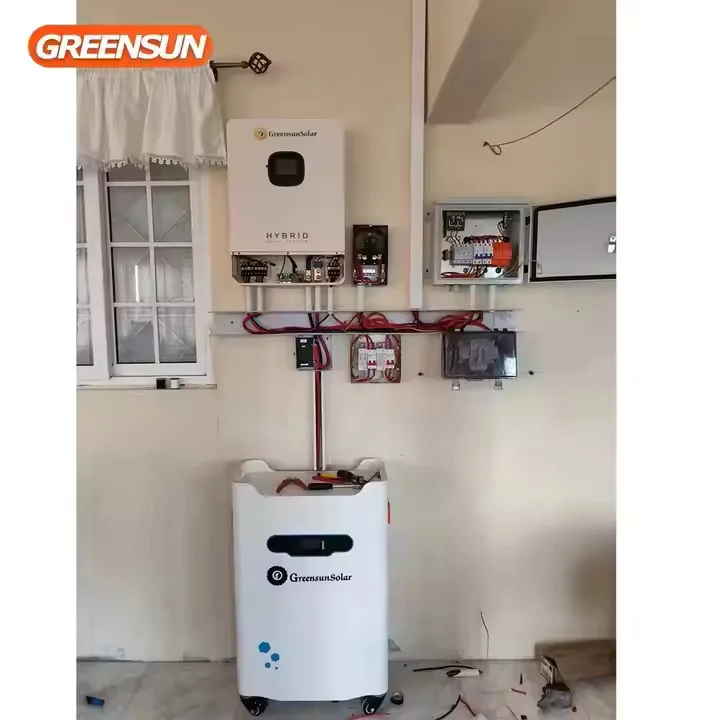

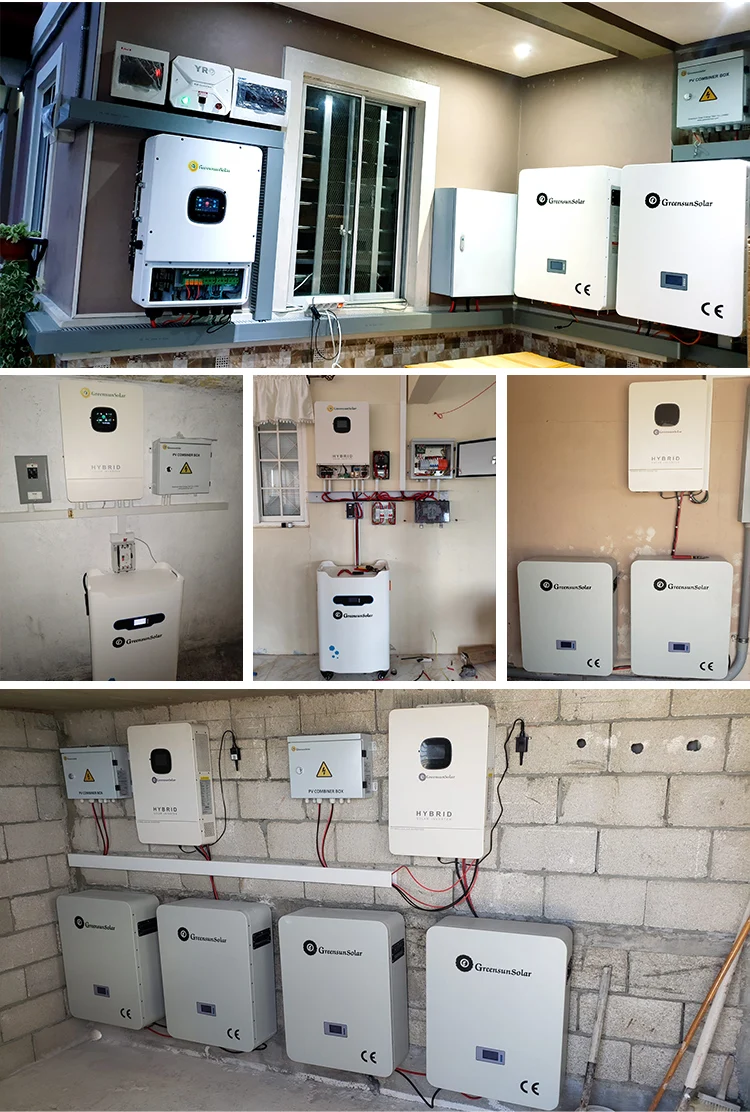

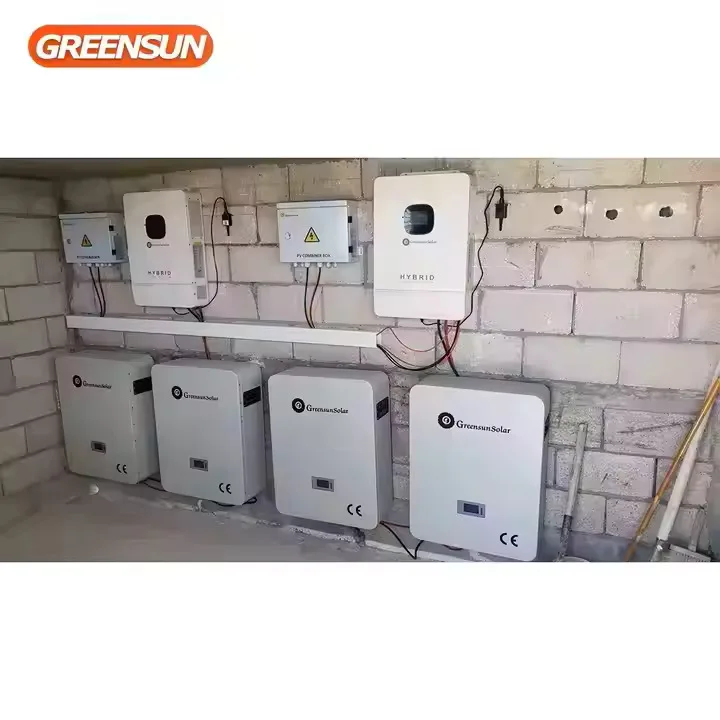

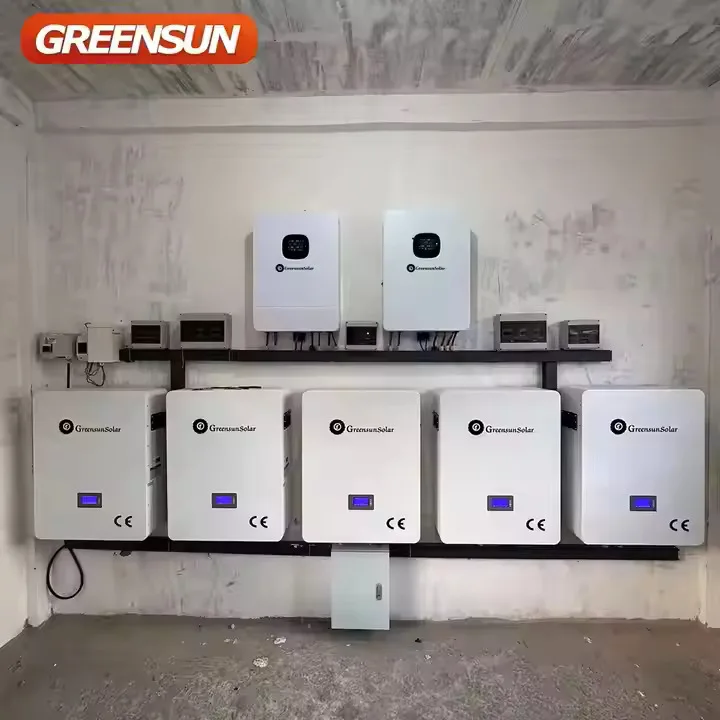

Projects
