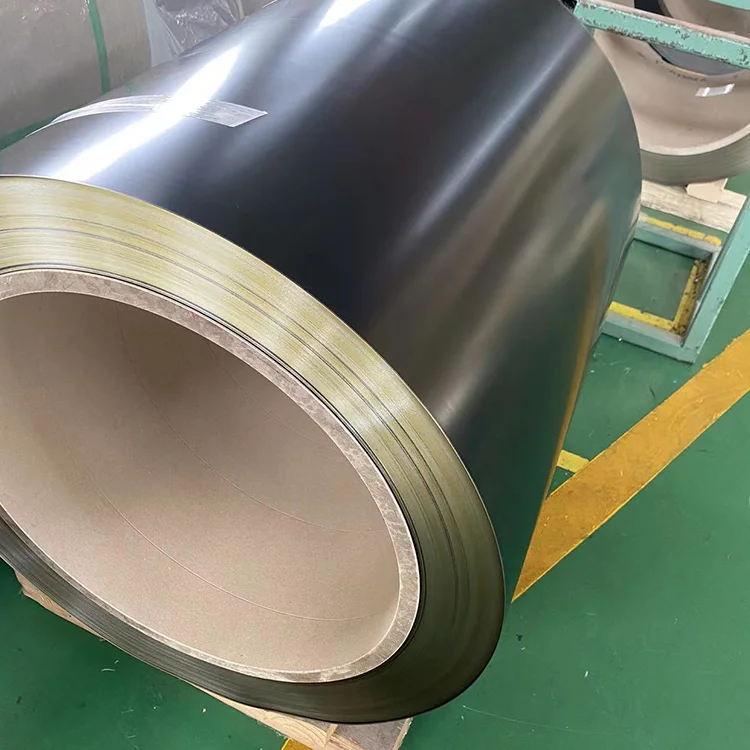

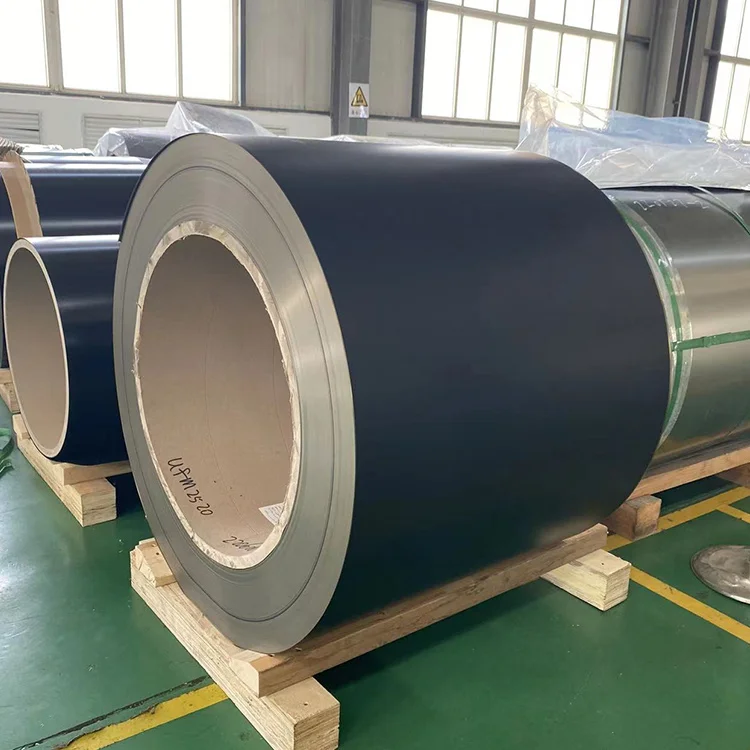

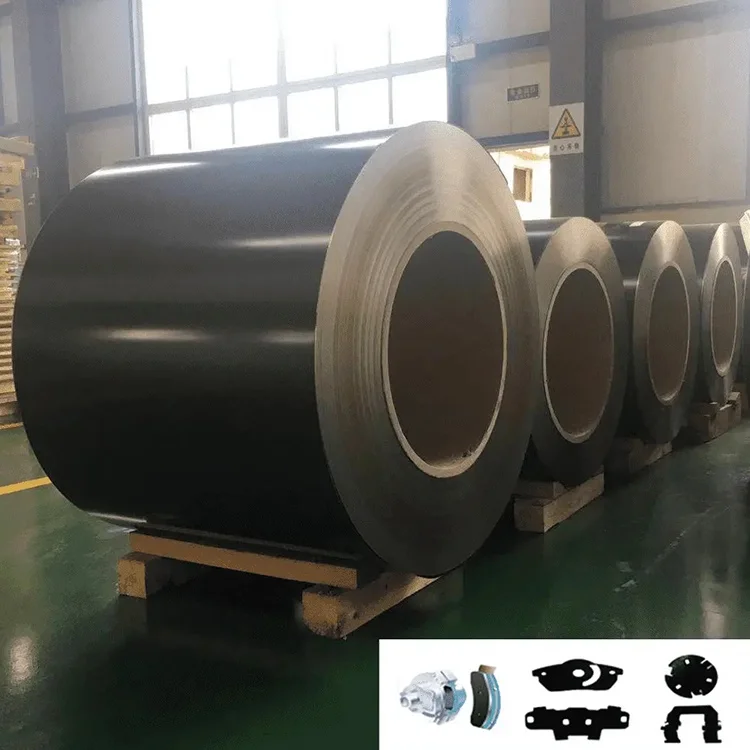

NBR Coated Stainless Steel Coil/Strip NBR & FKM Coating Steel Material
- Category: >>>
- Supplier: Hengshui Hongwo Technology Co. Ltd.Hengshui Ltd.
Share on (1601359013183):
Product Overview
Description
Product Description

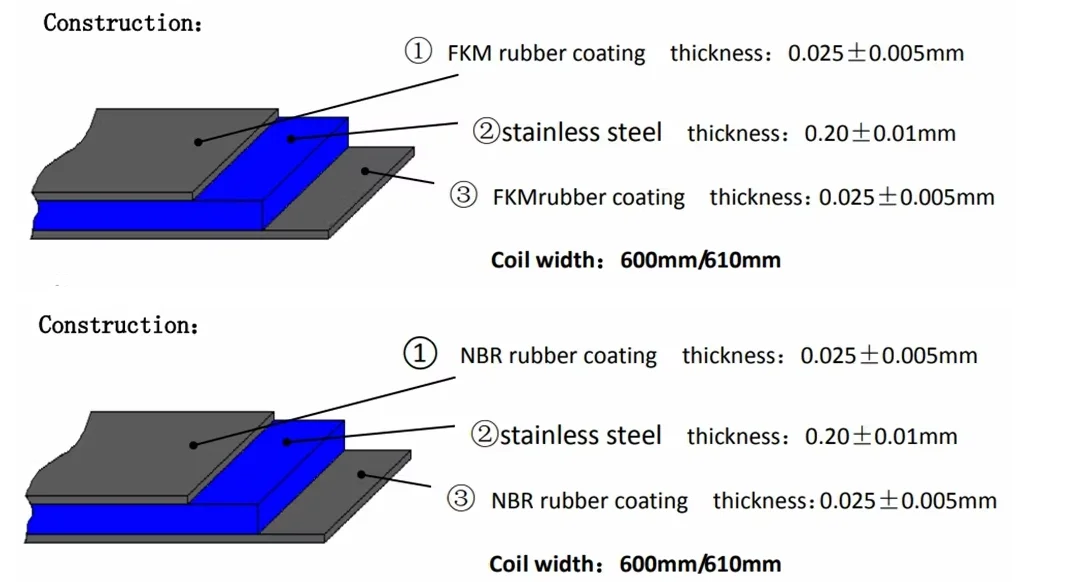

Style | Overall thickness | Metal substrate | Rubber coating | MAX Width | ||||
Material | Thickness | Material | Thickness | |||||
NCN3025 | 0.30mm | SPCC | 0.25mm | NBR | 0.025mm per side | 800mm | ||
NCN3825 | 0.38mm | SPCC | 0.25mm | NBR | 0.065mm per side | 800mm | ||
NSN2520 | 0.25mm | SUS301 | 0.20mm | NBR | 0.025mm per side | 610mm | ||
NSN3025 | 0.30mm | SUS301 | 0.20mm | NBR | 0.025mm per side | 610mm | ||
NSN3825 | 0.38mm | SUS301 | 0.20mm | NBR | 0.065mm per side | 610mm | ||
FSF2520 | 0.25mm | SUS301 | 0.20mm | FKM | 0.025mm per side | 610mm | ||
FSF3025 | 0.30mm | SUS301 | 0.25mm | FKM | 0.025mm per side | 610mm | ||

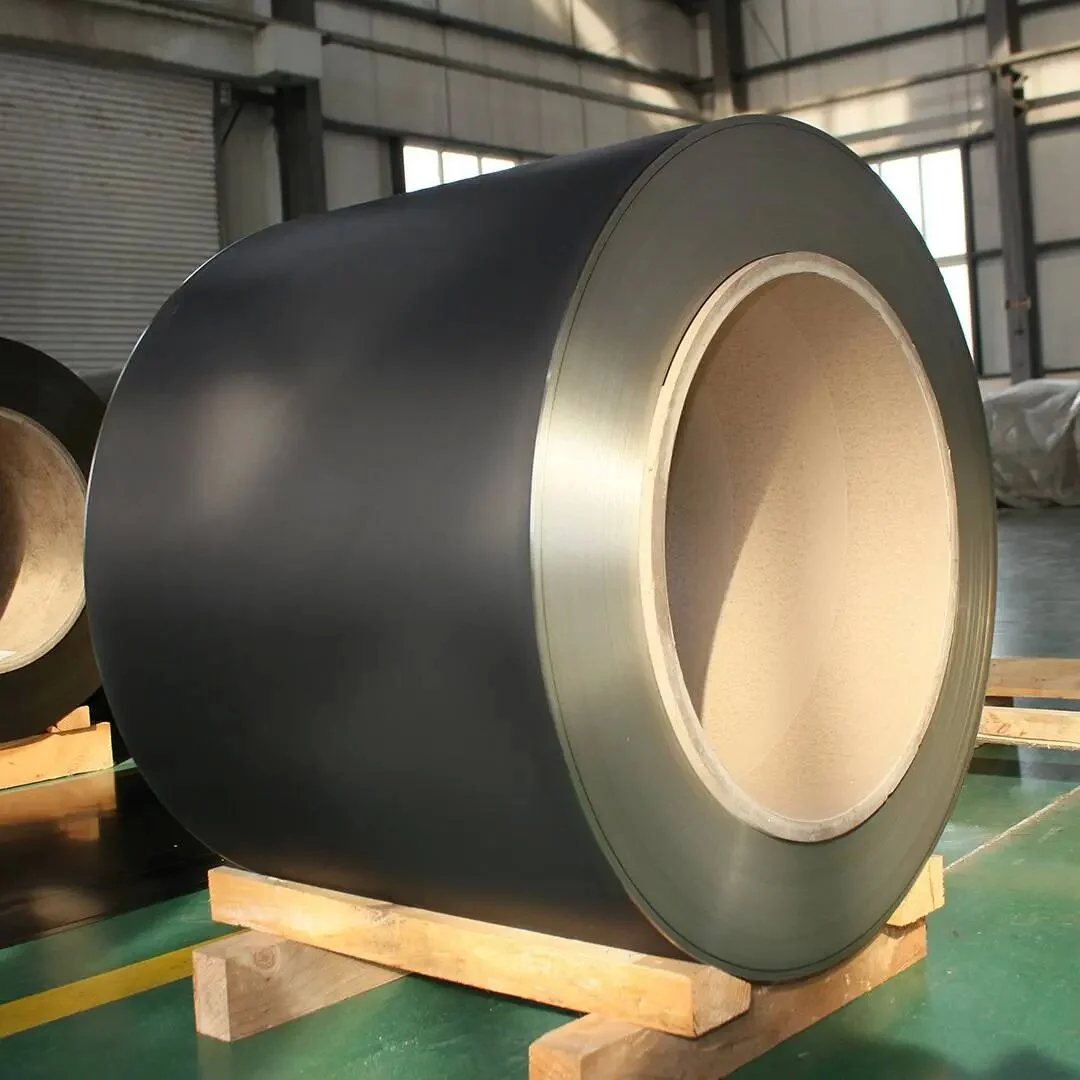

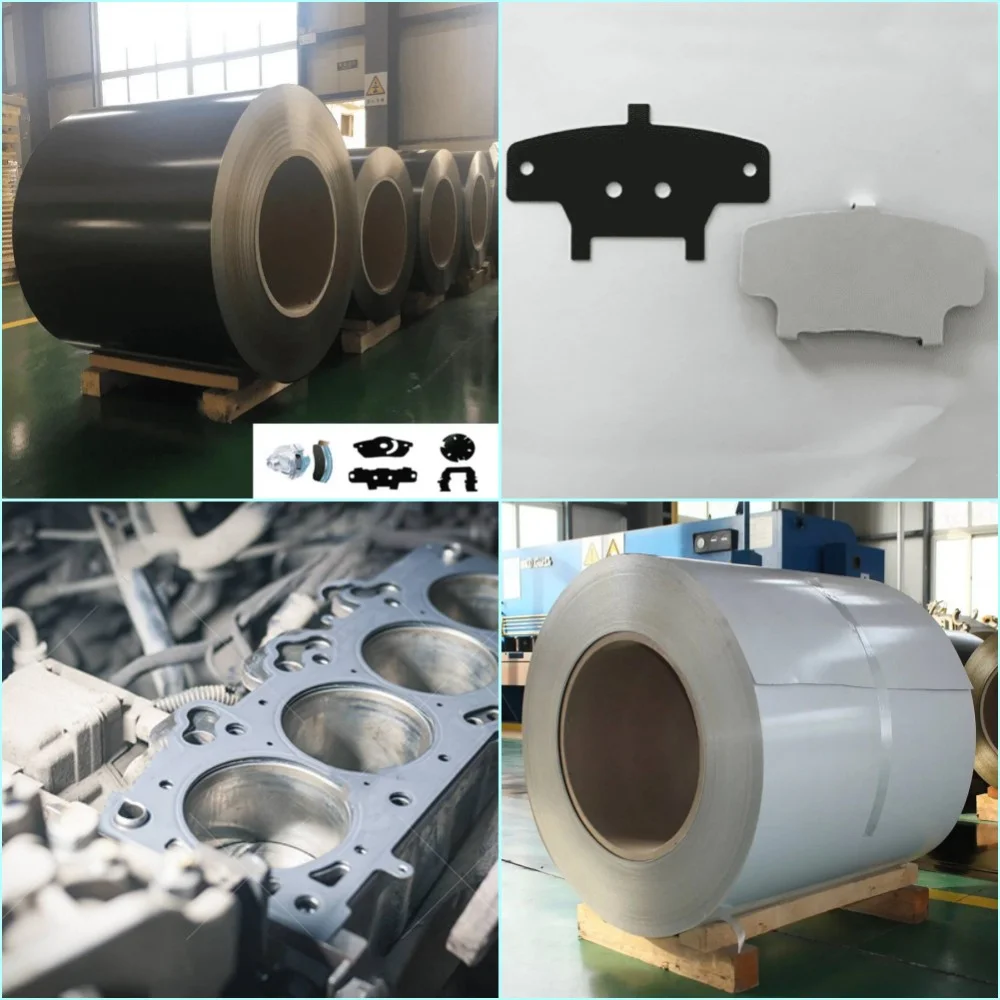

Rubber coated metal coil sheet
Rubber coated metal sheet (RCM sheet) is made from metal substrate coated with thin NBR rubber or other rubber layers through
advanced processing technology.

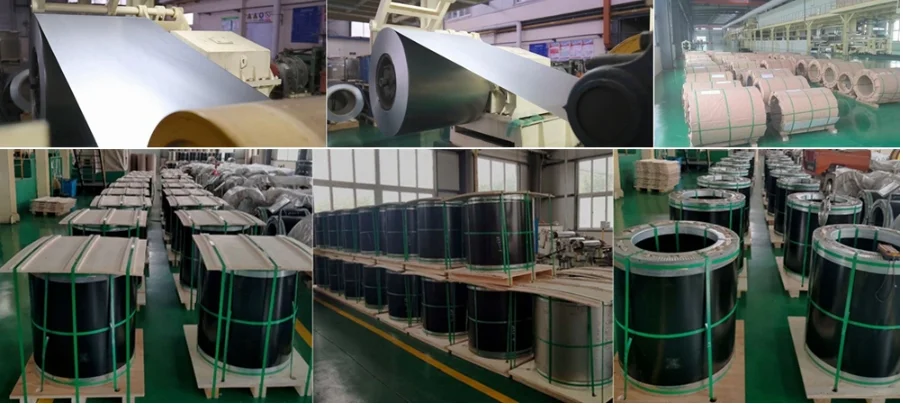

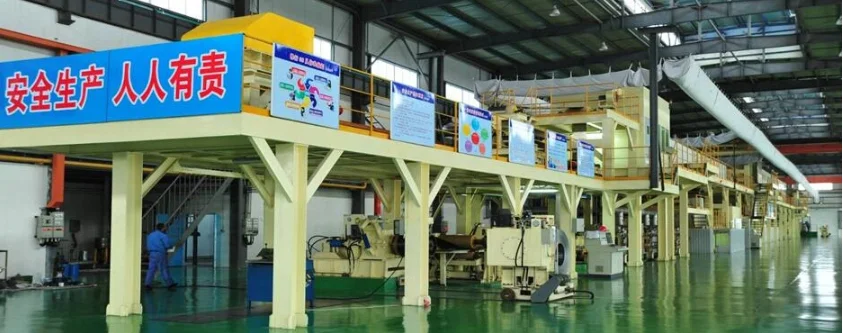

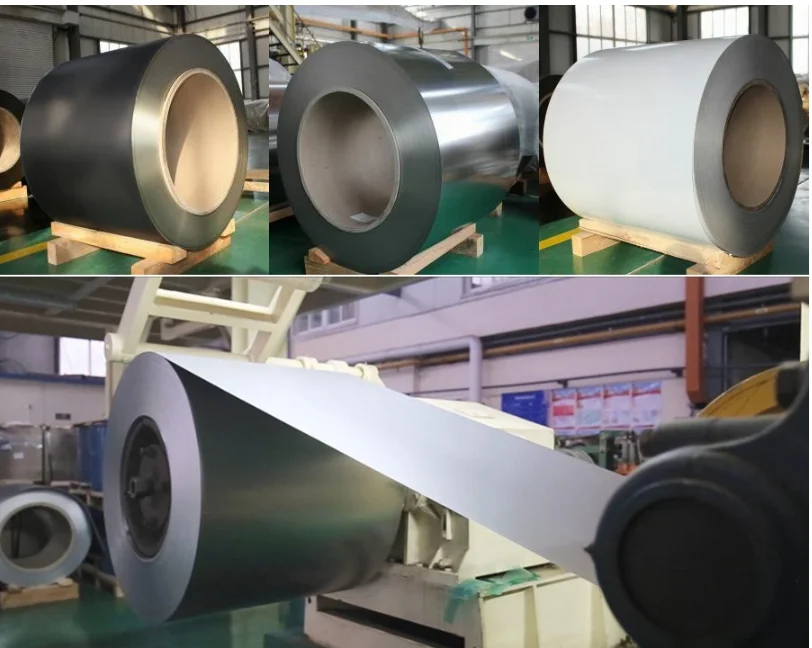

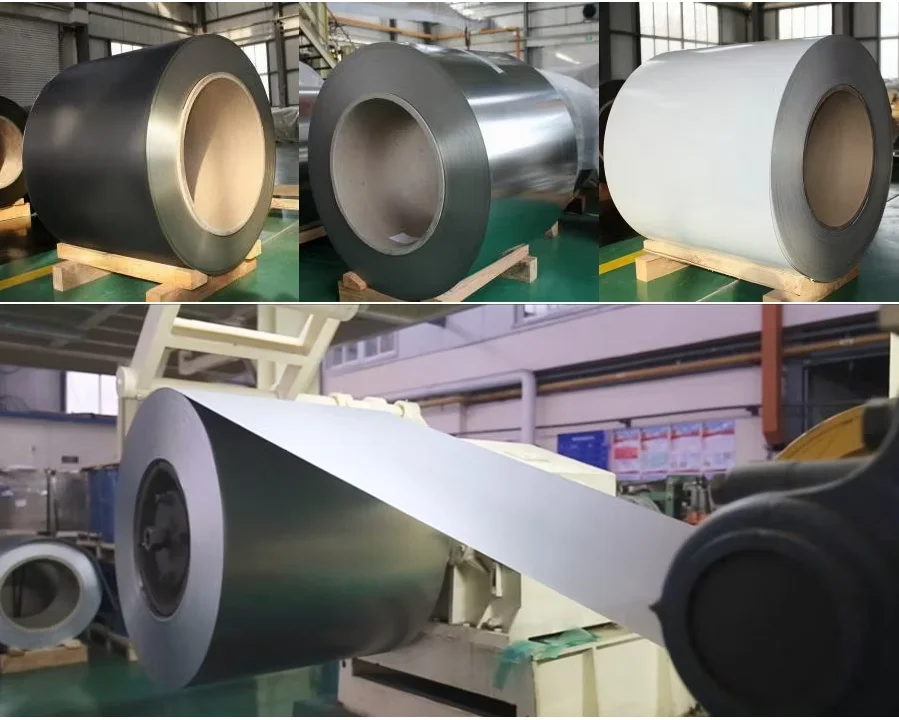

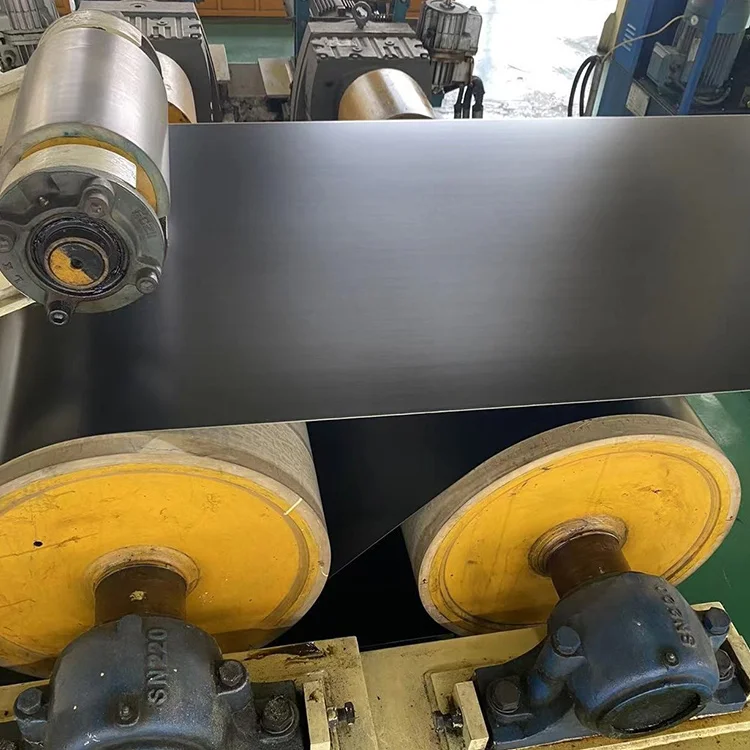

A continuous length RCM coil sheet is made from an entire coil of metal sheet through a series of treatments and rubber coating
process automatically and continuously in our special production line.
advanced processing technology.
A continuous length RCM coil sheet is made from an entire coil of metal sheet through a series of treatments and rubber coating
process automatically and continuously in our special production line.
Properties & Applications:

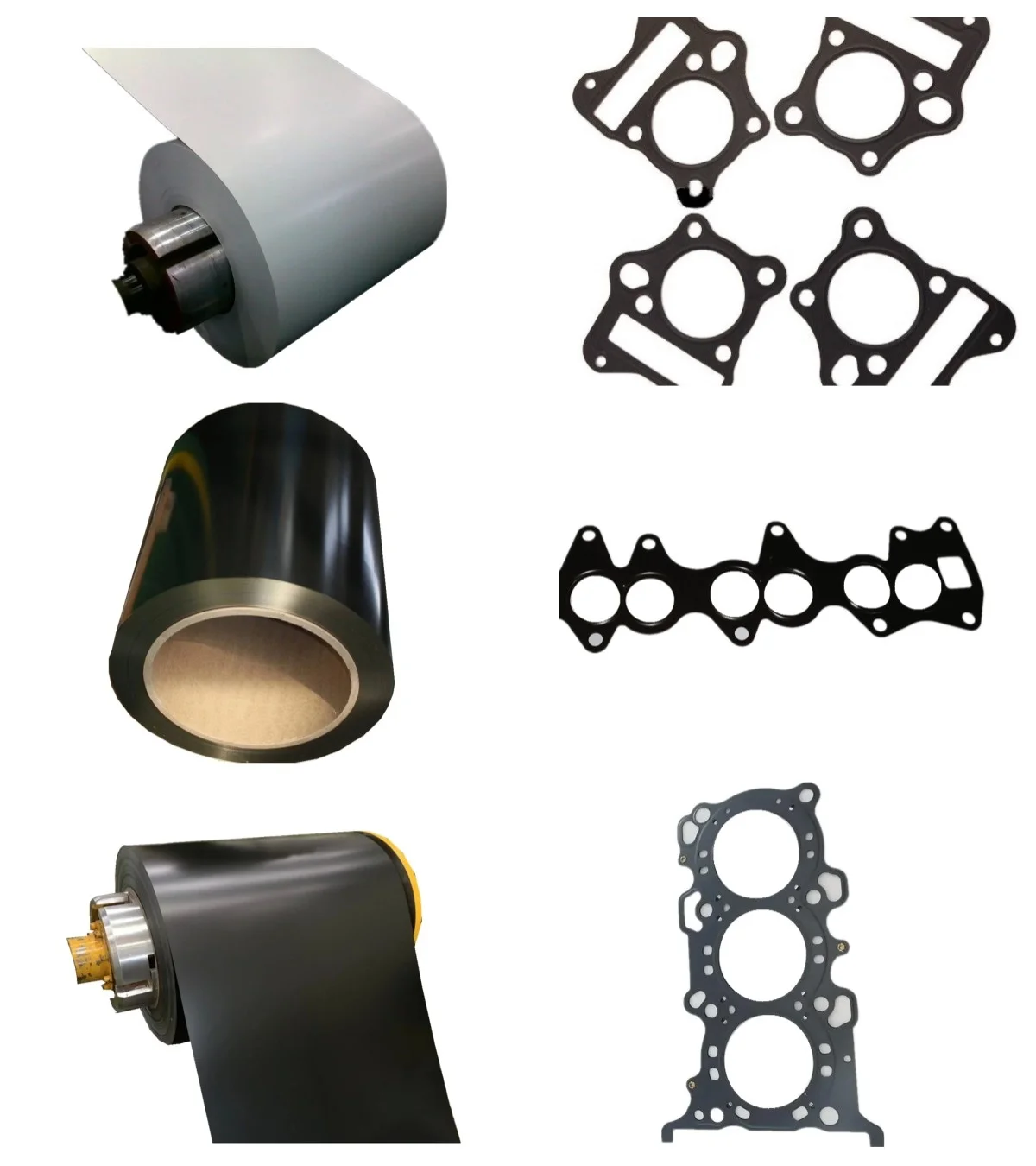

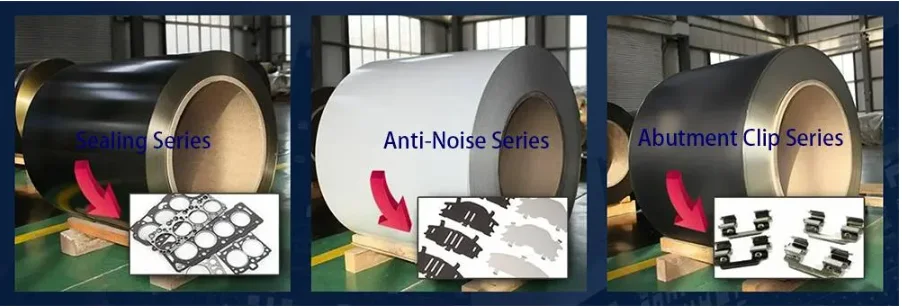

* Automotive Industry: Engine, transmission, gearbox gaskets, and exhaust system components.
* Industrial Applications: Flange gaskets, valve seals, and compressor/pump seals.
* Aerospace: Sealing solutions for hydraulic and pneumatic systems.

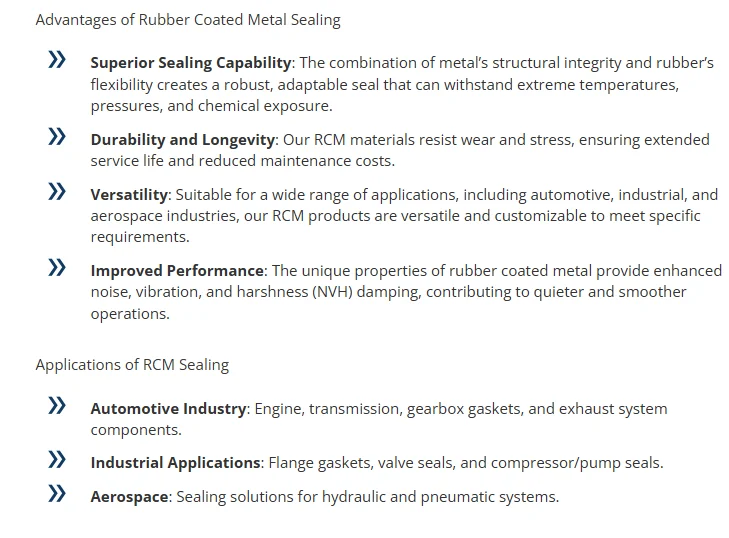

Advantages of Rubber Coated Metal Sealing
* Superior Sealing Capability: The combination of metal’s structural integrity and rubber’s flexibility creates a robust,
adaptable seal that can withstand extreme temperatures, pressures, and chemical exposure.
* Durability and Longevity: Our RCM materials resist wear and stress, ensuring extended service life and reduced maintenance costs.
* Versatility: Suitable for a wide range of applications, including automotive, industrial, and aerospace industries, our RCM products are versatile and customizable to meet specific requirements.
* Improved Performance: The unique properties of rubber coated metal provide enhanced noise, vibration, and harshness (NVH) damping, contributing to quieter and smoother operations.
* Automotive Industry: Engine, transmission, gearbox gaskets, and exhaust system components.
* Industrial Applications: Flange gaskets, valve seals, and compressor/pump seals.
* Aerospace: Sealing solutions for hydraulic and pneumatic systems.
Advantages of Rubber Coated Metal Sealing
* Superior Sealing Capability: The combination of metal’s structural integrity and rubber’s flexibility creates a robust,
adaptable seal that can withstand extreme temperatures, pressures, and chemical exposure.
* Durability and Longevity: Our RCM materials resist wear and stress, ensuring extended service life and reduced maintenance costs.
* Versatility: Suitable for a wide range of applications, including automotive, industrial, and aerospace industries, our RCM products are versatile and customizable to meet specific requirements.
* Improved Performance: The unique properties of rubber coated metal provide enhanced noise, vibration, and harshness (NVH) damping, contributing to quieter and smoother operations.
Specification
Related Products

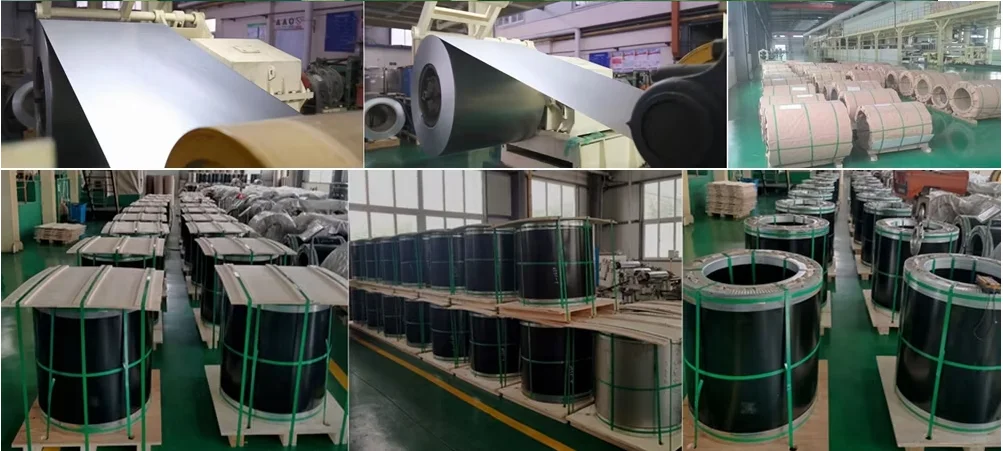

Packing & Delivery
Each coil weight about 900-1000Kgs via wooden pallet

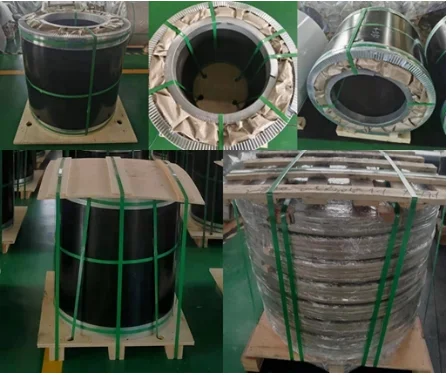

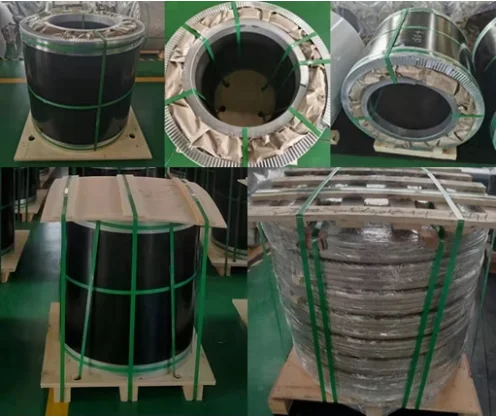

Package Details
1.Internal and external corner protector with steel collar.
2.Fastening of internal and external corner protector with heat-sealed circumferential plastic strapping
3.17 mm radial steel strapping x4 arranged at 90° (Type A)
4.Vertical axis hole (Type A) • Palletized exclusively on fumigated and branded wood
5.Fastening of the strip to the pallet using 4 straps, 1 per side
6.Internal diameter of card inner sleeve is 400 mm
7. Weight of each coil is 900 - 1000 KG ,diameter about 800-900mm

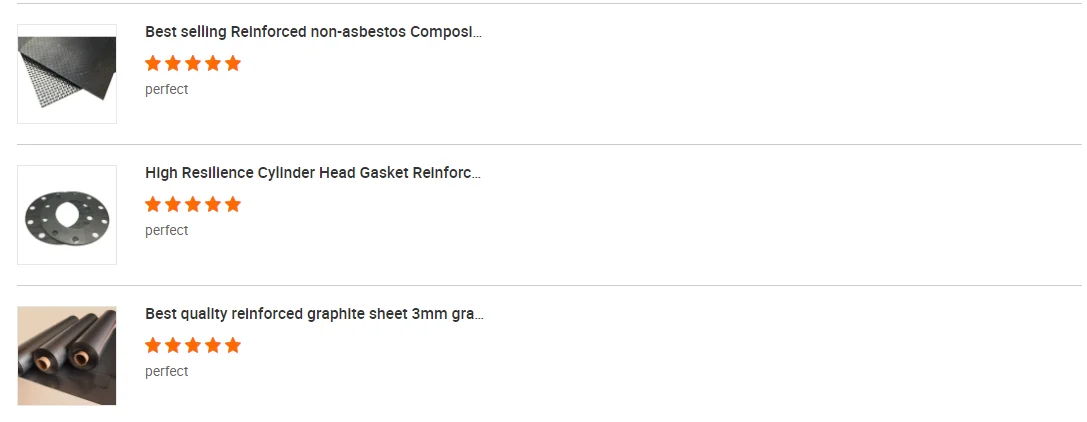

Buyer Feedback
Certifications

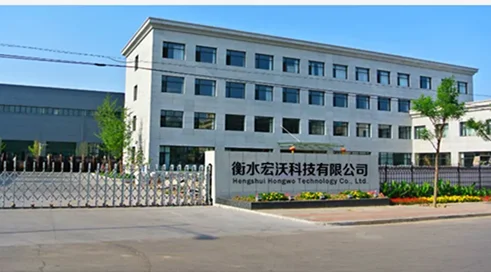

Company Profile
