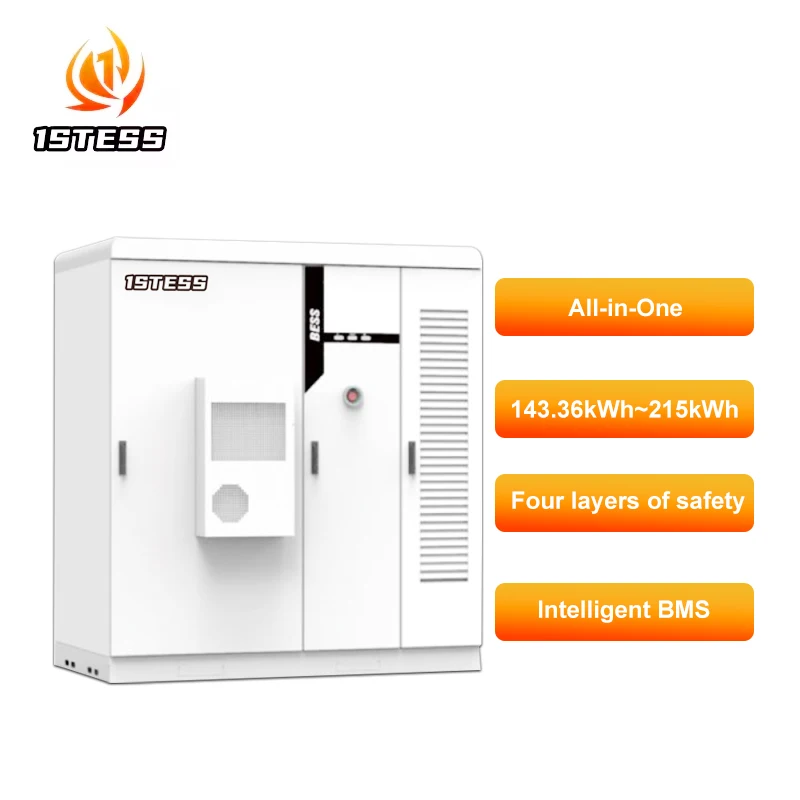

IP55 30kw 50kw 100kw Industrial commercial 143.36kwh 215kwh Energy Storage 280Ah lifepo4 battery
- Category: >>>
- Supplier: Shenzhen First Tech Co. Ltd.Shenzhen Ltd.
Share on (1601359291823):
Product Overview
Description
Model | EnerArk2.0-NBN-P30 | EnerArk2.0-NBN-P50 | EnerArk2.0-NBN-P100 | |||
DC side Parameters | ||||||
Cell type | LFP-280Ah | |||||
Module model | IP20S | |||||
Battery capacity range | 143.36kWh~215kWh | 143.36kWh~215kWh | 215kWh | |||
AC On-Grid Side Parameters | ||||||
Grid connection type | 3P4W | |||||
Charging/discharging power | 30kW | 50kW | 100kW | |||
Rated grid voltage | AC 400V±15% | |||||
Frequency range | 45Hz~55Hz | |||||
Rated AC output current | 43A | 72A | 144A | |||
Power factor | 0.8(Leading)~0.8(Lagging) | |||||
Harmonics | ≤3%(at rated power) | |||||
AC off-grid side parameters | ||||||
Load type | 3P4W | |||||
Rated output power | 30kW | 50kW | 100kW | |||
Rated output yoltage | AC400V±1% | |||||
Rated output frequency | 50Hz | |||||
Rated current | 43A | 72A | 144A | |||
Frequency accuracy | 0.2Hz | |||||
General Parameters | ||||||
Dimensions (W*H*D) | 1900mm*2100mm*1330mm | |||||
Packing size(W*H*D) | 2100mm*2244mm*1500mm | |||||
Maximum weight | 2500kg | |||||
Degree of protection | IP55(Battery Cabinet)IP34(Electrical Cabinet) | |||||
Cooling method type | Battery Cabinet (air conditioner)&Electrical Cabinet (forced air cooling) | |||||
Fire fighting system | FM200 automatic fire extinguishing | |||||
Anti-corrosion grade | C3 | |||||
Relative humidity | 0-95%(non-condensing) | |||||

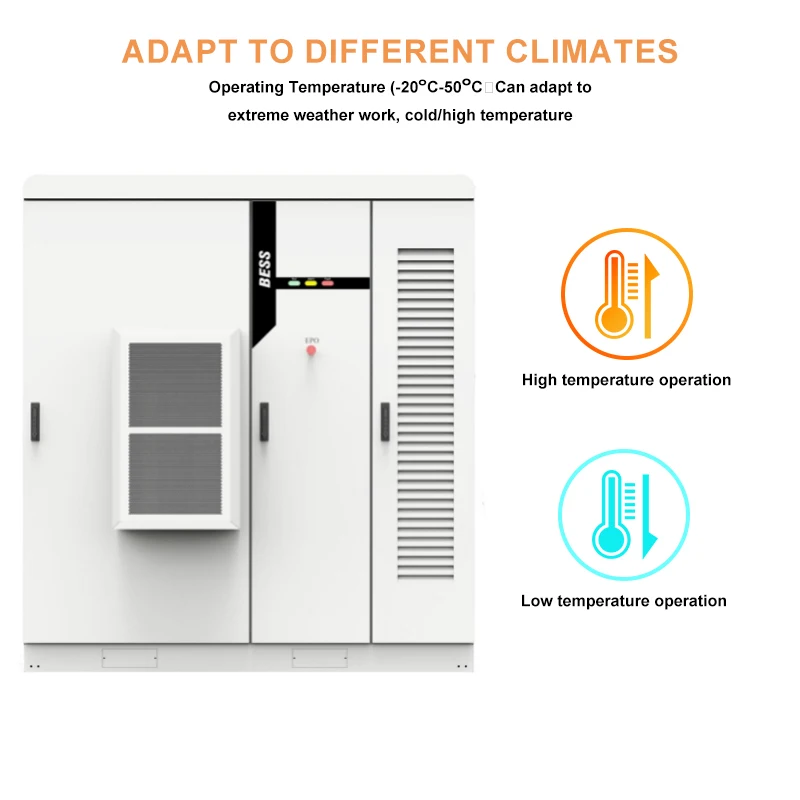

Operating temperature* | -20℃~50℃ | |||||
Altitude** | <2000m | |||||
Noise level | ≤75dB | |||||
Communication interface | RS485,Ethernet | |||||
Communication protocol | Modbus RTU,Modbus TCP/IP | |||||
Product standard warranty | 5 years,6000 cycles(0.5C,95%DOD,EOL:70%) | |||||
PV Side Parameters (Optional) | ||||||
Maximum PV input power | 30kW/60kW | 30kW/60kW/90kW/120kW | ||||
MPPT voltage range | 200V-850V | 200V-850V | ||||
Number of MPPTs | 1/1 | 1/1/2/2 | ||||
Number of PV inputs | 1/1 | 1/1/2/2 | ||||
Maximum input current | 100A/200A | 100A/200A/300A/400A | ||||
Certifications | CE(IEC61000,IEC62619,IEC62477),UN3480,UN38.3,MSDS Converter:UK G99,VDE4105,EN50549 Cell:IEC62619,UL1973,UL1642,UL9540A | |||||
FAQ
1.Who are we?
We are based in Shenzhen Guangdong, China, start from 2017, a manufacturer and solution provider of energy storage system products, sell to Africa, Europe, Southeast Asia, Mid East, Eastern Asia.
2.What products I can buy from you?
Inverter, storage lithium battery, portable storage system, residential energy storage system, container energy storage system, etc.
3.Can you supply OEM & ODM service?
Yes, we can do OEM & ODM as your requirements for you.
4.What’s your MOQ?
Sample order is acceptable, but for customized product the MOQ is different based on different model.
Need more details please feel free to contact us online or by mail (info@1stess.com) at any time.
5.How you guarantee your products quality?
Our factory have ISO90001 certification, from incoming materials to production, and then to delivery, we have a very complete quality control management system to guarantee the quality of every step.
6.What’s the lead time for mass production?
It depends on the stock situation, if have stock it will be 3-5working days, if out of stock it will be around 20-45days according to different quantity and models.
7.What kind of certificates do you have for your product?
Our products have the certificates of CE, MSDS, IEC, UN38.3, etc.
8.Can I become your dealer and what's the requirement?
Yes, we are glad to work with you, but the requirements are different according to different area, for details information welcome to contact us online or by mail (info@1stess.com) at any time.
