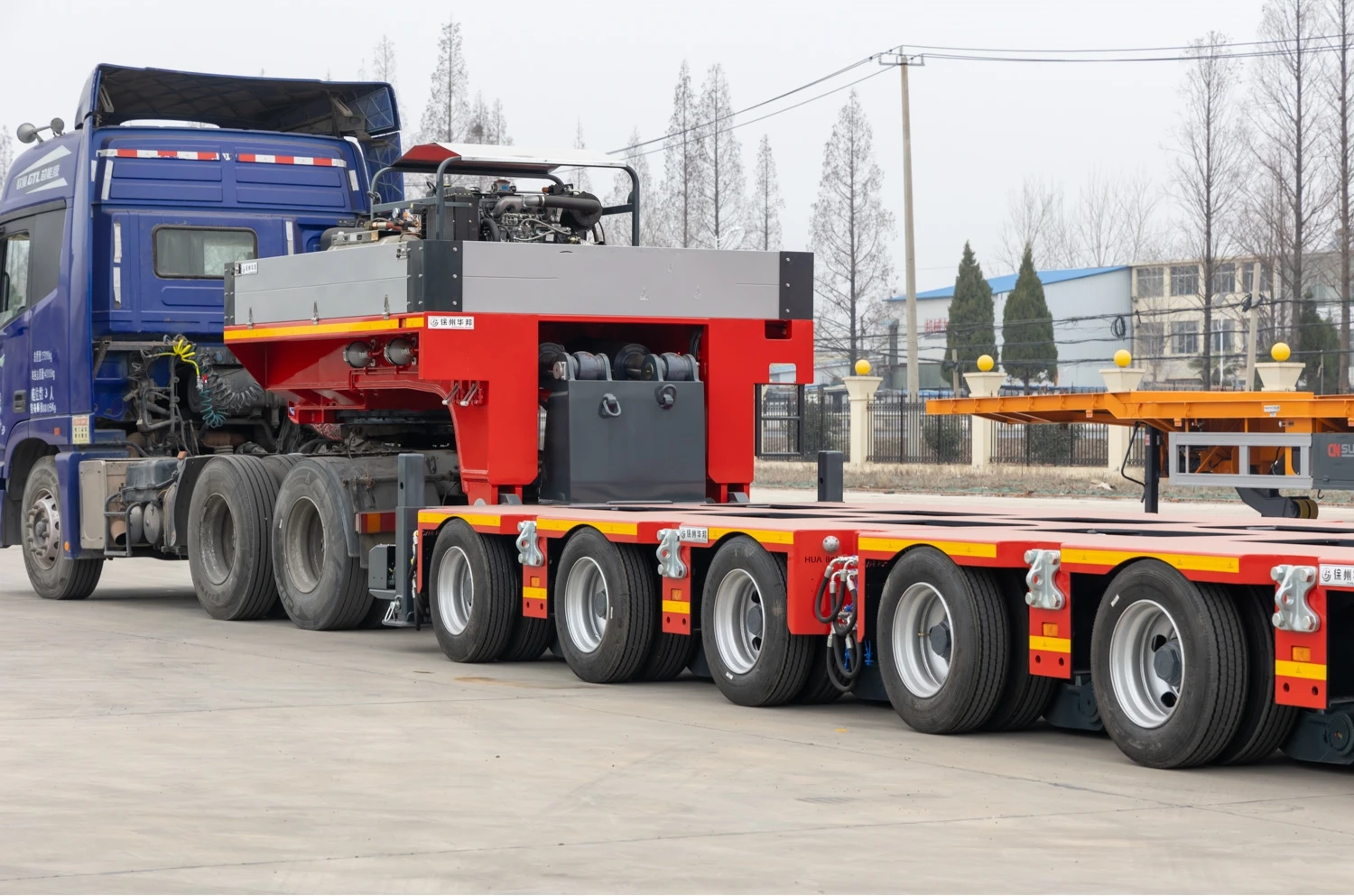

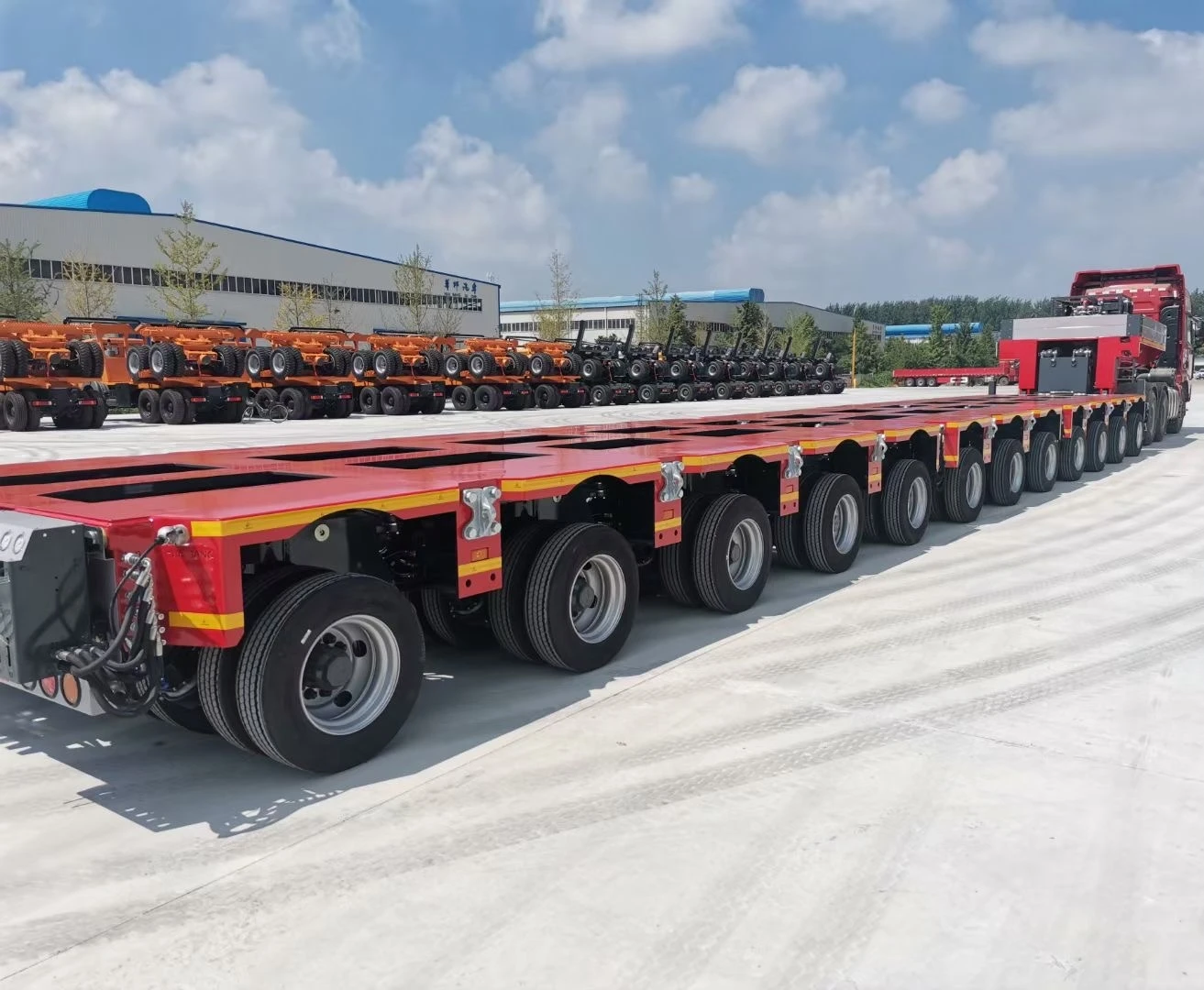

10 lines 20 Axles Tons Hydraulic Modular Transporter Trailer Truck

Share on (1601359381834):


Price:$82,000.00-85,000.00

Quantity:


Product Overview

Description



Company Profile


Jiangsu Huayan has more than 20 years of experience in offering total solutions for special transport. We specialize in designing,manufacturing, and supplying specialized trailers, self-propelled transporters, and other related heavy transport equipment and services all over the world. With our knowledge, experiences, and high safety and quality standards, we can offer unique products and services with a full range of activities in heavy-haul transportation, and we can always offer you a safe and cost-effective solution for various unconventional transport jobs. Besides the products themselves, we also offer all kinds of services related to project logistics.

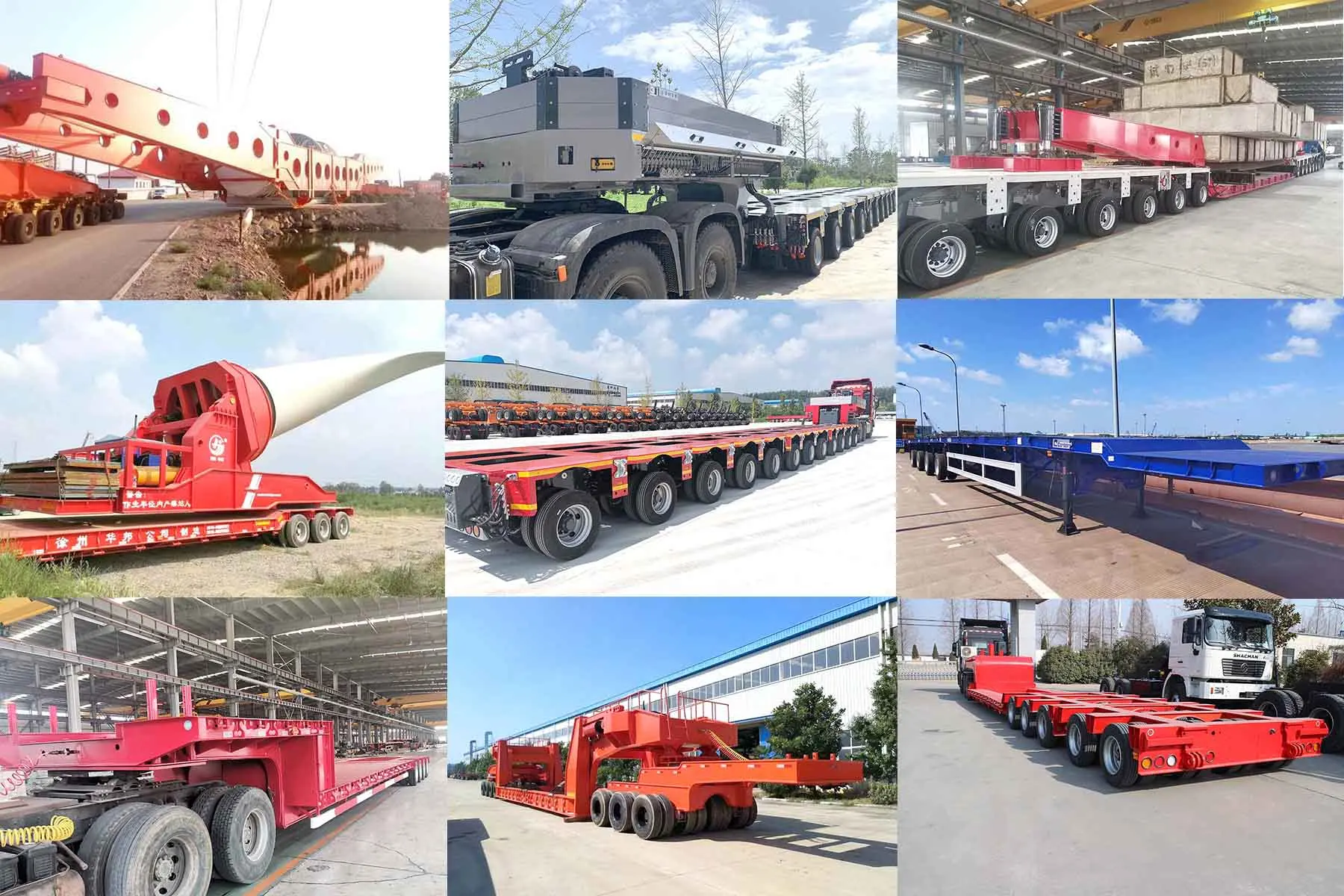

WE OFFER THE FOLLOWING EQUIPMENT :
* Hydraulic Axle trailer
* Flatbed Trailer
* Lowbed trailer
* Wind blade trailer
* Extendable trailer
* Gooseneck trailer
* Other specialized and customized trailers.


Product Description




Main parameters



Name
Hydraulic axle trailer
1
Wheelbase
1550 mm
2
Wheelbase
735/1820 mm
3
Number of tires
8 pieces/each axis
4
Tire specifications
215/75R17.5
5
Rim specifications
6.00-17.5
6
Cargo bed width
2990 mm
7
Cargo platform height (middle heavy load)
1070mm
8
suspension travel
±300 mm
9
Steering mechanism
All-wheel hydraulic traction steering or control steering
10
Frame main material
Q550D
11
Maximum turning angle in the first round
55°
12
Frame form
Flat grid format
13
Cargo platform support method
Three-point support or four-point support
14
The effective load capacity of each axis
22.5tons(18km/h)



Accessory Name
Brand
Country
1
Tire
Giti
China
2
Steel ring
Zhengxing
China
3
Alex
York
China
4
Oil Cylinder
Hengli
China
5
Ball Valve
Stauff/Pister
Germany
6
Pressure Gage
Dmass
Germany
7
Quick connector
Faster
Italy
8
Multi-way valve
Bondioli&Pavesi
Italy
9
Hydraulic hose
Eton Aeroquip
USA
10
Hydraulic steel pipe
GPP
China
11
Hydraulic joint
Eton Standard
China
12
Relay volve
Wabco
USA
13
Power unit
Xinchai
China


ALL CAN BE CUSTOMIZED AS REQUESTED.


Details


Precise steering, small turning radius
The steering system has been optimized to make steering more precise and solve problems such as steering dead spots. The trailer's hydraulic and pneumatic pipelines adopt quick plug connection methods for quick splicing. The hydraulic suspension cylinder block is made by hanging cylinder technology and has high strength. The cylinder connection and sealing forms are the same as those of Goldhofer and Scheuerle seals, all of which are foreign famous brand products. The stop valve adopts the form of an imported famous brand ball valve and is quick to operate. The maximum turning angle in the first round is 55°, and the vehicle's turning radius is small.


Convenient Operation
It is designed and manufactured based on the German GOLDHOFER TPH/SL trailer. It can be seamlessly connected with the world famous brand of the Goldhofer and Scheuerle models in the longitudinal and transverse directions.


Suspension
Hydraulic, air and mechanical suspension can be options according to different road conditions and specific project requirements.
The high strength of the frame beam
It is welded with Q550D extra-thick steel plates. It has a box-shaped structure, high strength, is not easy to deform, and can carry relatively concentrated loads. The splicing surface of the frame is processed as a whole using a gantry-type machining
center, with more precise dimensions and no gaps.

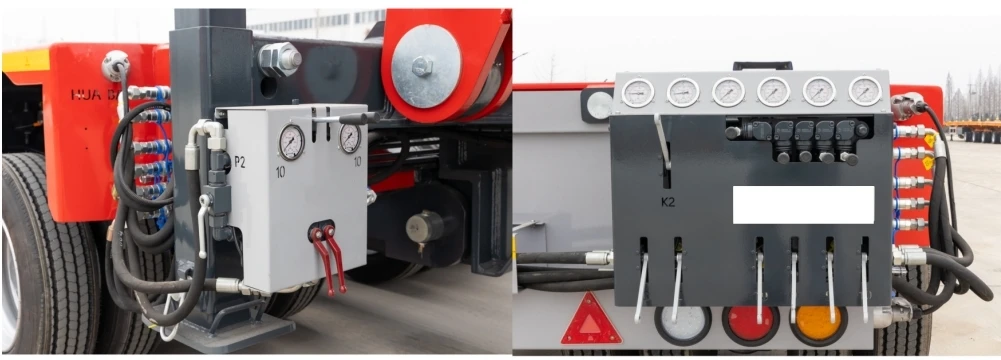

High security and strong practicality

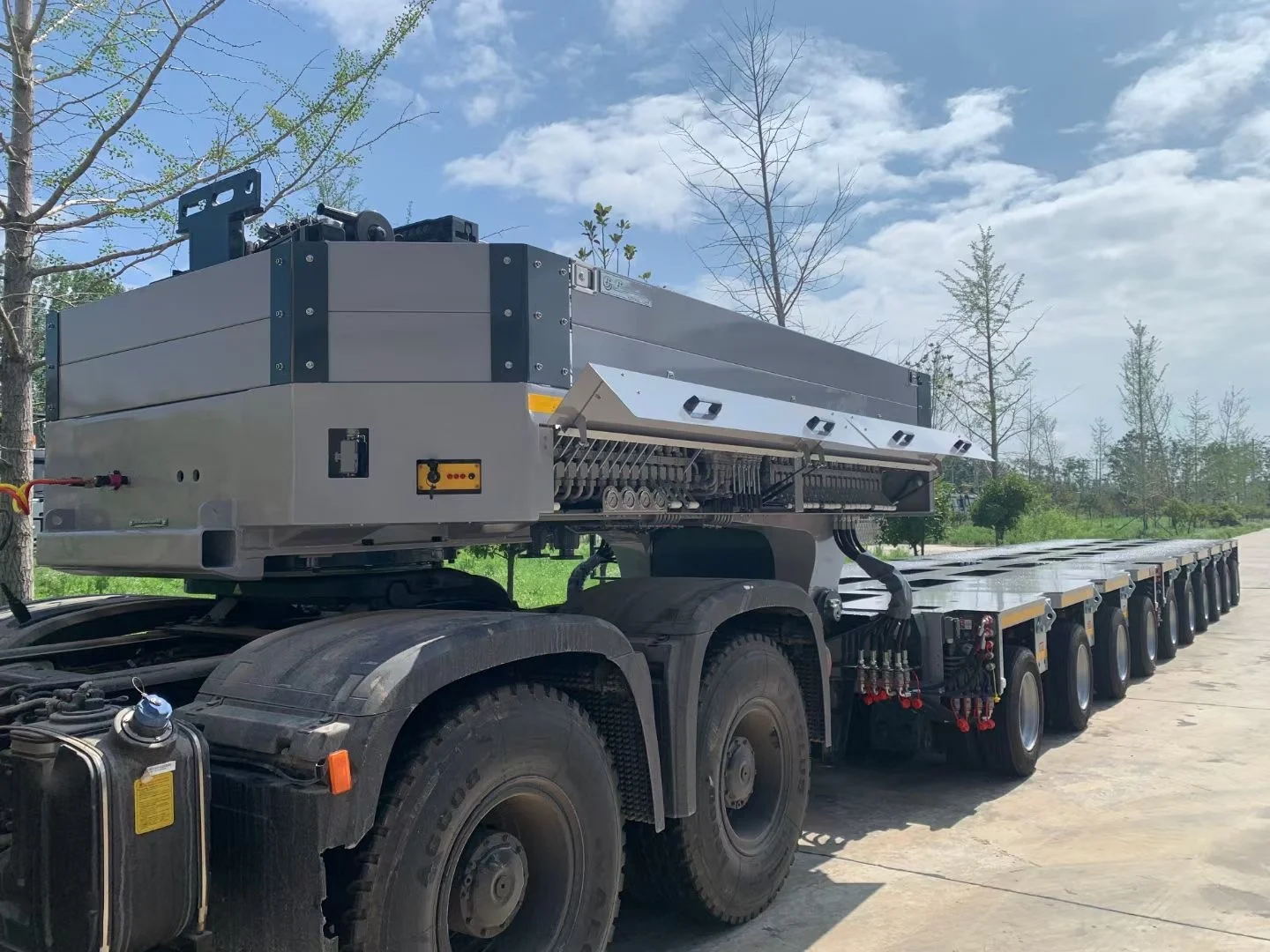

The rear of the vehicle adopts an integrated design, with taillights, operating boxes, warning signs, and other equipment integrated, which is both beautiful and can protect hydraulic hoses and warn vehicles behind.

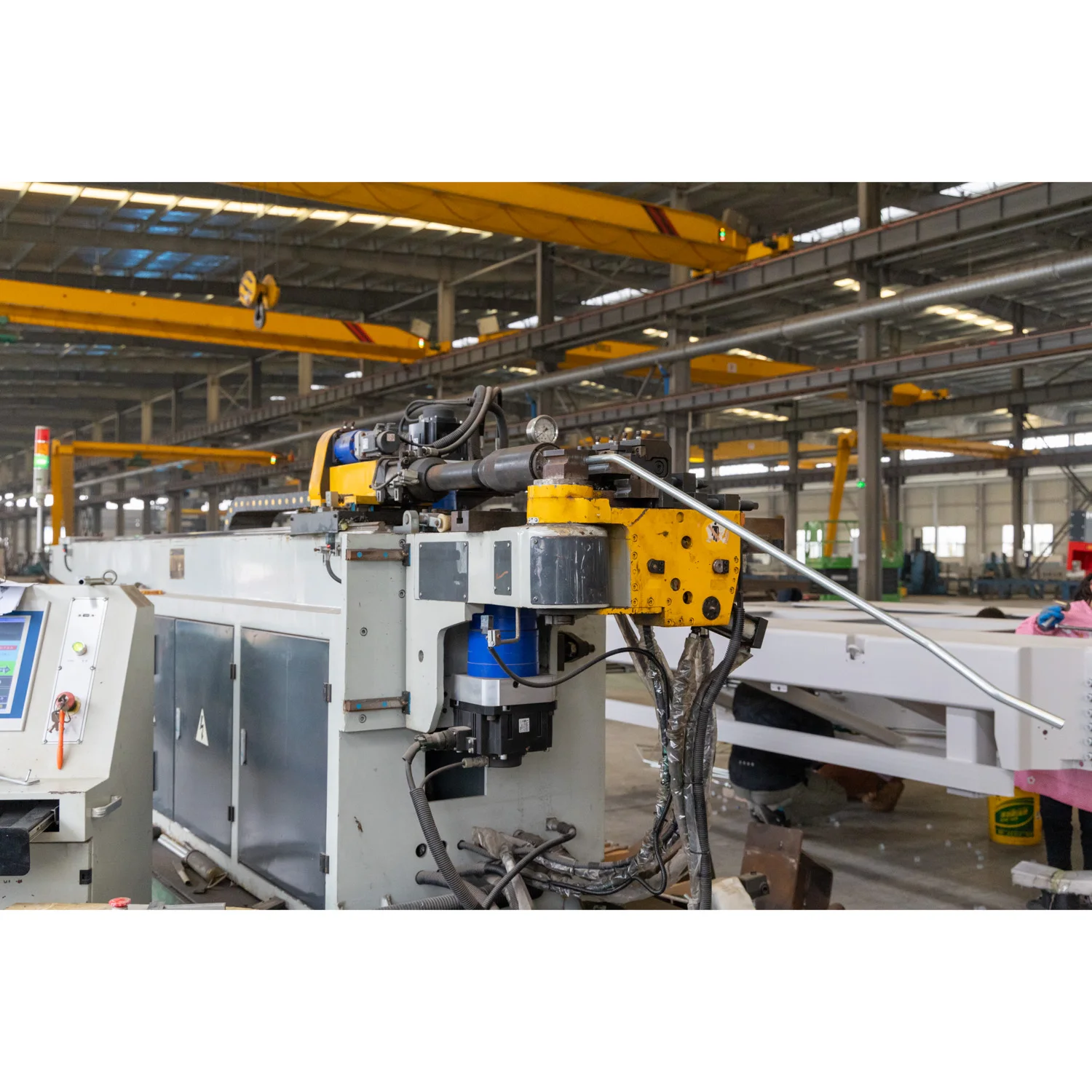

The frame pipeline is optimized, and all pipelines adopt fully automatic CNC bending to ensure pipeline consistency.

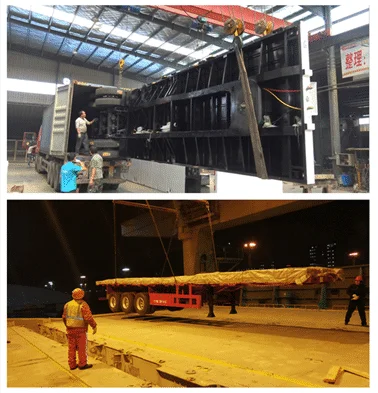

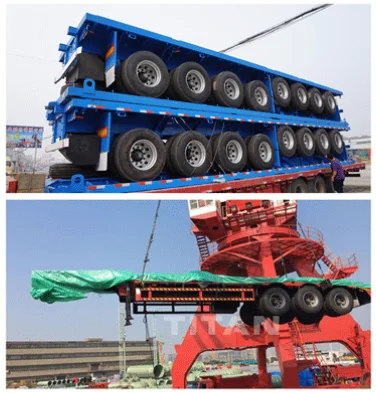

Packing & Delivery




FAQ


1. Are you a manufacturer or trading company?
We are a manufacturer and supplier of specialized transport equipment, which offers a one-stop solution for all kinds of difficult transport jobs.

2. What products can you provide?
We specialize in special transport vehicles including wind blade trailers, modular trailers, low bed trailers, and flatbed
trailers. It can be customized as requested.


3. May I have the best price from you?
Sure. We are always on the way to promoting our product price and service competitive

4. Do you provide a one-stop service so I can save my time and labor?
You will own a professional team in China by cooperating with HUAYAN

5. What's the delivery time?
If the standard models, then we can ship them out within 10 - 15 working days
If special trailers or customized trailers, 25 working days.

6. What's the warranty time?
The ordinary semi-trailer is 10 years, and the heavy-duty trailer, special trailer warranty time is 8 years.

7. What's your after-sale service?
The after-sale service during the lifetime and the spare parts.
We can provide remote video guidance or door-to-door technical service
