Perfect Laser for metal label vin code numbers nameplate portable 20w mini laser marking machine
- Category: >>>
- Supplier: Perfect Laser (wuhan) Co. Ltd.Perfect Ltd.
Share on (1601359541464):
Product Overview
Description

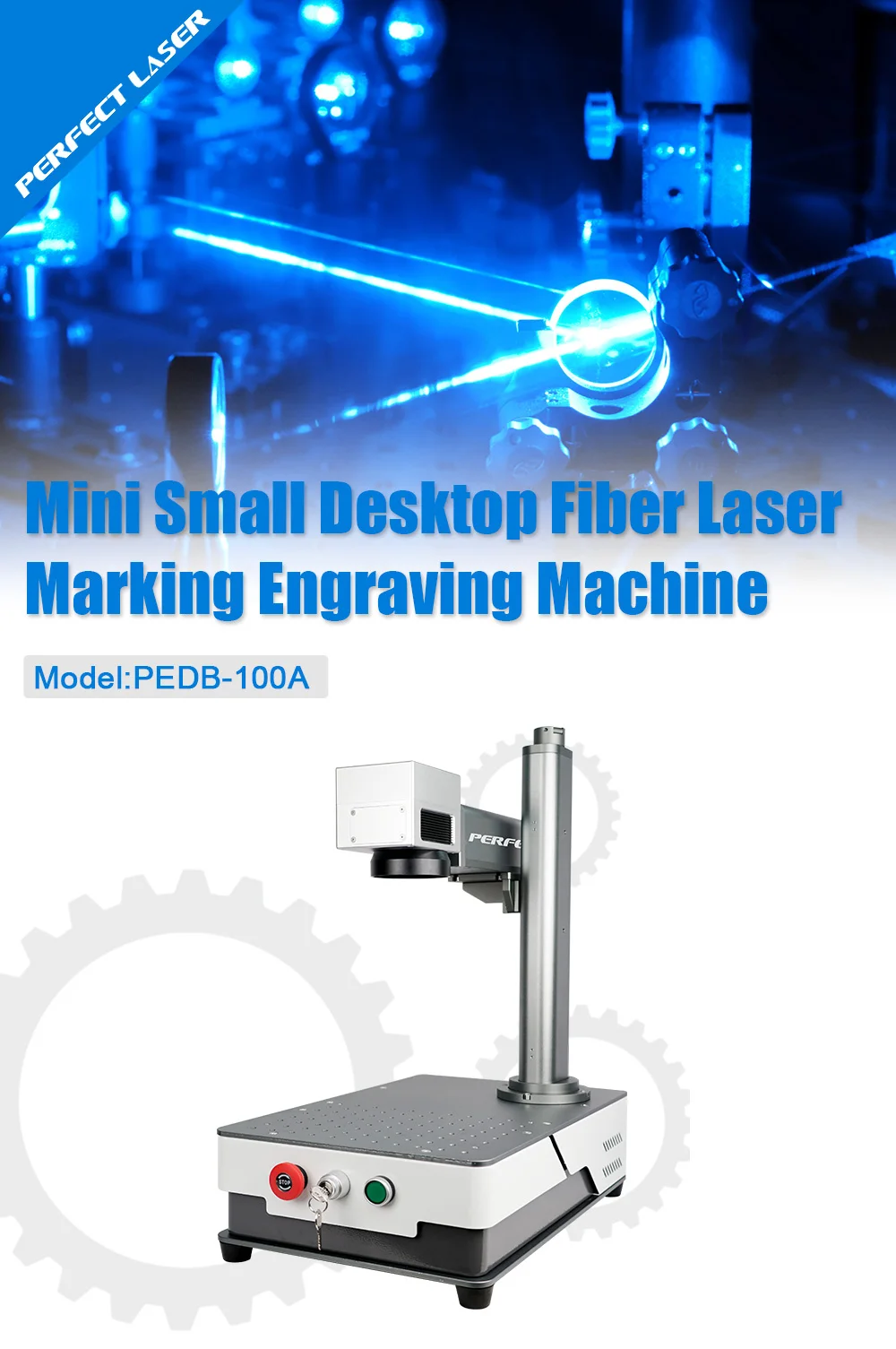

Perfect Laser- for metal label vin code numbers nameplate portable 20w mini laser marking machine
(Model: PEDB-100A)
Contact: Sara Email: Sara@perfectlaser.net
Product Description
Perfect Laser small fiber laser marking machine is a high-end intelligent product. Its emergence is revolutionary for the integration of fast-speed, high-resolution laser marking systems.
This PEDB-100A portable laser marker integrates five core components such as fiber laser source, 8mm fast-speed laser scanning head, laser power supply, Intel industrial computer and genuine laser marking system.
This metal marking laser machine realizes the integration of multi-card into one control card and multi-source laser power supply into a single source laser power supply.
It is a small-volume, light weight, fast-speed, high-flexibility, cost-effective mini laser marking machine for metal.
This PEDB-100A portable laser marker integrates five core components such as fiber laser source, 8mm fast-speed laser scanning head, laser power supply, Intel industrial computer and genuine laser marking system.
This metal marking laser machine realizes the integration of multi-card into one control card and multi-source laser power supply into a single source laser power supply.
It is a small-volume, light weight, fast-speed, high-flexibility, cost-effective mini laser marking machine for metal.

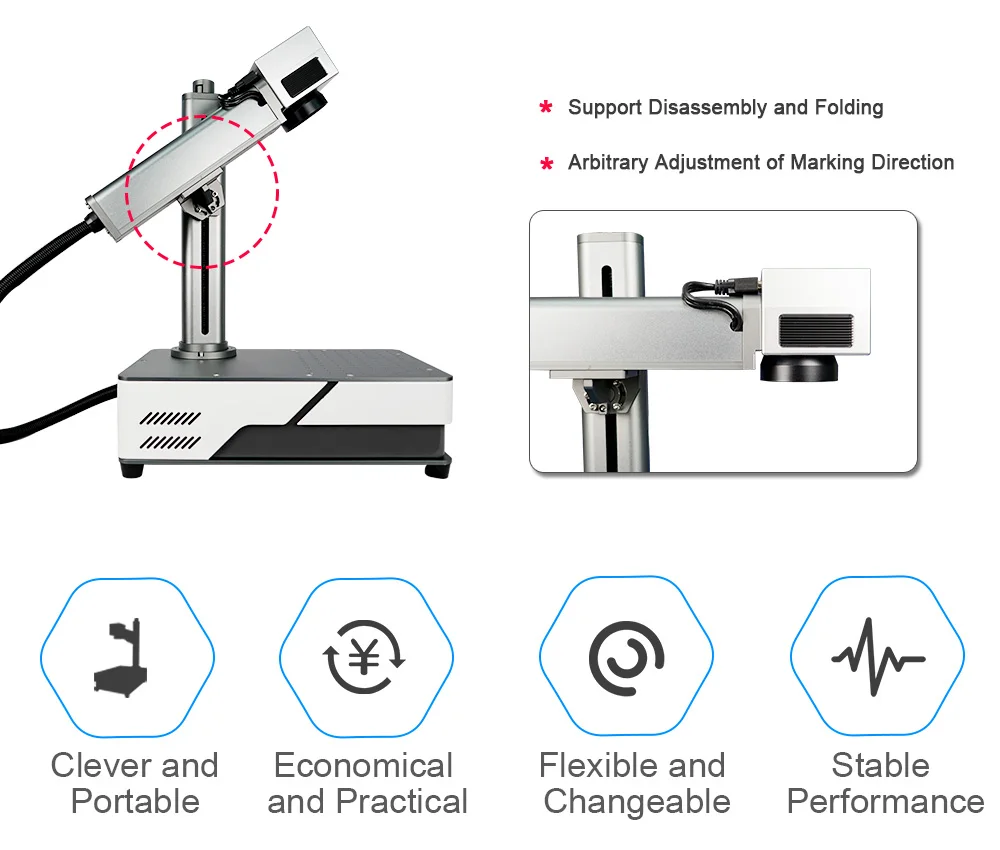

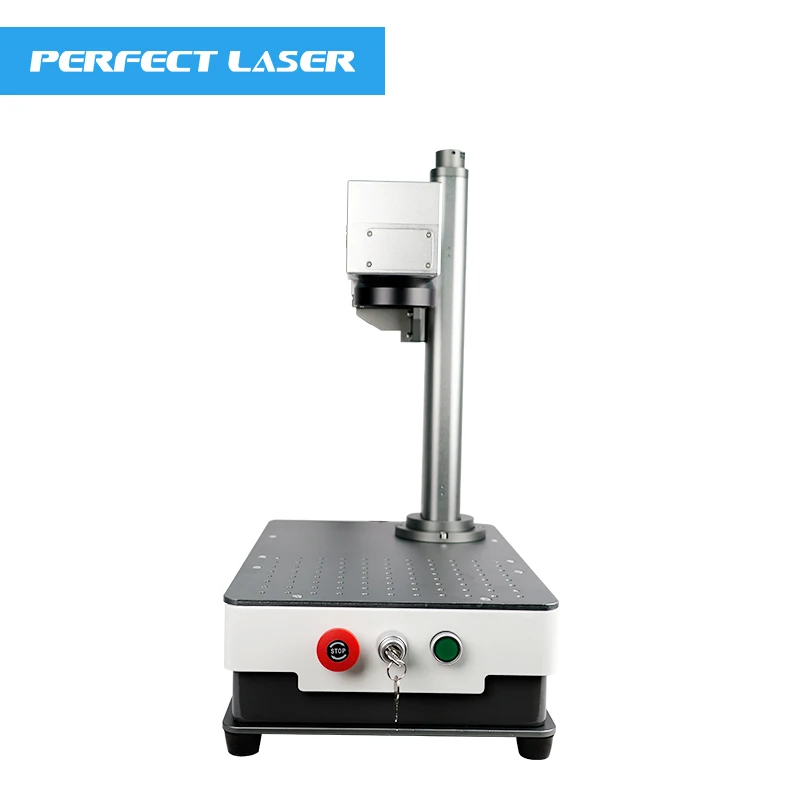

Machine Details
Specification
Model | PEDB-100A Mini Laser Marking Machine |
Laser Type | Fiber Laser (Brand：Max) |
Laser Power | 20w |
Laser Wavelength | 1064 nm |
Beam Quality | M2<1.4 |
Modulation Frequency | 30-60 khz |
Carving Line Speed | 0-8000 mm/s |
Marking Speed | 600-1000 Character / min |
Focus mode | Manual / Auto |
Minimum Line Width | 0.02 mm |
Minimum Character | 0.15 mm |
Marking Size | 110mm×110mm (Standard) |
70mm×70mm (Optional) | |
Repeatability | ±0.002 mm |
Cooling Method | Air Cooling |
Use environment | Clean or less dust |
Working Temperature | 10-35 ℃ |
Machine Power | ≤ 160 W |
Voltage | AC220V±10%，50 HZ |
Working Desk Size | 270mm×210mm |
Lifting Range | 0-300mm |
Column Rotation Angle | 360° |
Light Bridge Displacement Stroke | 110mm |

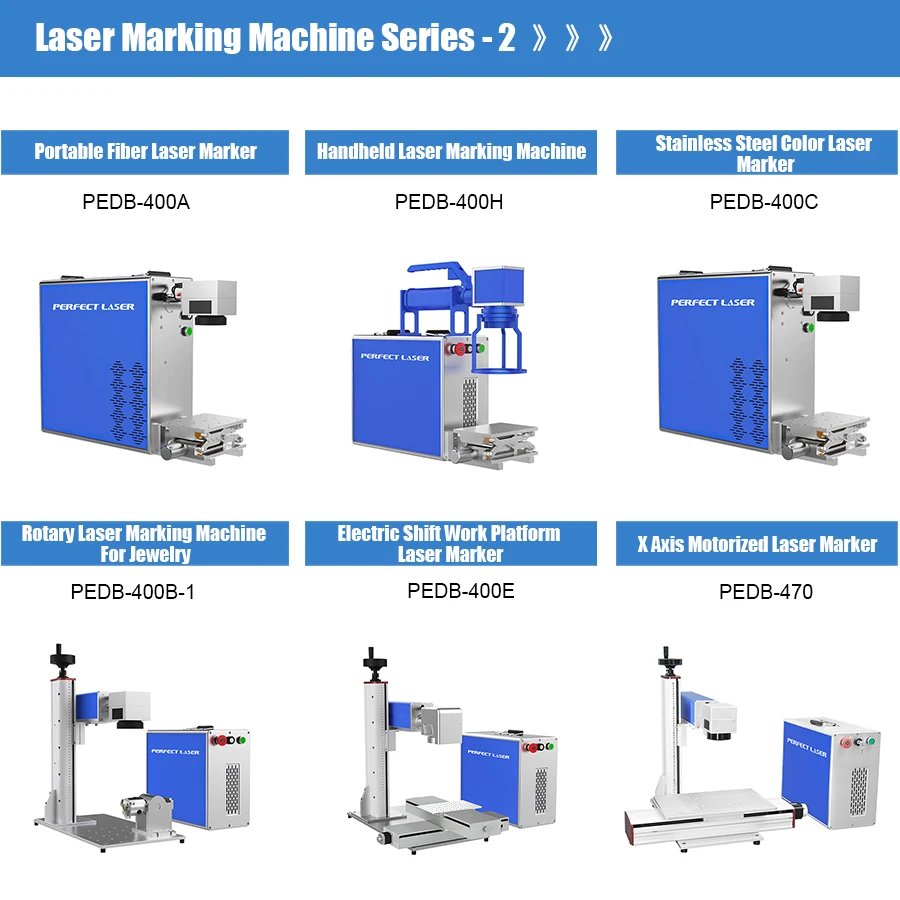

Related Product
Packing And Shipping
Company Profile
Certifications
FAQ
What is the After-sales Services ?
1. One year guarantee for main machine (People damaged are charged).
2. Full technical support\\ by e-mail, call and video
3. Lifelong maintenance and spare parts supply.
4. Free design of fixtures as customers required.
5. Free training installation and operation for the staffs.
2. Full technical support\\ by e-mail, call and video
3. Lifelong maintenance and spare parts supply.
4. Free design of fixtures as customers required.
5. Free training installation and operation for the staffs.
How to protect my order?
Trade Assurance is a free payment protection service for buyers.
The service is offered by participating suppliers, and is designed to protect your payment if your order is not shipped on time,or if the pre-shipment product quality (optional) does not match the terms agreed on your contract. Your payment is protected up to 100% of an amount - agreed between you and the supplier - called the Trade Assurance Order Amount.
The service is offered by participating suppliers, and is designed to protect your payment if your order is not shipped on time,or if the pre-shipment product quality (optional) does not match the terms agreed on your contract. Your payment is protected up to 100% of an amount - agreed between you and the supplier - called the Trade Assurance Order Amount.
What's the package?
We have 3 layers package. For the outside, we adopt wood craft case. In the middle, the machine is covered by foam, to protect the machine from shaking. For the inside layer, the machine is covered by thickening plastic bag for waterproof.
Will the package damaged during transportation?
Our package is considerate all the damage factors and make it to be safe, and our shipping agent have full experienced in safe transportation. We have exported to 180 countries worldwide. So please don't worry, you will receive the parcel in good condition.
How can I do if the machine goes wrong?
If confronted with such problems, please contact us asap and do not try fix the machine by yourself or someone else. We will response within 24 hours as quick as we can to solve it for you.
Will the package damaged during transportation?
Our package is considerate all the damage factors and make it to be safe, and our shipping agent have full experienced in safe transportation. We have exported to 180 countries worldwide. So please don't worry, you will receive the parcel in good condition.
