Product Description
High Quality Loaders 5 tons Capacity HL665L 162kW Rated Power Loader with 3m3 Bucket
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
SPECIFICATIONS | HL660/665 | HL660L/665L | ||
OVERVIEW | ||||
Operating Weight | 16,800 (17,330) kg 16.8ton | 17,300 (18,000) kg 17.3ton | ||
Bucket Capacity (Heaped) | 3 m³ | 3m³ | ||
Loading Weight | 5tons | 5tons | ||
Breakout force | 16,800 (16,000) kgf | 17,000 (16,200) kgf | ||
Tipping load (Full turn) | 10,000 (8,700) kg | 10,800 (10,000) kg | ||
Tipping load (Straight) | 10,272 (8,930) kg | 11,300 (10,450) kg | ||
ENGINE | ||||
Maker | WEICHAI | WEICHAI | ||
Engine Model | WD10G220E23 | WD10G220E23 | ||
Emission regulation | Tier II | Tier II | ||
Power (Gross) | 162 kW (217 hp) /2,000 rpm | 162 kW (217 hp) /2,000 rpm | ||
Power (Net) | 146kW (196 hp) /2,000 rpm | 146kW (196 hp) /2,000 rpm | ||
Max. Torque | 900 N·m /1,400 rpm | 900 N·m /1,400 rpm | ||
Displacement | 9.726 L | 9.726 L | ||
No. of cylinders | 6 EA | 6 EA | ||
TRANSMISSION | ||||
Travel speed (F1) | 12 km/h | 11.5 km/h | ||
Travel speed (F2) | 36 km/h | 36 km/h | ||
Travel speed (R1) | 17 km/h | 16 km/h | ||
HYDRAULIC SYSTEM | ||||
Flow rate | 160 lpm | 160 lpm | ||
System pressure | 173 kgf/cm³(kPa) | 163 kgf/cm³(kPa) | ||
Cycle time (Total) | 10.6 sec | 10 sec | ||
DIMENSIONS ( Standard) | ||||
A Dump clearance at 45°(Full lift) | 3,150 mm | 3,100 mm | ||
B Reach at 45°(Full lift) | 1,130 mm | 1,220 mm | ||
C Overall length (Ground) | 7,750 mm | 7,780 mm | ||
D Overall height (Full raised) | 5,314 mm | 5,340 mm | ||
E Bucket pivot max. height | 4,151 mm | 4,150 mm | ||
F Front overhang | 2,750 mm | 2,605 mm | ||
G Wheel base | 2,920 mm | 3,230 mm | ||
H Ground clearance | 512 mm | 400 mm | ||
I Overall height (Cabin) | 3,450 mm | 3,410 mm | ||
J Dump angle | 45 | 45 | ||
K Overall width (with Bucket) | 2,990 mm | 2,990 mm | ||
Turning radius (Center of outside tire) | 5,960mm | 6,295 mm | ||

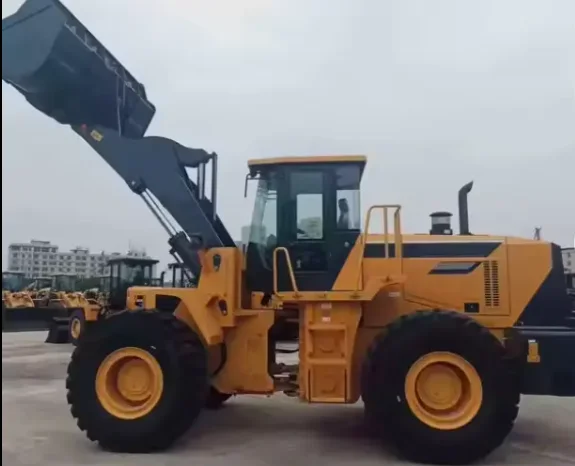

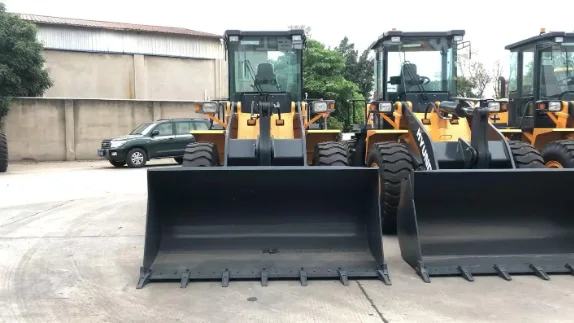

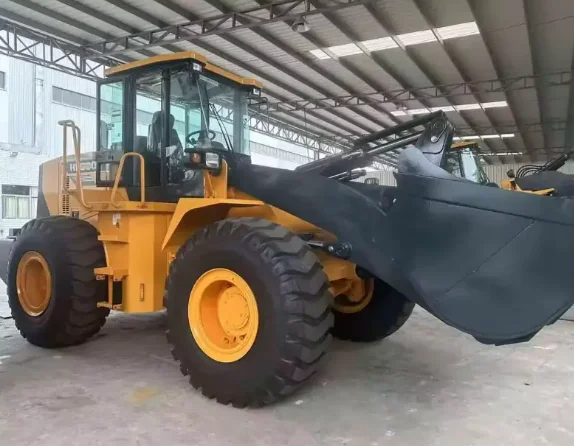

Details Images
