AC Arc Stud Welder Welding Machine Bx6 Series 300 200 160 130b 500 250 Bx1 250c 630 300 Zx7 350 300 250 Manual Metal Arc Welder
- Category: >>>
- Supplier: Costar Technology Co. LimitedCostar Limited
Share on (1601359641350):
Product Overview
Description
Products Description
INDUSTRIAL GRADE
ARC-400G IGBT
*IGBT technology,the core adopts advanced IGBT inverter device.
*Digital meter to preset and display welding current.
*Dust-Free Cooling Systerm with Upgraded Duty Cycle.
*Auto-Protection against over-voltage, over-current and over-heated.
*Energy Saving - More efficient compared with the traditional SCR machine.

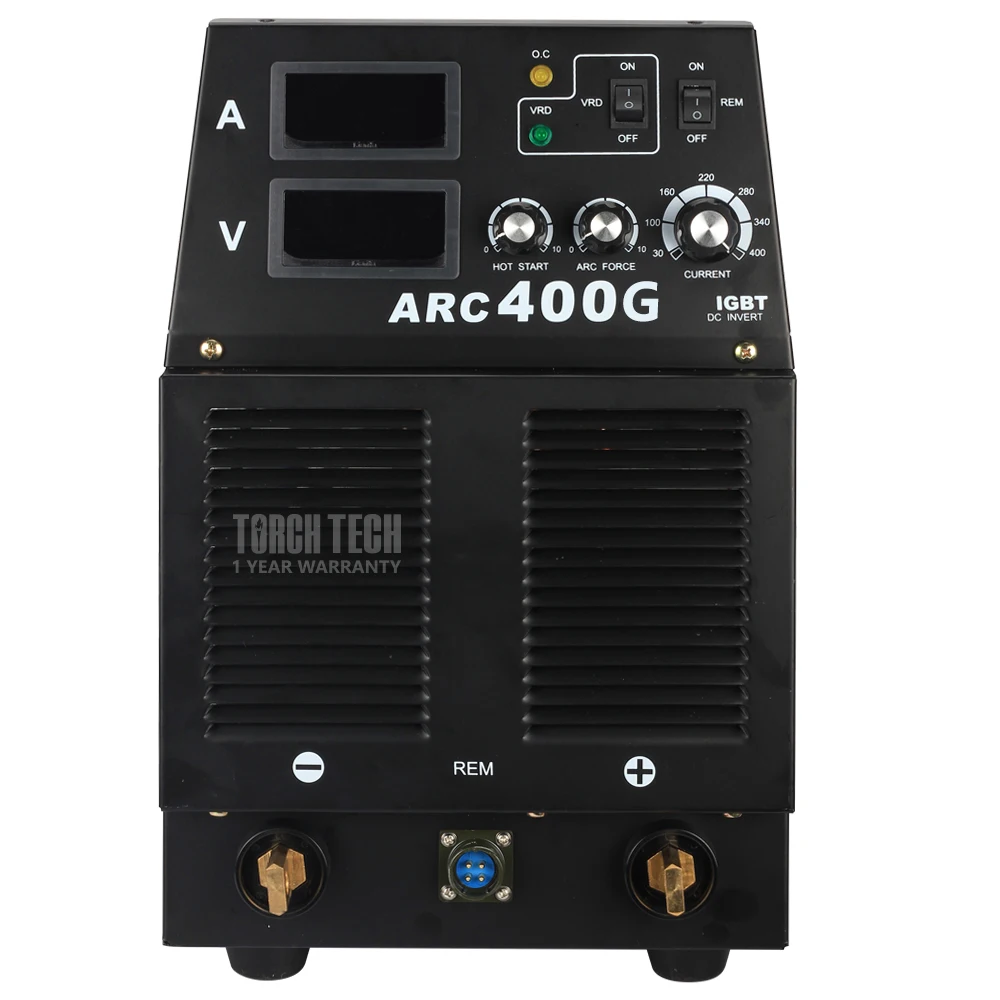

Control Panel
● All copper transformer, topest level raw material, see the internal diagram.
● Best and copper material make sure the machine can
normally work in 70 degree temperature.
● ARC FORCE, HOT START, VRD, REMOTE function optional.
● 1 year warranty.
● OEM & ODM are welcome.
normally work in 70 degree temperature.
● ARC FORCE, HOT START, VRD, REMOTE function optional.
● 1 year warranty.
● OEM & ODM are welcome.
● Delivery on time.
Configuration

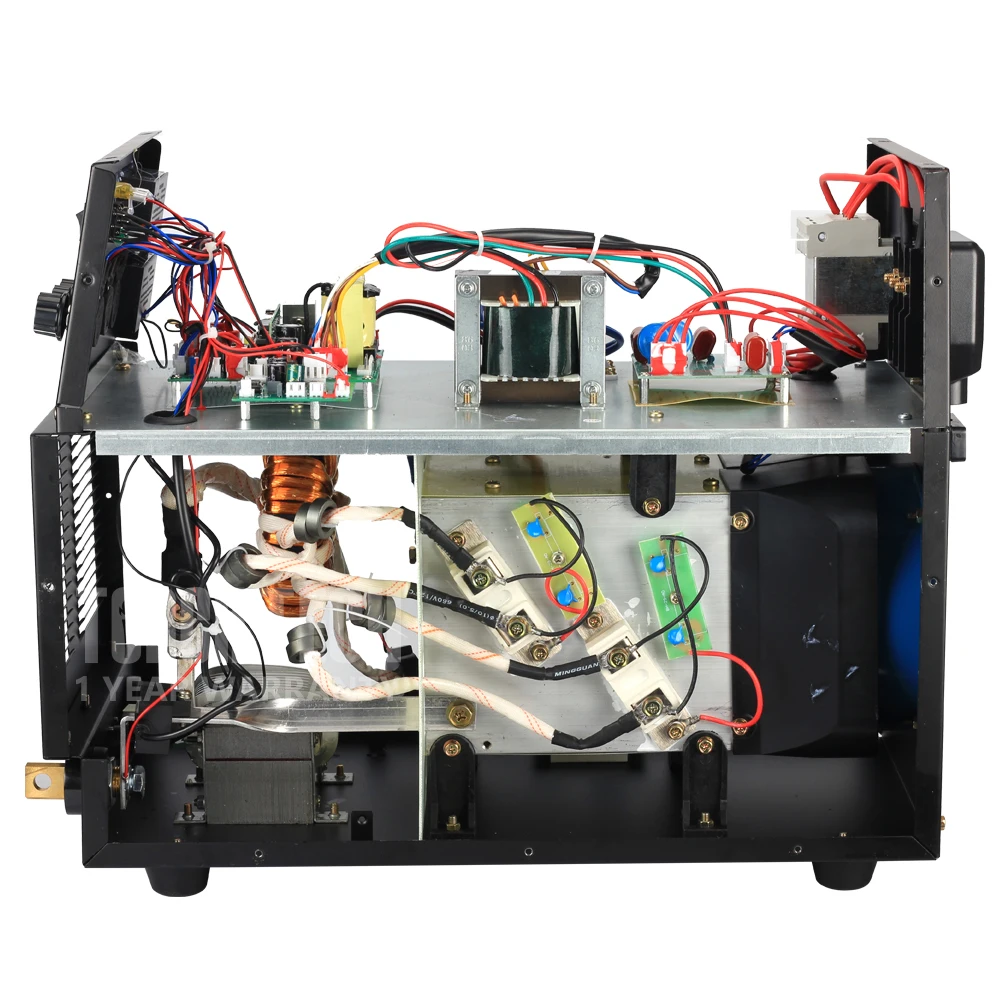

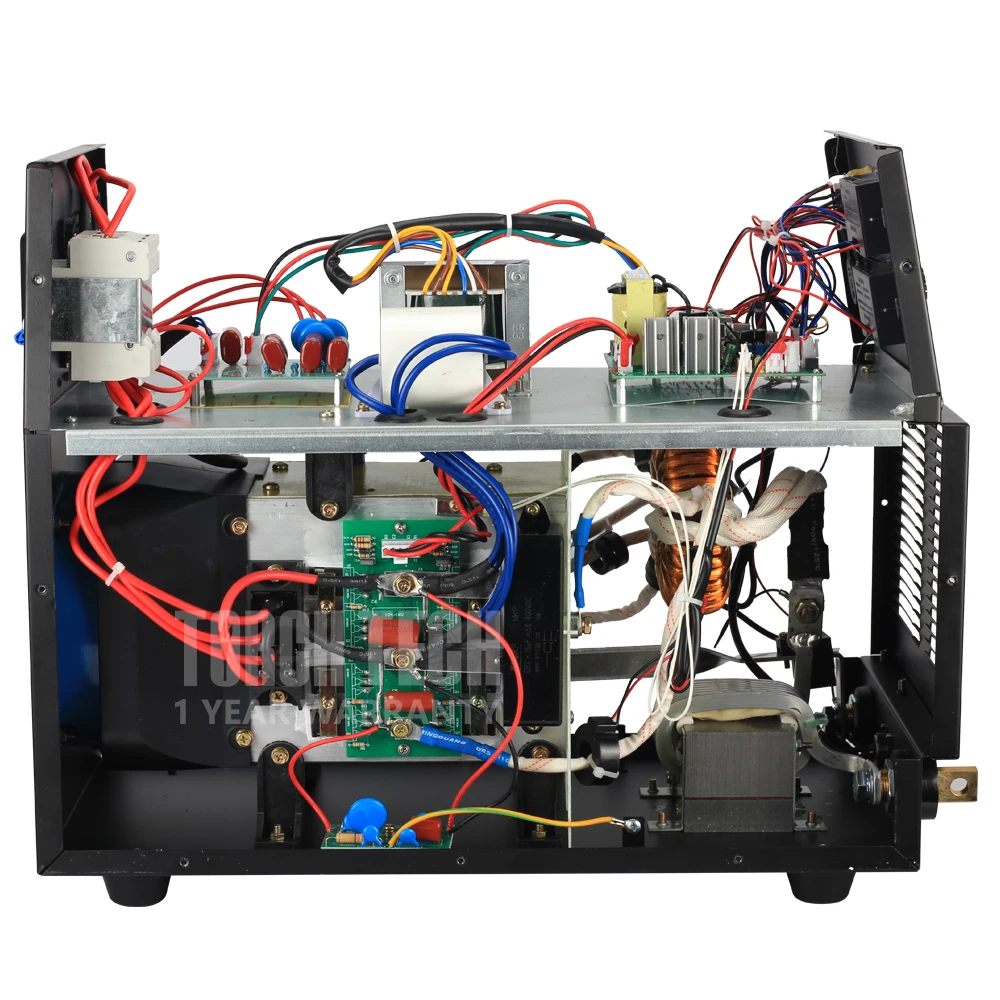

●Internal configuration-as shown in the figure, this is the standard configuration that we have preset. You can customize the internal configuration according to your needs, such as increasing its power or making it more economical. You are welcome to contact us at any time.
● WITHIN 12 HOURS TECHNOLOGICAL ANSWER. ● WITHIN 24 HOURS TECHNOLOGICAL SOLUTION SUPPORT.
● WITHIN 72 HOURS SPARE PARTS SENDING.
● ONE YEAR WARRANTY FOR ALL PRODUCTS.
● TECHNOLOGICAL TRAINING AND VIDEO SUPPORT AVAILABLE.
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
Welding Rod Current Reference
Weldment thickness | Suggest welding rod | Welding rod | Current |
1mm | 1.6mm | 1.6mm | 25A-40A |
1mm ~ 4mm | 2.0mm ~ 3.2mm | 2.0mm | 40A-65A |
2.5mm | 50A-80A | ||
3.2mm | 100A-130A | ||
4mm ~ 12mm | 3.2mm ~ 4mm | 3.2mm | 100A-130A |
4.0mm | 160A-210A | ||
＞12mm | ≥ 4mm | 4.0mm | 160A-210A |
5.0mm | 200A-270A | ||
6.0mm | 200A-300A |
● The greater the current, the faster the metal melts, the greater the penetration depth, and the greater the metal splash. At the same time, defects such as burn-through and undercut are likely to occur.
● If the current is too small, defects such as incomplete penetration and slag inclusion are likely to occur, and the productivity is low.
● If the current is too small, defects such as incomplete penetration and slag inclusion are likely to occur, and the productivity is low.
Buyer notice
VRD: Prevent electric shock function.
When the VRD function is turned on, the no-load voltage of the welding machine generally does not exceed 20V. Welding operations in a humid environment can effectively reduce the risk of electric shock for welders. Turn off the VRD function. The no-load voltage of the welding machine is generally between 60V and 85V.
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
Why is our industrial welding machine the most cost-effective?
So here we need to tell you-increasing the current is actually not simple, the larger the current means the need for a more powerful radiator, rectifier, large capacitor and a series of unavoidable increase in costs. If you simply increase the current without upgrading other equally important working components, the durability of the welding machine will be very poor. Especially for industrial welding machines, it must withstand more stringent tests.
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
Model | Voltage | Actual output current | VRD | F |
ARC400IJ II | AC415V | 40A~380A | Yes | IP23 |
ARC400IJ | AC380V | 40A~360A | Yes | IP21S |
ARC400G | AC415V | 40A~360A | Yes | IP23 |
ARC400MOS | AC415V | 40A~360A | Yes | IP21S |
ARC400 | AC380V | 20A~330A | NO | IP21S |
ARC400I | AC380V/415V | 20A~350A | OEM | IP21S |
ARC300 | AC415V | 20A~230A | No | IP21S |
ARC300L | AC230V/415V | 20A~230A | No | IP21S |
ARC300S | AC230V | 20A~230A | No | IP21S |
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
Accessories and packaging
Application scenario
Company Profile
SHENZHEN COSTAR TECHNOLOGY CO., LTD.
More then 10 years OEM and ODM experience on full range of Industrial and Civil inverter Welding Machines, Air Plasma Cutter. Quality assurance and customer satisfaction are always our top priorities. All customers are warmly welcome to visit our factory.
What do we have?
● Extensive product range. ● Good reputation.
● Quality assurance of raw materials. ● On-time delivery.
● 100% accuracy and quality before testing. ● Customized production.
● Sales staff with 7 years of industry experience.
FAQ
● Are you a factory or trading company?
- We are a professional manufacturer.
● Where is your factory located?
- Our factory is located in Bao'an District Shenzhen city, 1 hour from Hong Kong airport or Shenzhen Bei - railway station, 1.5 hour from Guangzhou Airpot.
● How about quality control in your factory?
- Torchtech stuff are paying great attentions to quality controlling from the beginning to the end.
● How about guarantee?
- 1 year guarantee after goods is discharged in the destination.
● Can l get some samples?
- Yes,we are glad to offer you samples. After price and large order confirmed, the samples fee will be ----- - refunded.
● MOQ ?
- Generally if you choose different products, MOQ will be different.
● Is OEM and ODM service available ?
- Yes, product could print your logo, or customized by your design.
● Payment Terms?
- 30% deposit,70% balance before shipping, by T/T, LC, WESTERN UNION,Trade Assurance is ----------------- recommended.
● Are you a factory or trading company?
- We are a professional manufacturer.
● Where is your factory located?
- Our factory is located in Bao'an District Shenzhen city, 1 hour from Hong Kong airport or Shenzhen Bei - railway station, 1.5 hour from Guangzhou Airpot.
● How about quality control in your factory?
- Torchtech stuff are paying great attentions to quality controlling from the beginning to the end.
● How about guarantee?
- 1 year guarantee after goods is discharged in the destination.
● Can l get some samples?
- Yes,we are glad to offer you samples. After price and large order confirmed, the samples fee will be ----- - refunded.
● MOQ ?
- Generally if you choose different products, MOQ will be different.
● Is OEM and ODM service available ?
- Yes, product could print your logo, or customized by your design.
● Payment Terms?
- 30% deposit,70% balance before shipping, by T/T, LC, WESTERN UNION,Trade Assurance is ----------------- recommended.
