Product Overview
Description
Wholesale, OEM and ODM are all supported. You are welcome to visit our factory.1-3 day fast delivery. Please contact us for the offer.

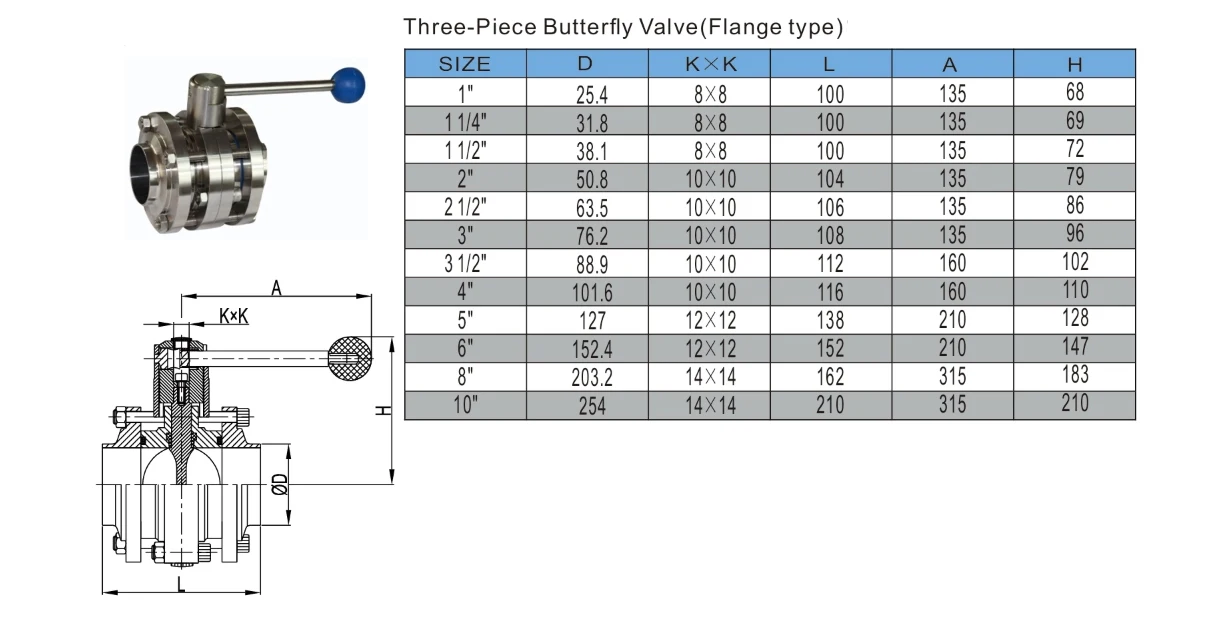

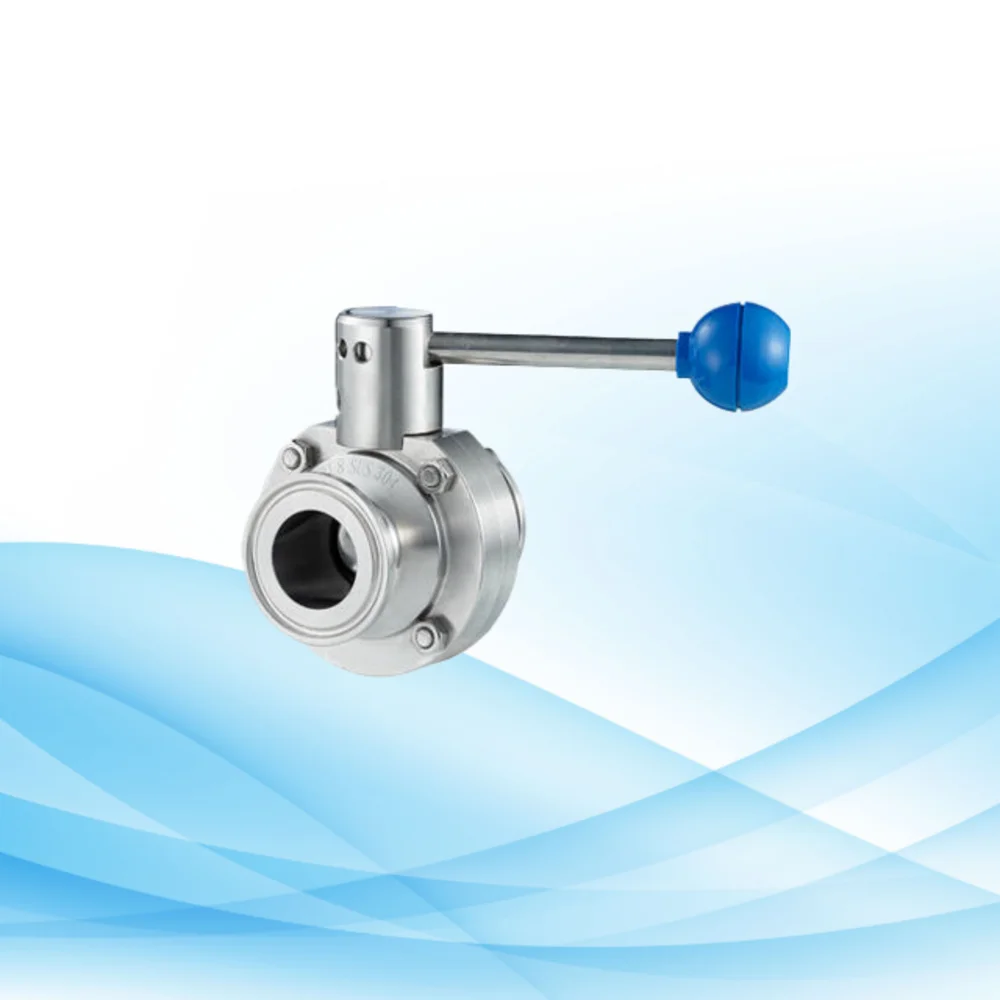

Food-Grade 304 Stainless Steel Sanitary Flanged Butterfly Valve From Expert Manufacturer
1. Size: DN10-DN300, 1/2"-12"
2. Standards: DIN, SMS, ISO, RJT, 3A, IDF
3. Material: The parts contact with the product is AISI304, AISI304L, AISI316L
4. Applications: Food, Dairy, Beverage, Beer, Wine, Pharmacy, biology, etc.
5. Other: Manual, Pneumatic, Electric operation is exchangeable
Material | AISI 316L/304(forged) | ||||||
Valve body | AISI 316L/304(forged) | ||||||
Washer and gasket | EPDM conforms to PFA 177.2600 | ||||||
Hande | AISI 304/PP | ||||||
Surface finishing | Ra < 0.8 | ||||||
Max.pressure | 10bar 1/2"-12", DN10-DN300 / 5bar(DN200/300) | ||||||
Min.pressure | 0.2bar p.abs | ||||||
Operating temperature | -10°C +120°C ( EPDM ) | ||||||
Connection | weld, clamp, thread, flange, etc | ||||||
Size | DN10-DN300, 1/2"-12" | ||||||
Standards | DIN, SMS, RJT, 3A, ISO, IDF | ||||||
Application | food processing, pharmaceutical and chemical products, industrial fluid applications. | ||||||
Features | Compact and robust design/Multi-position handle/Manual handle, pneumatic and electric actuator can be exchangeable with each other/The valve body can be changeable with any kind of connection | ||||||

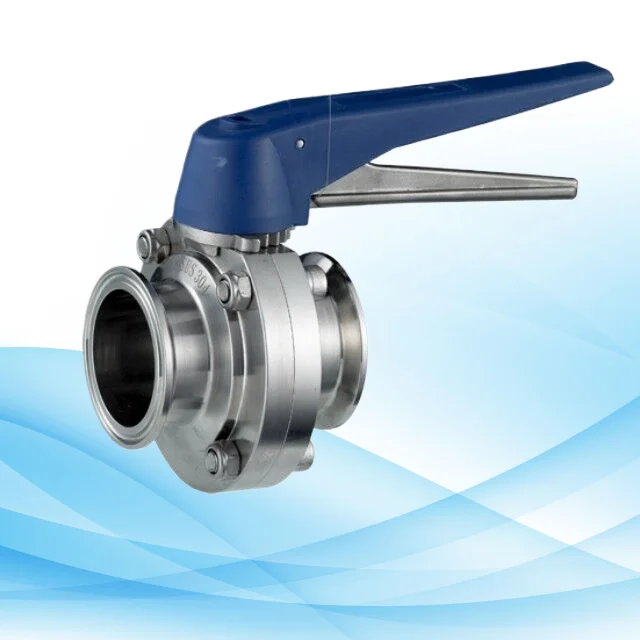

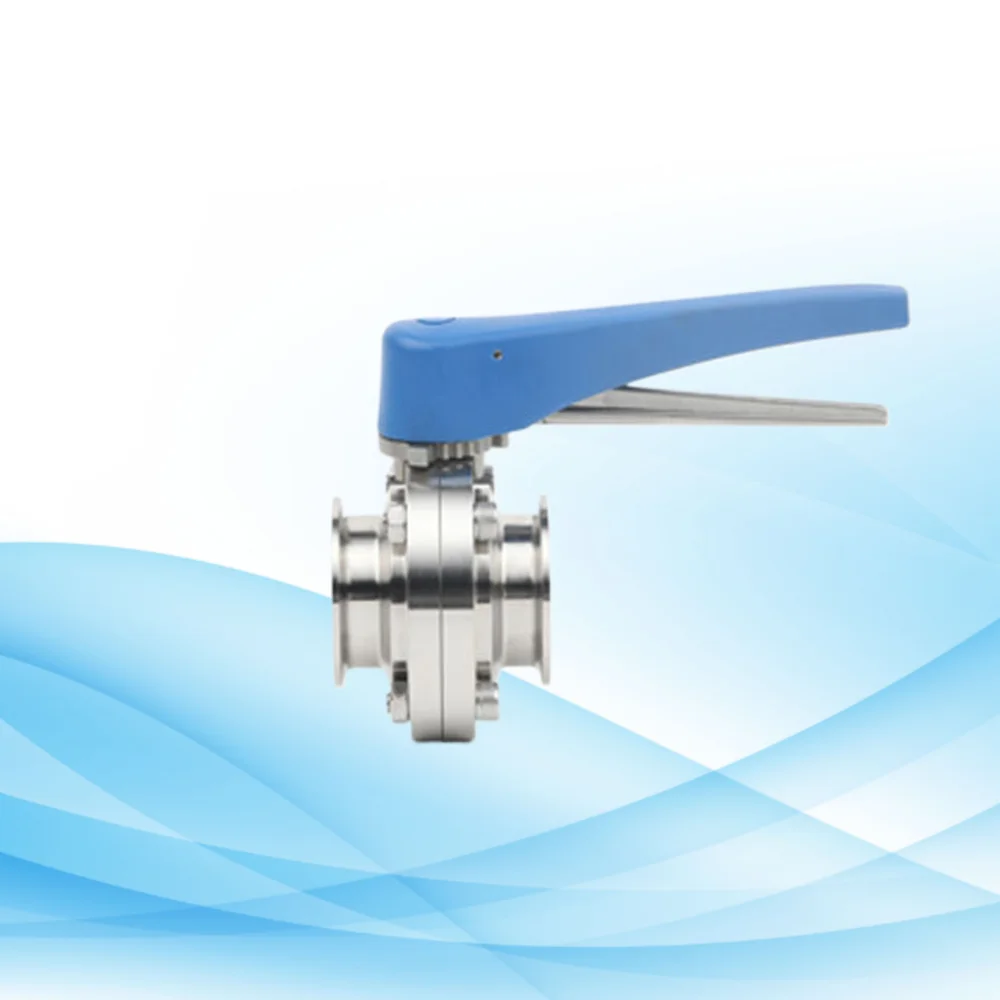

Butterfly Valve with Trigger Handle
Body Material:SS304/SS316L
Seal Material: EPDM (standard)
Available Size: DN10-DN200,1/2"-8"
Operated:Manual
Control:Sensor, Pneumatic actuator (single acting, double acting), electric actuator, C-TOP, C-top controller

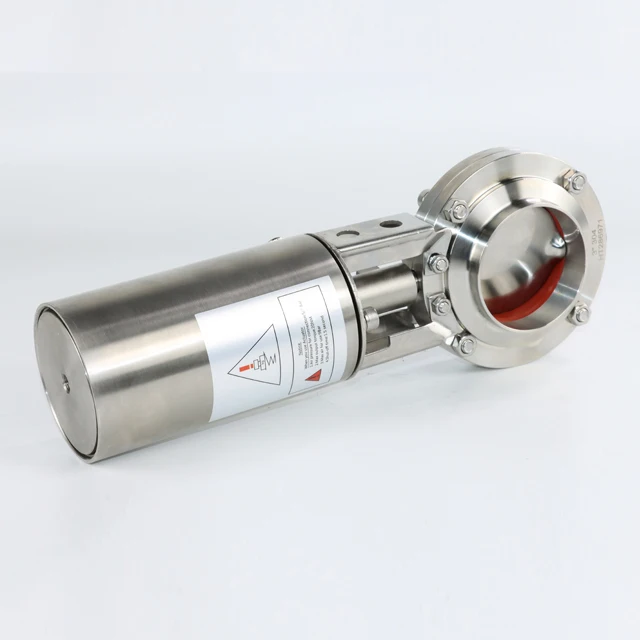

Pneumatic Butterfly Valve
Body Material:SS304/SS316L
Seal Material:EPDM (standard)
Availably Size:DN10-DN200,1/2"-8"
Operated:Pneumatic
Control:Sensor, Pneuamtic actuator(single acting, double acting), electric actuato, C-TOP, C-top controller
Seal Material:EPDM (standard)
Availably Size:DN10-DN200,1/2"-8"
Operated:Pneumatic
Control:Sensor, Pneuamtic actuator(single acting, double acting), electric actuato, C-TOP, C-top controller
FAQ
Q | Are you trade or manufacturer? | ||||||
A | We are a factory with an international sales company specialized in support for global distributors. | ||||||
Q | Can you provide instant technical consulting services? | ||||||
A | We are able to discuss technical details and offer suggestions over the phone in English. You can get the answers in minutes, instead of days. | ||||||
Q | What's the difference between Ready-To-Ship and Customized products? | ||||||
A | Some of RTS standard products are in stock and ready to ship in 2-3 days. We can also quick design and make the drawings for customer requirements, then begin the production. | ||||||
Q | What is the payment terms? | ||||||
A | We accept Alibaba Trade Assurance Order, also can T/T and L/C. | ||||||
Q | How to choose the shipment way? | ||||||
A | It is according to the order quantity, delivery time, costs and customs policy etc. (Or decide by customers) | ||||||
Q | How about the after-sales service? | ||||||
A | Fast after-sales support. Our products have a one-year warranty and free permanent consulting services. | ||||||
