REAL 40kw Horizontal wind Power generator with 14m Blades rotor 380v wind power on grid system
- Category: >>>
- Supplier: Qingdao HenryD Wind Power Equipment Co. Ltd.Qingdao Ltd.
Share on (1601359937054):
Product Overview
Description
Product Details
FD14-40kw Wind turbine:
off grid 40kw wind turbine Use wind energy to generate electricity and charge into storage battery group. Through the multi-voltages power supply system, the electricity can be changed into DC and AC used for illumination, home appliances, communication devices and electric tools.
Grid tie 40kw wind turbine use wind energy to generate electricity and charge into storage battery group. Through the multi-voltages power supply system, the electricity can be changed into DC and AC used for illumination, home appliances, communication devices and electric tools.
Grid tie 40kw wind turbine use wind energy to generate electricity and charge into storage battery group. Through the multi-voltages power supply system, the electricity can be changed into DC and AC used for illumination, home appliances, communication devices and electric tools.
Product Introduction
FD14-40kw wind turbine main body:

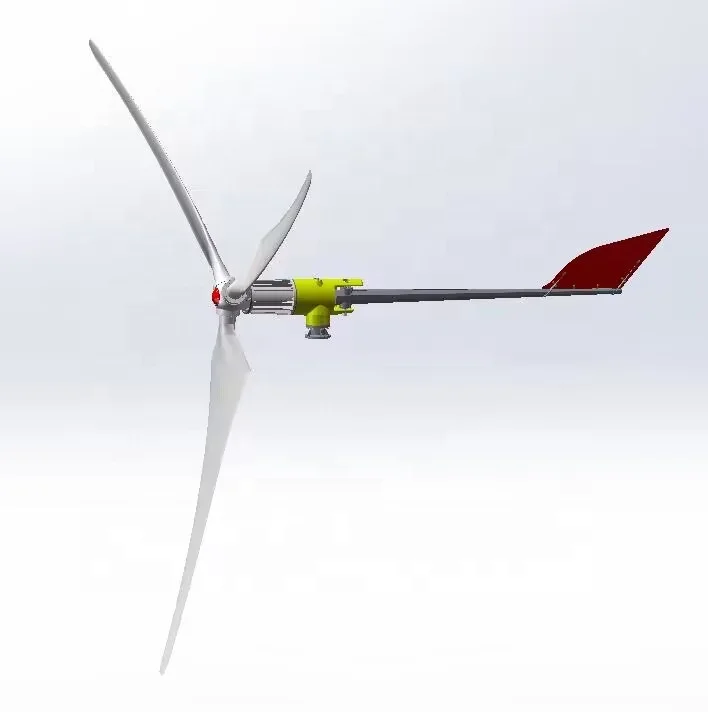

Wind turbine main body including: 3 pcs blades, nose cone, hub, generator with nacelle, tail rod, tail vane
Tower: stand alone tower, hydraulic tower. (optional)
Tower height can be manufactured according to user's request
Features:

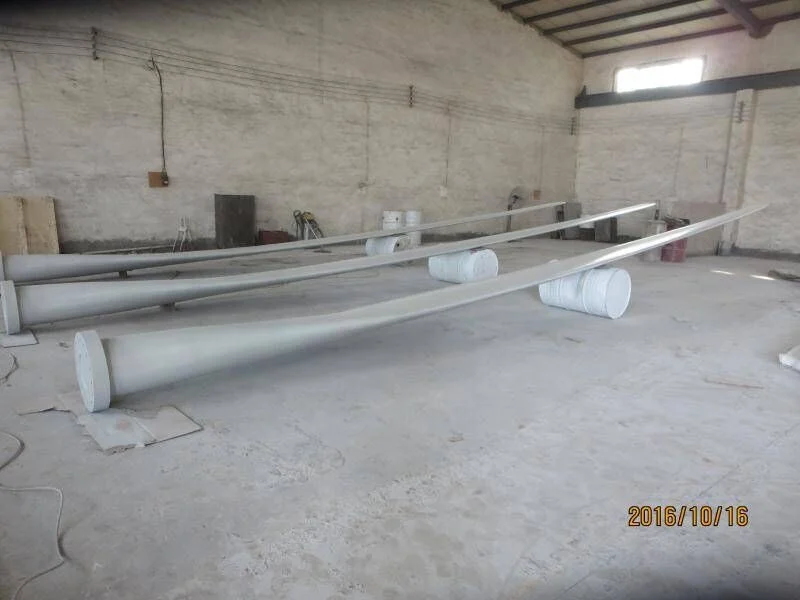

1. Blade: Manufacturing according to the airscrew structure principle and techniques.
Optimal wide TSR & High L/D ratio. With protection film on the edge, long work life.
Select blade type by wind tunnel testing.
With high efficiency, low noise.
2. Blades rotor: Hub adopts casting molding; Blades rotor and generator adopt universal
connection, directly driven.
Connection is reliable, durable, smooth operation without vibration.
3. Generator
Rotor: Nd-Fe-B permanent magnet. Prefabricated tangential magnetic circuit rotor; High
magnetic flux density, small
cubage, good manufacturing process and high performance.
Adopt SKF, NSK bearing.
Close transmission slip ring, the cable will not enlace.
4.Speed regulation: yaw. Simple, reliable and safety.
5. Anti-corrosion treatment: All the outside parts are designed to anti-salt, anti-fog,
anti-atmospheric
anti-sandstorm corrosion design.
6.Tower: guy wire tower, tilting up tower, standalone tower, hydraulic tower… It can be
designed according to your request.
7.Auto braking system and manual braking system.
8.Wind turbine design principle is simple, safety, reliable, maintenance free.
9. Provide low wind place, rich wind place solution. Wind turbine OEM service.
Product Parameters
Model | FD14-40kw |
Blades rotor diameter | 14m |
Rated wind speed | 12m/s |
Start up wind speed | 3m/s |
Survival wind speed | 50m/s |
Rated output power | 40kw |
Max output power | 45kw |
Blades material | FRB |
Generator type | 3 phase AC pma |
Working voltage | 500v |
Working system | On grid system, off grid system, wind solar hybrid system |
Tower height: | 12m-24m |
Wind turbine weight | 2100kgs |
Packing size | 10cbm |
Working voltage | 240v-500v |
Product Details Show
Why Choose Us
About us
1. Chinese best horizontal axis wind turbine manufacture/designer
2. Wind turbine system designer and provider
3. 13 years small wind turbine sales perience
4. 3-5 years guarantee
Workshop list
1. Blades manufacture workshop
2. Generator winding and testing workshop
3. Machining workshop
4. Stock for components and wind turbine set
5.Painting workshop
6. Assembly and testing workshop
Service
1. Provide OEM service
2. Low wind place/rich wind place wind powe solution
3. System designer and provider
4. Tower designer and foundation drawing provider
5. Provide customized service
Product Processing
Product Packing
Main Products
Variable pitch wind turbine
2kw-10kw centrifugal variable pitch wind turbine;
Fixed pitch wind turbine
300-30kw fixed pitch wind turbine for low average wind speed place. Low cost, reliable and high efficiency.
Vertical axis wind turbine
1kw-5kw vertical axis wind turbine.
Aluminum blades
Low rpm, low noise.
Active variable pitch wind turbine
20kw-60kw electric variable pitch wind turbine
Grid tie inverter 1.5kw-15kw
1.5kw-5kw single phase grid tie inverter
6kw 10kw 15kw 3 phase grid tie inverter
Tower for wind turbine
Guy wire tower/hydraulic tower
Stand alone tower/tilting up tower
