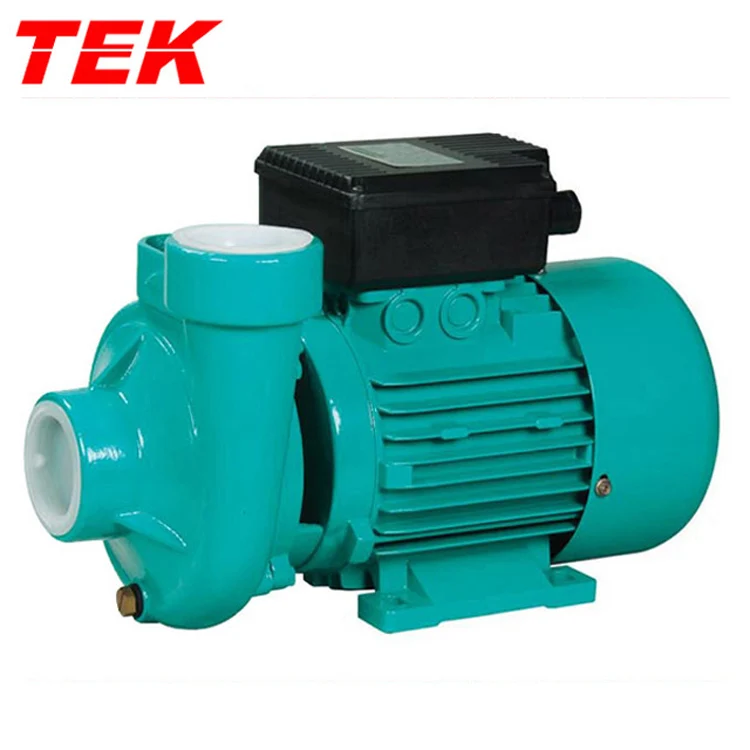

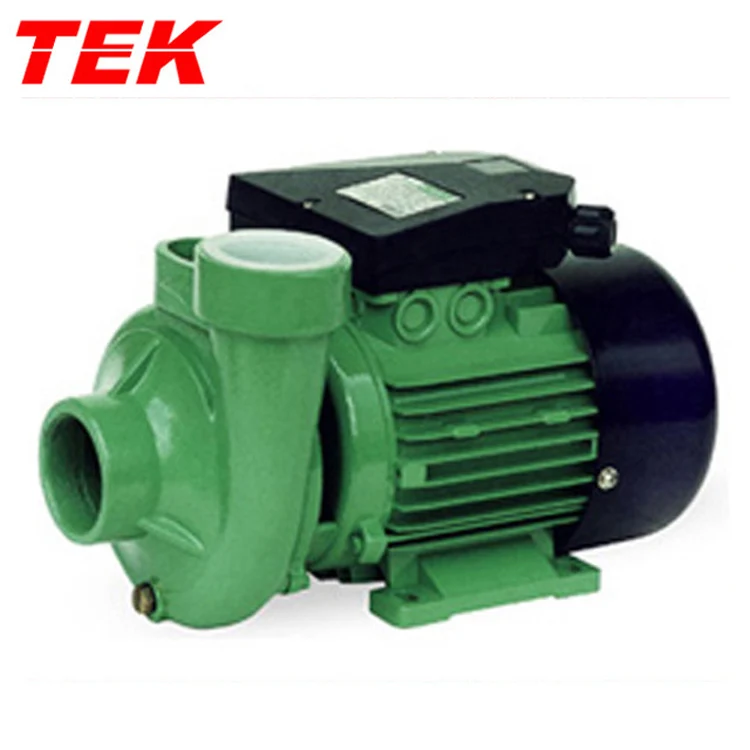

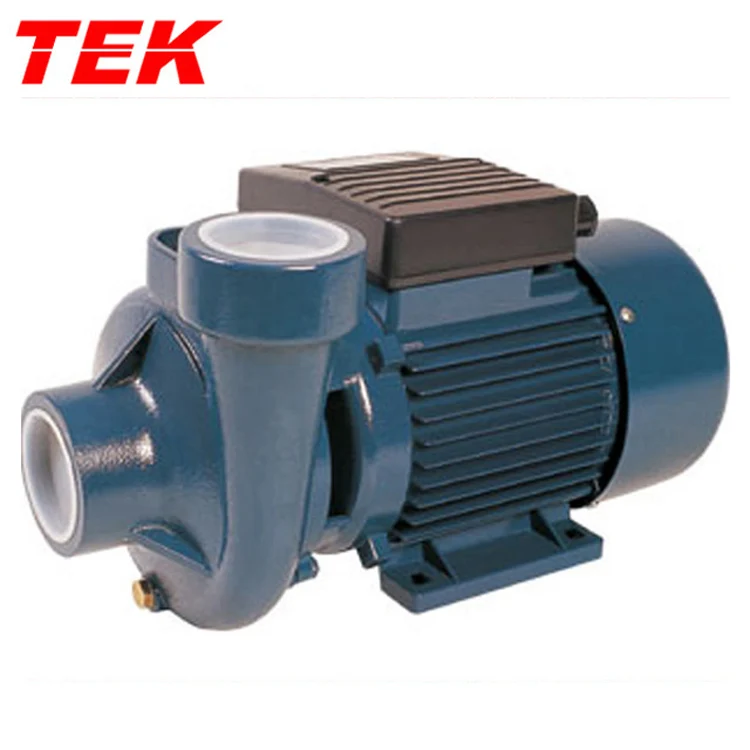

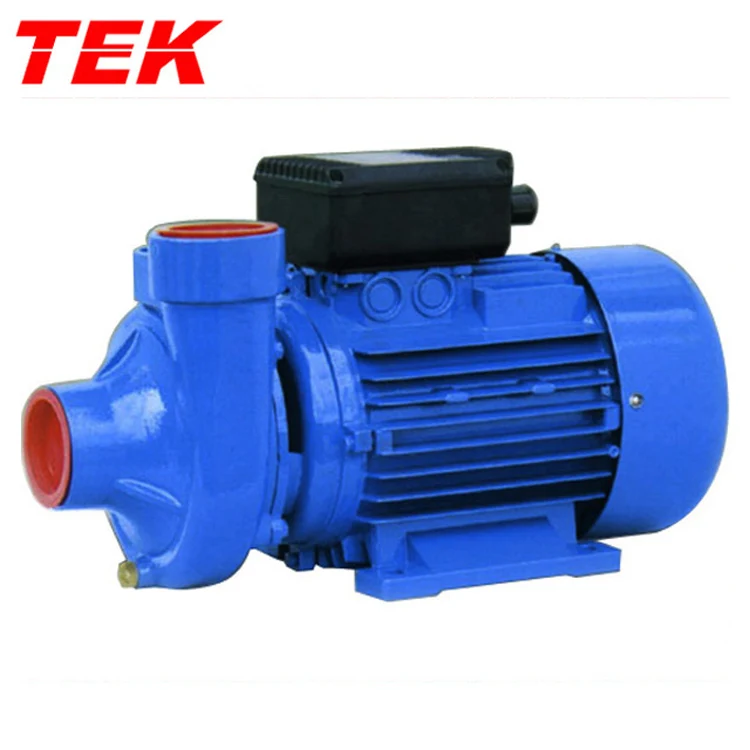

2DK 20 2DK20 DK2 20 1.5kw Copper Wire Winding Motor Casting Iron Body Centrifugal DK Pump Manufacturer OEM

Product Overview

Description

2DK-20 2DK20 DK2-20 1.5kw Copper Wire Winding Motor Casting Iron Body Centrifugal DK Pump Manufacturer OEM



Pump body: cast iron, with UIN ISO 228/1 gas threaded suction and delivery openings.
Motor bracket: cast iron,
Impeller: brass, centrifugal radial flow.
Motor shaft: AISI 314 stainless steel,
Mechnical seal: ceramic and graphite,
MOTOR:
The pumps are coupled to an asynchronous, high efficiency TEK induction
motor of suitable size, which is quiet, closed and externally ventilated,
suitable for continuous duty.
Insulation class B (Class F)
The thermal cutout replay (motor protector ) is incorporated in all single
phase motors.
Three phase motors require an adequate external motor protector, with
connections according to current standards.
Protection: IP 44.
Warranty: 1 Year

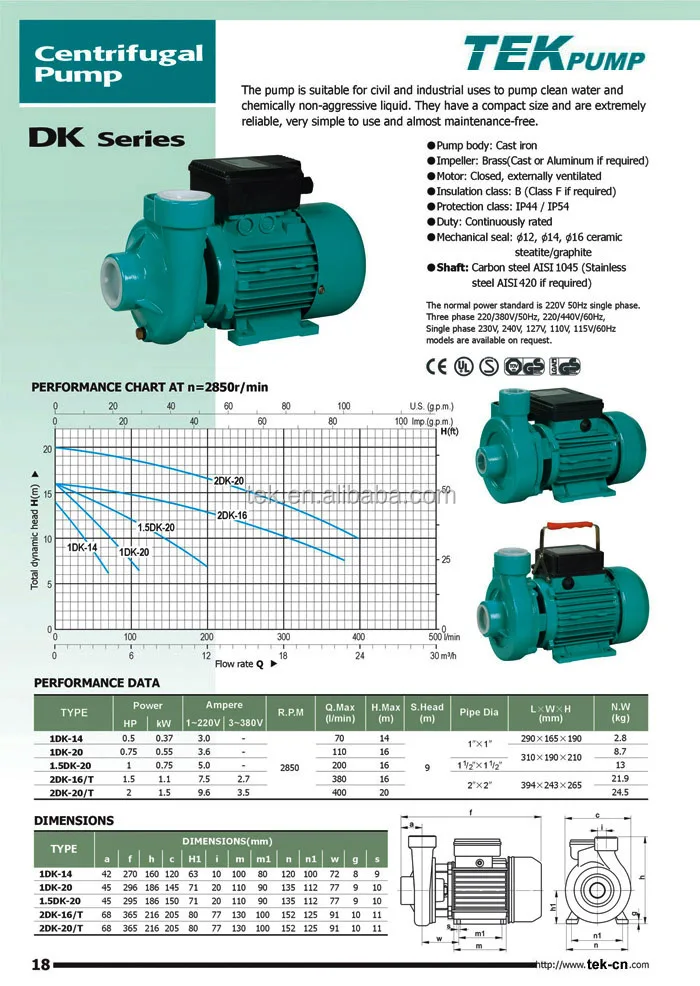

Model	Power		Q.Max	H.Max	S.Max	In/Outlet	L×W×H	N.W	G.W.	20ft	Speed	Ampere	Capacitor
	kw	HP	L/min	m	m	mm	mm	kg	pcs	pcs	r.p.m	220V-1/50Hz	(µF)
1DK-14	0.37	0.5	65	14	8	25x25	290x145x190	7.8	8.3	3600	2850	1.8	12
1DK-20	0.4	0.55	200	20	8	25x25	330x190x220	8.6	9.1	2100	2850	4.6	20
1.5DK-18	0.55	0.75	100	18	8	40x40	310x175x210	11	11.8	2600	2850	3.7	14
1.5DK-20	0.75	1	240	20	8	40x40	310x175x210	12.2	13	2600	2850	4.6	20
2DK-15	1.1	1.5	380	16	8	50x50	390x243x245	22	22.8	1250	2850	7.5	30
2DK-20	1.5	2	400	20	8	50x50	390x243x245	24.5	25.3	1250	2850	9.5	30
2DK-30	2.2	3	500	20	8	50x50	390x243x245	26	26.8	1250	2850	10	4
