Hikelok high pressure 3000 psi stainless steel overbraid hose 1/4' 3/8' NPT BSP OD PTFE lined PTFE core hose
- Category: >>>
- Supplier: Sailuoke Fluid Equipment Inc.Sailuoke Inc.
Share on (1601360341539):
Product Overview
Description
Product Description

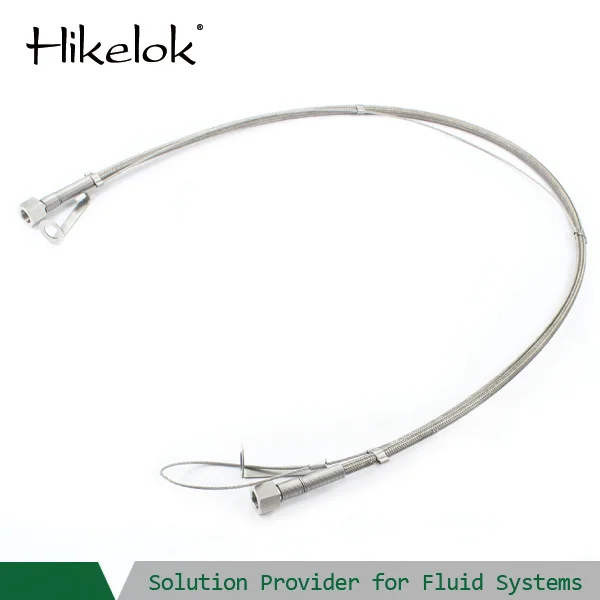

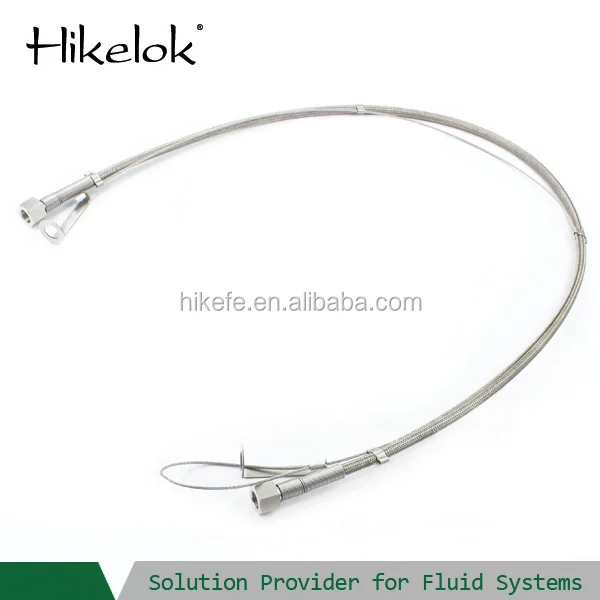

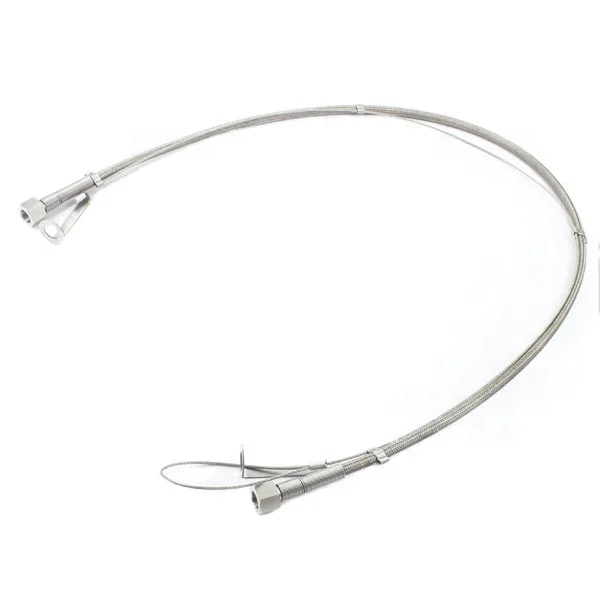

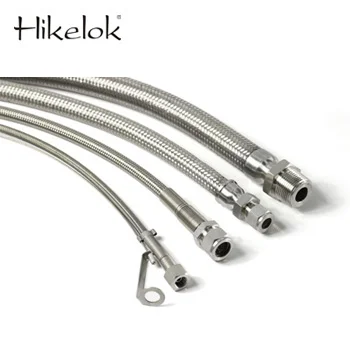

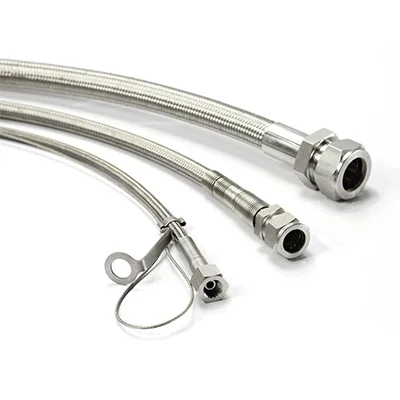

PTFE- Lined Hose
Features:
* Maximum working pressure up to 3000 psig (206 bar)
* Working temperature from -65℉ to 400℉ (-54℃ to 204℃)

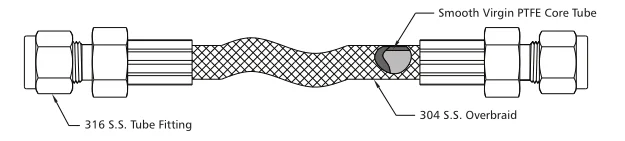

* PTFE core tube and woven 304 stainless steel wire mesh
* Hose sizes from 3/16 to 7/8 in.
* Standard and custom- length assemblies
Hose Technical Data
| Hose Size | Min. Bend Radius | Temperature Range ℉ (℃) | Working Pressure at 70 ℉(20℃) | Min. Burst Pressure at 70 ℉(20℃) | |
| Static | Dynamic | ||||
| in. (mm) | in. (mm) | in. (mm) | Psig ( Bar) | Psig ( Bar) | |
| 3/16 (4.8) | 2.0 (50.8) | 2.5 (63.5) | -65 to 400 (-53 to 204) | 3000(207) | 12000(828) |
| 5/16 (7.8) | 4.0 (102.0) | 5.5 (140.0) | 2250(155) | 9000(620) | |
| 13/32 (10.3) | 5.0 (127.0) | 6.5(165.0) | 1750(121) | 7000(484) | |
| 5/8 (15.9) | 6.5 (165.0) | 8.0(203.0) | 1000(69) | 4000(276) | |
| 7/8 (22.2) | 9.5(241.0) | 12.0(305.0) | 800(55) | 3200(220) | |
