China Diesel Engine Drive Electric Spider Cranes Hydraulic Mobile Spider Crane 3 Ton Telescopic Small Price Mini Spider Crane
- Category: >>>
- Supplier: Jining Guanyu Construction Machinery Co. Ltd.Jining Ltd.
Share on (1601360376637):
Product Overview
Description
Product Description
Basic Parameters of 3-ton Spider Crane | ||||
Model | 3t | |||
Maximum Working Radius | 8.6m×0.4t | |||
Maximum Ground Lifting Height | 9.9m | |||
Maximum Underground Lifting Height | 10mX1t(4绳) 20mX1t(2绳) 40mX0.74t（1绳） | |||
Winch Device | Hook Speed | 0-8m/min (4绳） | ||
Rope Type | Φ8mm×45m | |||
Telescopic System | Boom Type | Fullautomatic 5 section | ||
TelescopicLength/Time | 3.1m-9.9m/20sec | |||
Boom Angle/Time | 0-80°/13sec | |||
Slew Angle/Time | 0-360°（连续）/60sec | |||
Outrigger | Outrigger movement form | Manual Spin Out，Hydraulic Telescopic， Automatic Support (Two Legs) | ||
Maximum Extended Dimensions（mm） | 4530（长）X4370（后）X3700（前） | |||
Traction system | Walking Way | Hydraulicmotordriven | ||
Walking Speed | 0-2.5km/h | |||
Grade Ability | 20°(36%) | |||
Power Supply Voltage | AC 380v | |||
Diesel Engine | Producer | Youpu | ||
Model | 2V80/F195 | |||
Starting Method | Electric starting | |||
Operating Temperature | -5°C~40°C | |||
FuelTank Capacity | 8L | |||
Battery capacity | 12v 45AH | |||
Fuel consumption rate | 274g/kW-h | |||
Noise grade | ≤81.5dBA (1m) | |||
Emission standard | National II standard | |||
Dimension | Length x Width x Height | 2.95m*0.8-0.98m *1.56m | ||
Vehicle Weight | 2.5T | |||
Standard configuration | Diesel engine and electric motor (dual power) | |||

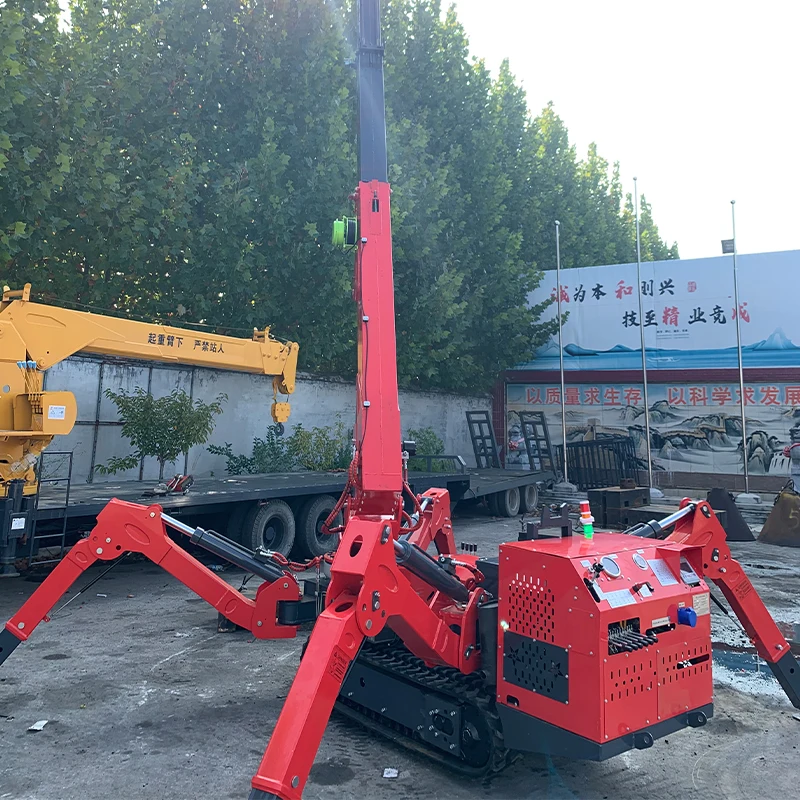

Details Images
