Model | KLCA004 |
Operating voltage | 9-36V |
Operating temperature | -40~80℃ |
Power consumption | 2.2W |

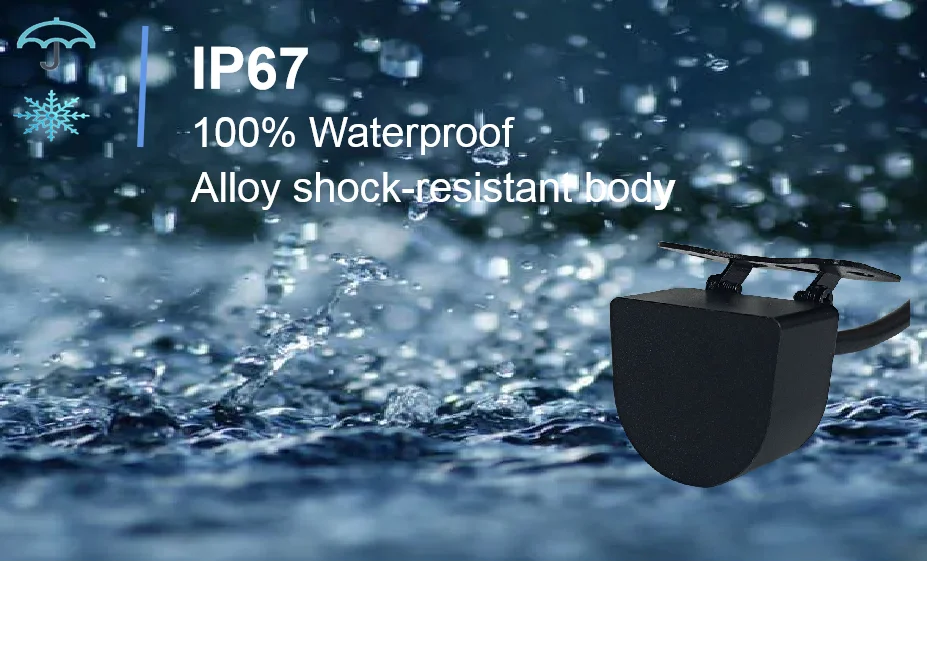

Waterproof level | IP67 |
Frequency band | 79GHz |
Refresh rate | 20Hz |
Communication interface | TTL Serial Port |
Number of transmit and receive channels | 2Tx4Rx |
Elevation beam width | ±25° |
Horizontal beam width | ±55° |
Distance resolution | 0.2m |
Speed resolution | 0.2m/s |
Speed range | ±210km/h |
Distance measurement accuracy | Better than 0.2m |
Angle measurement accuracy | Better than 1° |
Speed measurement accuracy | Better than 0.2m/s |
Detection distance | 50-70m |
