Mini ITX Industrial Mainboard Core 12/13th generation H610 Q670 dual network LVDS for Industrial Automation Digital Signage etc
- Category: >>>
- Supplier: Shenzhen Lucky Module Co. LimitedShenzhen Limited
Share on (1601360557962):
Product Overview
Description
Product Description
Product parameter | |

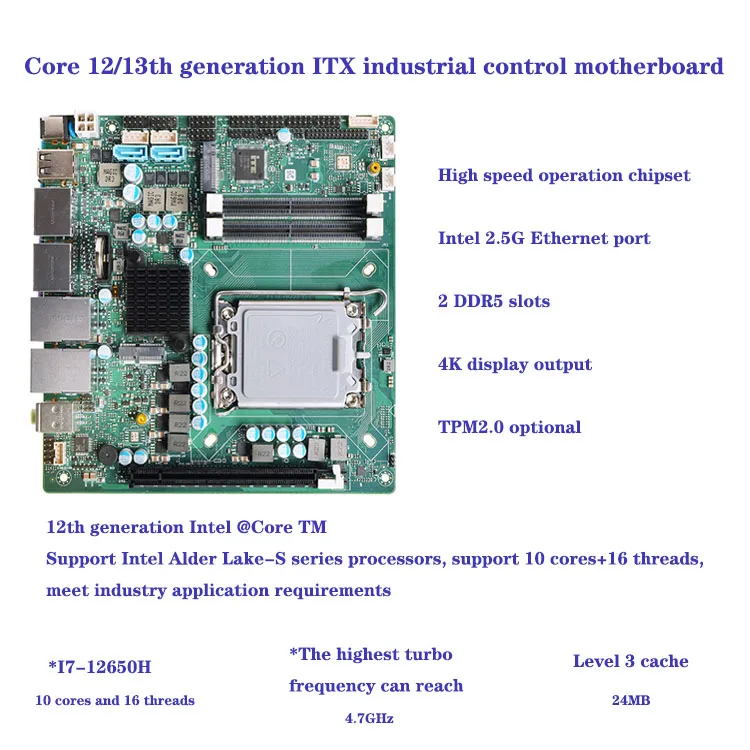

Processor system | Intel 12th generation Alder Lake-S series/13th generation Raptor Lake-S series, LGA1700, TDP65W |

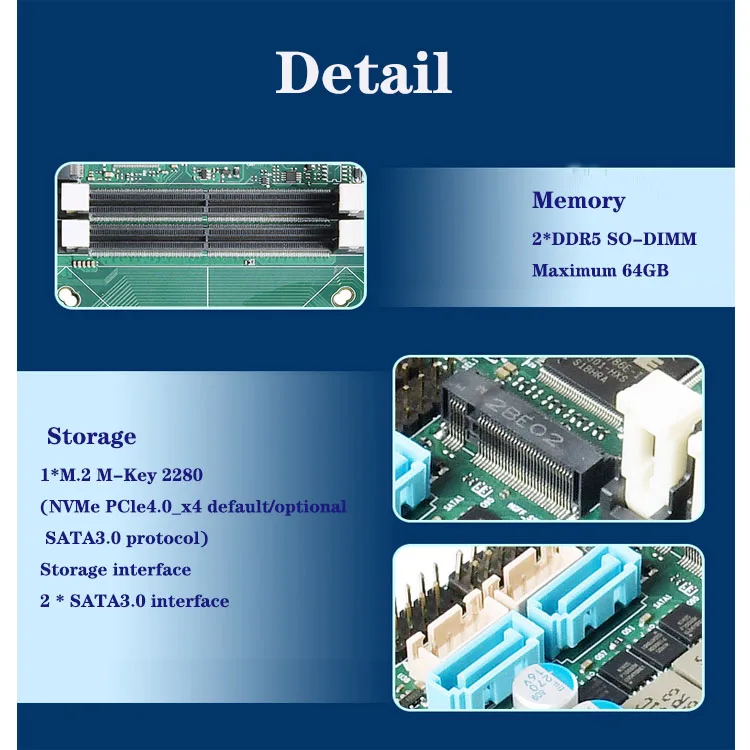

Memory | 2xDDR5 SO-DIMM, maximum 64GB |
Storage | 1 * M.2M-Key2280 (NVMe PCle4.0_x4 default/optional SATA3.0 protocol) storage interface 2 * SATA3.0 interface |
Display | 2 * HDMI 2.0 interface, supports 4096x2160@60Hz 2 * DP, supports 4096x2160@60Hz eDP/LVDS |

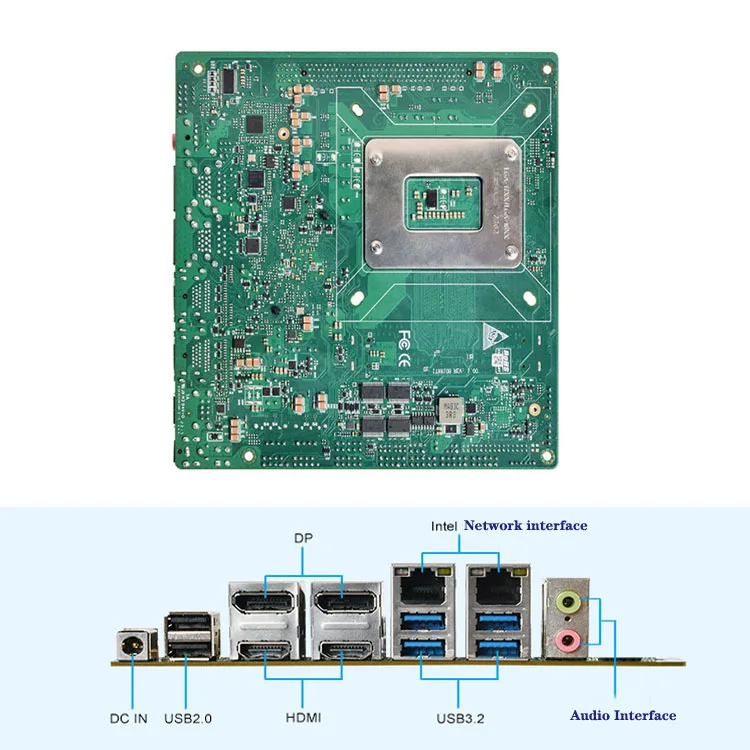

Board edge I/O interface | DC JACK, 2*USB2.0 2*HDMI/DP 2 * (LAN+2 * USB 3.2), 2-pin audio input/output |

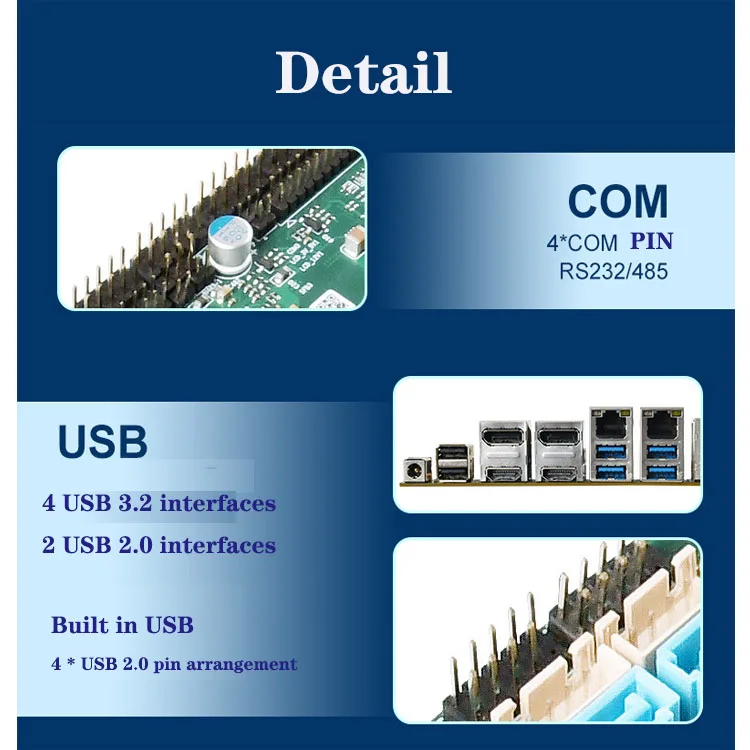

Expansion interface/function | TPM2.0 optional, default not available; 1 * PCle_X16 (PCle4.0_16x protocol) 1 * M.2E-Key (PCle3.0/2.0 protocol, supports WIFI/BT module) 4 * COM pin arrangement, 2x5Pin, spacing 2.54mm; COM1/2 can choose RS232/485, COM3/4 is RS232 4 * USB2.0 pin arrangement, with a spacing of 2.54mm (including 1 USB and WIFI co LAY) 8 * GPIO pins, 2x5Pin, spacing 2.54mm 1 * 4Pin PWM CPU fan, 1 * 4Pin system fan |
Power Supply | DC 12-24V |
Work environment | working temperature -20℃~+60°C Storage temperature -40°C~+85°C Working humidity 5%~90% relative humidity, no condensation Storage humidity 5%~90% relative humidity, no condensation |

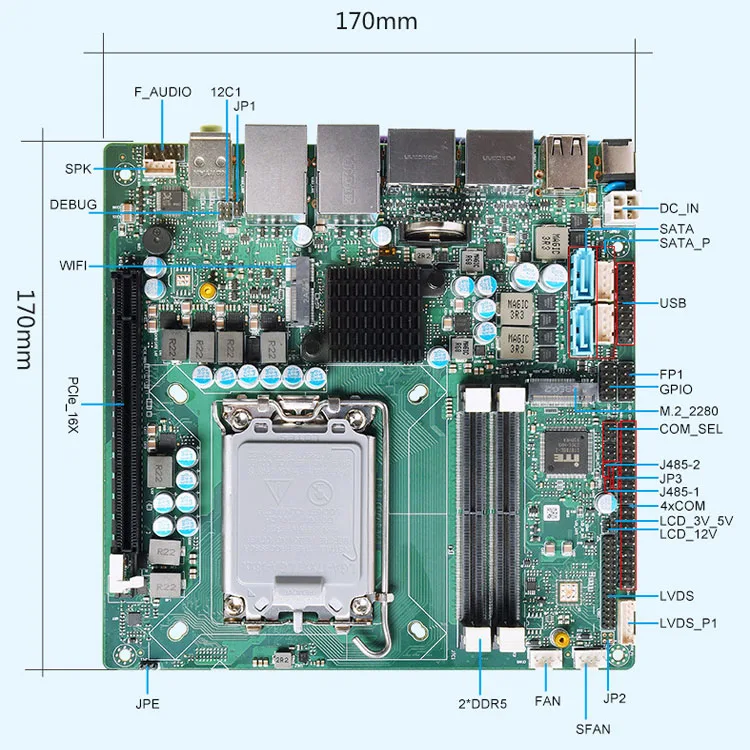

Size | 170x170 mm |
Net Weight | About 500g |
Authentication | CE,RoHS,FCC |
