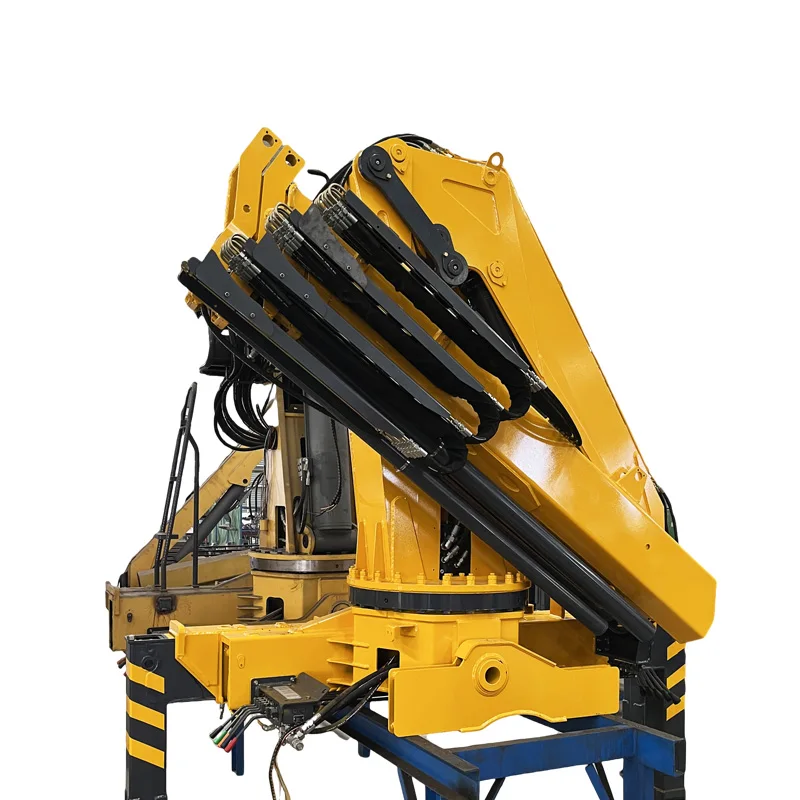

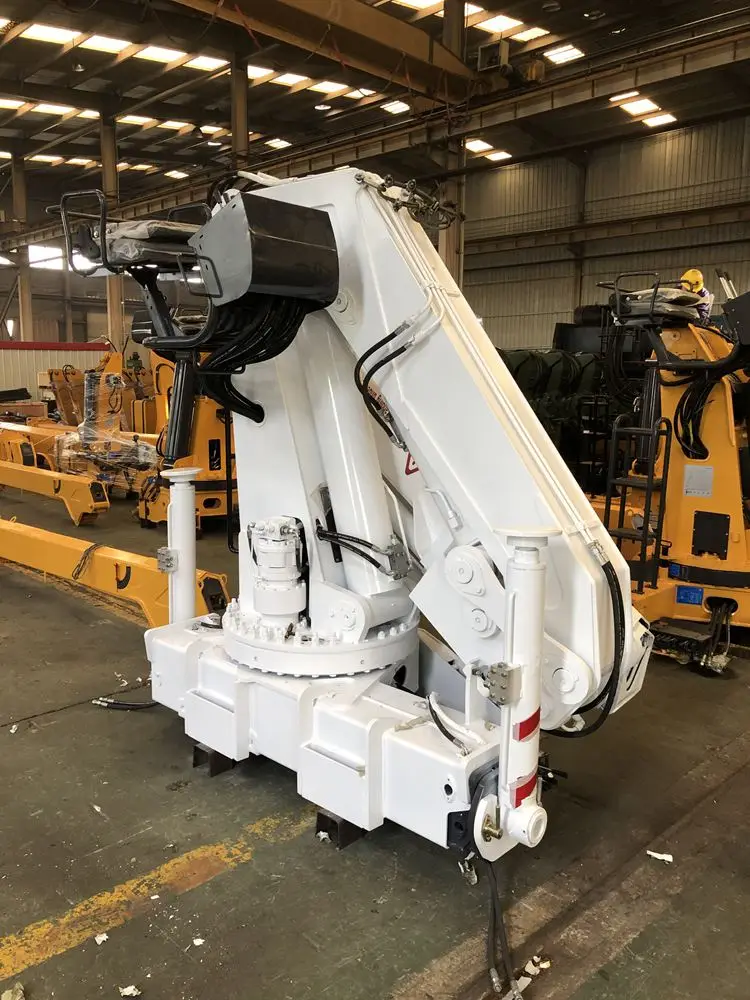

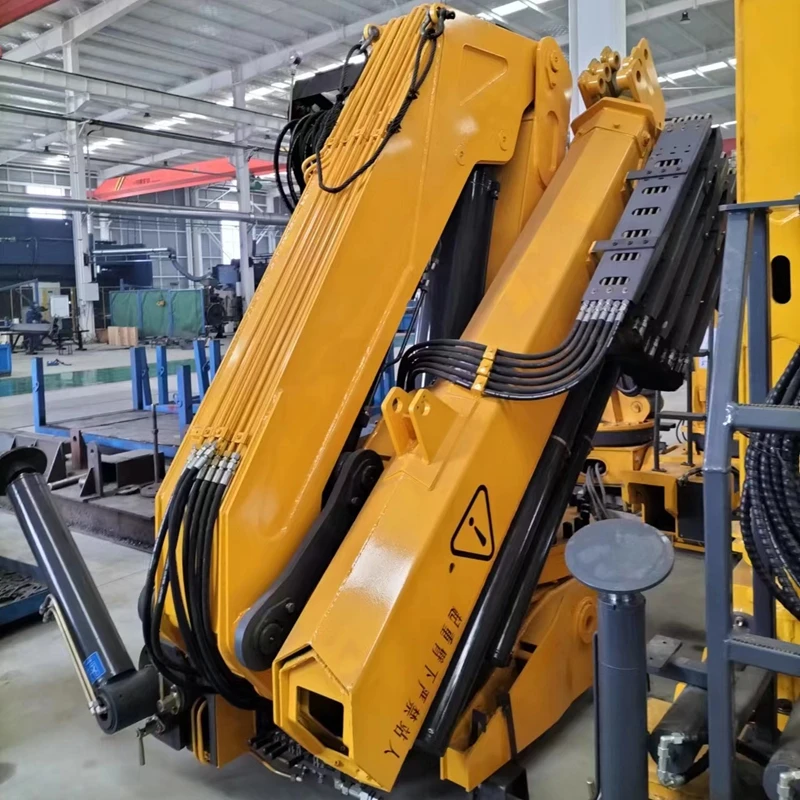

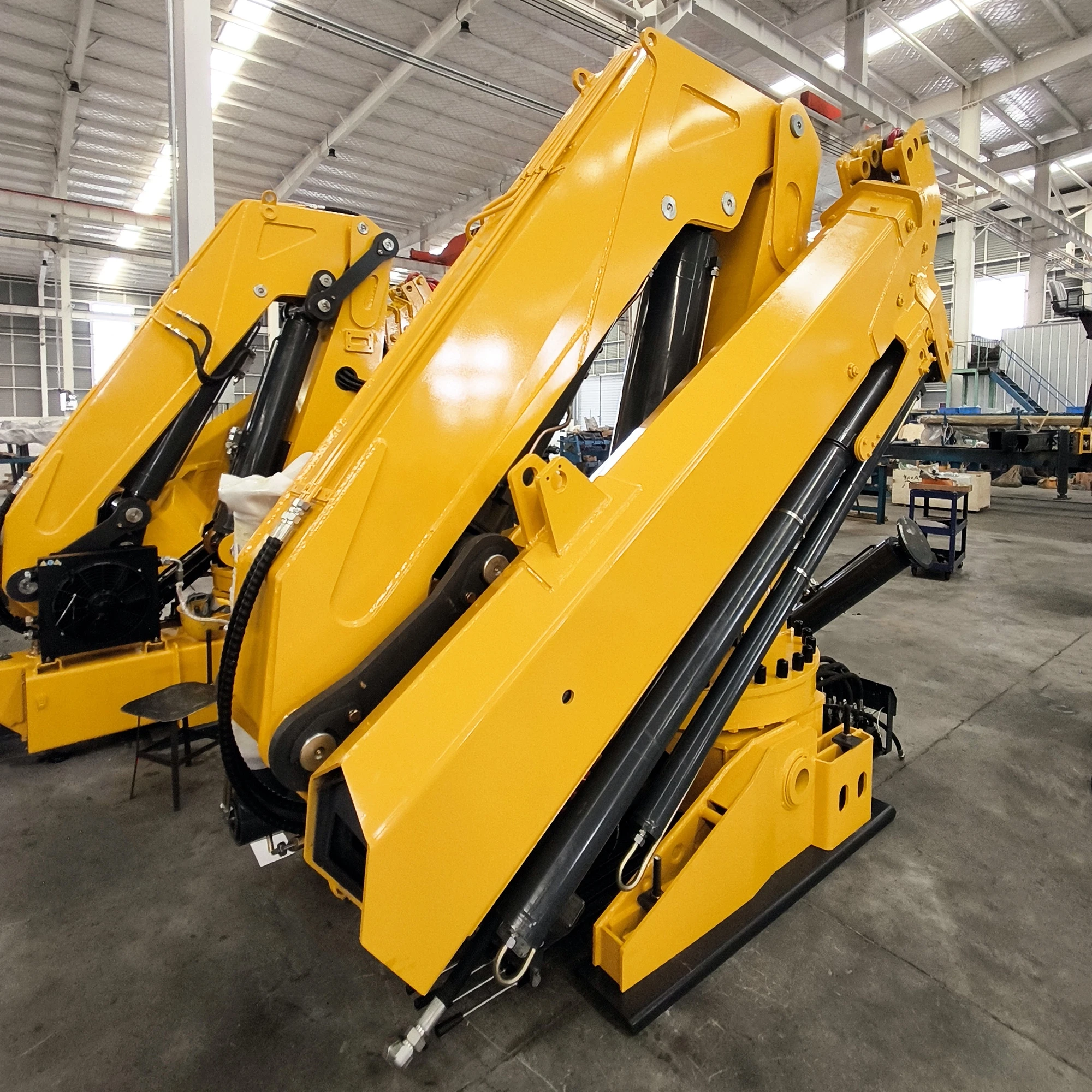

Hydraulic 12ton Articulated Farm Truck Mounted Arm Crane With Remote Control
Hydraulic 12ton Articulated Farm Truck Mounted Arm Crane With Remote Control
Hydraulic 12ton Articulated Farm Truck Mounted Arm Crane With Remote Control
Hydraulic 12ton Articulated Farm Truck Mounted Arm Crane With Remote Control
Hydraulic 12ton Articulated Farm Truck Mounted Arm Crane With Remote Control
Hydraulic 12ton Articulated Farm Truck Mounted Arm Crane With Remote Control
Hydraulic 12ton Articulated Farm Truck Mounted Arm Crane With Remote Control

Hydraulic 12ton Articulated Farm Truck Mounted Arm Crane With Remote Control

Share on (1601360605738):


Price:

Quantity:


Product Overview

Description





Knuckle Boom Truck Mounted Crane

Telescopic Boom Truck Mounted Crane

Track Crane



Timber Crane
Marine Crane
More Products


Products Description

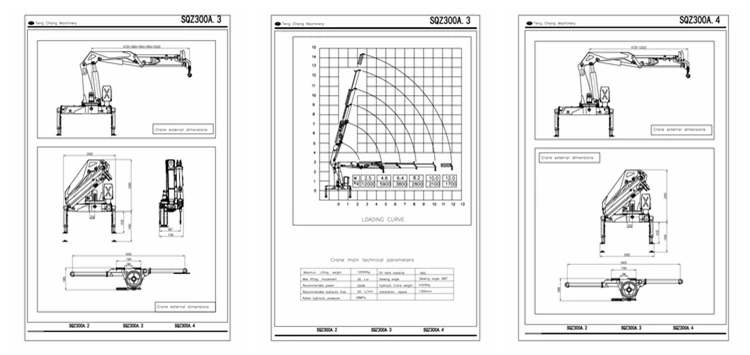

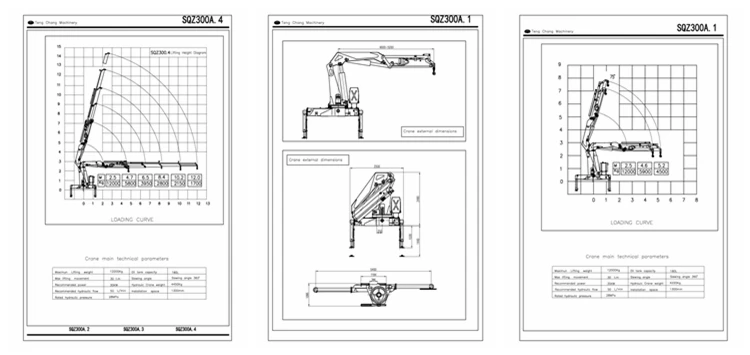

Crane main technical parameters——SQZ300A.3
Maximum lifting weight
12000Kg
Oil tank capacity
180L
Max lifting movement
30t.m
Slewing angle
360°
Recommended power
35KW
Hydraulic crane weight
4320Kg
Recommended hydraulic flow
50 L/ min
Installation space
1300mm
Rated hydraulic pressure
28MPa


Crane main technical parameters——SQZ300A.4
Maximum lifting weight
12000Kg
Oil tank capacity
180L
Max lifting movement
30t.m
Slewing angle
360°
Recommended power
30KW
Hydraulic crane weight
4450Kg
Recommended hydraulic flow
50 L/ min
Installation space
1300mm
Rated hydraulic pressure
28MPa


Crane main technical parameters——SQZ300A.1
Maximum lifting weight
12000Kg
Oil tank capacity
180L
Max lifting movement
30t.m
Slewing angle
360°
Recommended power
35KW
Hydraulic crane weight
4220Kg
Recommended hydraulic flow
50 L/ min
Installation space
1300mm
Rated hydraulic pressure
28MPa


Knuckle Boom Truck Mounted Crane
Maximum lifting weight
1t 2t 3.2t 4t 5t 6.3t 8t 10t 12t 14t 16t 20t 25t
Max Lifting Movement
4/6.4/8/10/12.6/16/20/30/35/40/50/60/67.5t.M
Recommended Power
7.5Kw/8KW/15KW/20KW/30KW/35KW/40KW/45KW/63KW
Recommended Hydraulic Flow
15~90 L/ Min
Rated Hydraulic Pressure
22/28/30/32/33MPa
Oil Tank Capacity
25/30/60/100/150/180/200/250/280L
Hydraulic Crane Weight
534KG~8250Kg
Installation Space
550/800/850/1050/1070/1200/1300/1500/1610/1680/1700mm


























Applications

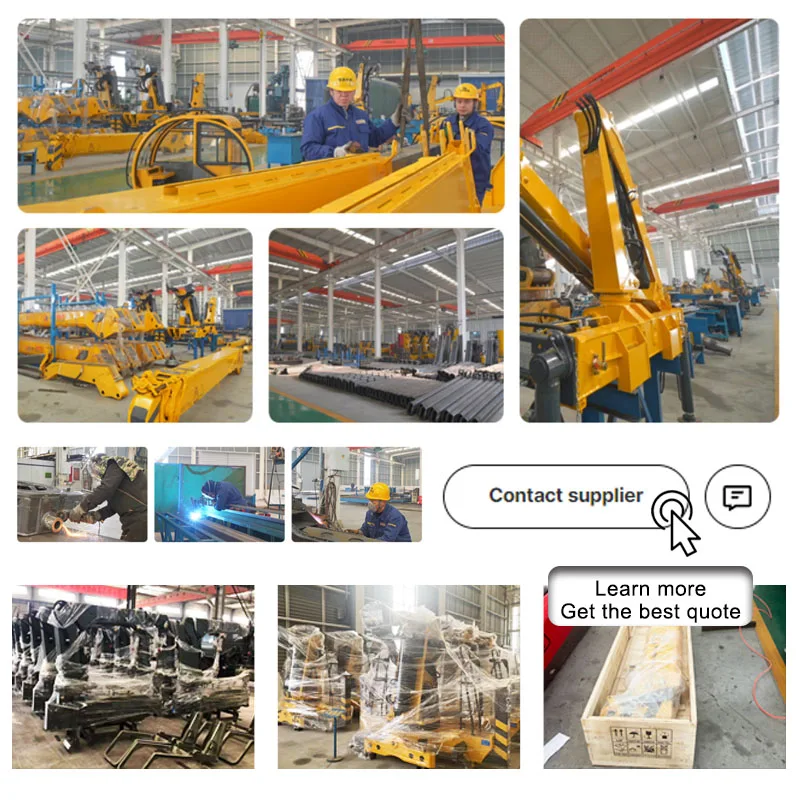

Packaging & Shipping




Company Profile






Tengchang Construction Machinery Co., Ltd. excels in precision forging and craftsmanship, with a focus on innovation and efficiency. With a vast facility, certifications including ISO9001, and a team of industry professionals, we lead in the design, development, and manufacturing of construction machinery. Our flagship products include truck cranes, rail cranes, fire-fighting equipment, and hydraulic control systems, known for their simplicity, durability, and reliability. Committed to quality and service excellence, we aim to be a top brand in China's crane industry through continuous technological innovation and collaboration with our customers.


Certifications






FAQ


1)Are you a manufacturer or a trading company?
We are a direct source factory with 20 years of production experience. Over the past decade, we have exported to more than 80 countries and regions.

2)What payment methods do you accept?
We accept both T/T (telegraphic transfer) and L/C (letter of credit) at sight.

3)What is your delivery time?
Delivery time is typically 20-40 working days after receiving a 30% T/T deposit or L/C.

4)What is the warranty period for your products?
Our standard warranty period is 1 year. For large orders, we can discuss extended warranty options.

5)What is your minimum order quantity (MOQ)?
Our MOQ is 1 unit.

6)Do you offer OEM services?
Yes, we offer OEM services and can customize products according to your requirements.

7)What optional attachments are available for your products?
Optional attachments include Remote Control, Basket, Auger, Grapple, Top Seat, and Rear Legs.

8)What certifications and standards do you adhere to?
We adhere to the ISO9001 quality management system and hold national truck crane manufacturing licenses, as well as weaponry quality management system certifications (GJB9001C-2017).

9)What are the advantages of your key products?
Our Truck Cranes, Telescopic Cranes, Hydraulic Cranes, Marine Cranes, and Folding Cranes are known for their durability, stability, and high performance. With precision craftsmanship and advanced manufacturing technology, our cranes offer exceptional lifting capacity, smooth operation, and reliability.

10)What are your strengths in technology and innovation?
We have a top-notch R&D team and advanced development platforms, including 3D design and mechanical analysis systems. Our innovations in lifting capacity, speed, and smoothness are supported by multiple utility model patents and invention patents, reflecting our commitment to technological advancement and high-quality products.
