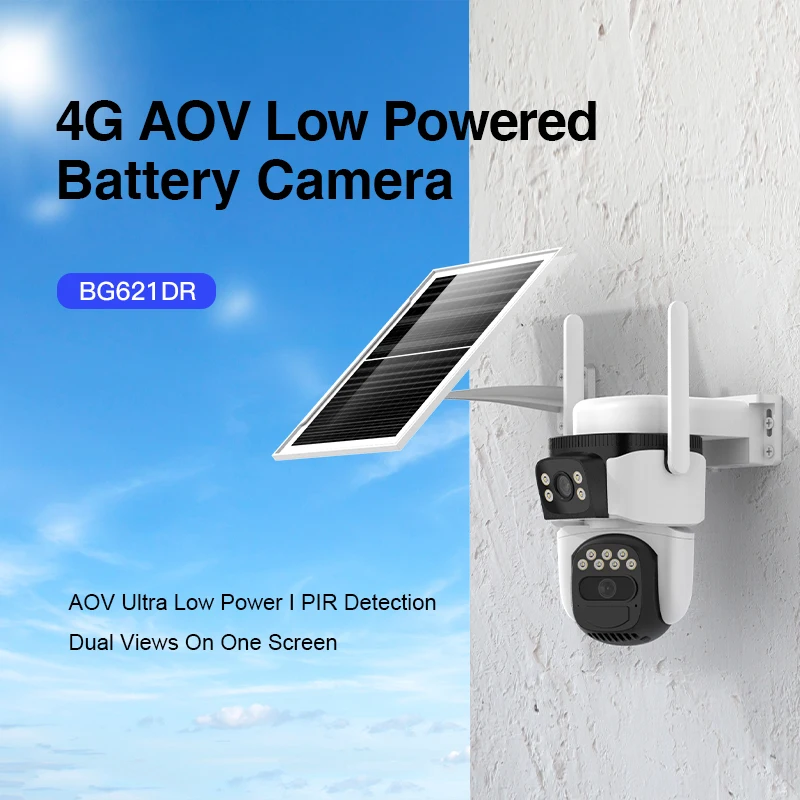

AOV ultra-low power consumption, 24-hour video recording, and long-lasting battery life | ||||
Ultra-wide-angle, pan 270° tilt 90° | ||||
4G network | ||||
Color night vision, black & white night vision,11pcs dual-color dual light source lights, clearer night vision | ||||
AI algorithm, smart tracking, human feature analysis and framing | ||||

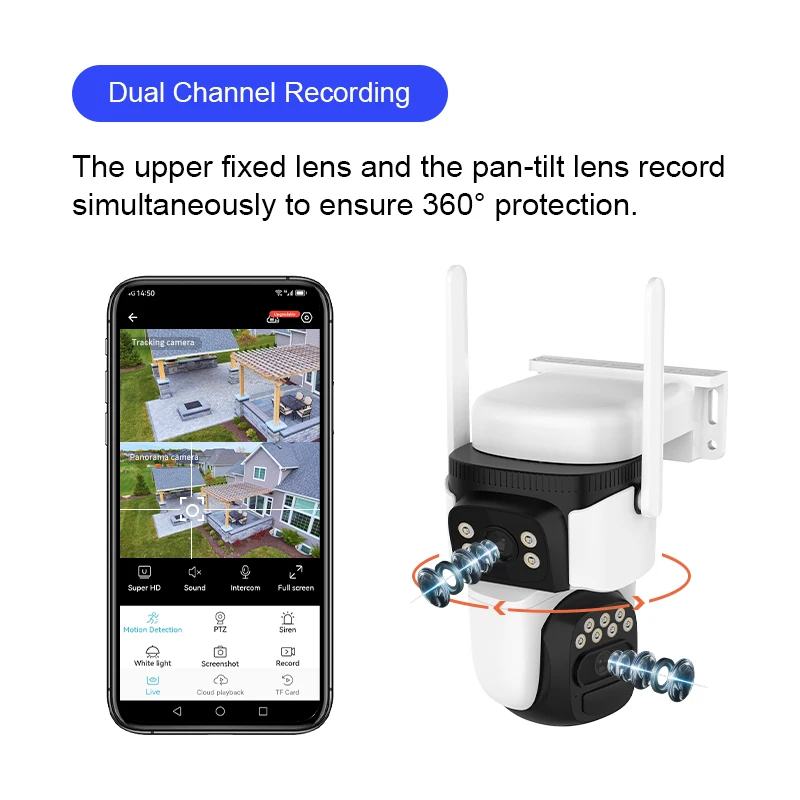

Dual lens dual views; | ||||
Customizable alarm sound, multiple application scenarios | ||||
Free cloud storage | ||||
Sorts | Type | Parameters | ||
System | Operating system | Linux | ||
Online visitor | Supports 4 visitors at the same time | |||
APP | O-KAM Pro | |||
Collection | CPU | T23ZN | ||
Internal storage | 512MB | |||
Image sensor | GC2083+GC2083+GC2083 | |||
Min. Illumination | 0.8Lux/F1.4(color mode),0.3Lux/F1.4(B&W mode) | |||
Lens | Panorama camera: focal length 4mm,1G3P Panorama camera: focal length 4mm(1G3P ) | |||
Sensor performance | Support automatic white balance, automatic gain control and automatic backlight compensation | |||
Pan&tilt | Horizontal 270°, Vertical 90° | |||
Viewing angle | D100° | |||
Video | Night vision | Color night vision, dual light sources, 11pcs dual-color dual light source lights | ||
Compression standard | MJPEF/JPEG | |||
Multi stream | Mainstream:1080P/15fps, sub stream:360P/15fps | |||
IR control | When the IR night vision function is enabled, IR and ICR are automatically detected; when the IR night vision function is disabled, IR is off and ICR is fixed in the day vision mode. | |||
Bit rate | CBR/VBR two rate control modes, and the output rate range is 128~4096kbps | |||
Image adjustment | Vertical, horizontal adjustable, OSD display | |||
Audio | Input | Built-in-38dB microphone | ||
Output | Built-in 8Ω1W speaker | |||
Sampling frequency/bit width | 8KHz/16bit | |||
Compression standard/Bit Rate | G711A | |||
AI | Human detection | Human detection, filtering invalid video contents | ||
Area detection | Free daub, only monitoring the areas concerned by users | |||
Smart notification sound | Different devices push different sounds, so that you can know exactly which device is triggered | |||
Intelligent alarm sound | Set different equipment alarm sounds according to different scenarios | |||
More AI functions (testing) | Pets, vehicles, parcels, etc | |||

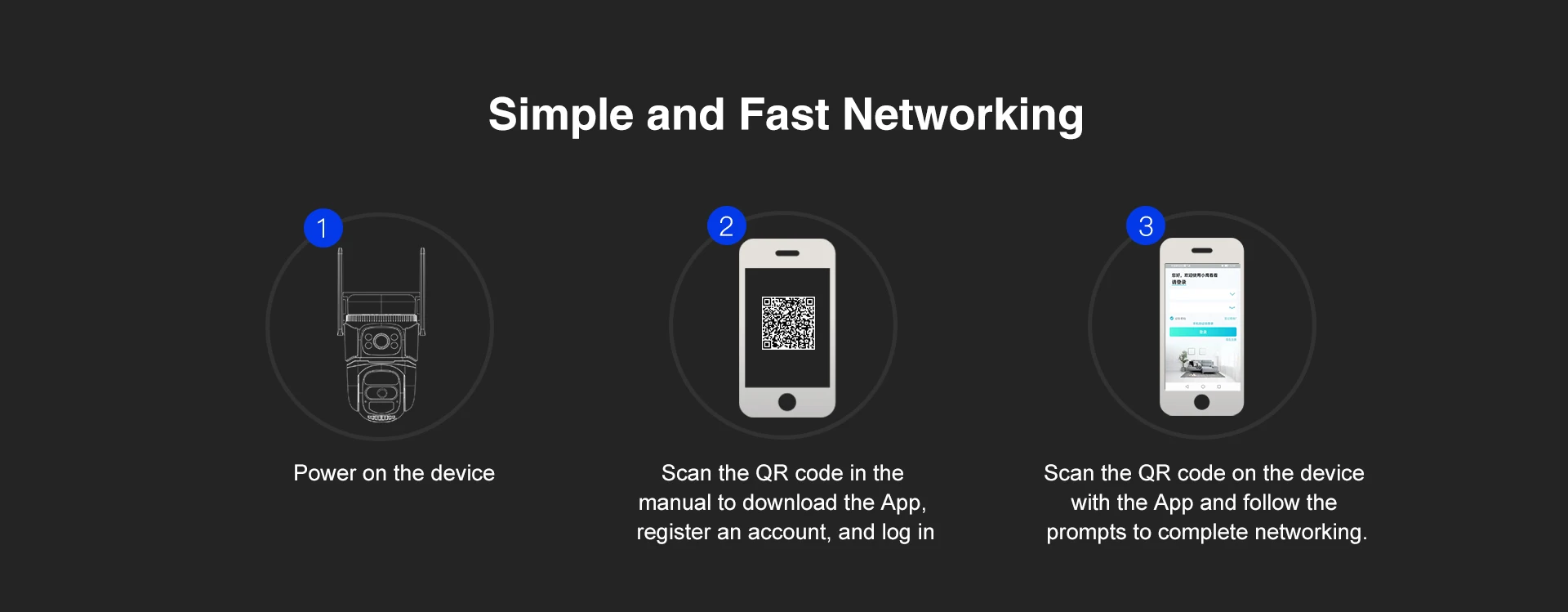

Network | Networking | Use APP to scan the QR code on device to add; Use the device to scan QR code on APP to add | ||
Cat1 China | FDD:B1/B3/B5/B8 TDD:B34/B38/B39/B40/B41 | |||
Cat4 Overseas | European/Japanese/American versions | |||
Key/interface | Key 1 | On/Off key | ||
Reset key | long press to restore factory settings | |||
Storage | External TF card | Support TF card (up to 256GB) | ||
Cloud storage | Free loop cloud storage | |||
Alarm | Sound light alarm | Sound and light alarm, 11 infrared + 11 white lights, full color night vision | ||
Alarm detection | Support human detection, PIR detection range: 10 meters | |||
Physical Indicators | Rated voltage | DC5V±5% | ||

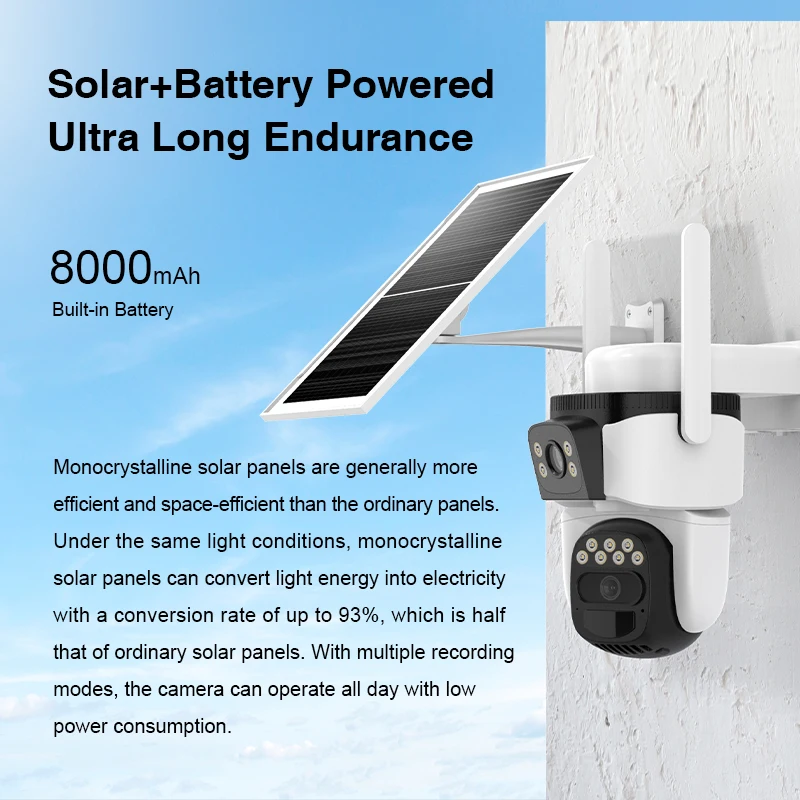

Power supply | Built in 8000mAh battery | |||
Consumption | Sleep standby 300uA, working: 400MA-1.8A max | |||

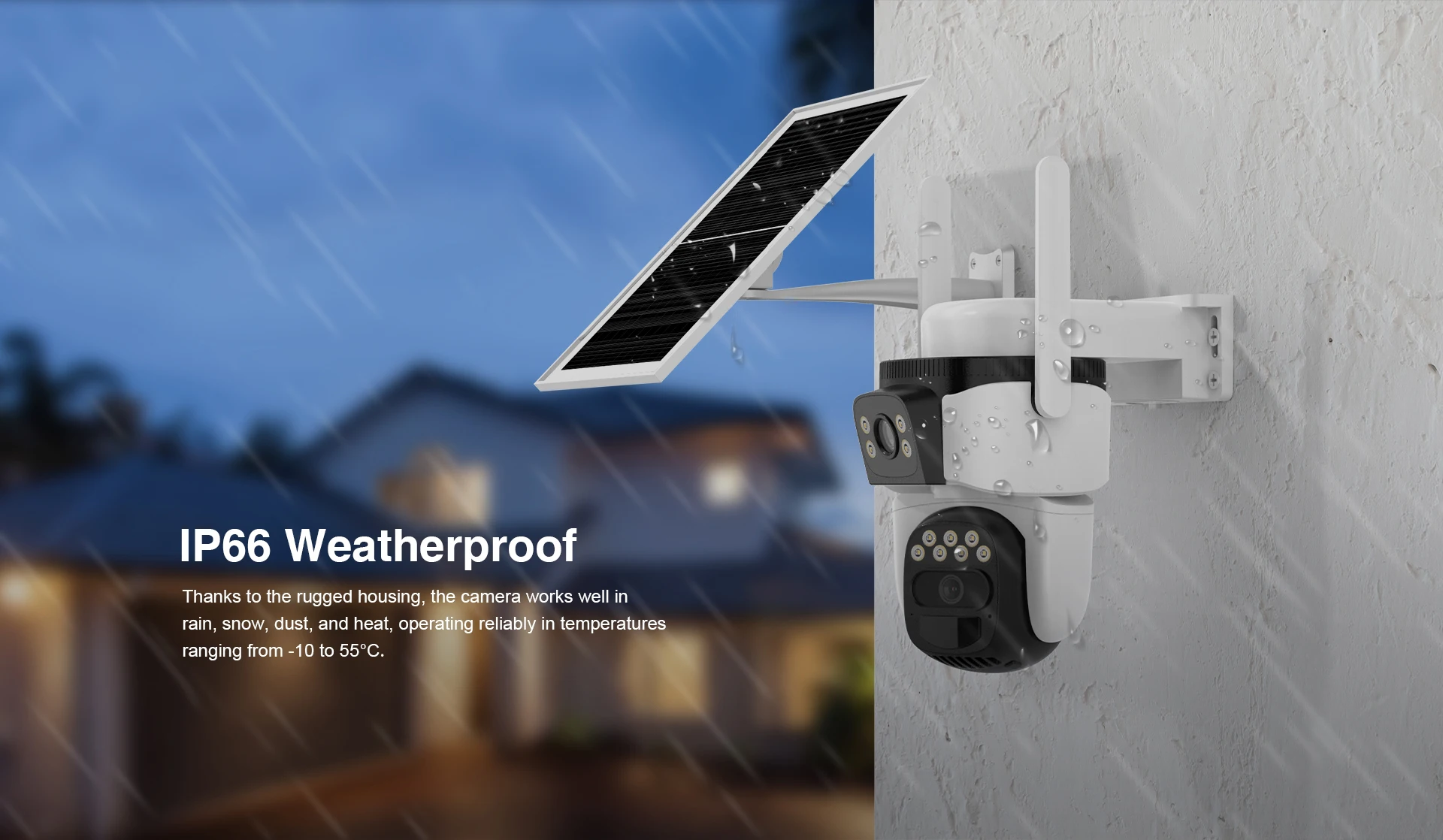

Operating condition | Working temperature: -10~55℃, working humidity <90% | |||
Weight | Net weight: 680g | |||

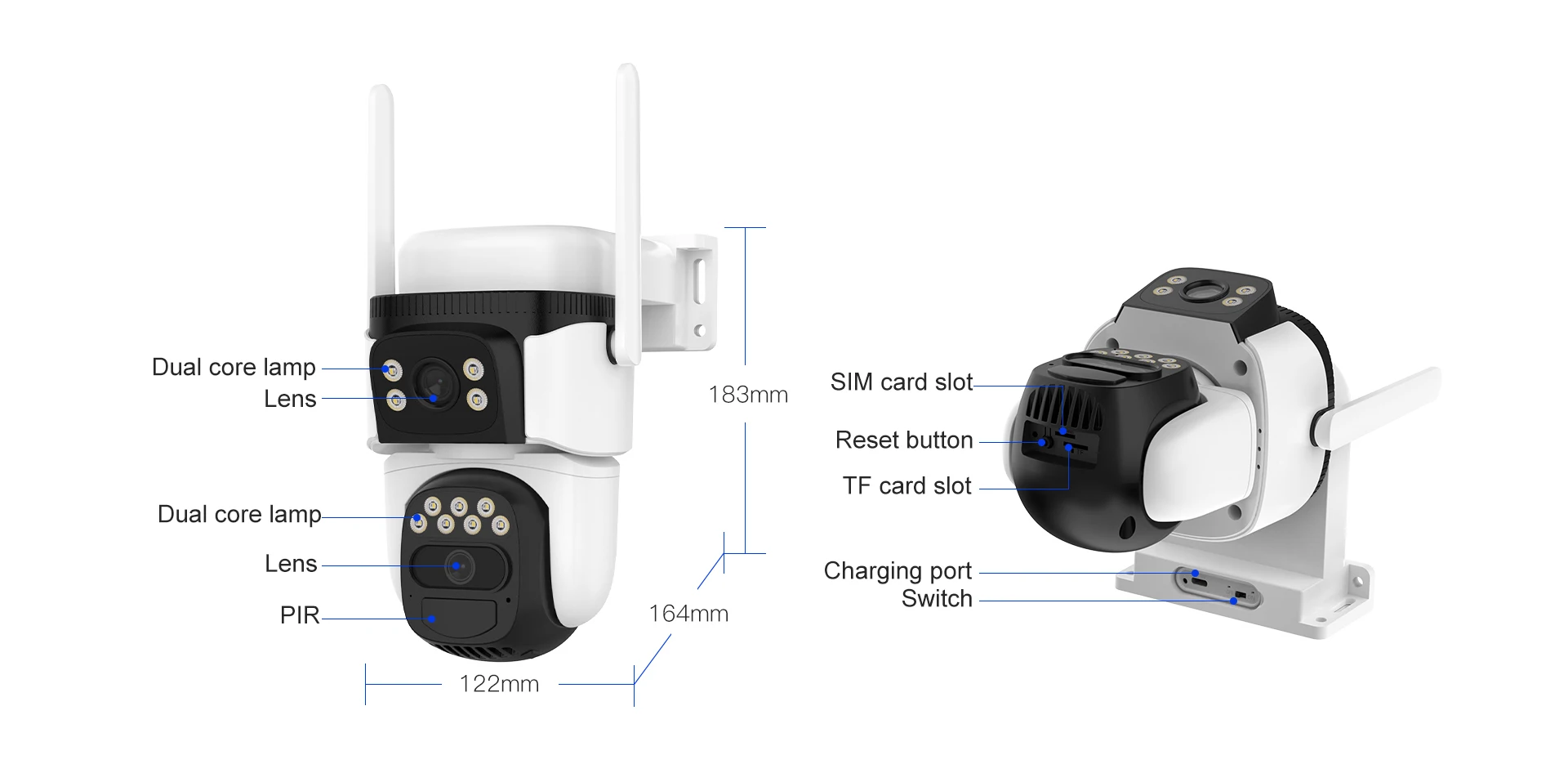

Size | Camera: 183*164*122mm | |||

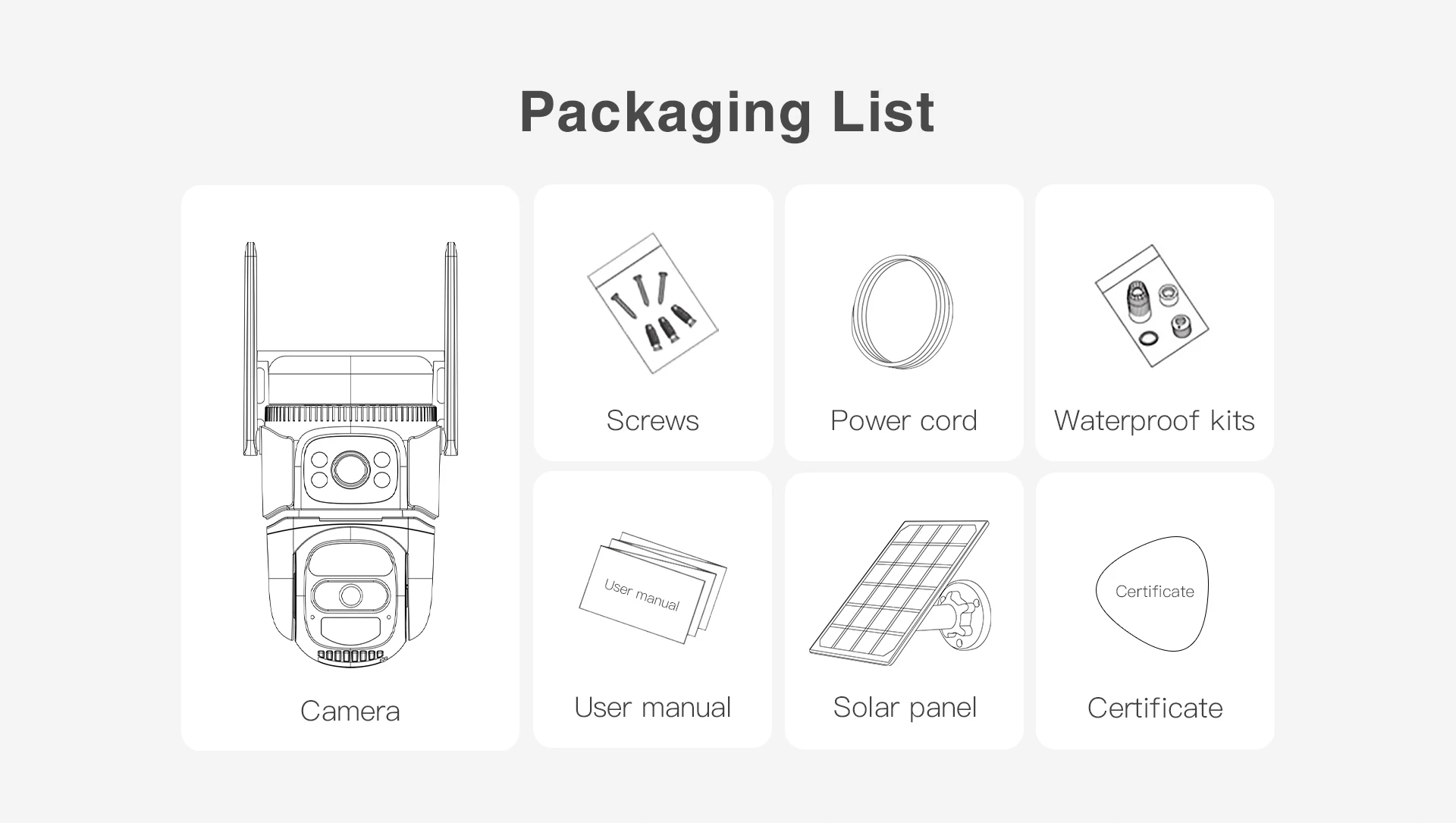

Packing list | Camera*1, manual*1, solar panel*1, solar panel bracket*1 | |||
