High quality mainboard I5 1135G7 I7 1165G7 motherboard 3 port robot industrial control core development expansion board
- Category: >>>
- Supplier: Shenzhen Lucky Module Co. LimitedShenzhen Limited
Share on (1601361095627):
Product Overview
Description
Product Description
Product parameter | |

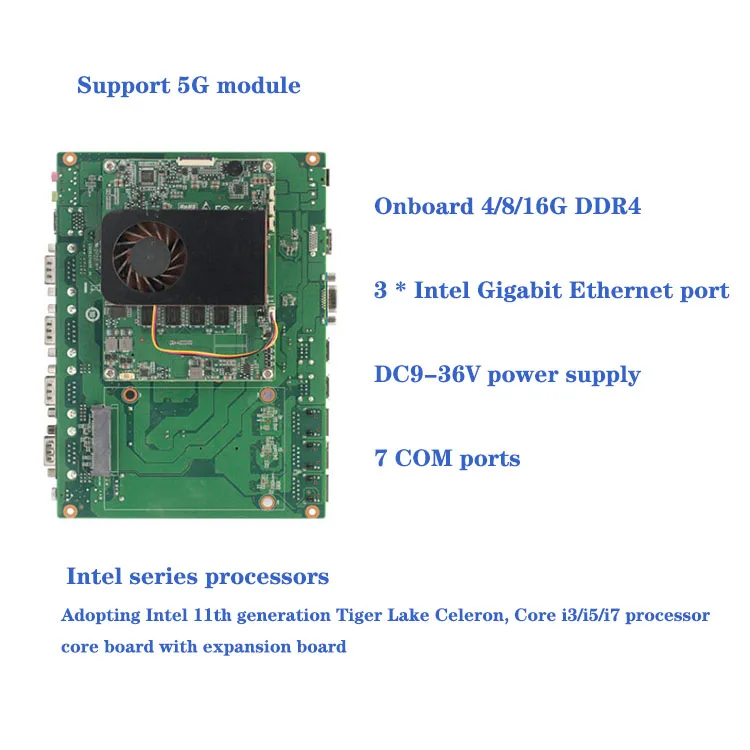

CPU | Intel 11th generation Tiger Lake Celeron, Core i3/i5/i7 |
CPU packaging | BGA |
Chipset | Intel Tiger Lake series SOC |
BIOS | EFI BIOS |
Technical Architecture | Dual channel DDR4 2400/2666/3200MHz |

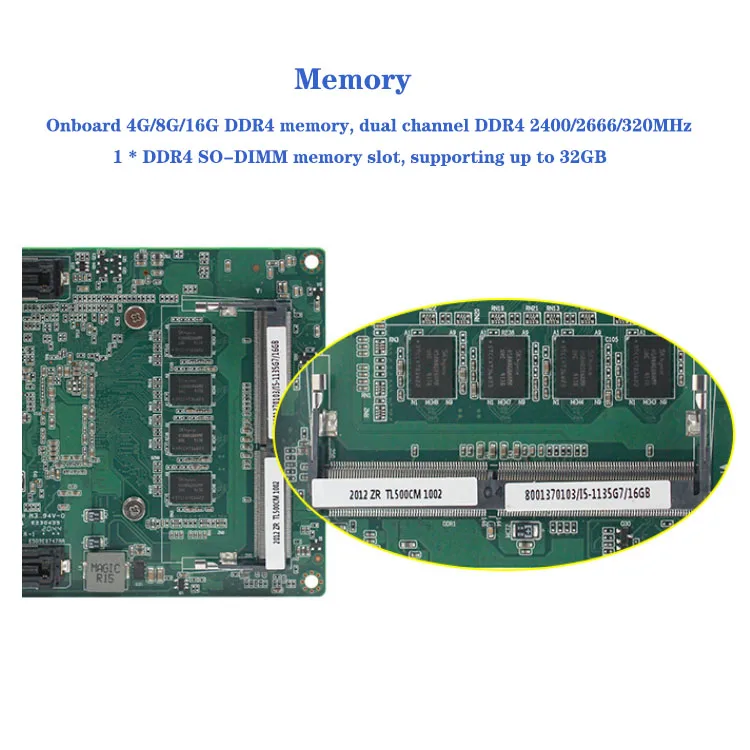

Memory | Onboard 4G/8G/16G DDR4 memory |

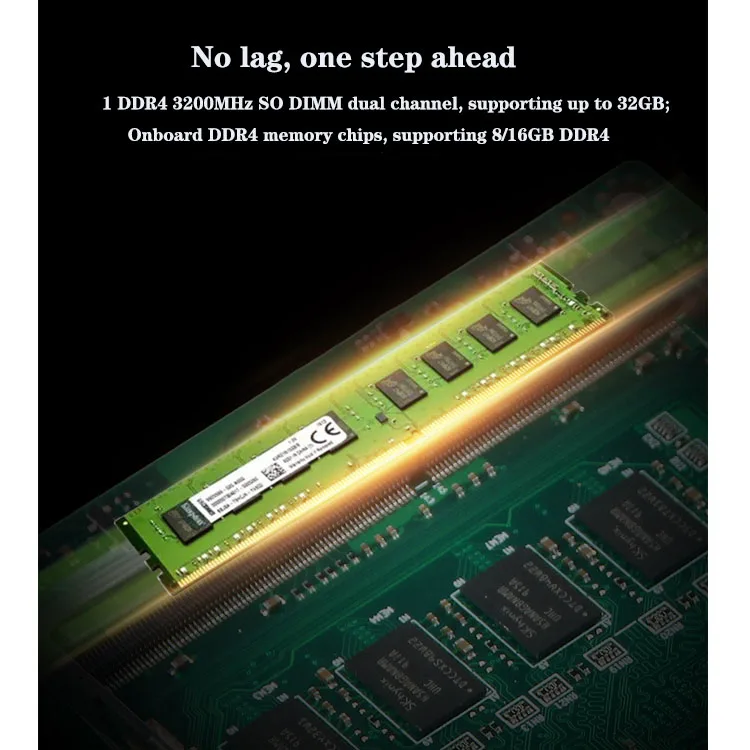

Slot | 1 * DDR4 SO-DIMM memory slot, supporting up to 32GB |
Graphic controller | Intel Iris Xe Graphics (17-1165G7 graphics card); The graphics card model is related to the CPU |
EDP | EDP supports a maximum resolution of 4096* 2304@60Hz |
VGA | VGA supports a maximum resolution of 2048x1536 |
HDMI | HDMI 2.0 supports a maximum split rate of 4096* 2304@60Hz |
Dual display support | EDP+VGA, EDP+HDMI. HDMI+VGA synchronous or asynchronous display |

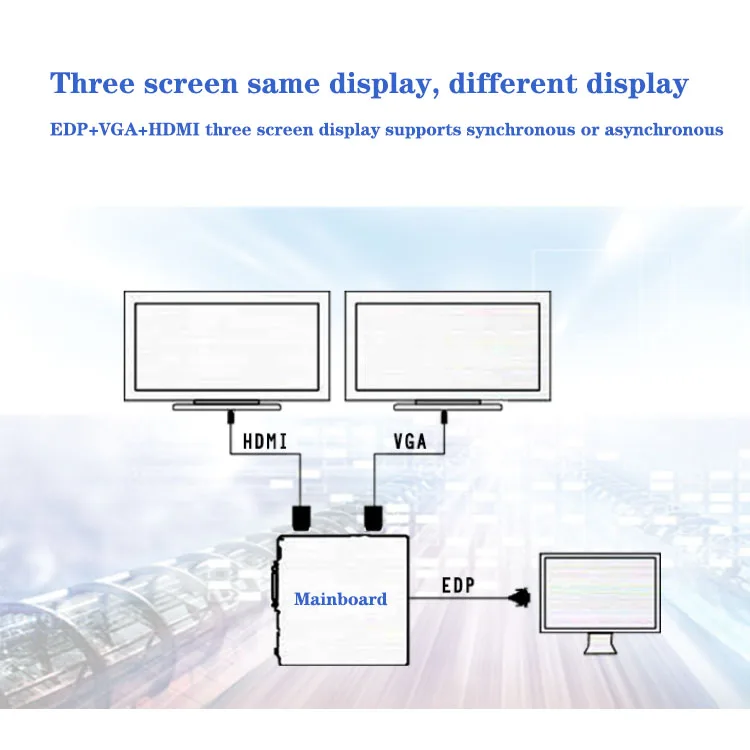

Three Display Support | EDP+VGA+HDMI synchronous or asynchronous display |

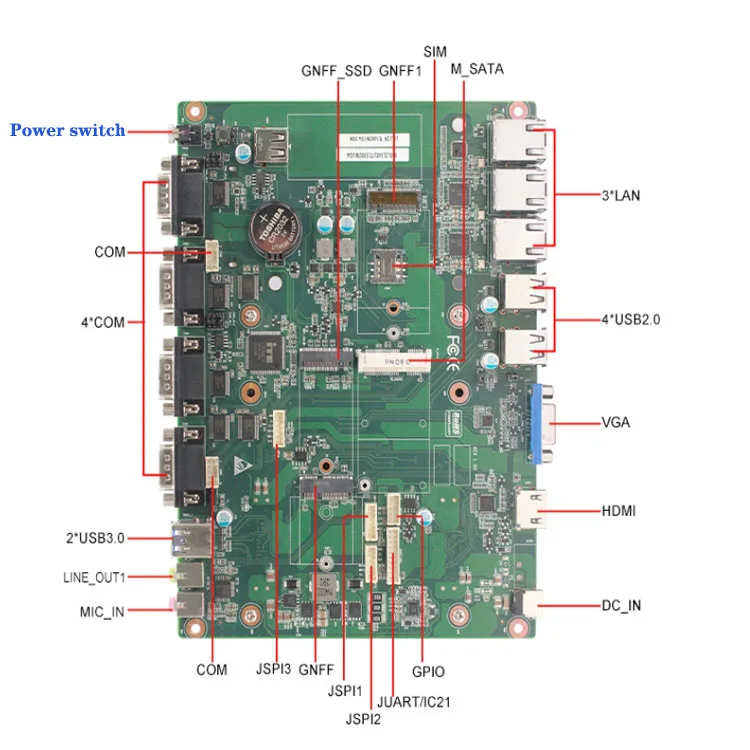

Port | 1*DC 1*VGA 1*HDMI 3*LAN 2*USB3.1 4*USB2.0 4*COM 1*LINE OUT 1 * MIC1 * with indicator light switch button |
Network | 2*Intel I211 or I210 network cards, 1*I219-LM network card |
Audio frequency | Realtek HD ALC662 audio decoding (left and right channels+microphone) |
Super I/O | IT8786E/8613E |
Watchdog timer | 0-255 seconds, provide watchdog routine |

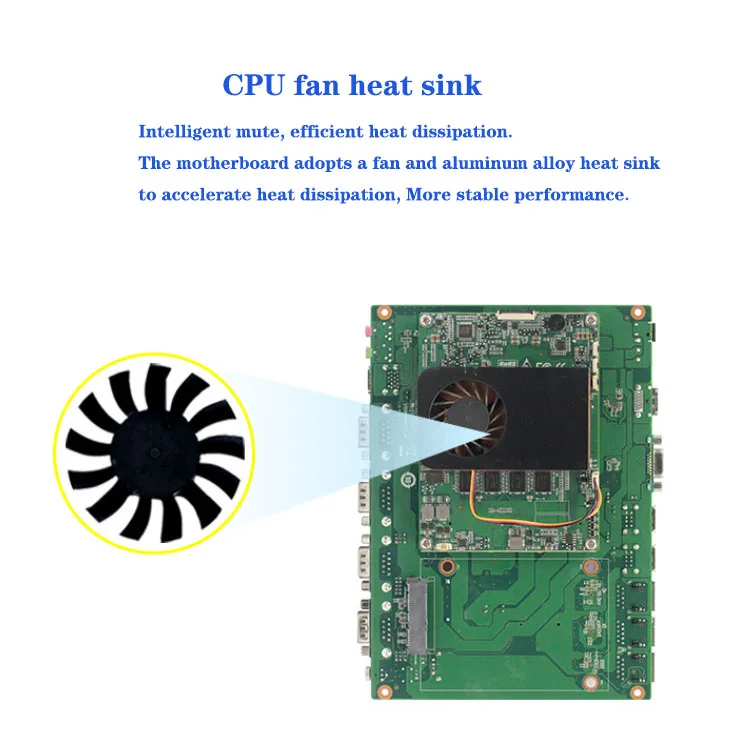

Cooler | Aluminum fan radiator (supports automatic and manual fan speed adjustment) |
USB | 2 * USB 3.1 (USB 3.1 GEN2 backward compatible). 5 USB 2.0 |
Serial port | COM1 is a 2-wire RS232 COM2, COM3 (DB9 interface) can be selected as either a jumper or B10S RS232 or RS485, COM4.5, 6.7 is RS232 (COM4,5 is DB9 interface, COM6.7 is pin header) |
GPIO | 4-digit, providing routines, freely defining inputs/outputs, 3.3V@24mA level |
NGFF (KEY-E) | 1 NGFF interface (KEY E) |
NGFF (KEY-B) | 1 NGFF interface (KEY-B) supports 5G module |
SATA HDD | 1 SATA_HDD hard drive interface, maximum transfer rate 6Gb/s |
NGFF (KEY-M) | Supports PCIE X 4 NVME hard drives |

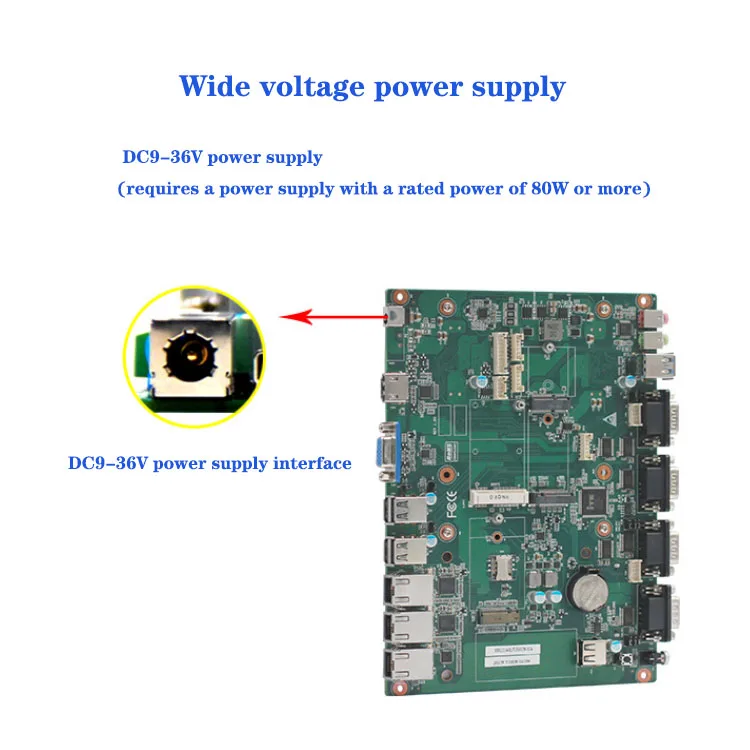

Power type | DC9-36V power supply (requires a power supply with a rated power of 80W or more) |
Work environment | working temperature -20℃~+60℃ Storage temperature -40℃~+85℃ Working humidity 0% 90% relative humidity, no condensation Storage humidity 0% 90% relative humidity, no condensation |
System support | Windows10, Linux |

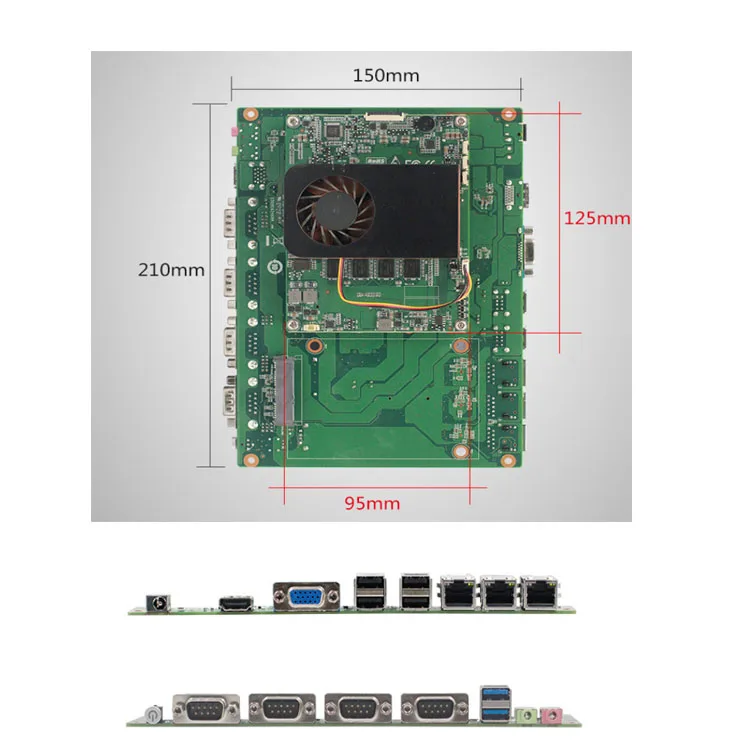

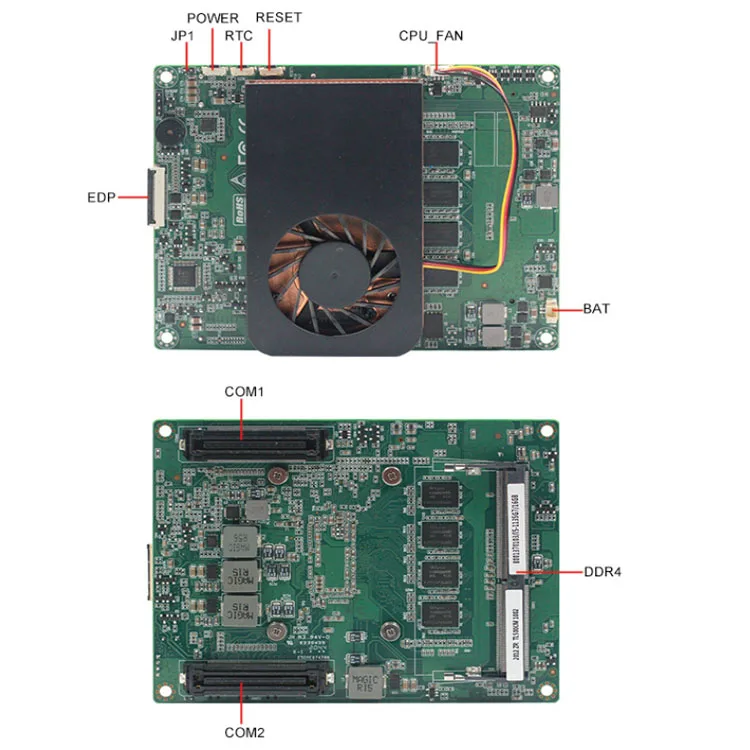

Size | Core board 125x95mm, expansion board 210x150mm |
Weight | 0.5KG |
Authentication | CE,RoHS,FCC |
