Factory manufacturer industrial plastic nylon granule dryer three in one pet dehumidifier dryer pp plastic dryer

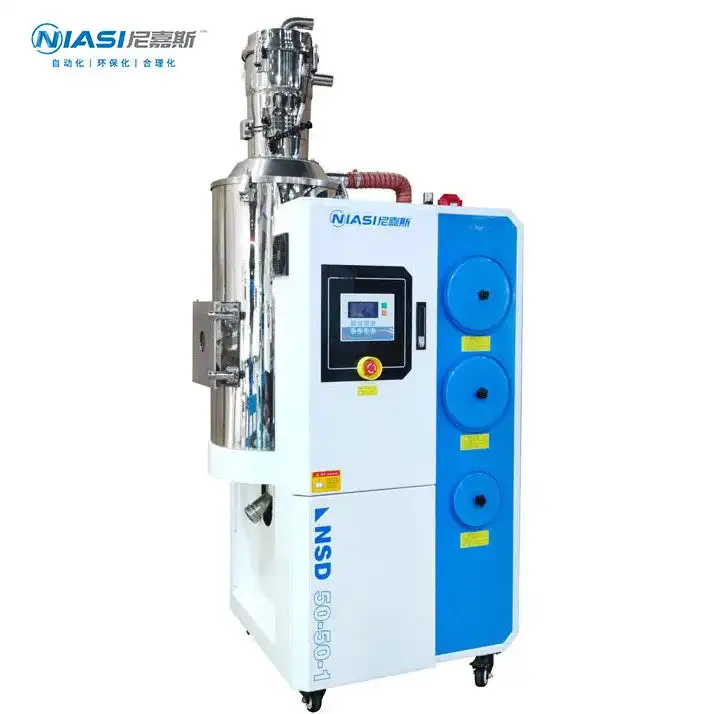

NIASI dehumidifying Dryer (3 In 1) combines drying, dehumidifying and material delivery funcation in one frame. It is ideal for automatic production with limited working space. Operation is simple with PLC controller. Dew Point Meter available as optional accessory for inst-ant monitor of dehumidi cation. We adpot to make the honeycomt rotor.The dry air dew point can reach -40℃ easily. Ldeally, it can reach -50 degrees celsius dew point or even lower. The design meets the requinement for the European style, to make the machine featured with more artistic appearance, stabler function and lower energy consumption.

It is widely used in various plastics, especially engineering plastics with strong hygroscopic properties, such as PET, PA, PC, etc. At the same time, in order to enhance product adaptability and meet the specific needs of more diversified production scenarios, two-stage conveying systems or three-stage conveying systems can be provided.

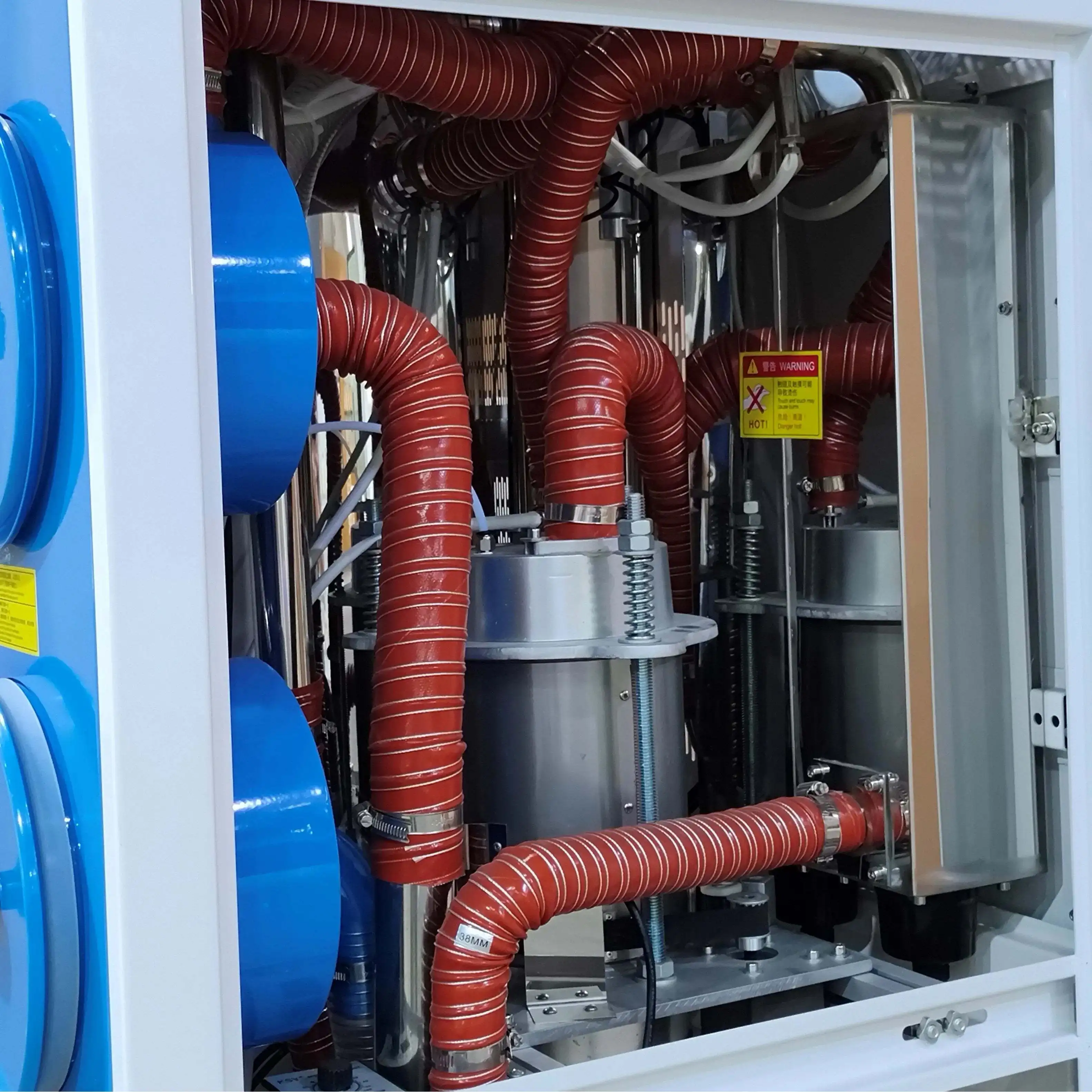

The purpose of the three-in-one dehumidifying dryer is to provide the drying hopper with stable low dew point dryair. The process begins with a vacuum hopper drawing plastic raw materials into the drying hopper. Thehumid and hot air returning from the drying hopper is cooled and blown into the honeycomb rotor. Themoisture in the air is adsorbed by the rotor and subsequently desorbed by the heated regeneration air.Both airflows interact with the rotor simultaneously. As the rotor rotates, the moisture in the air iscontinuously adsorbed and desorbed by the regeneration alr, resulting in the formation of stable low dewpoint air. This air is then heated to the drying temperature of the plastic and blown into the drying hopper.creating a sealed circulation for drying the raw materials.
