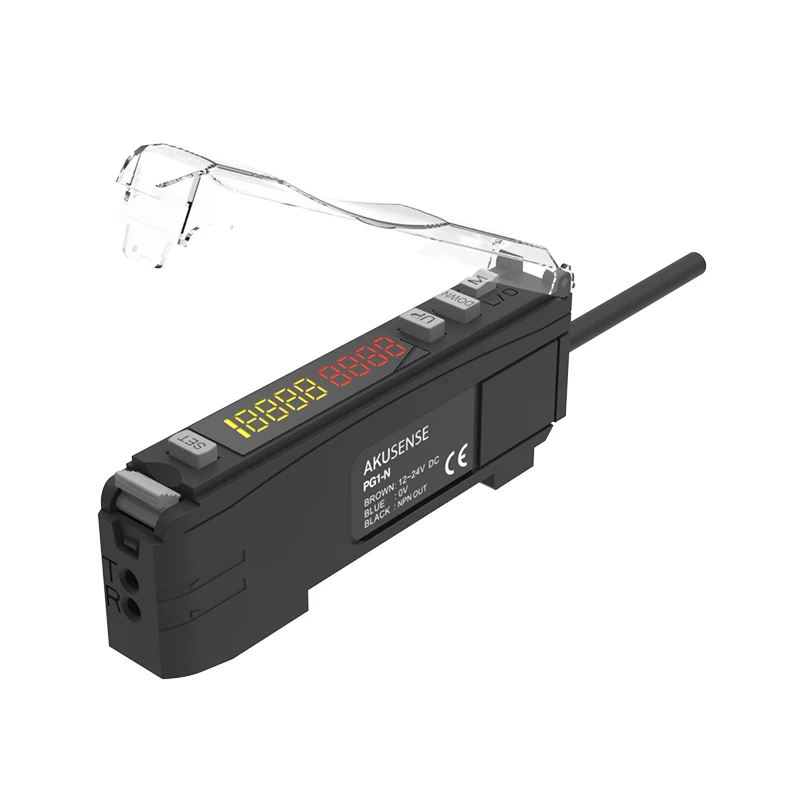

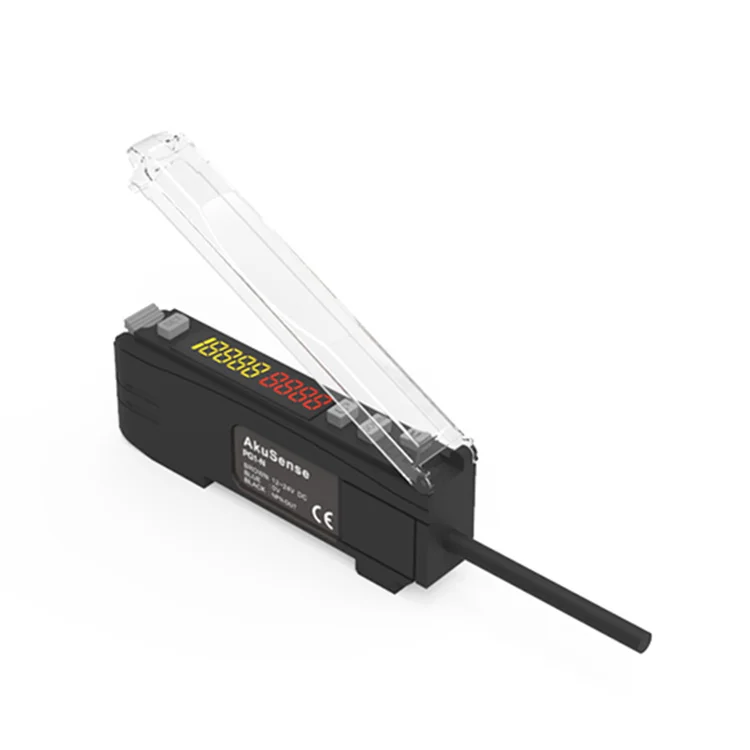

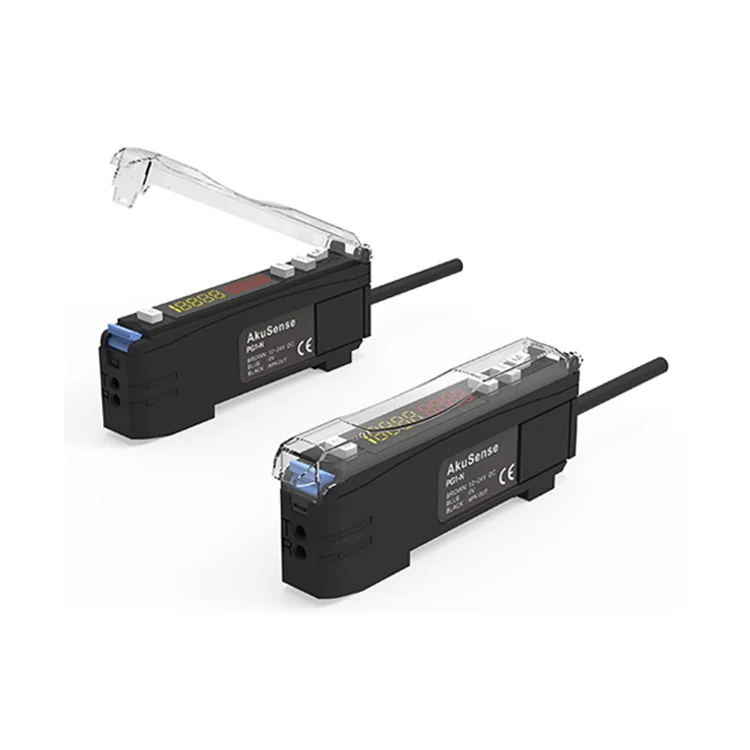

Sense Fiber Optic Transducer PG1 N

Product Description:

Model	PG1-N
Light source	Modulated red light 680nm
Operating voltage	8~30V DC
Saturation voltage	25mA<1.2V,100mA<2V
Load current	<50mA
Output current	<200mA
Leakage current	<100uA
Output type	NPN/PNP open-collector
Switch type	Selectable L.on/D.on

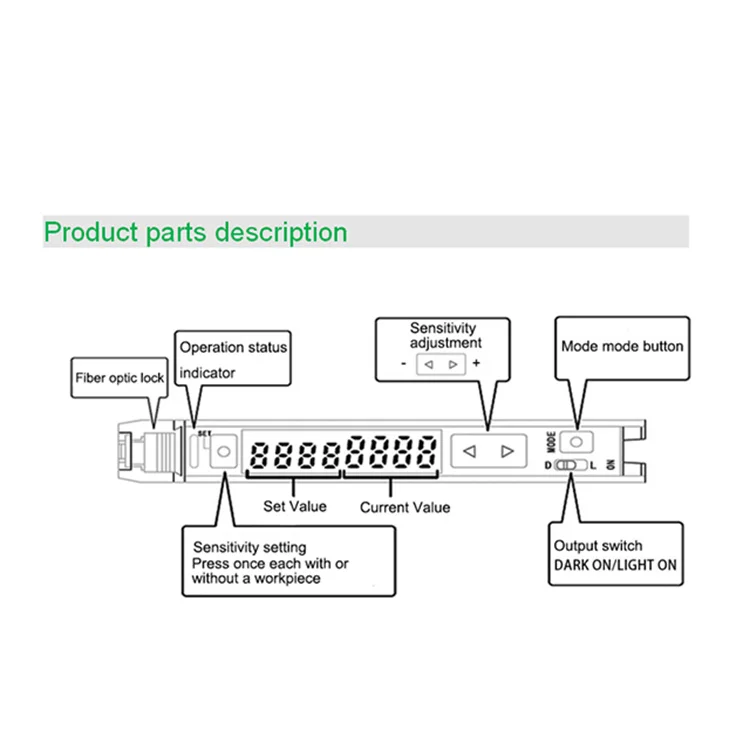

Display screen	7 segment 8 digit display (red: 4 digit, green: 4 digit)
Response time	50μs/ 250μs/ 500μs/ 1ms/ 4ms
Time delay function	<50ms
Operating temperature	-10°C~+60°C
Operating humidity	35~85%RH
Ambient brightness	Sunlight≤10000Lux
Protective circuit	Short circuit protection, Reverse polarity protection, Over voltage protection
Impact resistance	10G(1500m/s2), XYZ three directions
Anti-vibration	10~55Hz Double amplitude 1.5mm, XYZ three directions, 2 hours each
Certificate	CE
Connection	2m 4 core cable
Weight	65g

Company Profile:

Sense is an innovative company specializing in industry photoelectric sensors and deep learning technologies, with a primary focus on precision positioning, displacement measurement, Al image recognition, and area safety solutions in 3C electronics, new energy, semiconductor process, medical electronics, and service robots with precision intelligence and Al sensing technologies.

FAQ:

1. Who are we?

We are based in Guangdong, China, Start from 2010, Sell to Eastern Asia(30.00%), Southeast Asia(30.00%), Western Europe(15.00%), North America(10.00%), South America(3.00%), Eastern Europe(3.00%), Central America(2.00%), Northern Europe(2.00%), SouthAsia(1.00%), Oceania(1.00%), Southern Europe(1.00%), Africa(1.00%), Mid East(1.00%), Domestic Market(0.00%). There are about 201-300 people in our office.

2. How can we guarantee quality?

Always a pre-production sample before mass production;

Always final Inspection before shipment;

3. What can you buy from us?

Photoelectric Sensor, Proximity Sensor, Fiber Optic Sensor, LiDAR Scanner, Vision System

4. Why should you buy from us not from other suppliers?

Focus on optoelectronic and proximity technology, while good at magnetism, ultrasonics, piezoelectricity, wireless transmission, focusing on 3c, new energy, rail transit, medical, logistics, service robots, etc.

5. What services can we provide?

Accepted Delivery Terms: FOB, CFR, CIF, EXW, FCA, CPT, DDP

Accepted Payment Currency: USD, EUR, AUD, HKD, CNY;

Accepted Payment Type: T/T, L/C, MoneyGram, Credit Card, Western Union, Cash, etc.

Language Spoken: English
