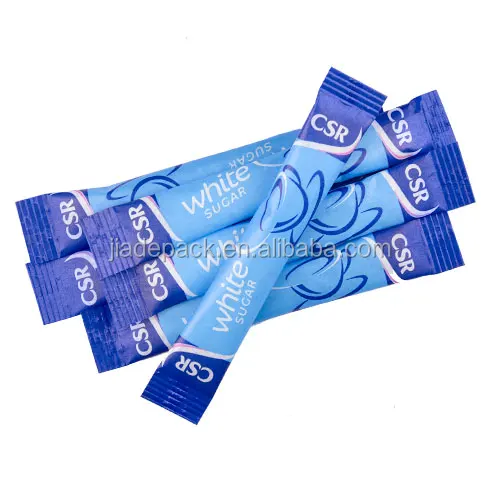

Full Automatic Granule Sugar Stick Small Sachet Multi function Packing Packaging Machine For Small Business Ideas
- Category: >>>
- Supplier: Guangzhou Jiade Packaging Equipment Co. Ltd.Guangzhou Ltd.
Share on (1601361352645):
Product Overview
Description
Product Description
Product Application
Uses：To be suitable for all kinds of granule like spice,3 in 1 coffee,sugar,dry vegetable granule,bean,wheat and coffee bean and so on in foodstuffs industry,chemical and other industry.
Main Feature: To be able to weigh,fill,print date(manufacturing date/expiry date/lot number) ,make bag,seal,cut easy-tearing notch,cut off,count(to reach the quantity to be set,the machine can give signal and stop itself) automatically
Main Disadvantage：To adopt rotary cutter system,it is convenient to adjust the length of the bag and the blade.It can make different notch by putting different blade and to be able to cut as 10 pieces sachets linking,5pieces sachets linking or 3 pieces sachet linking.Because the machine working principle is by pneumatic.it is more easier to operate if the users use the machine at the first time.the machine’s life is the longest than other cabinet stainless steel machine. Because the machine material is full stainless steel 304 and it is not easy to be corrosive by product to be packed.
Main Feature: To be able to weigh,fill,print date(manufacturing date/expiry date/lot number) ,make bag,seal,cut easy-tearing notch,cut off,count(to reach the quantity to be set,the machine can give signal and stop itself) automatically
Main Disadvantage：To adopt rotary cutter system,it is convenient to adjust the length of the bag and the blade.It can make different notch by putting different blade and to be able to cut as 10 pieces sachets linking,5pieces sachets linking or 3 pieces sachet linking.Because the machine working principle is by pneumatic.it is more easier to operate if the users use the machine at the first time.the machine’s life is the longest than other cabinet stainless steel machine. Because the machine material is full stainless steel 304 and it is not easy to be corrosive by product to be packed.

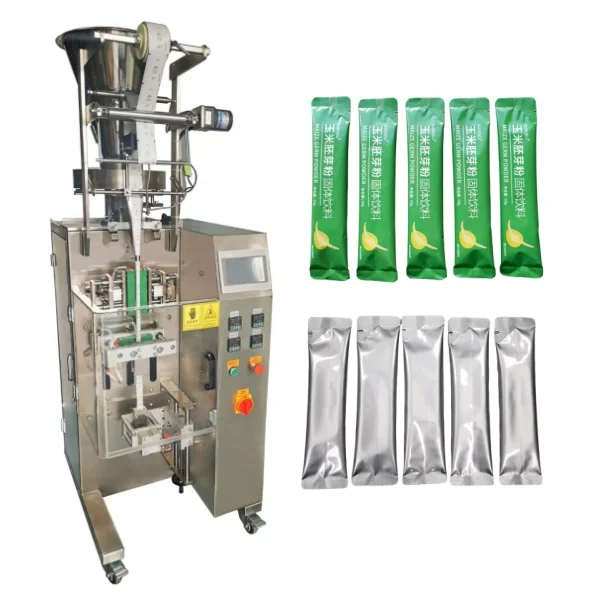

SPECIFICATIONS FOR JD-K50Z AUTOMATIC GRANULE PACKING MACHINE | ||||||
Main Performance Parameter 1 | Capacity | bags/minute | 30-60 | |||
Bag Type | Side Sachet | 4-side seals or 3-side seal | ||||
Bag Size | mm | （L）30-200mm （W）25-125mm | ||||
Main Performance Parameter 2 | Measuring Range | ml | 1-2ml;2-4ml...25-50ml 90-100ml | |||
Weighting Way | ------ | Volume Cup Filler | ||||
Film Material | ------ | PE/AL/PET;PA/PET;PE/PET;Paper/PE;Filter Paper/PVA | ||||
Main Performance Parameter 3 | Voltage | V/HZ;KW | 220V/50-60HZ 1.1KW | |||
Machine Material | Stainless Steel | Full Stainless Steel | ||||
Overall Dimension | mm | 625x750x1650 | ||||
Certifications
Detailed Images
Machine Parts

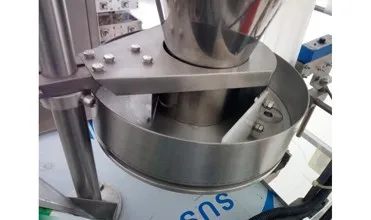

Name:Volume Cup Filler
Brand: Jia De
Original: Guanzhou,China
Weight the granule the users need as 1-2ml;2-4ml;4-8ml;5-10ml;20-40ml;25-50ml;And then fill it into the bag automatically.the cost is USD500
Main Features
Name: Bag Former
Brand: Jia De
Original: Guangzhou, China
To be make the bag size you need.you can do the bag sizeas your design you need.If you have different size,you can change it by this part. The cost is USD100.00/piece.
Machine Parts
Name: Sealing Mold
Brand: Jia De
Original: Guangzhou,China
To seal the bag automatically.and if have different size of the bag,you need to change this part to get the new shape and new size. the cost is USD200.00/pair
Main Features
Name: Operating Panel
Brand: Panasonic
Original: Japan
To control the machine's work. all the keys in there. you can set your package ideas by it and let the machine run well.
Exhibition
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.

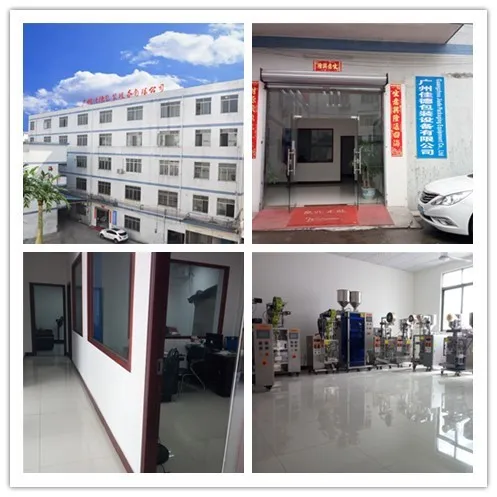

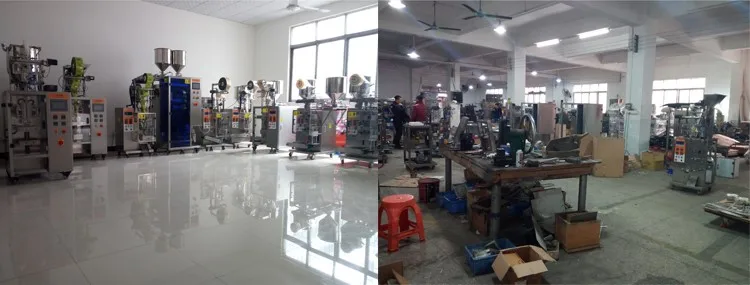

* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Packing & Delivery
Packaging | ||
Size | 85cm(L) * 85cm(W) * 180cm (D) | |
Weight | 300kg | |
Packaging Details | The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request. | |
Packaging | ||
Size | 85cm(L) * 85cm (W) * 180cm (D) | |
Weight | 300kg | |
Packaging Details | The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request. | |
