Original novastar TB1 TB2 TB30 TB40 TB50 TB60 multimedia player sender box for LED display screen
- Category: >>>
- Supplier: Madder Engineering & Technology Co. Ltd.Madder Ltd.
Share on (1601361503203):
Product Overview
Description
Product Description

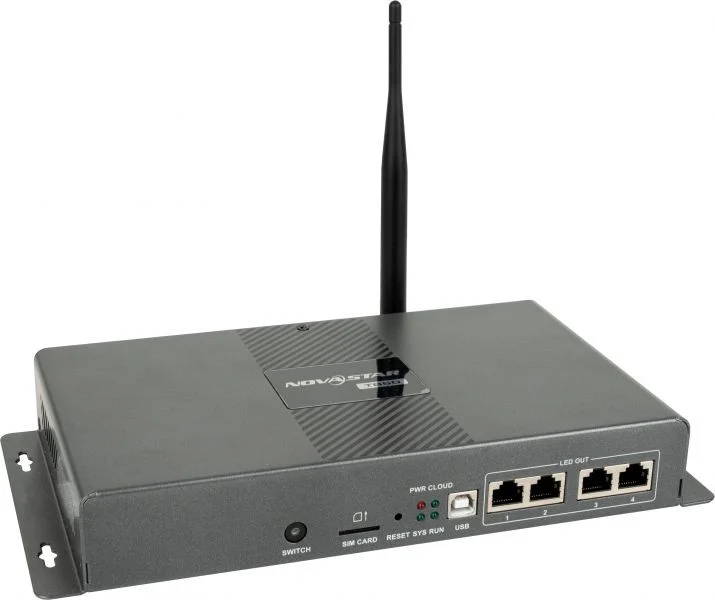

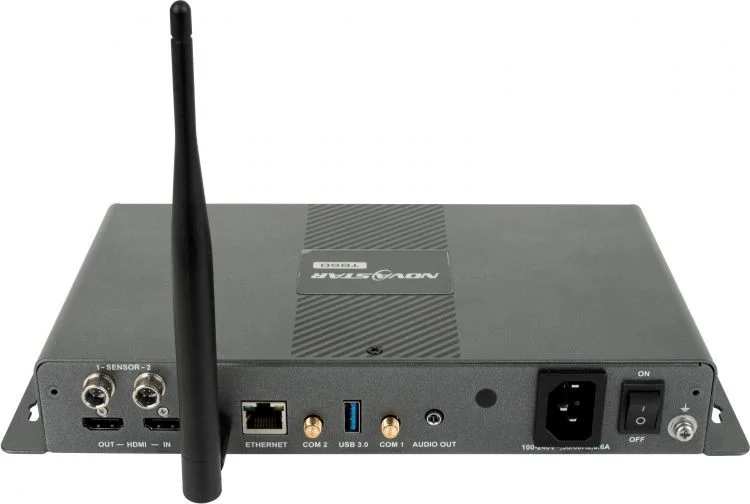

Name | Novastar TB60 |
Output | Maximum 2300000 pixels, 4 gigabit output network port, 1 stereo audio output, 1 HDMI 1.3 output |
Input | 1 HDMI 1.3 input, 2 sensor |
Control | 1 USB 3.0, 1 USB(Type B), 1 gigabit input network port |
Performance | 4-core A55 ARM processor with a dominant frequency of 1.8GHz. Support H.264, H.265 4K@60Hz video decoding. 1GB of running memory and 32GB of internal storage space. |
Package | 385mm×280mm×75mm |
Product performance description
1. Multi-directional control scheme
a) PC, mobile phone, pad and other user terminal program release and display control.
b) Cluster remote program release and display control.
c) Remote monitoring screen status of the cluster.
2. Support WiFi dual-open mode
a) Support WiFi AP. The User Terminal connects to the WiFi of the device. The default SSID is "AP + SN last 8 digits". See the
device SSID label for the default password.
b) WiFi AP + Sta mode. The user can connect WiFi and turn on the wireless hotspot at the same time.
3. Synchronous asynchronous dual mode
a) In asynchronous mode, use internal video source.
b) In the synchronous mode, use the video source of the HDMI interface input.
4. Multi-screen synchronous playback. After synchronous playback is enabled, the number of videos played simultaneously is reduced
by half within the decoding capability of the device.
a)NTP timing synchronization.
b) GPS synchronization. (Required to install the specified 4G module)
c) RF time synchronization. (Required to install specified RF module)
5. Support 4G/5G module. The device does not have a 4G/5G module by default, and users can purchase it separately if necessary.
a) PC, mobile phone, pad and other user terminal program release and display control.
b) Cluster remote program release and display control.
c) Remote monitoring screen status of the cluster.
2. Support WiFi dual-open mode
a) Support WiFi AP. The User Terminal connects to the WiFi of the device. The default SSID is "AP + SN last 8 digits". See the
device SSID label for the default password.
b) WiFi AP + Sta mode. The user can connect WiFi and turn on the wireless hotspot at the same time.
3. Synchronous asynchronous dual mode
a) In asynchronous mode, use internal video source.
b) In the synchronous mode, use the video source of the HDMI interface input.
4. Multi-screen synchronous playback. After synchronous playback is enabled, the number of videos played simultaneously is reduced
by half within the decoding capability of the device.
a)NTP timing synchronization.
b) GPS synchronization. (Required to install the specified 4G module)
c) RF time synchronization. (Required to install specified RF module)
5. Support 4G/5G module. The device does not have a 4G/5G module by default, and users can purchase it separately if necessary.
Related Products
Packing&Shipping
We have in-depth agreements with more than 20 logistics providers to deliver goods safely and in a timely manner by sea, land and air to customer-designated locations.
Company Introduction
Madder Engineering & Technology Co., Madder has more than 10 years of experience in developing, designing, and producing a full range of LED displays, including fast thin rental screen series, smart HD fixed installation series, multi-angle creative screens, and ultra-high brightness advertising screens.
