Sense Slot Type Transducer SR 204NA W
Sense Slot Type Transducer SR-204NA-W
Sense Slot Type Transducer SR-204NA-W
Sense Slot Type Transducer SR-204NA-W
Sense Slot Type Transducer SR-204NA-W
Sense Slot Type Transducer SR-204NA-W
Sense Slot Type Transducer SR-204NA-W

Sense Slot Type Transducer SR 204NA W

Share on (1601361759007):


Price:$3.82-4.80

Quantity:


Product Overview

Description


Product Description:

















































































































Appearance


R shape


Sensing distance


5mm (Slot width)


Standard detection objects


Opaque (Size:>2.0*2.0mm)


Repeat accuracy


<0.03mm

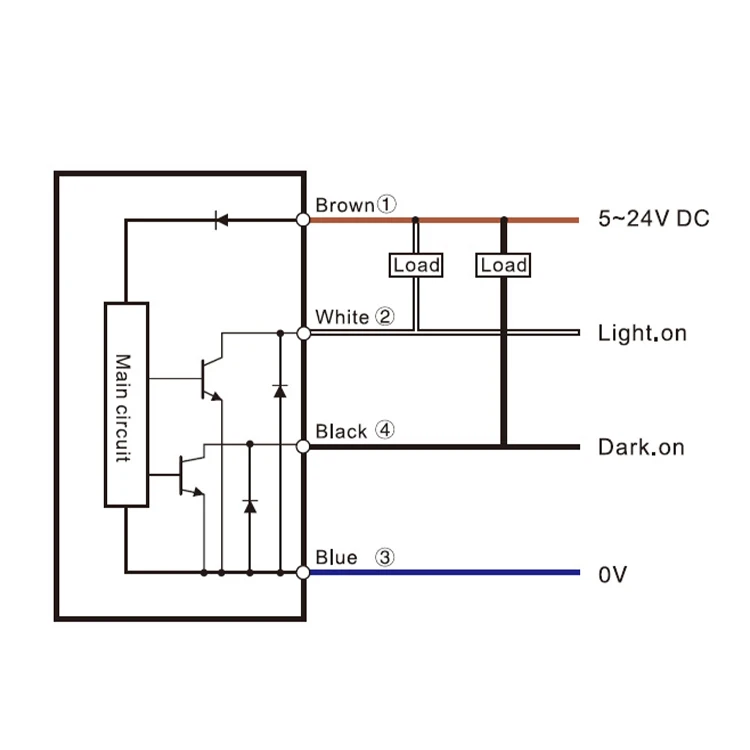

Output type


NPN open-collector


Switch type


Selectable L.on, D.on


Indicator


Light off when objects are detected; light on when no ojects are detected


Response frequency


3KHz


Light source


Infrared LED (940nm)


Operating voltage


5~24V DC


Voltage drop


<1V(Load current 50mA)


No-load supply current


≤16mA


Protective circuit


Surge protection , Reverse polarity protection


Ambient temperature


Operating temp:-25℃~+55℃, storage temp: -30℃~+80℃ no freezing


Ambient humidity


Working Humidity: 5%~85% storage humidity: 5%~95%, no coagulating


Withstand voltage


AC, 1000V for 1 minute, between all power connection terminals and housing


Anti-vibration


10~55Hz, Amplitude1.5mm, x, y, z three directions 2 hours each


Insulation resistance


20MΩ or more between all power connection terminals and housing (based on DC250V)


Protection class


IP50


Material


PC


Connection


2M 4core cable


No.Model


SR-204NA-W






Company Profile:


Sense is an innovative company specializing in industry photoelectric sensors and deep learning technologies, with a primary focus on precision positioning, displacement measurement, Al image recognition, and area safety solutions in 3C electronics, new energy, semiconductor process, medical electronics, and service robots with precision intelligence and Al sensing technologies.






FAQ:


1. Who are we?


We are based in Guangdong, China, Start from 2010, Sell to Eastern Asia(30.00%), Southeast Asia(30.00%), Western Europe(15.00%), North America(10.00%), South America(3.00%), Eastern Europe(3.00%), Central America(2.00%), Northern Europe(2.00%), SouthAsia(1.00%), Oceania(1.00%), Southern Europe(1.00%), Africa(1.00%), Mid East(1.00%), Domestic Market(0.00%). There are about 201-300 people in our office.





2. How can we guarantee quality?


Always a pre-production sample before mass production;


Always final Inspection before shipment;





3. What can you buy from us?

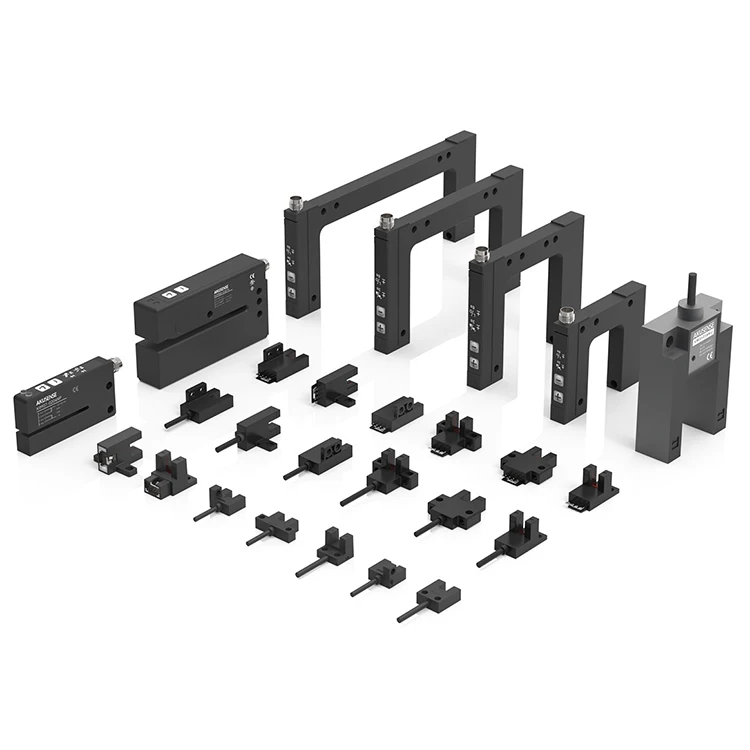

Photoelectric Sensor, Proximity Sensor, Fiber Optic Sensor, LiDAR Scanner, Vision System





4. Why should you buy from us not from other suppliers?


Focus on optoelectronic and proximity technology, while good at magnetism, ultrasonics, piezoelectricity, wireless transmission, focusing on 3c, new energy, rail transit, medical, logistics, service robots, etc.





5. What services can we provide?


Accepted Delivery Terms: FOB, CFR, CIF, EXW, FCA, CPT, DDP


Accepted Payment Currency: USD, EUR, AUD, HKD, CNY;


Accepted Payment Type: T/T, L/C, MoneyGram, Credit Card, Western Union, Cash, etc.


Language Spoken: English
