TFT LCD Manufacturer 2 Inch TFT LCD Module 240x320 High Resolution TFT Display

TFT LCD Manufacturer 2 Inch TFT LCD Module 240x320 High Resolution TFT Display

Category: >>>
Supplier: Shenzhen Wu He Tian Cheng Technology Co. Ltd.Shenzhen Ltd.

Price:$4.30-7.00

Quantity:

Product Overview

Description

Recommend Products

IPS 2.0 inch 240x320 12pin SPI Interface TFT LCD Display Module Screen with ST7789V Driver IC

1. 240x320 2 inch lcd screen display
2. The LCD support to produce with capacitive touch panel or resistive touch panel
3. OEM and ODM service is acceptable. The development charge can returned.

Product Paramenters

Product Name:
Feature			Spec
Characteristics	LCD Size	2.0 inch
		Display Format	240 X 320
		Interface	SPI interface ( FPC 12pin weld)
		Display color	262K
		Display Mode	Normally white, transmissive
		Interface Type	FPC 12pin weld
		Viewing Direction	ALL
		Brightness	300cd/m2
Mechanical	LCM (WxHxD) (mm)	34.747.952.20max
		Active Area (mm)	30.6*40.8
		With/Without TSP	Without TSP
		Weight (g)	TBD
		Backlight Type	WLED

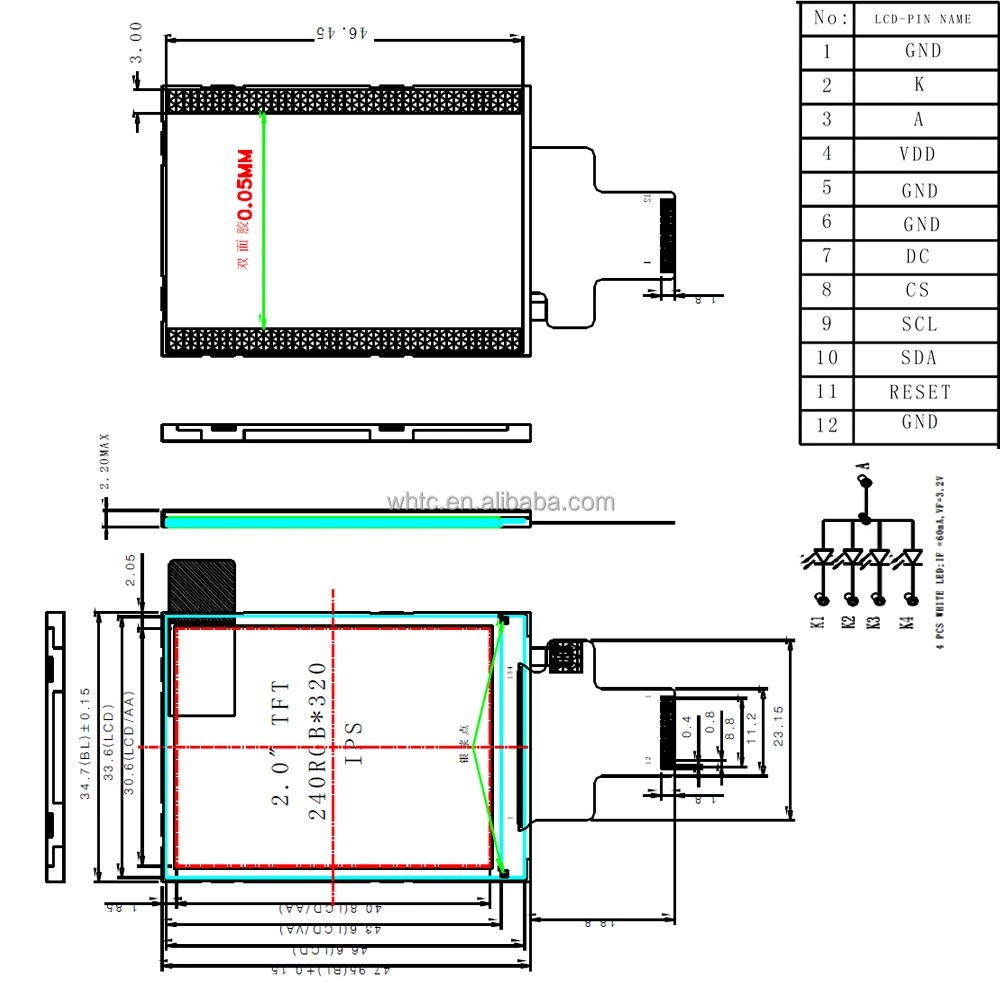

Details Images

IPS 2.0 inch 240x320 12pin SPI Interface TFT LCD Display Module Screen with ST7789V Driver IC

Standard TFT LCD Display Selection List

Size (inch)	Resolution	Model	View	Interface	Brightness (nits)
1.44	128*128	W0144P14S1SN-A02B0	TN	SPI	300
1.54	240*240	W0154P24S2CN-Y02B0	TN	MCU	300
1.54	240*240	W0154P12S1SN-Y02B0	TN	SPI	300
1.69	240*280	W0169P12S1SI	IPS	SPI	300
1.69	240*280	W0169P12S2SI	IPS	SPI	300
1.77	128*160	W0177P20S1CN-A02H0	TN	MCU	300
1.77	128*160	W0177P14S1SN-A02H0	TN	SPI	300
2	176*220	W020P36S2CN-A02B0	TN	MCU	300
2	240*320	W020P30S1CI-A02B0	IPS	MCU	300
2	240*320	W020P12S1SI-A02B0	IPS	SPI	300
2	480*360	W020P24S1MI	IPS	MIPI	300
2.2	240*320	W022P15S1SN	TN	SPI	300
2.2	176*220	W022P16S1CN-Y02H0	TN	MCU	300
2.2	176*220	W022P37S1CN-Y02H0	TN	MCU	300
2.2	240*320	W022P37S2CN-A02H0	TN	MCU	300
2.4	240*320	W024P40S1RN-A02B0	TN	RGB	300
2.4	240*320	W024P37S1CN-A02B0	TN	MCU	300
2.4	240*320	W024P18S1SN-A02B0	TN	SPI	300
2.4	240*320	W024P24S2MN	TN	MIPI	300
2.4	240*320	W024P40S1RI-A02B0	IPS	RGB	300
2.4	240*320	W024P37S1CI-A02B0	IPS	MCU	300
2.4	240*320	W024P18S1SI-A02B0	IPS	SPI	300
2.4	240*320	W024P24S1MI	IPS	MIPI	300
2.8	240*320	W028P40S1RN-A02B0	TN	RGB	300
2.8	240*320	W028P18S2SN-A02B0	TN	SPI	300
2.8	240*320	W028P37S1CN- A02B0	TN	MCU	300
2.8	240*400	W028P45H1CN-A02B0	TN	RGB	300
2.8	240*320	W028P40S1RI-A02B0	IPS	RGB	300
2.8	240*320	W028P18S2SI-A02B0	IPS	SPI	300
2.8	240*320	W028P37S1CI- A02B0	IPS	MCU	300
3	360*640	W030P40H1RI	IPS	SPI,RGB,MCU	300
3	480*854	W030P40H2RI	IPS	SPI,RGB,MCU	300
3.2	240*320	W032P40S1RN-A02B0	TN	RGB	300
3.2	240*320	W032P37S1SN-A02B0	TN	MCU	300
3.2	240*320	W032P18S1SN-A02B0	TN	SPI	300
3.2	240*400	W032P45S2RN-A02H0	TN	RGB	300
3.2	240*320	W032P40S1RI-A02B0	IPS	RGB	300
3.2	240*320	W032P18S1SI-A02B0	IPS	SPI	300
3.5	320*240	W035P54S1RN- H03I0	TN	RGB	300~1500
3.5	320*480	W035P24S1MN- S22H0	TN	MIPI	300
3.5	320*240	W035P54S1RI- H03I0	IPS	RGB	300~1500
3.5	320*480	W035P24S3MI- A02H0	IPS	MIPI	300~1500
3.5	320*480	W035P18S1SI- D12H0	IPS	SPI	300~1500
3.5	320*480	W035P37S1CI-A02H0	IPS	MCU	300~1500
3.5	320*480	W035P40S1RI-A02H0	IPS	RGB	300~1500
3.5	640*480	W035P60H1RI-K0	IPS	RGB	400
3.5	480*800	W035P25H1MI	IPS	MIPI	400
3.5	480*800	W035P40H1RI-K02B0	IPS	SPI+RGB	400
3.5	320*240	W035P54S2RN-H03I0	IPS	RGB	300~1500
3.97	480*800	W0397P40H1RI	IPS	SPI+RGB	300~1500
3.97	480*800	W0397P25H2MI	IPS	MIPI	300
3.97	480*800	W0397P40H4MI	IPS	MIPI	300
3.98	320*480	W0398P12S1SI-T12B0	IPS	SPI	300
4.3	480*272	W043P40S1RN-Q52B0	TN	RGB	200~1500
4.3	480*272	W043P40S1RI-Q53B0	IPS	RGB	260~1500
4.3	800*480	W043P40H1RI-Q53B0	IPS	RGB	260~1500
4.3	480*800	W043P40H2MI-Z02B0	IPS	MIPI	260~1500
4.5	480*854	W045P30H1CI	IPS	MCU	300
4.5	480*854	W045P30H2MI	IPS	MIPI	300
5	480*272	W050P40S1RN-Q53B0	TN	RGB	300
5	800*480	W050P40H2RN-Q53B0	TN	RGB	300
5	800*480	W050P40H2RI-Q53B0	IPS	RGB	300-1500
5	800*480	W050P40H1RI-Q53B0	IPS	RGB	300-1500
5	480*854	W050P40H2SI-S22B0	IPS	SPI+RGB	340
5	480*854	W050P24H1MI-S22B0	IPS	MIPI	380
5	720*1280	W050P24H2MI-S21B0	IPS	MIPI	380
5	480*854	W050P24H3MI-S22B0	IPS	MIPI	340
5.1	240*128	W240128HV21-S1110	STN	Parallel	100
5.19	416*1280	W0519P50H1MI	IPS	MIPI	300
5.5	720*1280	W055P25H1MI- S22B0	IPS	MIPI	260
5.5	720*1280	W055P31H1MI- S21B0	IPS	MIPI	260
5.5	720*1440	W055P30H1MI- S21B0	IPS	MIPI	420
5.5	1080*1920	W055P25H3MI- S21B0	IPS	MIPI	450
5.5	1080*1920	W055P25H4MI- S22B0	IPS	MIPI	260
5.5	1080*1920	W055P25H5MI-S21B0	IPS	MIPI	450
5.7	320*240	W320240B8V30-S111H0	STN	Parallel	350
5.7	640*480	W057P40S1RN-X46H0	TN	RGB	650
5.7	640*480	W057P40S1RI-X46H0	IPS	RGB	650
6	720*1440	W060P24H1MI-S23H0	IPS	MIPI	300
6.5	800*480	W065P50S1RN-X55I0	TN	RGB	400
6.9	720*1440	W069P30H1MI-Z2	IPS	MIPI	260
6.95	600*1024	W070P31H1MI-J02B0	IPS	MIPI	300
6.95	600*1024	W070P45H1MI-J02B0	IPS	MIPI	300
6.95	720*1280	W070P30H3MI-J02B0	IPS	MIPI	300~500
6.98	540*960	W070P30H5MN-J02B0	TN	MIPI	300~500
6.98	720*1280	W070P32H6MI-J02B0	IPS	MIPI	300~500
6.98	720*1280	W070P40H6MI-J02B0	IPS	MIPI	300~500
7	800*480	W070P40S1RN-J03B0	TN	RGB	260~1500
7	800*480	W070P50S3RN-J02B0	TN	RGB	260~1500
7	800*480	W070P50S2RN-J03B0	TN	RGB	260~1500
7	800*480	W070P50S1RN-J03B0	TN	RGB	260~1500
7	800*480	W070P50S2RN-J05B0	TN	RGB	260~1500
7	800*480	W070P50S1RN-J05B0	TN	RGB	260~1500
7	800*480	W070P50S1RN-J05I0	TN	RGB	260~1500
7	800*480	W070P50S3RI-J05B0	IPS	RGB	260~1500
7	1024*600	W070P50H5RN-J02B0	TN	RGB	260~1500
7	1024*600	W070P50H3RI-J02B0	IPS	RGB	260~1500
7	1024*600	W070P50H3RI-J03B0	IPS	RGB	260~1500
7	1024*600	W070P50H3RI-J05B0	IPS	RGB	260~1500
7	1024*600	W070P40H4LI-J03B0	TN	LVDS	260~1500
7	1024*600	W070P39H5LI-J03B0	TN	LVDS	260~1500
7	1024*600	W070P30H2MI-J02B0	IPS	MiPi	220-600
7	1024*600	W070P40H1LI-J02B0	IPS	LVDS	260~1500
7	1024*600	W070P40H1LI-J03B0	IPS	LVDS	260~1500
7	1024*600	W070P40H2LI-J03B0	IPS	LVDS	260~1500
7	1024*600	W070P40H3LI-J05B0	IPS	LVDS	260~1500
7	1024*600	W070P40H1MI-H03B0	IPS	MiPi	260~1500
7	1024*600	W070P40H2MI-J03B0	IPS	MiPi	260~1500
7	1024*600	W070P30H1MI-J03B0	IPS	MiPi	260~1500
7	800*1280	W070C31H1MI-J02B0	IPS	MiPi	400~800
7	800*1280	W070C40H1MI-J02B0	IPS	MiPi	400~800
7	1200*1920	W070P40F1MI-O02B0	IPS	MIPI	300~600
8	800*480	W080P50S2RN-J06I0	TN	RGB	500~1200
8	800*600	W080P50S4RN-K16I0	TN	RGB	500
8	1024*600	W080P40H1LN-J06B0	TN	LVDS	500~1200
8	1024*768	W080P40H2LI-H52I0	IPS	LVDS	400
8	800*1280	W080C30H1MI-J02B0	IPS	MIPI	240~1500
8	800*1280	W080C31H1MI-J02B0	IPS	MIPI	240~1500
8	800*1280	W080C40H1MI-J02B0	IPS	MIPI	240~1500
8	1200*1920	W080C34F1MI-J03B0	IPS	MIPI	240~1500
9	800*480	W090P50S3RN-J03B0	TN	RGB	500~1200
9	800*480	W090P50S3RN-J05B0	TN	RGB	500~1200
9	1024*600	W090P50H3RI-J03B0	IPS	RGB	300~900
9	1024*600	W090P50H3RI-J05B0	IPS	RGB	300~900
9	1024*600	W090P40H1LI-J03B0	IPS	LVDS	300~900
9	1024*600	W090P40H1LI-J05B0	IPS	LVDS	300~900
10. 1	1024*600	W101P50H2RN-J05B0	TN	RGB	300~800
10. 1	1024*600	W101P40H1LN- J05B0	TN	LVDS	300~800
10. 1	1024*600	W101P50H1RI-J03B0	IPS	RGB	300~800
10. 1	1024*600	W101P50H2RI-J05B0	IPS	RGB	300~800
10. 1	1024*600	W101P40H1LI-J03B0	IPS	LVDS	300~800
10. 1	1024*600	W101P40H3LI-J02B0	IPS	LVDS	300~800
10. 1	1024*600	W101P40H4LI-J03B0	IPS	LVDS	300~800
10. 1	1024*600	W101P40H1LI- J05B0	IPS	LVDS	300~800
10. 1	1024*600	W101P30H1MI- J03B0	IPS	MIPI	300~800
10. 1	1024*600	W101P30H2MI- J05B0	IPS	MIPI	300~800
10. 1	1280*800	W101C30H1LI- J02B0	IPS	LVDS	300~800
10. 1	1280*800	W101C40H1LI- J02B0	IPS	LVDS	300~500
10. 1	800*1280	W101C40H3LI- J02B0	IPS	LVDS	300~1500
10. 1	800*1280	W101C40H3LI- J04B0	IPS	LVDS	300~1500
10. 1	800*1280	W101C31H1MI- J02B0	IPS	MIPI	300~1500
10. 1	800*1280	W101C31H2MI- J04B0	IPS	MIPI	300~1500
10. 1	800*1280	W101C40H1MI- J02B0	IPS	MIPI	300~1500
10. 1	800*1280	W101C40H2MI- J04B0	IPS	MIPI	300~1500
10. 1	1200*1920	W101C40G1MI-S02B0	IPS	MIPI	300
10. 1	1920*1200	W101C40G1LI-S05B0	IPS	LVDS	300
10.4	800*600	W104P60E1RN-H16A0	TN	RGB	400
10.4	1024*768	W104C30H1LI-H16A0	IPS	LVDS	450
10.4	1200*2000	W104045G1MI-J03B0	IPS	MIPI	320
11.6	1920*1080	W116C30H1EI-J02B0	IPS	e-DP	300
12.1	800*600	W121C20E1LN-H19A0	TN	LVDS	300
12.1	1024*768	W121C20E2LI-H18A0	IPS	LVDS	300
12.1	1280*800	W121C40H2LI-Z07A0	IPS	LVDS	1200
12.3	1920*720	W123C40H1LI-Z016I0	IPS	LVDS	700
13.3	1366*768	W133C30E1EN-J02B0	TN	e-DP	220
13.3	1920*1080	W133C30H1EI-J02B0	IPS	e-DP	300
13.3	1920*1080	W133C30H2EI-J05B0	IPS	e-DP	300
14	1366*768	W140C30E1EN	TN	e-DP	220
14	1920*1080	W140C30H1EI	IPS	e-DP	220
15	1024*768	W150C20E1LN-H19A0	TN	LVDS	350
15	1024*768	W150C20E1LI-H19A0	IPS	LVDS	350
15	1920*1080	W150C30H1EI-S03B0	IPS	e-DP	220
15.6	1366*768	W156C30E1EI-S03B0	TN	e-DP	300
15.6	1920*1080	W156C30H1EI-S03B0	IPS	e-DP	300

Product packaging

Packing Details for volume production order:
(1) Packed the LCM into ESD bag
(2) Packed the LCM+ESD bag in air bubble bag/film
(3) Put the above together into foam box
(4) Packed the foam box into a carton box to protect the LCM during transportation.
(5) Seal the carton by tape

Our Advantages

Provide professional OEM / ODM

FAQ

Q: 1. Can I have a sample order?
A: Yes, we welcome sample order to test and check quality.

Q: 2. What is the lead time for sample?
A: Current sample needs 1-3 days, customized sample needs 15-20 days.

Q: 3. Do you have any MOQ limit?
A: Our MOQ is 1PC.

Q: 4.How long is the warranty?
A:12 Months.

Q: 5. what express do you often use to send the samples?
A: We usually ship samples by DHL, UPS, FedEx or SF. It usually takes 3-5 days to arrive.

Q: 6. What's your acceptable payment term?
A: Our usually payment term is T/T. Others can be negotiated.

Q: 7. How to proceed the order if I have logo to print?
A: Firstly, we will prepare artwork for visual confirmation, and next we will produce a real sample for
your second confirmation. if sample is ok, finally we will go to mass production.

For more detailed information about our TFT LCD module, please feel free to contact us:
Ms. Brittany Zhang
Mob: +8617818325201 (whatsapp and wechat)
Skype: betty8492
Web: //www.cntftlcd.com
