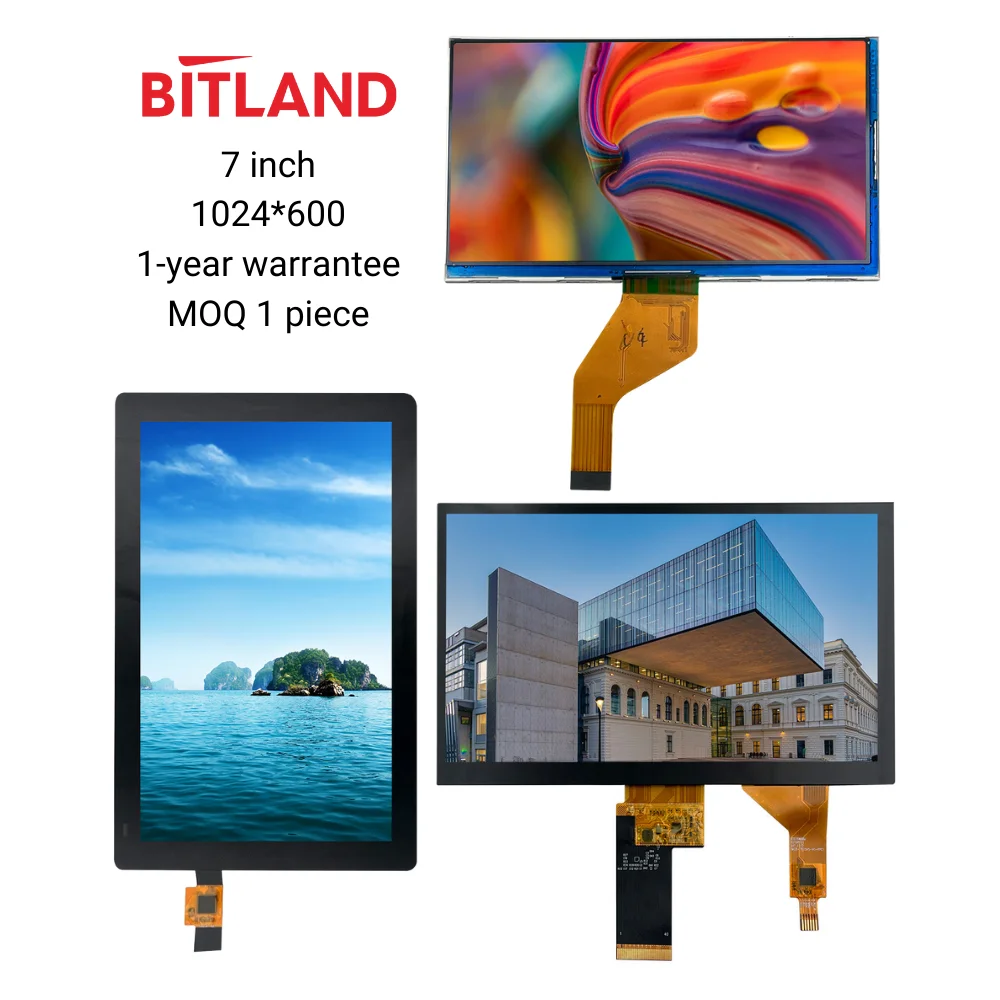

Bitland High Performance 1024*600 7 Inch LCD Display Module with 40pin FPC Parallel 24bit LVDS and MIPI Interfaces
- Category: >>>
- Supplier: Shenzhen Bitland Special Display Technology Co. Ltd.Shenzhen Ltd.
Share on (1601362005591):
Product Overview
Description
High-Performance 7.0" TFT Displays for Versatile Applications
The BT070 series offers a range of high-quality 7.0” TFT display modules, designed to deliver exceptional performance in various industrial, consumer, and embedded applications. With a focus on vivid display quality, durability, and versatility, these modules are available in different configurations to meet a variety of interface and resolution requirements.
* Outstanding Visual Quality: Featuring a resolution of up to 1024 x 600 pixels, the BT070 series provides clear, sharp images with excellent color reproduction. The transmissive display mode ensures bright, high-contrast visuals, even in varying lighting conditions.
* Flexible Interface Options: Choose from 30-pin FPC with 4-lane MIPI or 40-pin FPC with parallel 24-bit LVDS for easy integration with your system. Whether you're building a compact embedded device or a larger assembly, the BT070 series offers adaptable connectivity options.
* Robust and Reliable: Designed to operate in challenging environments, the BT070 series supports a wide operating temperature range from -10°C to 60°C, and storage temperatures from -20°C to 70°C, ensuring reliable performance even in harsh conditions.
* Consistent Quality and Performance: With pixel densities of 170 PPI, excellent viewing angles of up to 85°, and high brightness levels (up to 350 nits), these displays provide vibrant, crisp visuals at all times. The series also features quick response times (as low as 25ms), making it ideal for interactive touchscreens or video applications.
* Flexible Interface Options: Choose from 30-pin FPC with 4-lane MIPI or 40-pin FPC with parallel 24-bit LVDS for easy integration with your system. Whether you're building a compact embedded device or a larger assembly, the BT070 series offers adaptable connectivity options.
* Robust and Reliable: Designed to operate in challenging environments, the BT070 series supports a wide operating temperature range from -10°C to 60°C, and storage temperatures from -20°C to 70°C, ensuring reliable performance even in harsh conditions.
* Consistent Quality and Performance: With pixel densities of 170 PPI, excellent viewing angles of up to 85°, and high brightness levels (up to 350 nits), these displays provide vibrant, crisp visuals at all times. The series also features quick response times (as low as 25ms), making it ideal for interactive touchscreens or video applications.
Applications: Whether for industrial control systems, handheld devices, medical equipment, or digital signage, the BT070 series is your go-to solution for high-performance and versatile display modules.
Product Specification
Module | BT070WSBJ027 | BT070WSBH026QFF01 | BT070WSMH023 |
Product Type | Module | Assembly | Module |
Screen Size | 7.0” | 7.0” | 7.0” |
Aspect Ratio | 5:3 | 5:3 | 5:3 |
Display Mode | Transmissive | Transmissive | Transmissive |
Resolution | 1024 X 3(RGB) X 600 | 1024 × 3(RGB) ×600 | 600 × 3(RGB) ×1024 |
Pixel Density | 170 | 170 | 170 |
Outline Dimensions (mm) | 164.95*100*T3.39 | 164.95*100.39*T7.03 | 95*163.2*T2.6 |
Active Area (AA) (mm) | 154.21*85.92 | 154.21*85.92 | 89.28*152.37 |
Pixel Pitch (mm) | 0.1506*0.1432 | 0.1506*0.1432 | 0.1488*0.1488 |
Viewing Angle (Tpy.) θT/θB/θL/θR | 80/80/60/70 | 85/85/85/85 | 80/80/80/80 |
Display Orientation | free | free | free |
Color Gamut | 50% | 50% | 48% |
Brightness (nits) | 300 | 300 | 350 |
Contrast Ratio | 700 | 800 | 800 |
Response Time (ms) | 25ms | 30ms | 25ms |
Weight (g) | TBD | TBD | TBD |
Interface | 30pin FPC, 4lanes MIPI | 40pin FPC, Parallel 24bit LVDS | 30pin FPC, 4lanes MIPI |
Operating Temperature (°C) | -10~60 | -10~60 | -10~60 |
Storage Temperature (°C) | -20~70 | -20~70 | -20~70 |
High Temperature & Humidity (op) | 40℃,60% RH | 40℃,60% RH | 40℃,60% RH |
Status | Mass production | Mass production | Mass production |

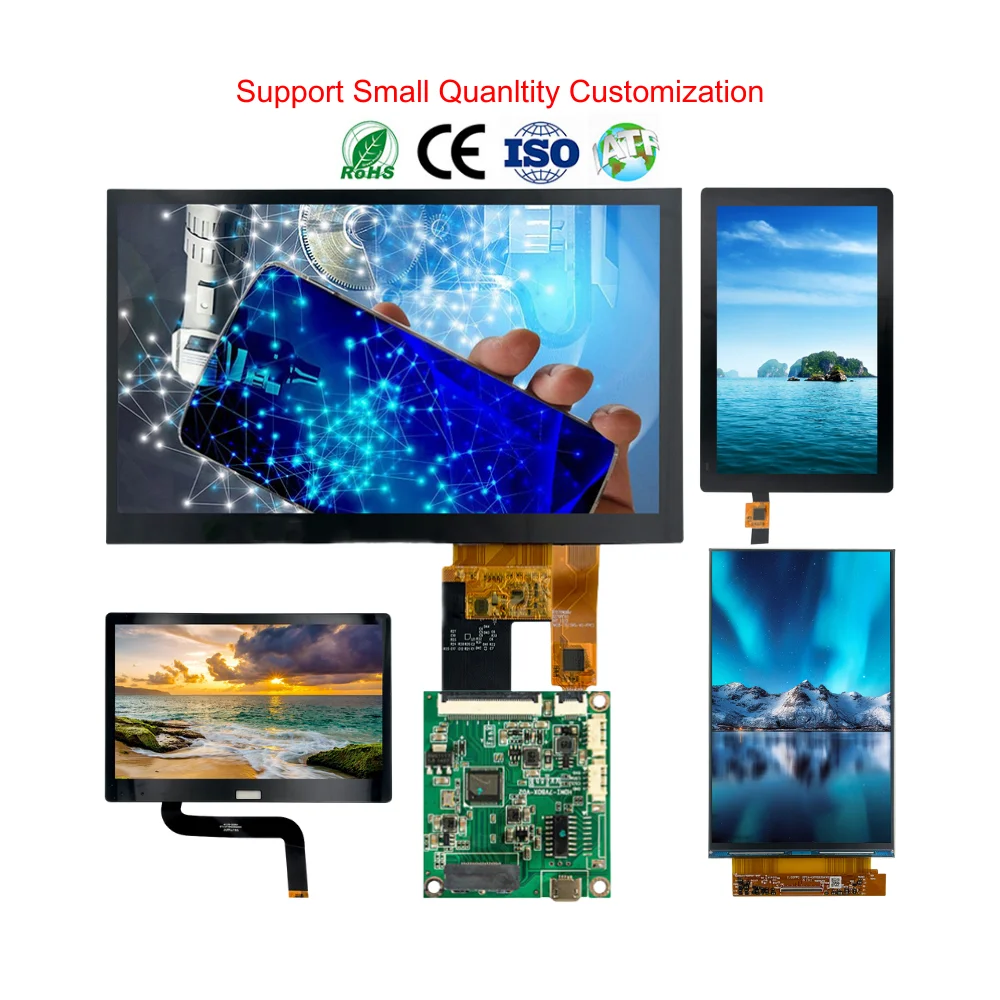

All the specifications could be customized, MOQ 1 piece.

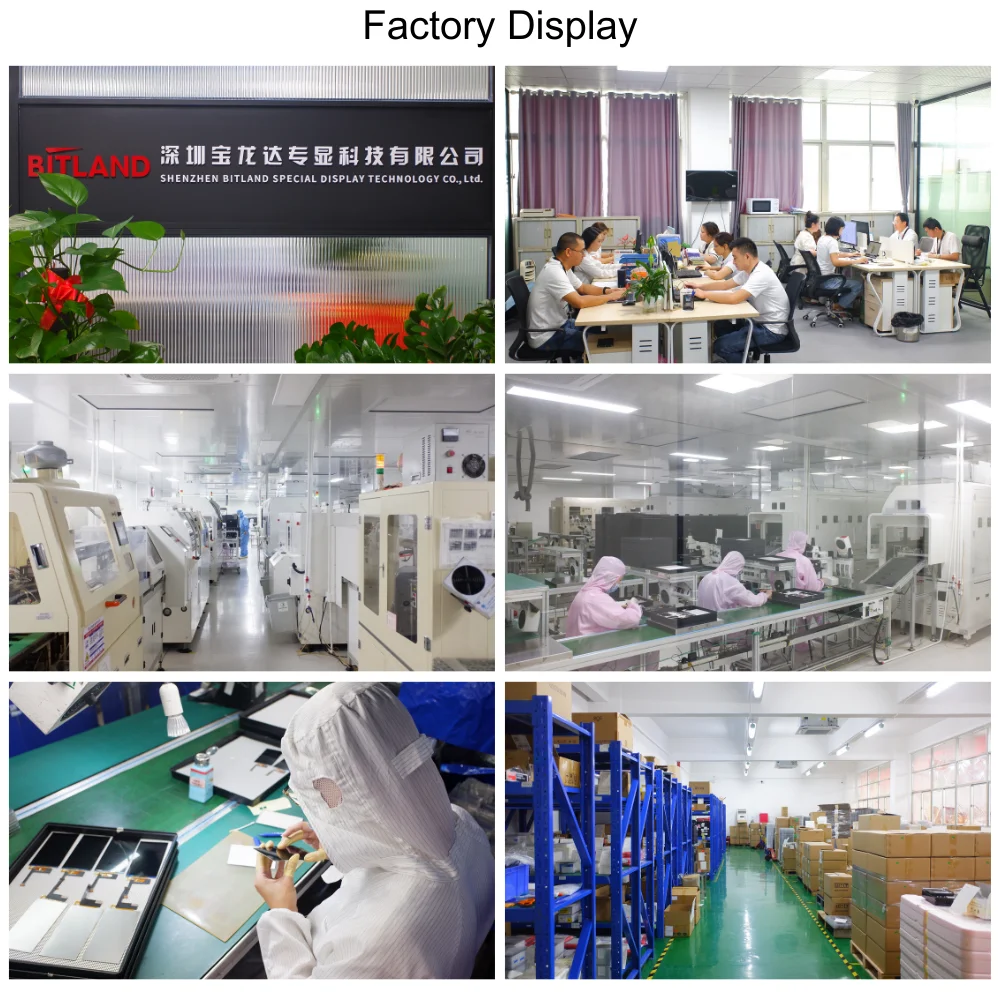

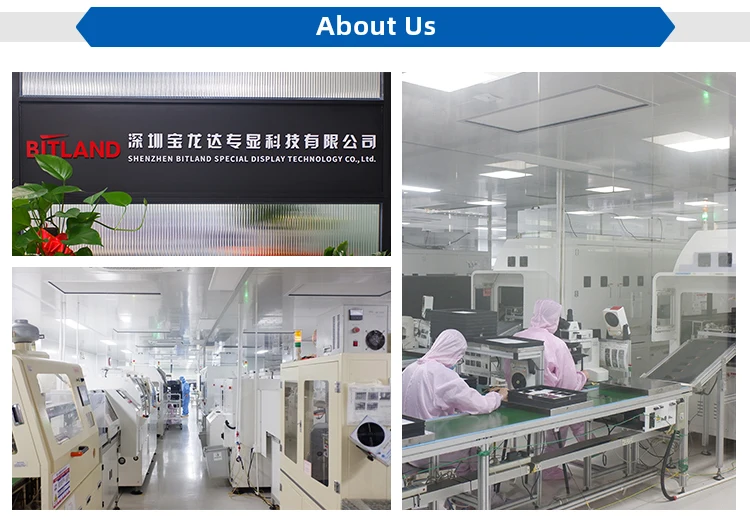

Shenzhen Bitland Special Display Technology Co., Ltd. is a subsidiary of Shenzhen Bitland Group founded in 2019, providing ODM/OEM large, medium, and small-size LCD screen customization services, long-term indirectly for the major first-tier brand merchants to provide supply services company highly automated assembly line, intelligent inspection system, and each link adopts cutting-edge technology to ensure efficient and accurate production. This advanced equipment not only increases the production capacity but also ensures that each LCD panel meets excellent quality standards. We have an experienced and highly professional technical team that understands the uniqueness of each customer and provides flexible customization services. Whether it's size, resolution brightness, or interface type, we can customize LCD solutions to help our customers stand out in competitive marketplace.
Q1: How to place order?
A: Support online order directly(Click start order and fill in your receiving information) or contact service
Q8. How to control the quality of products?
A: BITLAND has a professional quality control team with strict incoming material quality inspection, process quality inspection and 100% inspection before shipment.
Q9. Can you provide product drawings and test reports?
A: According to customer's requirements,BITLAND can offer technical documents and test reports.
A: Support online order directly(Click start order and fill in your receiving information) or contact service
Q2. What is the MOQ?
Re: No MOQ for standard products,different MOQ requirements for customization.
Re: No MOQ for standard products,different MOQ requirements for customization.
Q3. What about the leading time?
Re: For standard product,within 1 week for samples,3-4 weeks for bulk order;
For customization,2-3 weeks for samples,4 weeks for mass production after sample confirmation.
Re: For standard product,within 1 week for samples,3-4 weeks for bulk order;
For customization,2-3 weeks for samples,4 weeks for mass production after sample confirmation.
Q4. Is there any warranty for your products?
Re: Yes,we offer 12-months warranty for unartificial defect.
Re: Yes,we offer 12-months warranty for unartificial defect.
Q5. What is your shipping method?
Re: We can ship as buyer's requirements,our suggestions:
For small quantity,ship by DHL/Fedex/TNT/EMS Express service,delivery time: 4-6 business days;
For large quantity,ship by sea transaportation or air transportation for saving shipping charge.
Re: We can ship as buyer's requirements,our suggestions:
For small quantity,ship by DHL/Fedex/TNT/EMS Express service,delivery time: 4-6 business days;
For large quantity,ship by sea transaportation or air transportation for saving shipping charge.
Q6. What is your payment method?
Re: We support make payment via TT/West Union/Paypal,50%-100% deposit in advance and balance before shipping as order amount.
Re: We support make payment via TT/West Union/Paypal,50%-100% deposit in advance and balance before shipping as order amount.
Q7. Do you offer customization service?
Re: Yes,welcome OEM&ODM,please send us your requirements for assessment.
Re: Yes,welcome OEM&ODM,please send us your requirements for assessment.
Q8. How to control the quality of products?
A: BITLAND has a professional quality control team with strict incoming material quality inspection, process quality inspection and 100% inspection before shipment.
Q9. Can you provide product drawings and test reports?
A: According to customer's requirements,BITLAND can offer technical documents and test reports.
