Best Sale Custom T Beams Precision Steel T Shaped T Bar Lintel Australian Standards
- Category: >>>
- Supplier: Tianjin Rainbow International Trading Co. Ltd.Tianjin Ltd.
Share on (1601362264657):
Product Overview
Description
Product Description

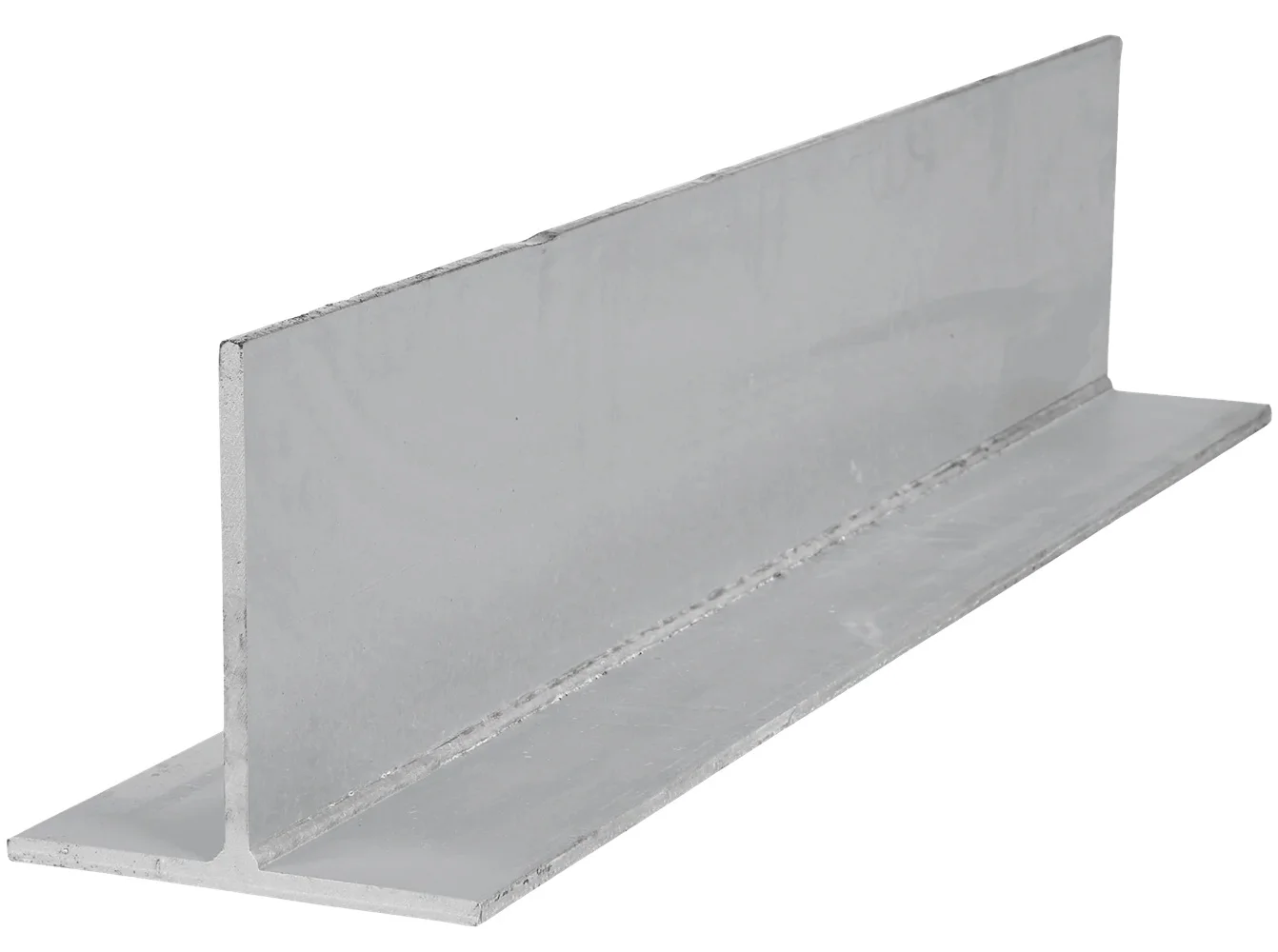

T bar lintel
T-beam, with unique T-section design, provides efficient support and stability for all kinds of engineering structures, and is an ideal choice for construction, bridge, machinery manufacturing and other fields. Strictly follow the high standard production process, from raw material screening, cutting, molding to welding, surface treatment and other processes are strictly tested to ensure reliable product quality.
Product Name | STRUCTUAL GALVANIZED STEEL T SHAPED T BEAM BAR |
Size | 150*6*150*6mm-400*20*400*20mm or as customers' request |
Material | G250,G300,G350,SS400,A36, Q235B, Q345B,S235jr,S355jr |
Standard | AS/NZS 1554.5:2004,ASTM, ANSI, GB, DIN, JIS, EN, ISO |
Surface Treatment | Hot Dipped Galvanized 600g/m2 or Prime Painting |
Welding | One Continuous Weld Full Length |
Straightness | +/-2mm |
Camber & Sweep | +/-2mm |
Flatness | +/-2mm |
Cutting Length | L/C,T/T,D/A,D/P,WEST UNION |
Certification | SGS/ISO/CE/CCC/NEMA |
Product Specification
Section | Size | Kg/m | Length(mm) |
T Bar | 200*6*200*6 | 18.84 | 900-6000 |
T Bar | 200*8*200*6 | 22 | 900-6000 |
T Bar | 250*10*200*6 | 29.04 | 900-6000 |
T Bar | 180*10*150*10 | 25.9 | 900-9000 |
T Bar | 180*10*200*10 | 29.83 | 900-9000 |
T Bar | 180*10*250*10 | 33.75 | 900-9000 |
T Bar | 200*10*150*10 | 27.47 | 900-9000 |
T Bar | 200*10*200*10 | 31.4 | 900-9000 |
T Bar | 250*10*200*10 | 35.33 | 900-9000 |
T Bar | 250*12*200*10 | 39.25 | 900-9000 |

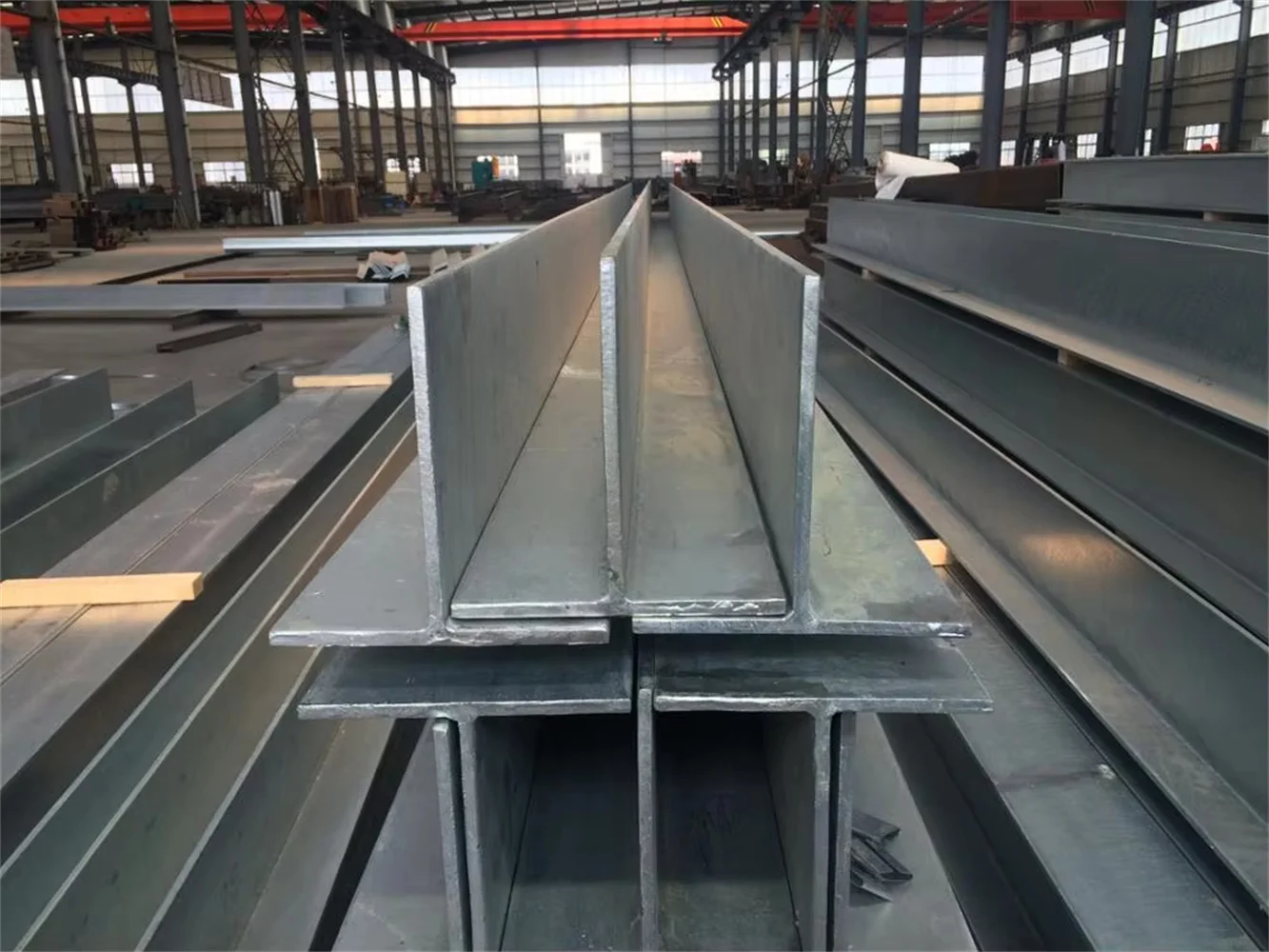

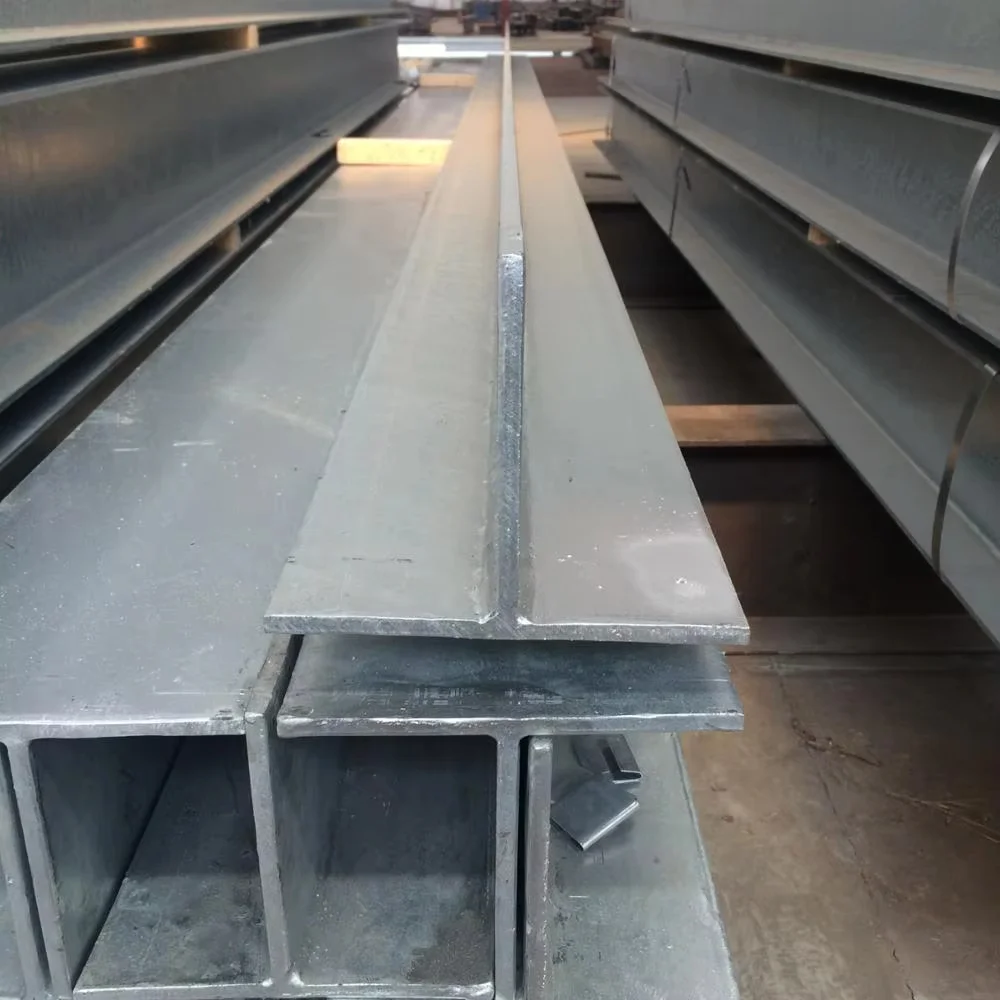

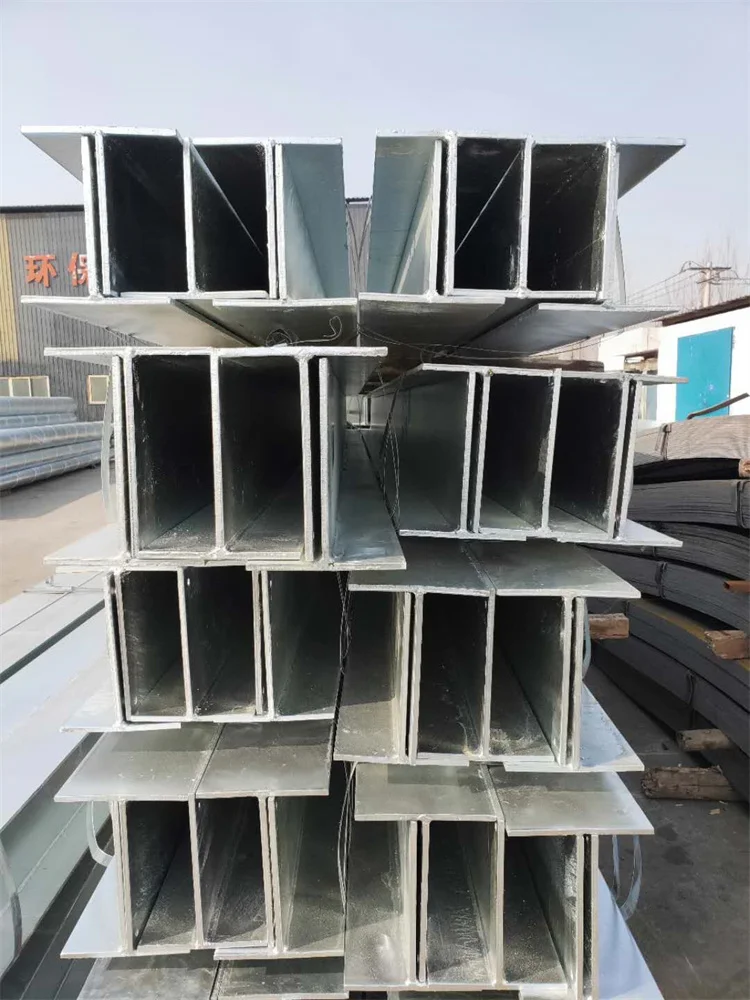

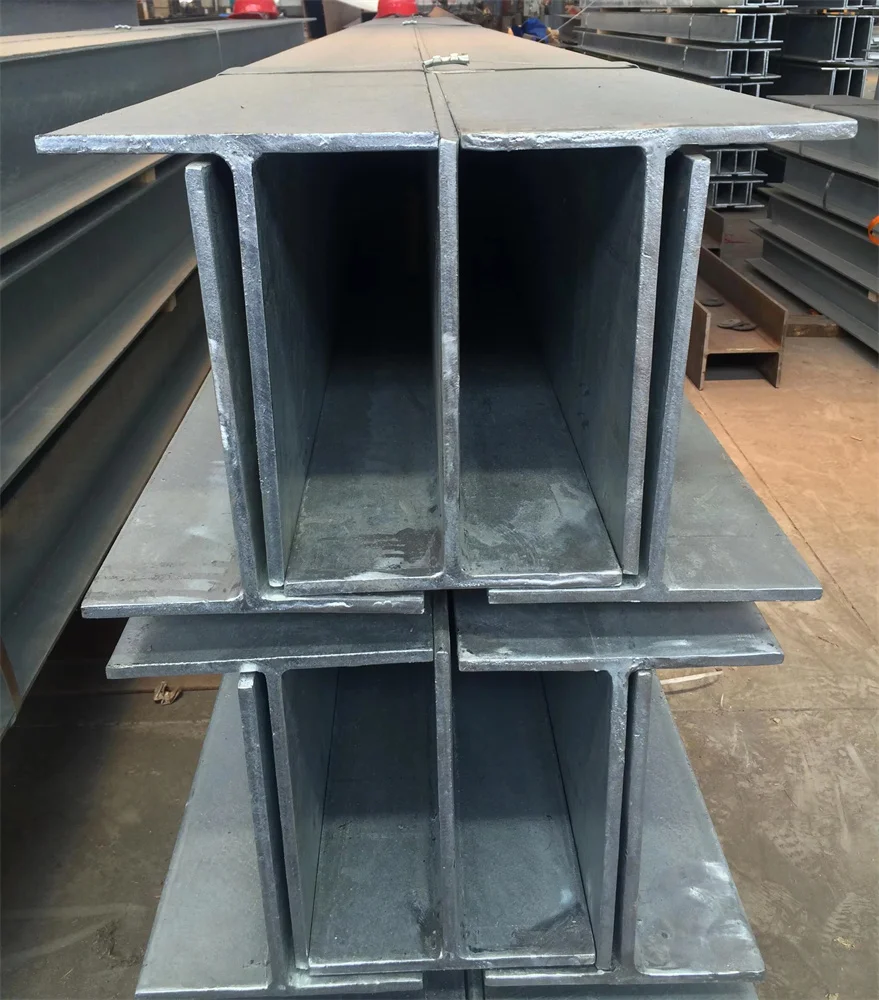

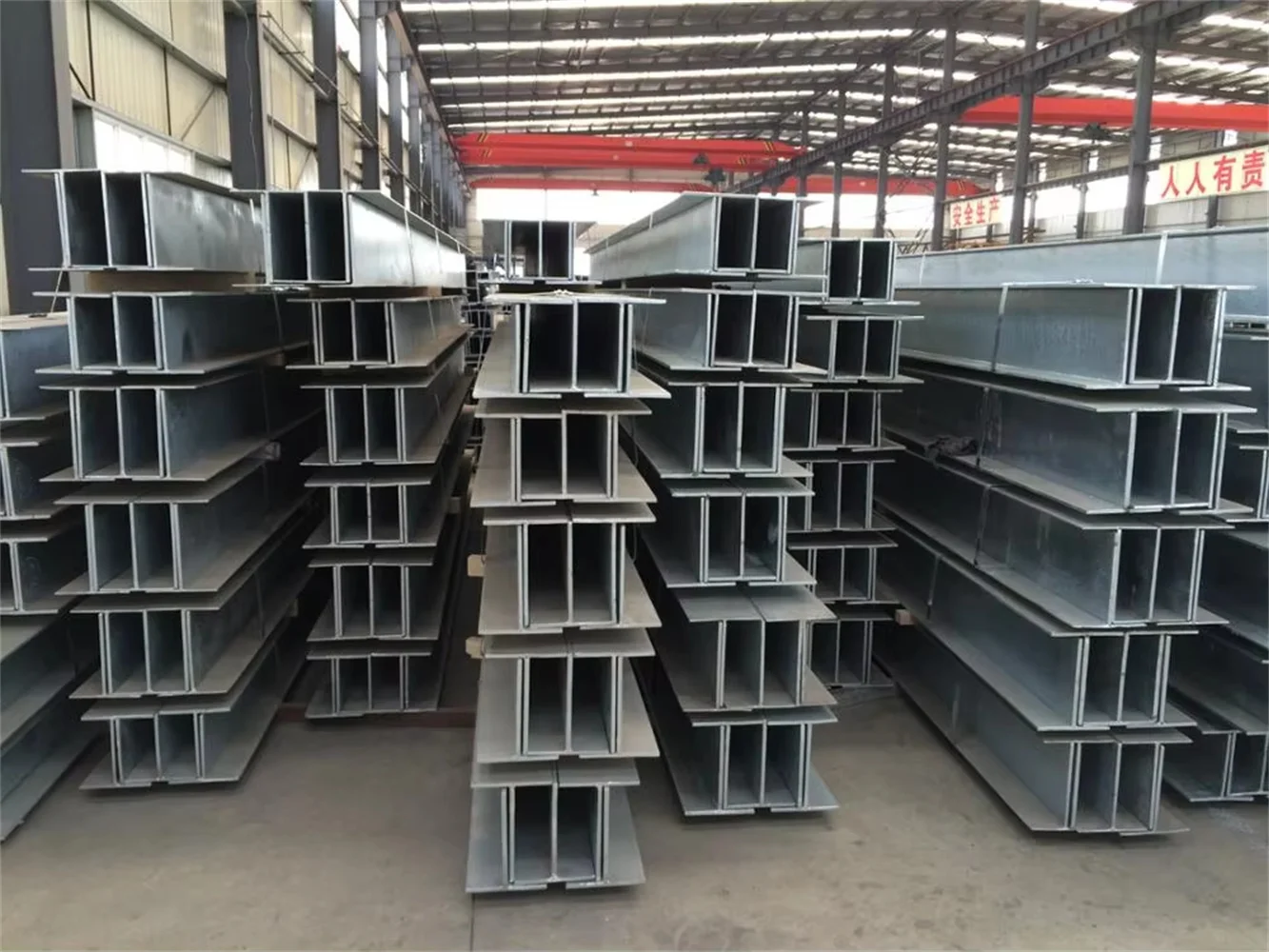

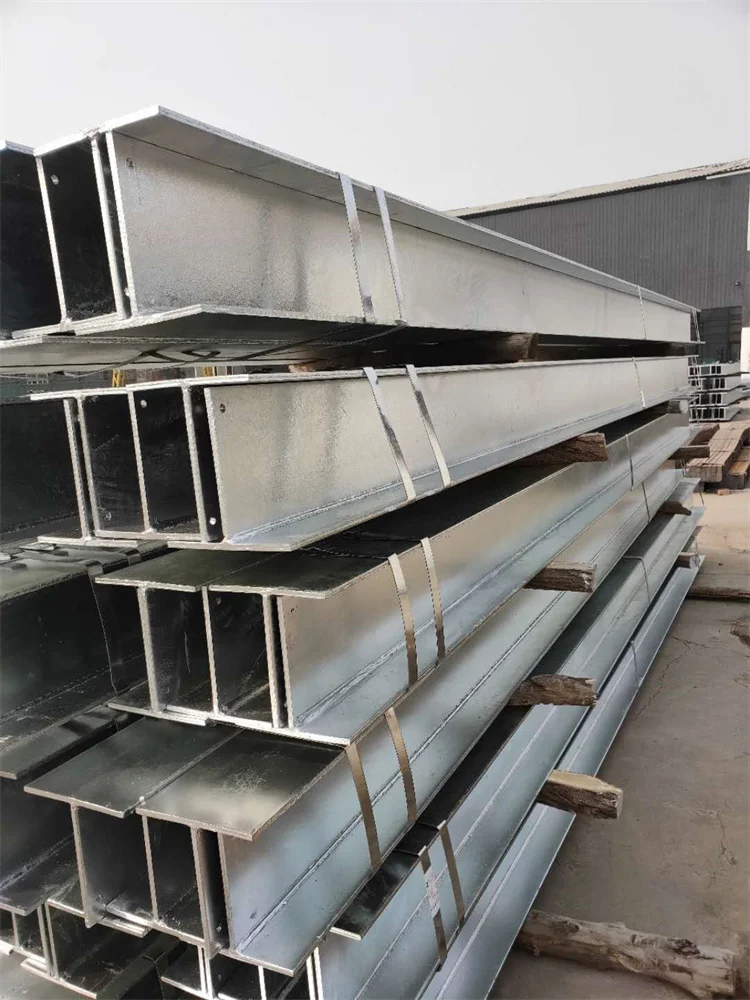

Product Display
PRODUCT FEATURE
- High strength and stability: Made of high-quality steel, processed by advanced technology, dense internal organization, high yield strength and tensile strength, can withstand huge loads to ensure stable structure.
- Reasonable mechanical properties: the cross section shape makes the force distribution uniform, and has high bending, shear and torsional strength, effectively improving the stability and safety of the structure.
- Good processing performance: can be easily cut, bend, punch, welding and other processing, to meet the diverse needs of different projects and complex design.
- Lightweight design: Compared with some traditional structural materials, it can reduce its own weight while ensuring strength, facilitate transportation and installation, and reduce engineering costs.
- Reasonable mechanical properties: the cross section shape makes the force distribution uniform, and has high bending, shear and torsional strength, effectively improving the stability and safety of the structure.
- Good processing performance: can be easily cut, bend, punch, welding and other processing, to meet the diverse needs of different projects and complex design.
- Lightweight design: Compared with some traditional structural materials, it can reduce its own weight while ensuring strength, facilitate transportation and installation, and reduce engineering costs.

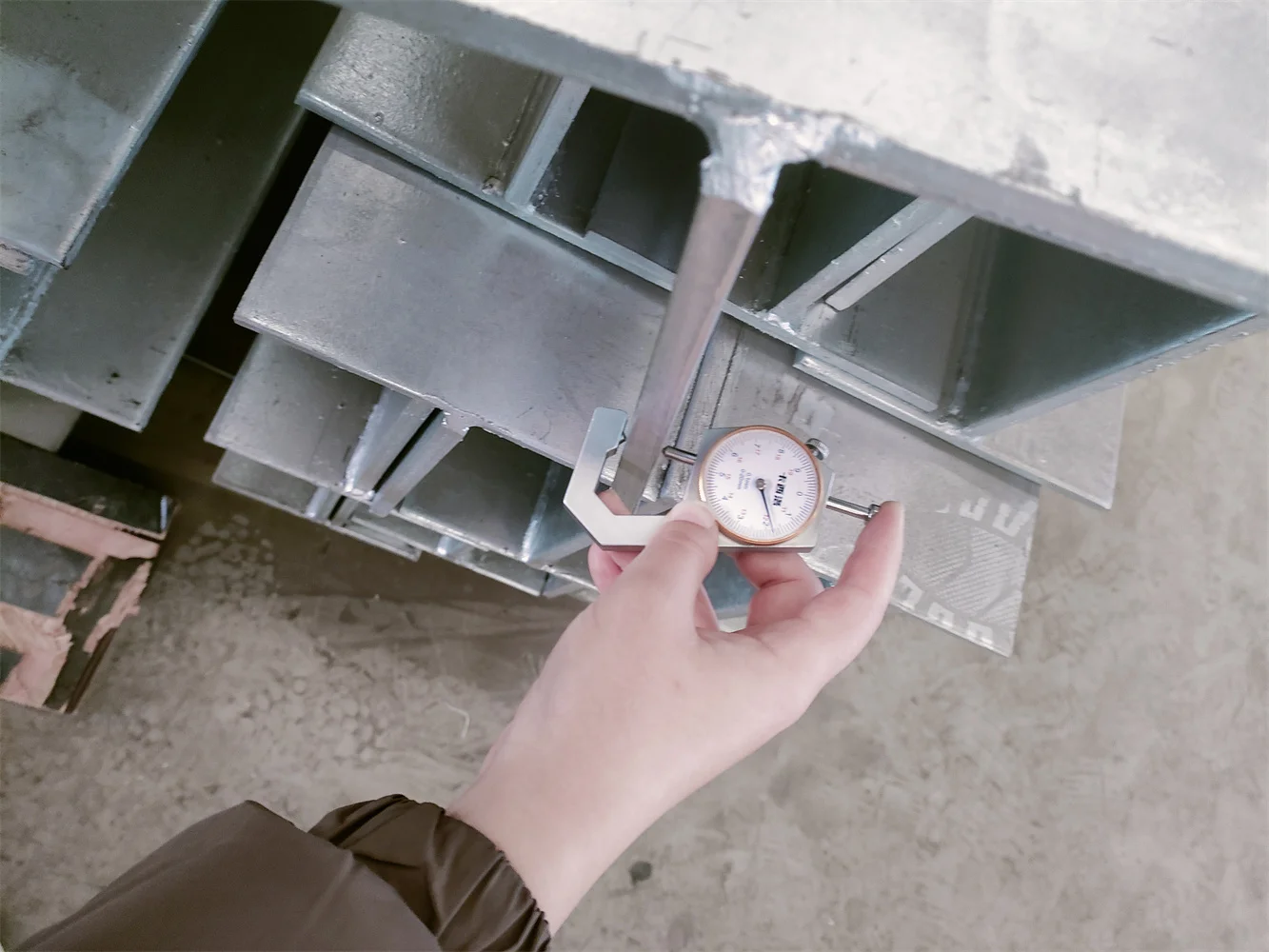

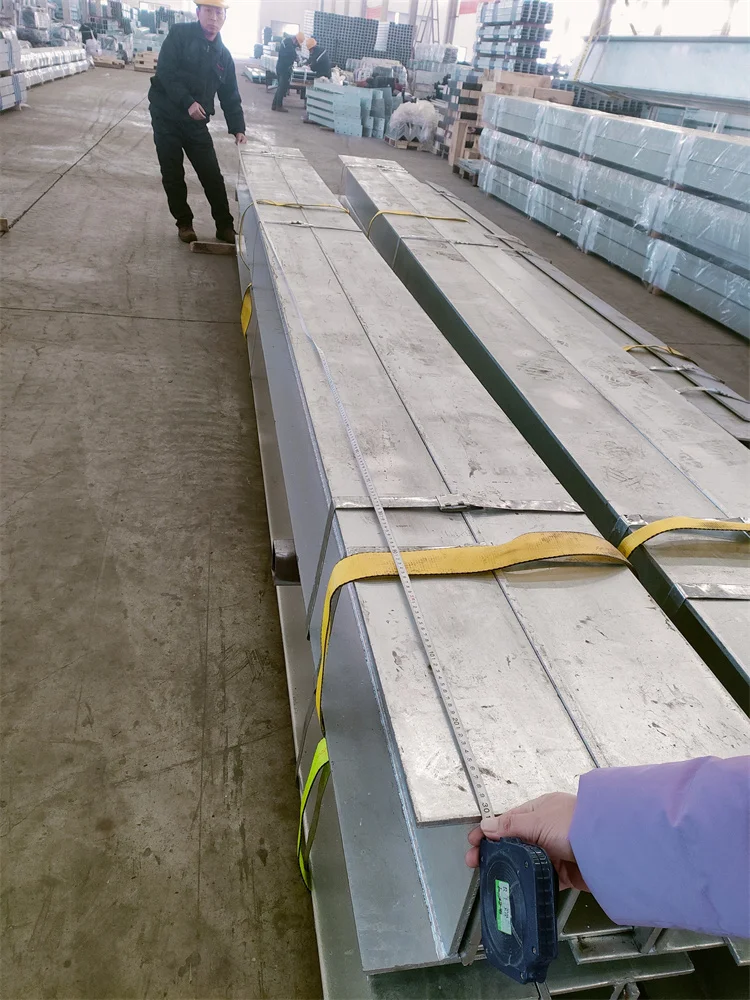

Quality Inspection

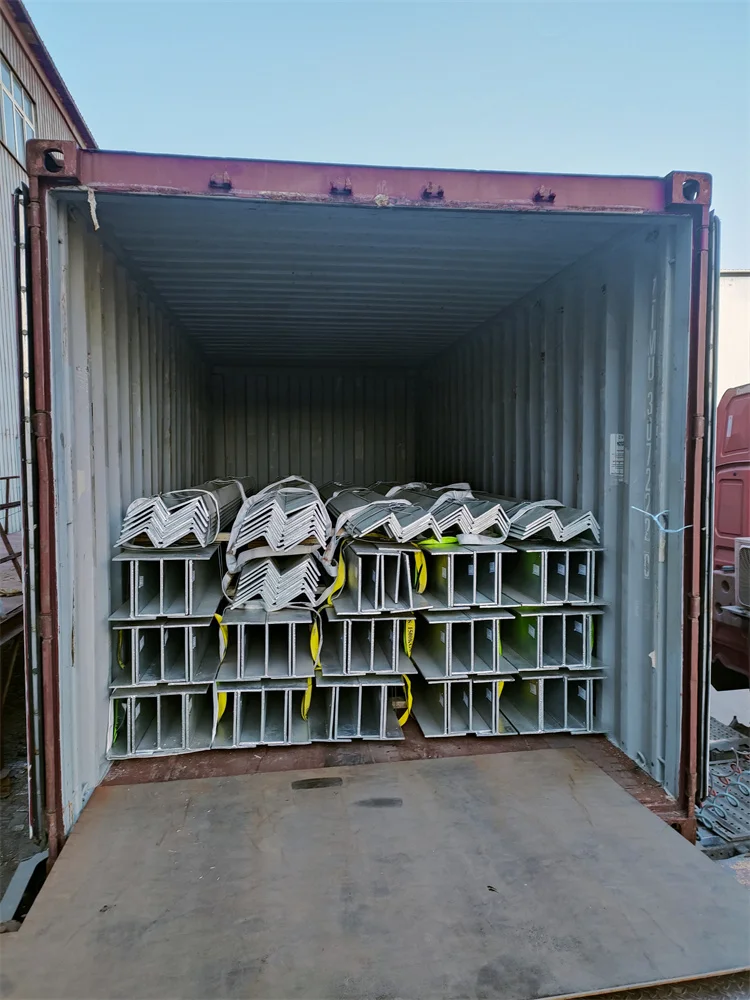

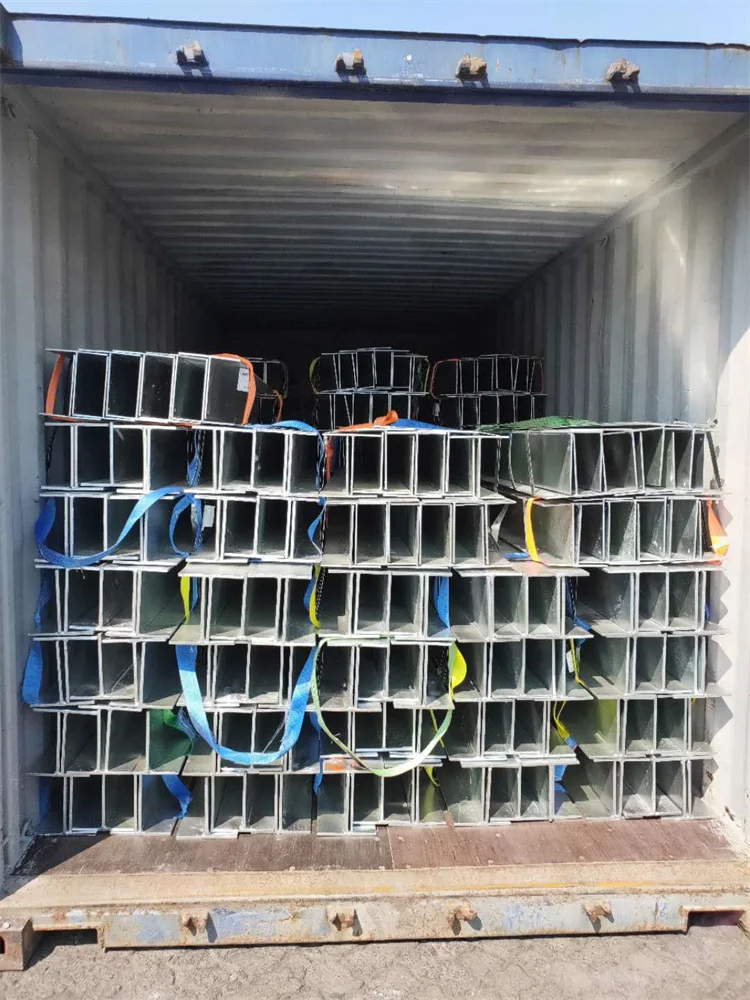

Packing & Delivery

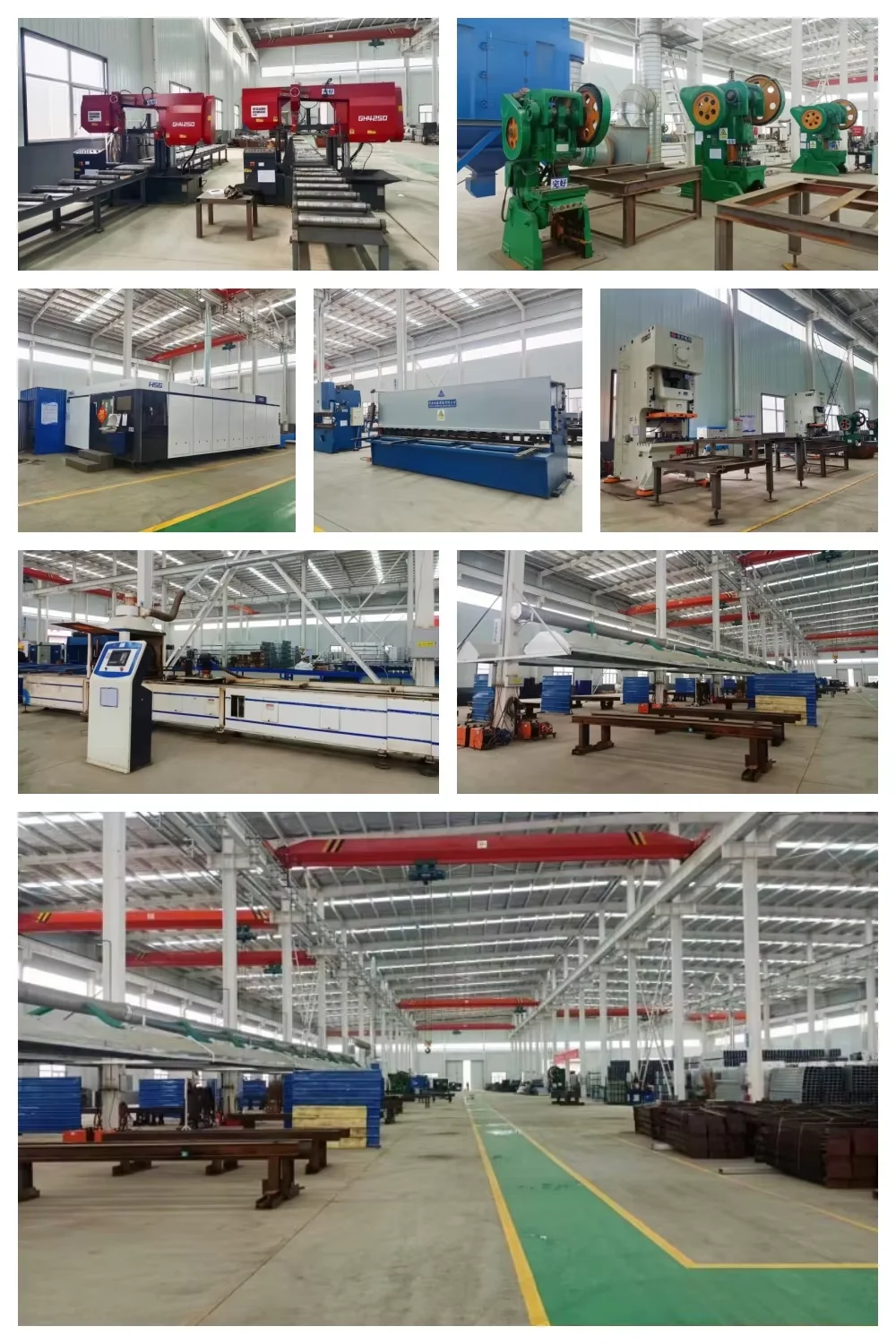

Our workshop
