Air quality monitoring compatible with rs485 7 inch color screen ventilation system smart controller
- Category: >>>
- Supplier: Shenzhen Xiangfan Electronics Technology Co. Ltd.Shenzhen Ltd.
Share on (1601362287706):
Product Overview
Description
Product Description
Specification
* Dimension: | 115 × 185 mm |
* Display interface: | 7 inch, 1024 x 600 |
* Warm-up time: | 2 minutes |
* Response time: | ≤ 10 seconds |
* Wiring terminal: | Max 2.5 mm2 wire |
* Recovery time: | ≤ 30 seconds |
* Rated voltage: | AC110-240V, 50/60Hz |
* Operating temperature: | -10℃--- +50℃ |
* Standby Power: | ≤ 3.0W |
* Operating humidity: | 5％RH——90％RH |
* Control power: | ≤ 200W |
* Storage temperature: | -10℃--- +60℃ |
* Suitable for fans: | AC/EC/DC |
* PM2.5 display range: | 0ug/m3——999ug/m3 |
* Temperature display range: | 0℃ —— 99℃ |
* CO2 display range: | 0ppm-9999ppm |
* Humidity display range: | 0% —— 99% |
* Fixing hole distance: | 60mm(standard) |
* Recognition rate of quiet environment | > 90% |

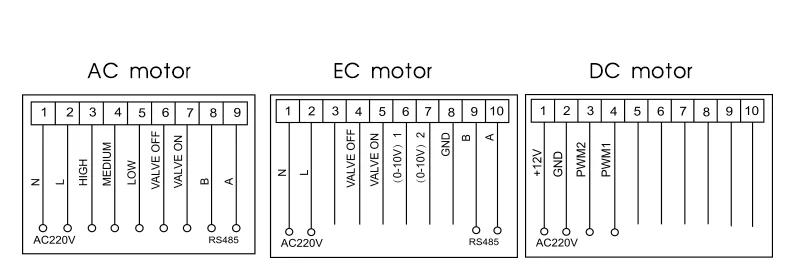

Wiring Diagram
Certifications
Our Factory & Teams
Packaging & Logistics
Our Partners
FAQ
1. How long is your delivery time?
Normally 7-25 days for standard models. Customized products need to be negotiated.
2. What’s your MOQ?
In order to support our customers, we don’t require MOQ for standard models.
We only require MOQ for customized products, usually hundreds pieces.
We only require MOQ for customized products, usually hundreds pieces.
3. How do you control quality?
Our company has a complete set of quality management system, and has obtained the ISO9001 quality system certification. The whole
quality management chain, from raw and auxiliary materials entering the factory to quality management in the manufacturing process
to customer management, is closely linked to ensure the quality of products and services from the system. Full participation and
overall control. Supervise and promote each other.
quality management chain, from raw and auxiliary materials entering the factory to quality management in the manufacturing process
to customer management, is closely linked to ensure the quality of products and services from the system. Full participation and
overall control. Supervise and promote each other.
4. Does your company accept OEM/ODM?
Sure, we have a professional, efficient and innovative R&D team, including a number of senior engineers who have worked in the
field of sensor applications for more than 10 years. To provide customers with a full range of OEM/ODM customized services.
field of sensor applications for more than 10 years. To provide customers with a full range of OEM/ODM customized services.
5. About other questions?
Please e-mail us or chat with us on Alibaba directly.
