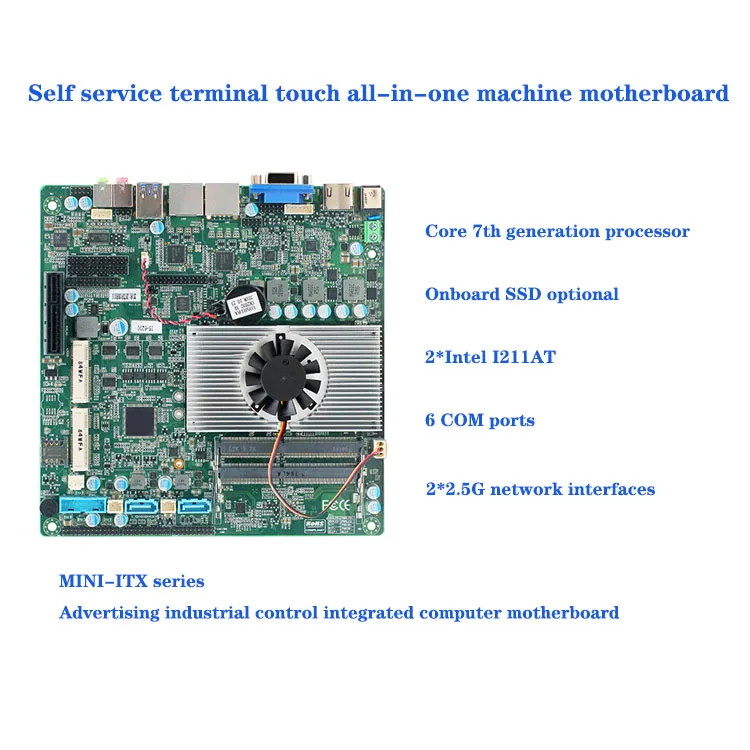

High quality Mini ITX dual network port 6 series eDP industrial control touch cashier advertising all in one machine Mainboard

Share on (1601362436796):


Price:$119.00-130.00

Quantity:


Product Overview

Description



Product Description








Product parameter
CPU
Intel CoreTM 6th/7th/8th generation i3/i5/i7 processors
CPU packaging
BGA
Chipset
Intel Skylake-U/KabyLake-U/Kaby Lake R-U series SOC
BIOS
EFI BIOS
Technical Architecture
Dual channel DDR4 2133MHz
Dual LVDS and EDP
Supports dual channel 24 bit output, with a maximum resolution of 1920 × 1200 EDP and a maximum resolution of 4096 * 2304 (can only choose one)
VGA
VGA supports a maximum resolution of 2048x1536

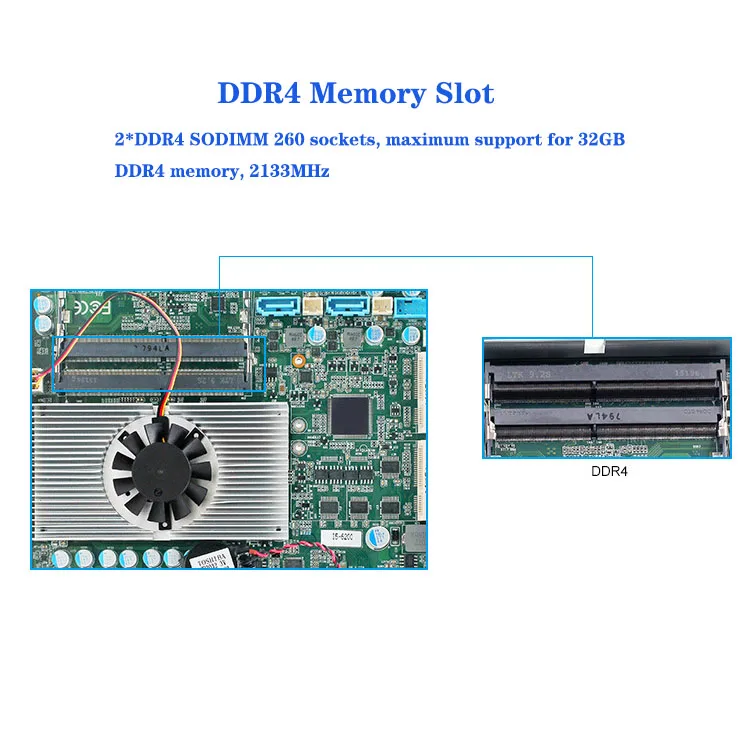

Slot
2 *DDR4 SO DIMM 260 Socket
Graphic controller
Intel HD Graphics graphics card; Graphics card model CPU related
HDMI
Maximum resolution support (HDMI 1.4) 4096* 2304@30HZ Supports 4K display

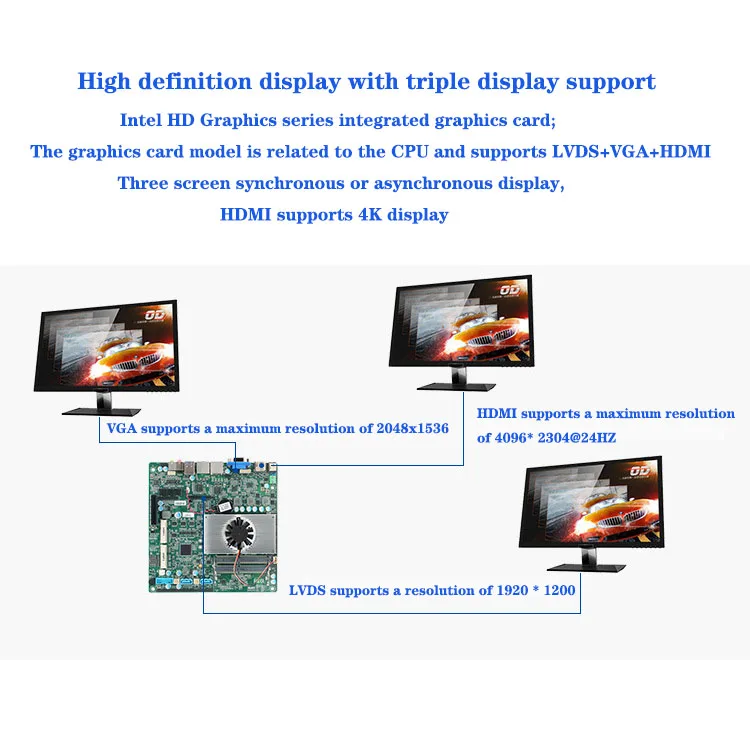

Dual display support
LVDS+VGA, LVDS+HDMI, HDMI+VGA synchronous or asynchronous display
Three Display Support
Support LVDS+VGA+HDMI three screen synchronous or asynchronous display

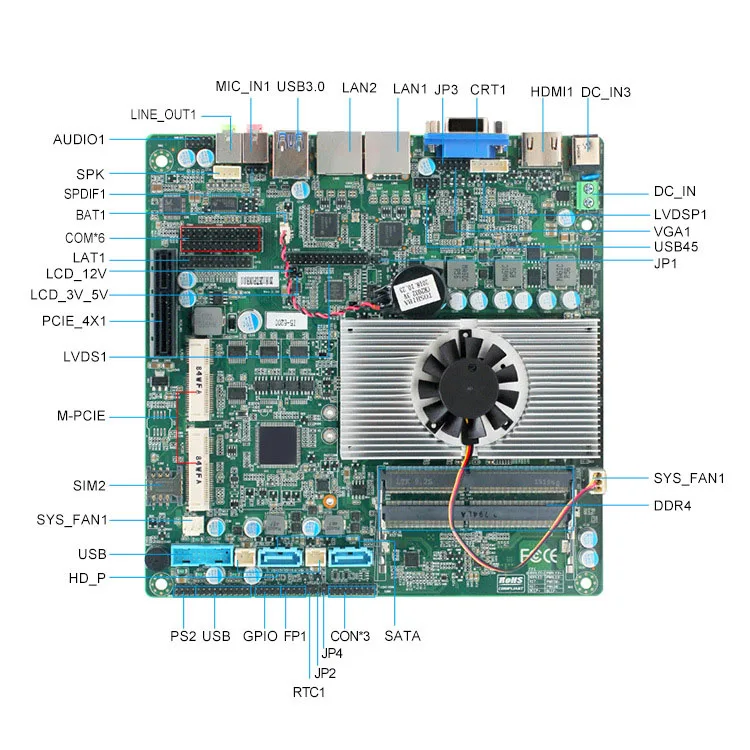

Port

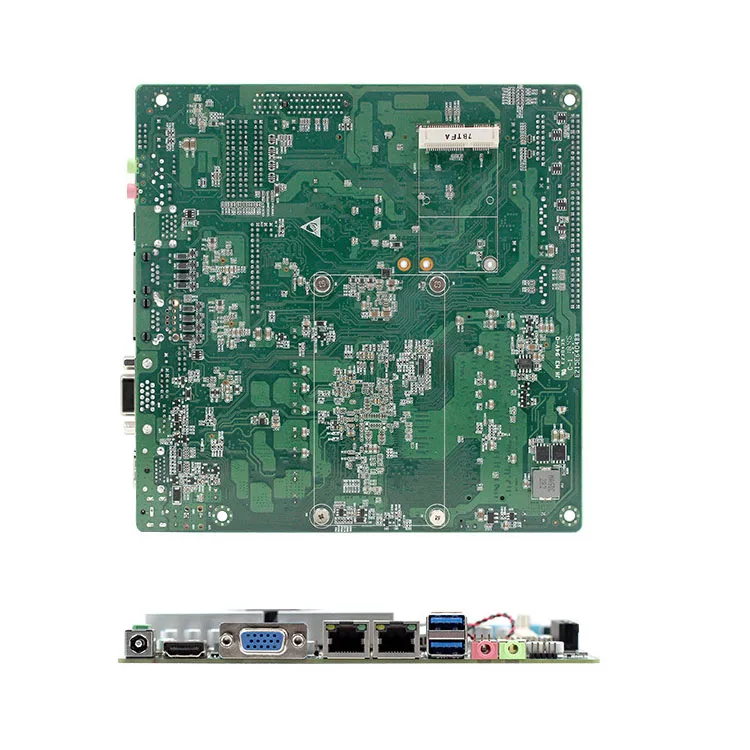

1*VGA,1*HDMI,2*LAN,2*USB3.0 1*MIC-OUT/LINE-OUT 1*DC
Network
2*Intel1225 (when the 1/0 interface is 4 USBs, there is only 1 Intel 1225 network card)
Audio frequency
Realtek HD ALC662 audio decoding (left and right channels+microphone)
Super I/O
ITE8786E
Watchdog timer
0-255 seconds, provide watchdog routine
Cooler
Aluminum fan radiator (supports automatic and manual fan speed adjustment)

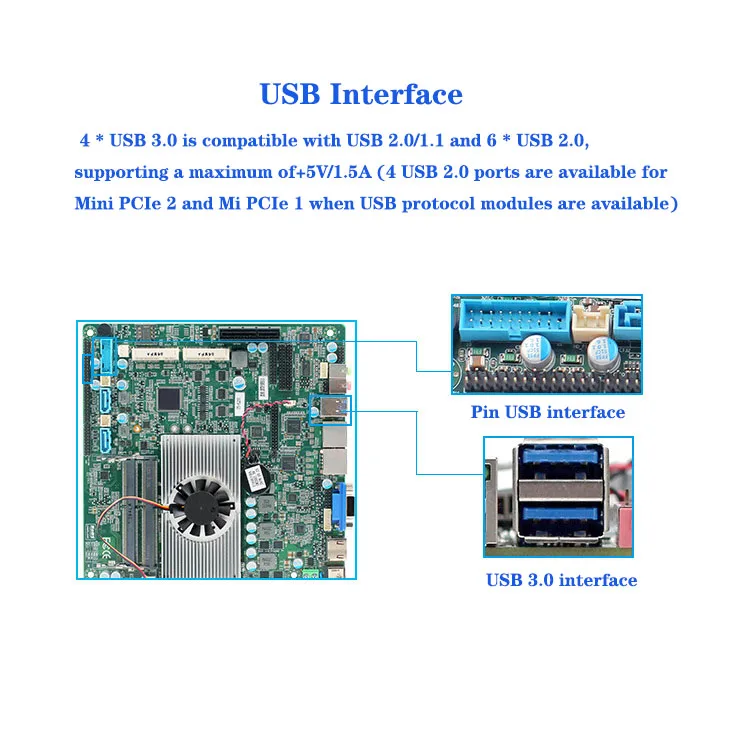

USB
4 * USB 3.0 is compatible with USB 2.0/1.1 and 6 * USB 2.0, supporting a maximum of+5V/1.5A (4 USB 2.0 ports are available for
Mini PCIe 2 and Mi PCIe 1 when USB protocol modules are available)

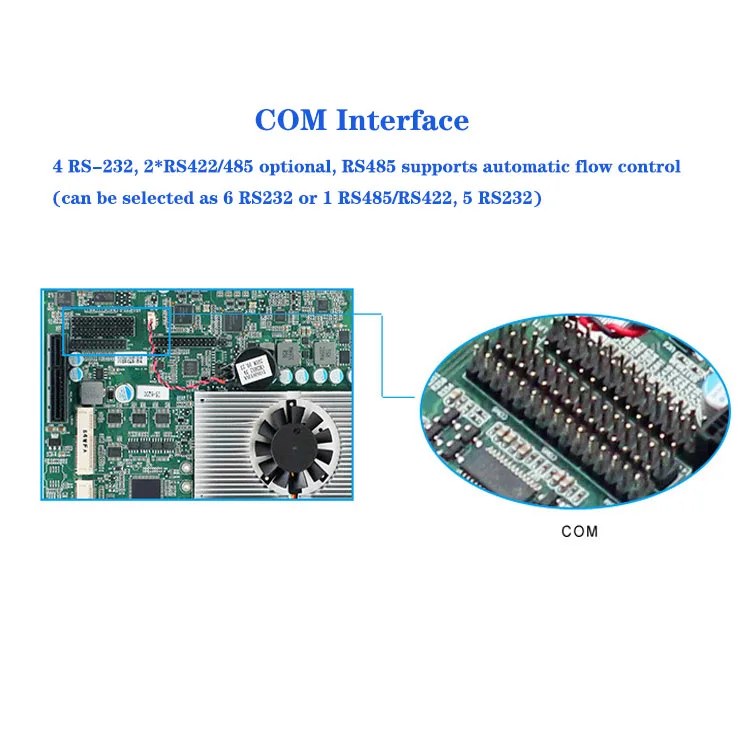

Serial port
4*RS-232, 2 RS422/485 optional, RS485 supports automatic flow control (can be selected as 6*RS232 or 1*RS485/RS422, 5*RS232)
PS/2
1 * PS/2 pin interface
Touch screen
Supports touch screen with 4 wires, 5 wires, and 8 wires (optional)
GPIO
8-bit, provides routines, freely defines input/output, 3.3V@24mA level
Mini-PCle
2 Mini PCIe slots, supporting both PCle and USB devices (when USB89 pins are available, only PCIe protocol modules are supported)
SATA
1 standard SATAIII interface, maximum transfer rate of 6Gb/s
Onboard SSD
Onboard SSD16/32/64/128G (choose between SATA2 and onboard SSD)
M-SATA
1 Mini PCle M-SATA Scout, supporting SANDISK protocol, with a maximum transfer rate of 6GB/s (choose either M-SATA or SATA1 interface)
Power type
Single input DC power supply, DC12V,+/-5%
Work environment
working temperature
-20℃~+60℃
Storage temperature
-40℃~+85℃
Working humidity
0% 90% relative humidity, no condensation
Storage humidity
0% 90% relative humidity, no condensation
System support
Windows10, Windows11, Linux
Size
170 x 170 mm
Net Weight
0.5KG
Authentication
CE,RoHS,FCC
