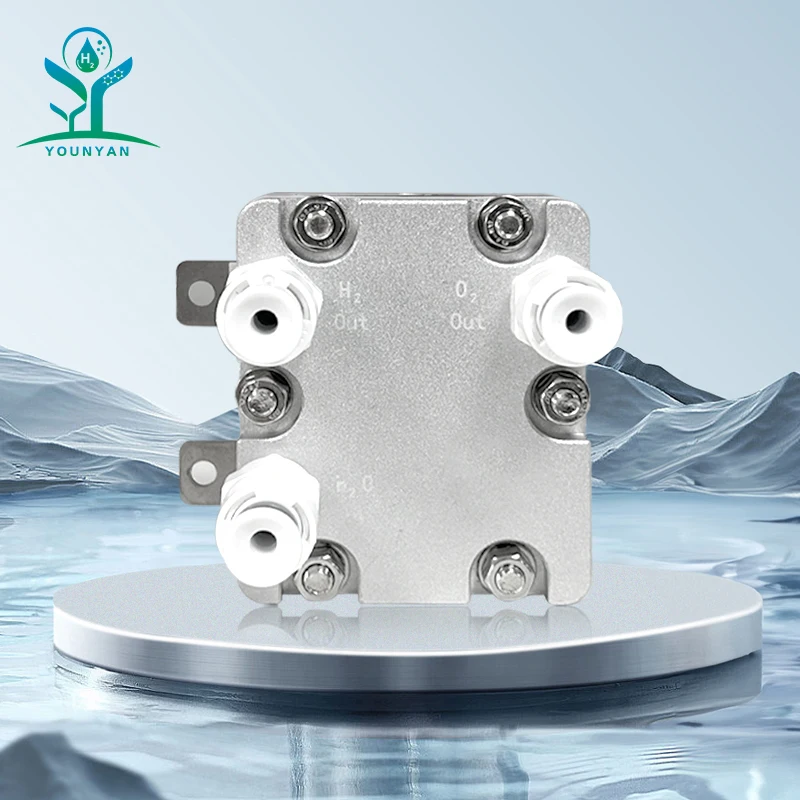

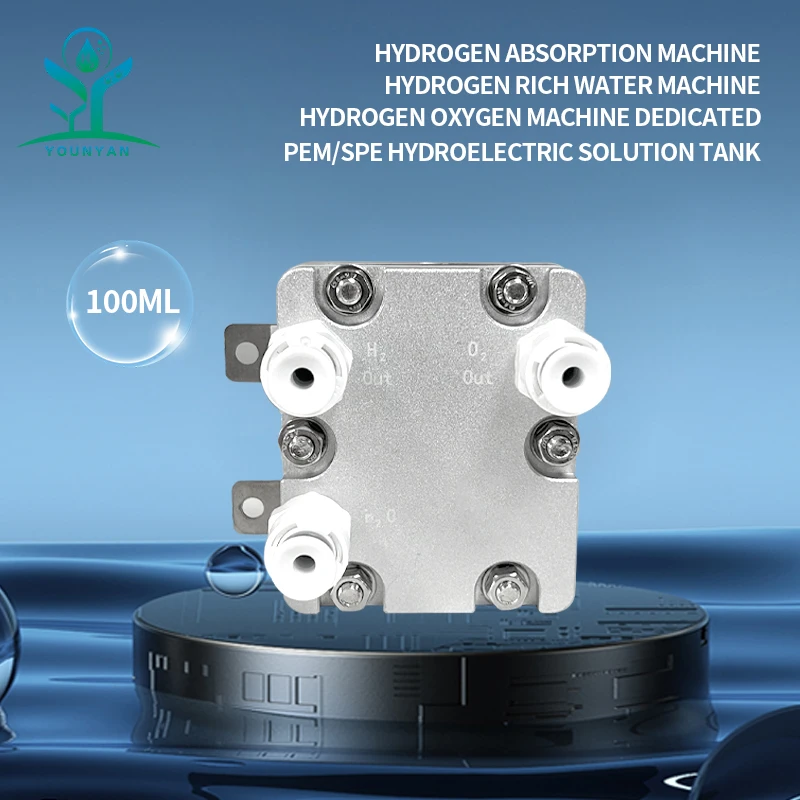

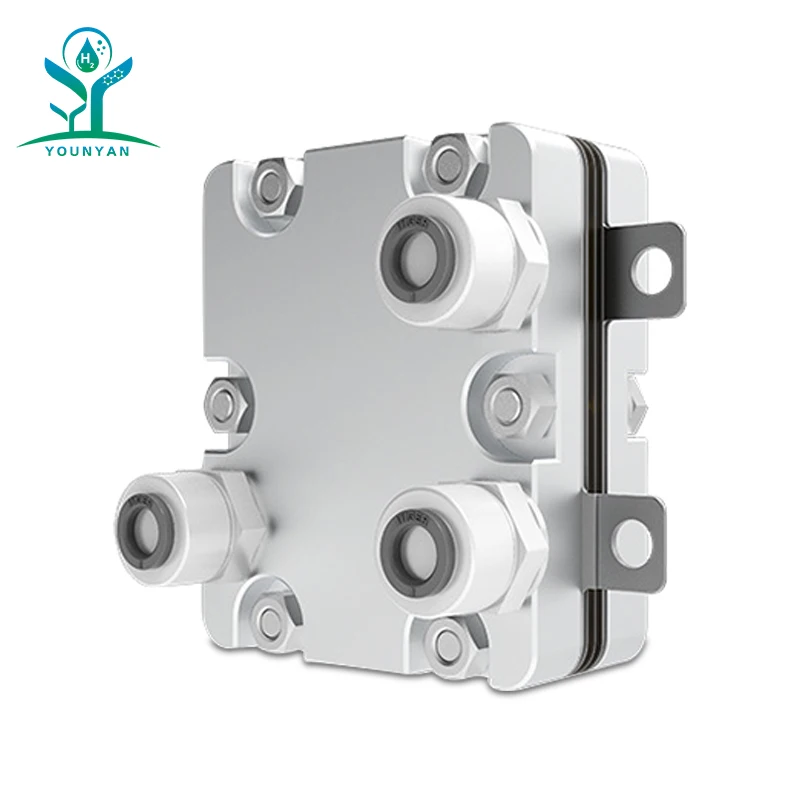

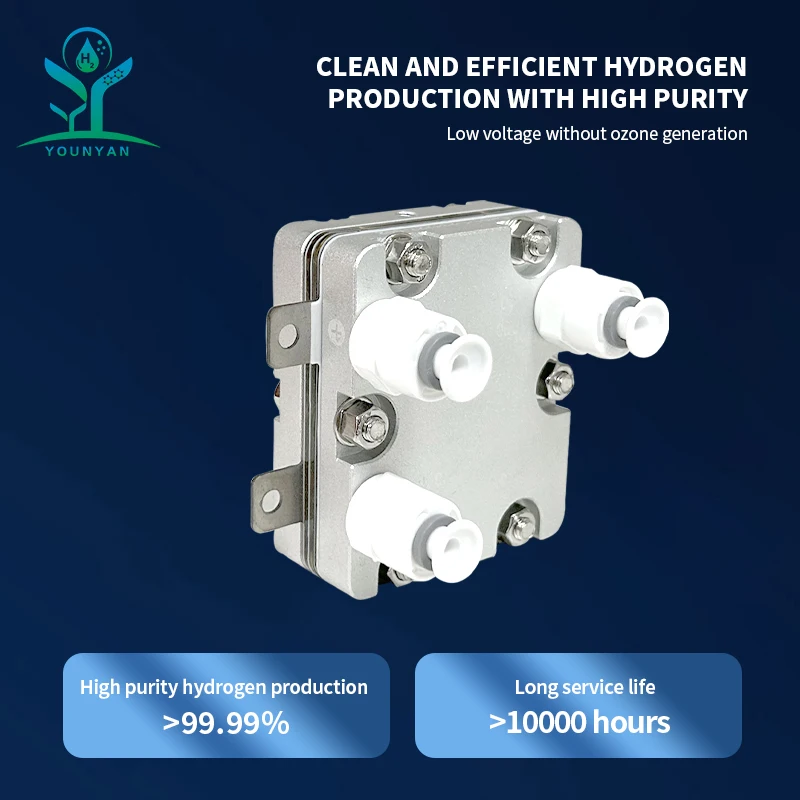

High Efficiency Green Hydrogen Production PEM ALK Electrolyzer Mobile Integrated Hydrogen Production Hydrogen Refueling Station
- Category: >>>
- Supplier: Guangdong Younyan Energy Technology Co. Ltd.Guangdong Ltd.
Share on (1601362491531):
Product Overview
Description
Product Description
Advantages
Strong sealing,high pressure resistance.and corrosion resistance: Insulation pads and sealing pads do not adhere,High and low temperature resistance,water flow reaching the membrane electrode Smooth and reduce the dry burning caused by water shortage in the electrolytic cell Probability;
Details Images
Company Profile
FAQ
1. who are we?
We are based in Guangdong, China, start from 2024.focus on hydrogen water machine.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
null
4. why should you buy from us not from other suppliers?
null
5. what services can we provide?
Accepted Delivery Terms: null；
Accepted Payment Currency:null;
Accepted Payment Type: null;
Language Spoken:null
We are based in Guangdong, China, start from 2024.focus on hydrogen water machine.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
null
4. why should you buy from us not from other suppliers?
null
5. what services can we provide?
Accepted Delivery Terms: null；
Accepted Payment Currency:null;
Accepted Payment Type: null;
Language Spoken:null
Packge Details:
PE bag,carton box, wooden box or as customer's requirements.
TECHNICAL REOUIREMENTS
1. The electrolysis cell needs to use pure water with TDS$ < 10 or conductivity < 2.5 uS/cm, preferably equipped with an ion exchange resin membrane filtration device between the water tank outlet and the electrolysis cell inlet to ensure that the water quality meets the standards.
2. The starting temperature of the electrolysis cell should not be lower than 15*C
3. Avoid operating the electrolysis cell in a water-deficient condition. lt is recommended to maintain a certain height difference at least 15cm) between the water tank outlet and the electrolysis cell inlet or use a corresponding specification of circulating water pump.
4. After confirming normal water supply, connect the positive and negative poles of the power supply to the " +" and"." terminals of the 4 electrolysis cell, respectively. The power supply must use a constant current power supply that matches the voltage and current parameters of the electrolysis cell.
2. The starting temperature of the electrolysis cell should not be lower than 15*C
3. Avoid operating the electrolysis cell in a water-deficient condition. lt is recommended to maintain a certain height difference at least 15cm) between the water tank outlet and the electrolysis cell inlet or use a corresponding specification of circulating water pump.
4. After confirming normal water supply, connect the positive and negative poles of the power supply to the " +" and"." terminals of the 4 electrolysis cell, respectively. The power supply must use a constant current power supply that matches the voltage and current parameters of the electrolysis cell.
NOTES
Note 1: To prevent situations such as water and gas leakage caused by aging or detachment of pipelines, the pipelines should have corrosion resistance, high temperature resistance, oxidation resistance,pressure resistance, and hydrolysis resistance, The material should have a certain hardness, lt is recommended to use materials such as PTFE (Teflon) for structural components or pipelines, or use medical-grade materials (such as 316L, pure titanium).
Note 2: Please install a temperature probe with over-temperature alarm and shutdown function above the electrolysis cell. The set value should be less than 55'c. To achieve good heat dissipation, there should be sufficient space and optimized channel design around it.
Note 3: Equip the water tank with a liquid level control device (the lowest liquid level of the water tank should not be lower than1.5L).
Note 4:To reduce inappropriate overheating and prevent safety hazards, choose high-quality, compliant, and sturdy electrical components (such as connecting wires, terminal connectors, etc,) and use correct and appropriate connection techniques.
Note 5: lf the electrolysis cell is not used for an extended period, to prevent the internal membrane electrode of the electrolysis cell from being affected by water shortage and affecting the future performance, it is essential to regularly inject pure water that meets the water quality standards into the electrolysis cell and seal all water nozzles with plugs.
Note 2: Please install a temperature probe with over-temperature alarm and shutdown function above the electrolysis cell. The set value should be less than 55'c. To achieve good heat dissipation, there should be sufficient space and optimized channel design around it.
Note 3: Equip the water tank with a liquid level control device (the lowest liquid level of the water tank should not be lower than1.5L).
Note 4:To reduce inappropriate overheating and prevent safety hazards, choose high-quality, compliant, and sturdy electrical components (such as connecting wires, terminal connectors, etc,) and use correct and appropriate connection techniques.
Note 5: lf the electrolysis cell is not used for an extended period, to prevent the internal membrane electrode of the electrolysis cell from being affected by water shortage and affecting the future performance, it is essential to regularly inject pure water that meets the water quality standards into the electrolysis cell and seal all water nozzles with plugs.
Function:
Pure Hydrogen gas
Advantage:
Fast delivery
high quality
offer OEM/ODM service
After service
With professional technical team
