Strong Adaptability Drilling Machine 240kN SWDM240H Rotary Drilling Rig for Various Terrain
- Category: >>>
- Supplier: Caterbe Construction Equipment (Wuhan) Co. Ltd.Caterbe Ltd.
Share on (1601362624637):
Product Overview
Description
Products Description

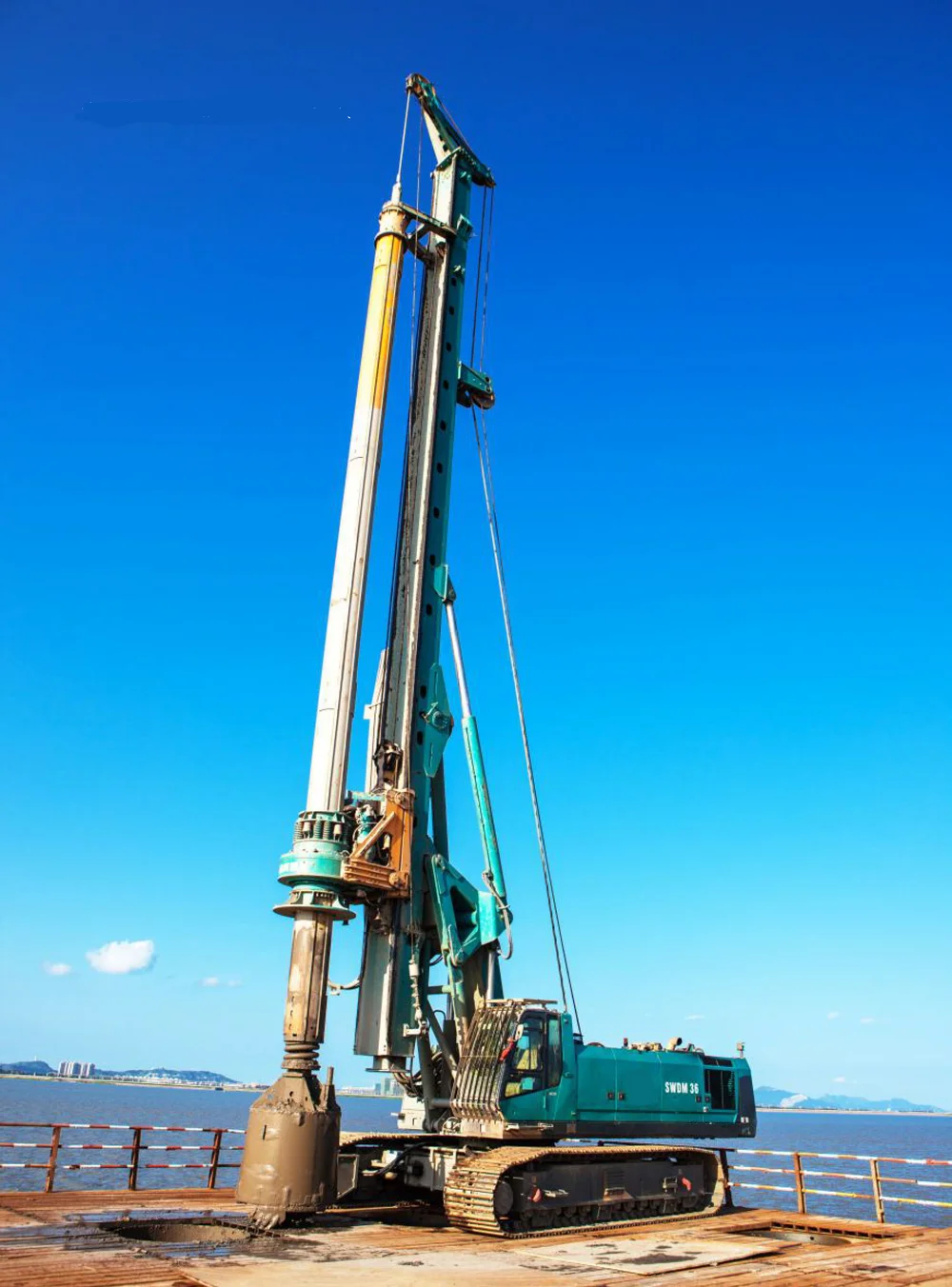

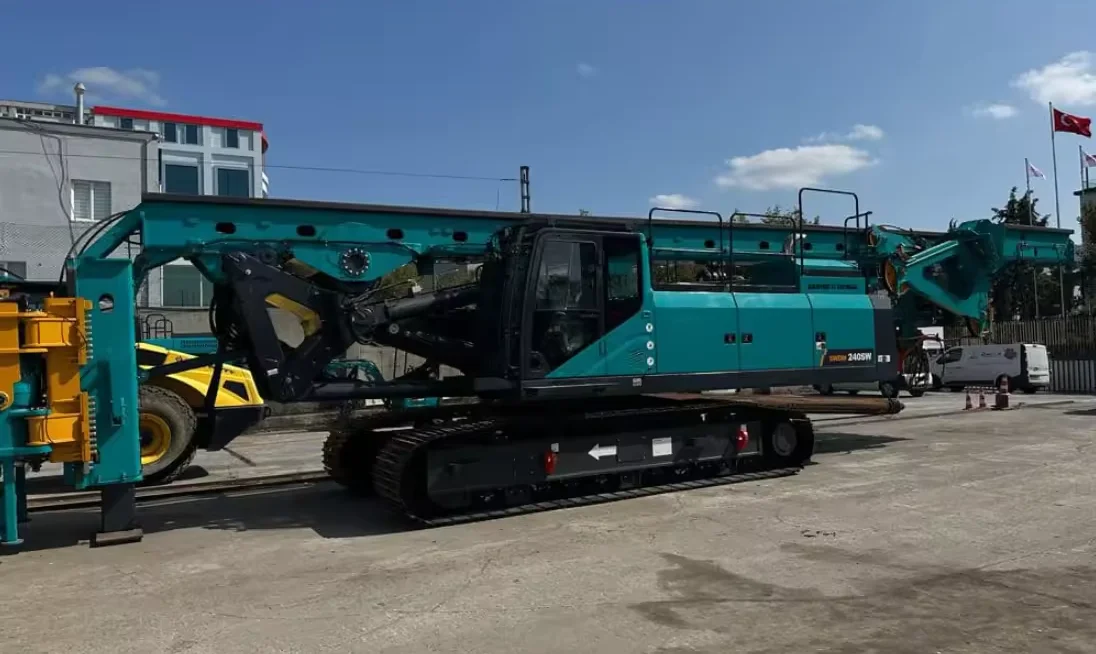

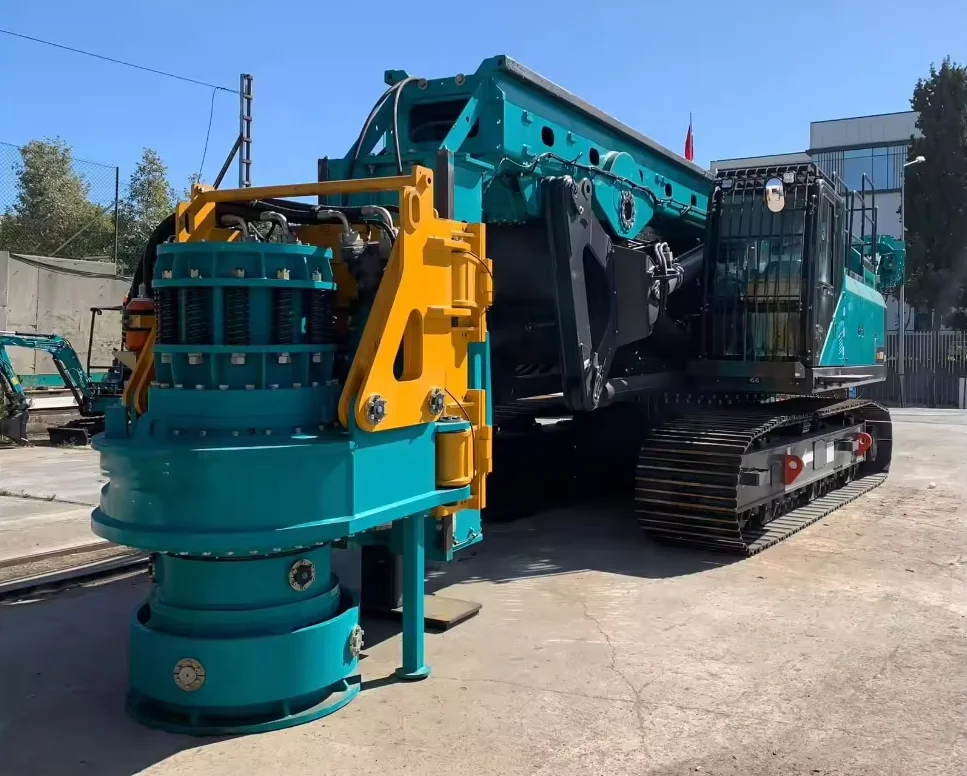

Rotary Drilling Rig SWDM240H
1. Fully adaptable to large holes and deep piles of industrial and civil construction, it has highly comprehensive construction efficiency; With the hidden installation under the mast, outriggers help to place the pile casing on the hole mouth, and make the chassis maintenance easier
2. Large power engine matches with large displacement motor. Main winch has fast speed. High torque of rotary head vibrates up and down to shake off soil,it’s available to drilling soft and hard stratums.Sensitive control and fast response offer pleasurable operation experience.

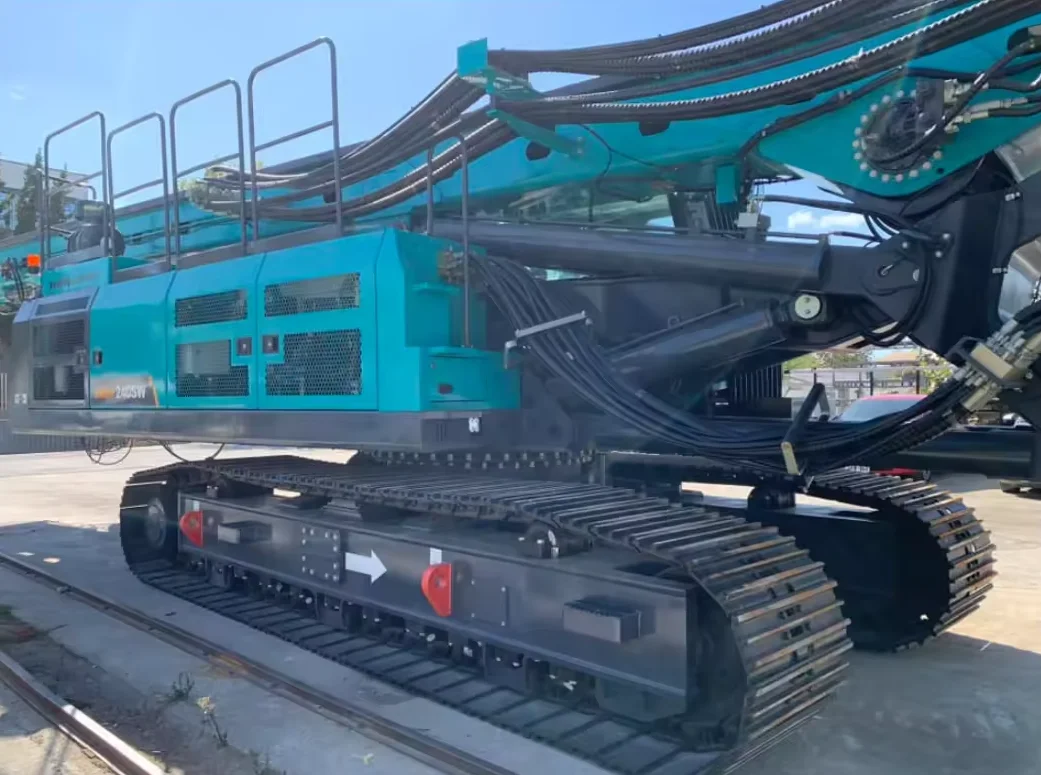

3. Special chassis with heavy-duty telescopic crawler and reinforced luffing mechanism which consists of dual boom provides reliable structure and excellent stability,empowering all-around construction ability; Good working safety is also ensured by multi-angle surveillance cameras and sound and light alarms.
4. Alarms are sent out by the failure self-diagnosis system; the operation parameters are displayed in real-time; The solenoid handle controls automatic drilling ;the drill mast is erected and lowered by one-key pressing. Bottom protection is equipped for the Kelly,making the operation simple.
Product Paramenters
parameter | model | SWDM240H | ||
drilling | Maximum drilling diameter | mm | 2000 | |
Maximum drilling depth | m | 69/54 | ||
engine | brand | Famous brand | ||
model | QSL9-C325 | |||
rated power | kW@rpm | 242@2100 | ||
Power Head | Maximum torque | kN.m | 248 | |
Rotating speed | rpm | 6~32 | ||
High-speed dumping (optional) | rpm | 70 | ||
Main winch | Maximum lifting force | kN | 280 | |
Maximum lifting speed | m / min | 72 | ||
Wire rope diameter | mm | 32 | ||
Pressurized system | Maximum pressure | kN | 210 | |
Maximum lifting force | kN | 240 | ||
Maximum stroke | mm | 5000 | ||
Vice winch | Maximum lifting force | kN | 80 | |
Maximum lifting speed | m / min | 58 | ||
Wire rope diameter | mm | 20 | ||
Drill mast | Tilt angle | ° | ±5 | |
Inclination | ° | 5/90 | ||
Chassis | Track width | mm | 800 | |
Crawler telescopic width | mm | 3000~4500 | ||
Chassis length | mm | 5755 | ||
Whole machine | Working height | mm | 22272 | |
Working weight | t | 79 | ||
Feel free to contact me if there are any issues.
