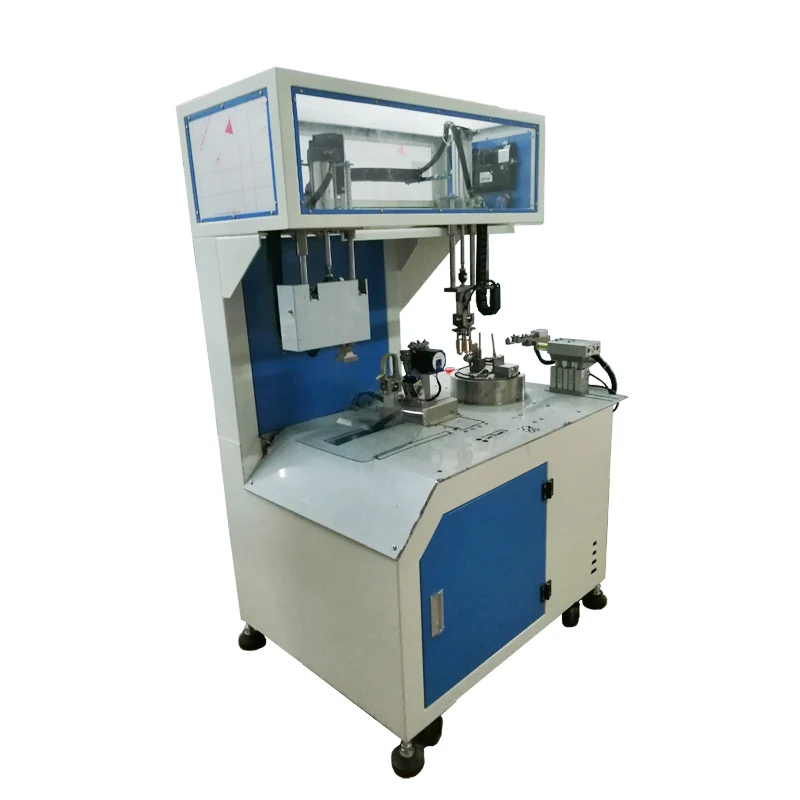

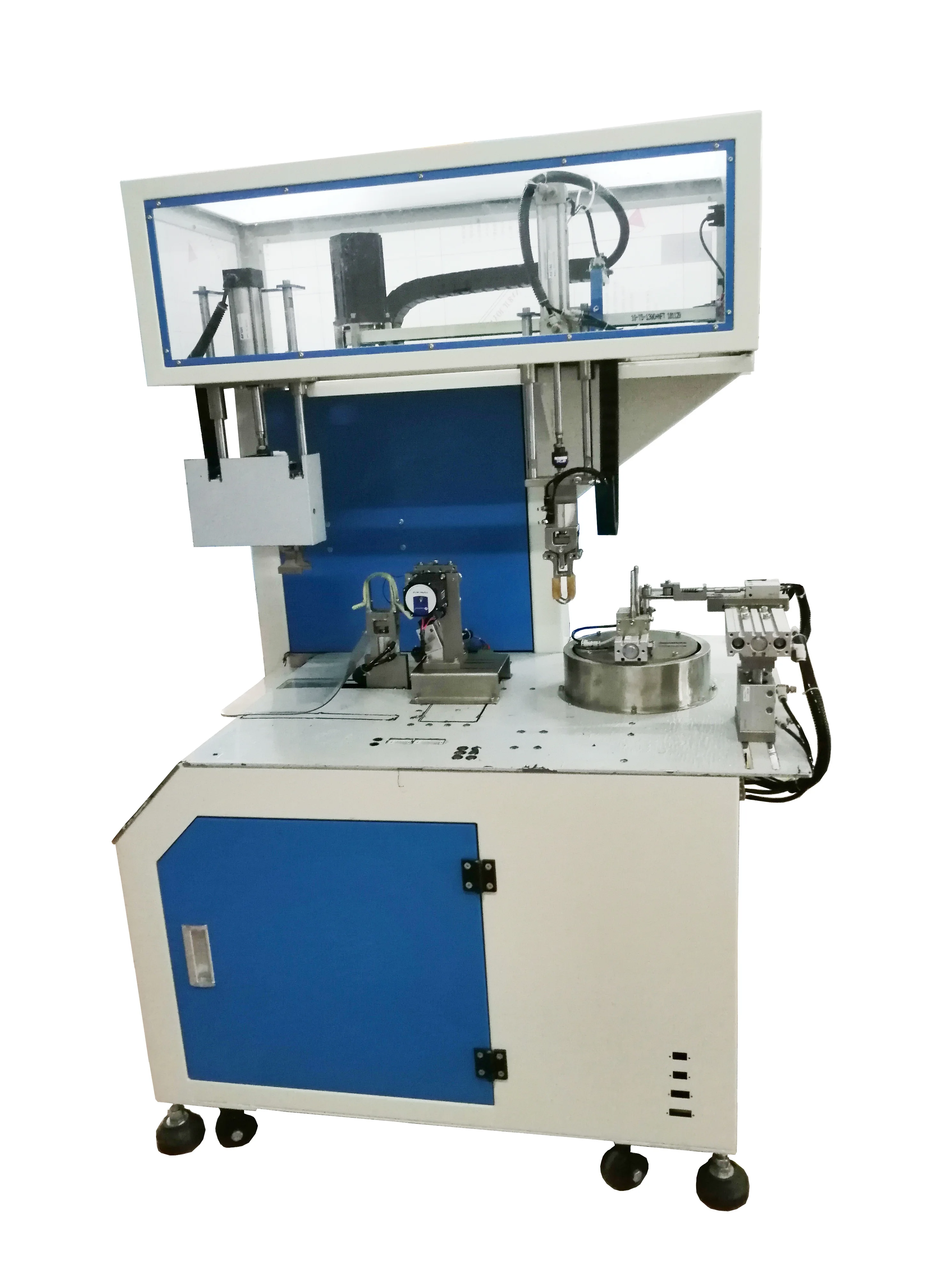

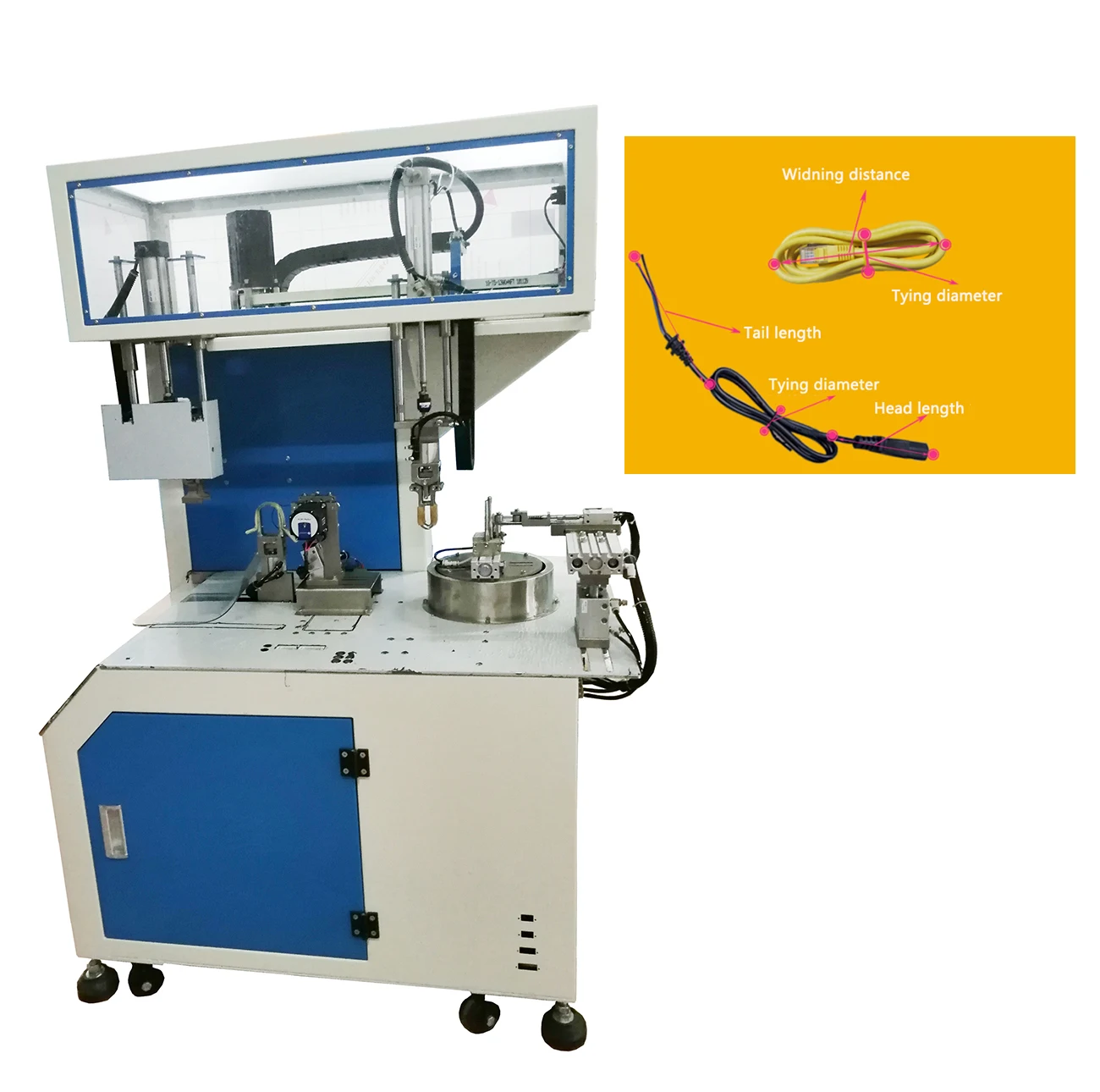

Floor standing Automatic for small 8 shape coils making Power Cord cable winding tying machine
- Category: >>>
- Supplier: Suzhou Sanao Electronic Equipment Co. Ltd.Suzhou Ltd.
Share on (1601362730207):
Product Overview
Description
Product Parameter
This machine is suitable for winding and bundling AC power cables, DC power cables, USB data cables, video cables, HDMI HD cables and other data cables, etc. This machine adopts PLC program control, and the English touch screen is easy and convenient to operate. The number of bobbins, length of binding wire, number of bundling turns and number of outputs can be set directly on the screen. The inner diameter of the coil can be adjusted within the range, for example, SA-RT81S Winding distance range is 50-90mm, the diameter of the bundle, the length of the tail and the head can also be adjusted according to the requirements.
Operators only need to put the wire on the winding disc, step on the foot switch, the machine automatically winds a coil of wire, and then automatically moves the coil to the pick-up claw, the machine automatically removes the coil to the tie-out, and the machine automatically bundles ,it's Greatly reduce staff fatigue intensity, improve work efficiency, the machine adopts the translation of dual servo motors, feeding high precision, stable quality and durability.

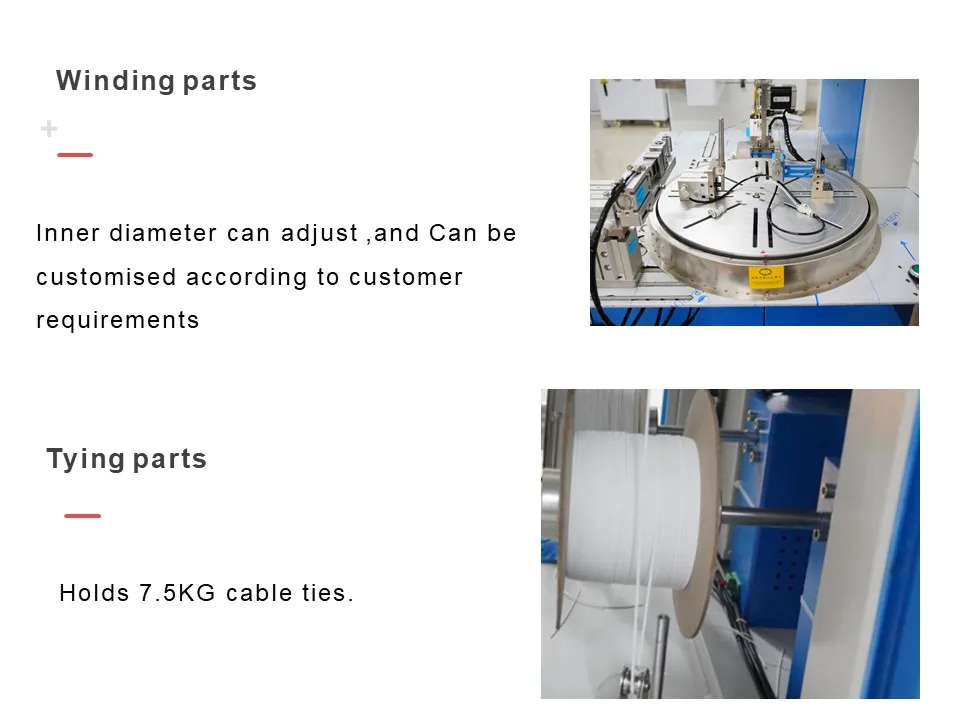

Aluminium winding coil adopts high-quality aluminium alloy, high strength, after CNC processing and then oxidized surface treatment, can ensure a long time of high stability and high quality of the outer surface of the operating speed can reach 1500 / hour, the use of 100% pure copper motors, coupled with high-quality copper and copper wire to ensure that the motor's strong power, as well as 304 stainless steel material to pick up the wire claw, pick up the line faster and more accurate.
Features:
1.Apply to single-end / double- ends ,AC power cord,DC power cord , Video line,HDMI ,USB wires;
2.Auto and fast binding after Stepping on foot switch ,
3.Wire length(Head length, Tail length,Total binding length) , coil number,speed,quantity can be set .
4.Easy to operate
5.Save labor cost and improve output.

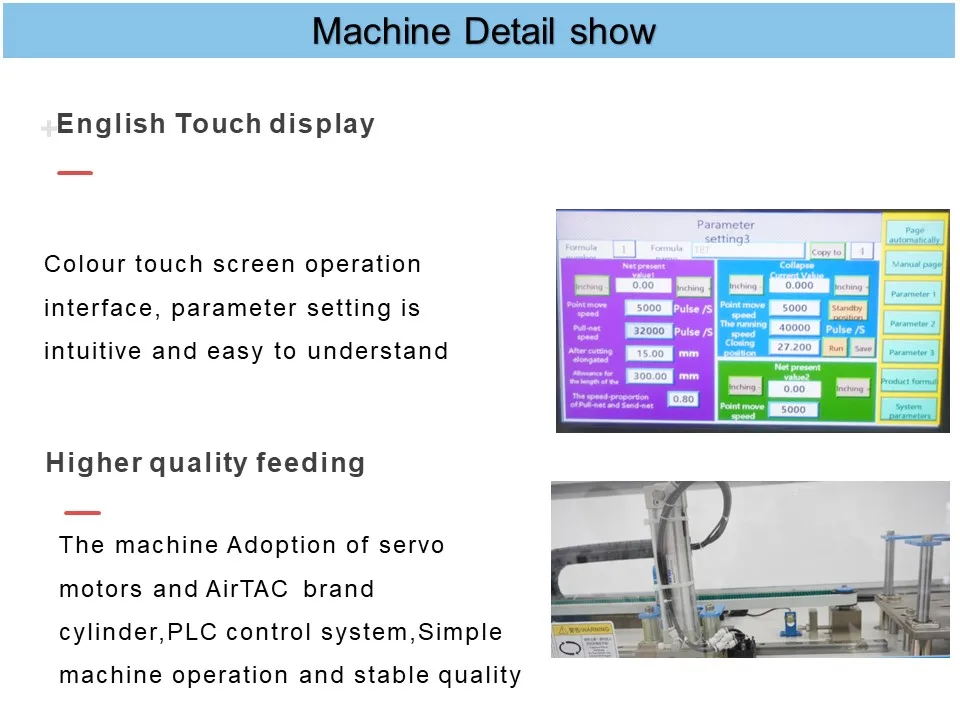

6.Adopted PLC program control , 7 inches touch screen for setting parameters.
7.Provide personalized customization according to different requirements.
Operators only need to put the wire on the winding disc, step on the foot switch, the machine automatically winds a coil of wire, and then automatically moves the coil to the pick-up claw, the machine automatically removes the coil to the tie-out, and the machine automatically bundles ,it's Greatly reduce staff fatigue intensity, improve work efficiency, the machine adopts the translation of dual servo motors, feeding high precision, stable quality and durability.
Aluminium winding coil adopts high-quality aluminium alloy, high strength, after CNC processing and then oxidized surface treatment, can ensure a long time of high stability and high quality of the outer surface of the operating speed can reach 1500 / hour, the use of 100% pure copper motors, coupled with high-quality copper and copper wire to ensure that the motor's strong power, as well as 304 stainless steel material to pick up the wire claw, pick up the line faster and more accurate.
Features:
1.Apply to single-end / double- ends ,AC power cord,DC power cord , Video line,HDMI ,USB wires;
2.Auto and fast binding after Stepping on foot switch ,
3.Wire length(Head length, Tail length,Total binding length) , coil number,speed,quantity can be set .
4.Easy to operate
5.Save labor cost and improve output.
6.Adopted PLC program control , 7 inches touch screen for setting parameters.
7.Provide personalized customization according to different requirements.
Model | SA-RT81S | ||
Finished Coil Type | coil 8 shape | ||
Available Wire Dia | ≤4mm | ||
Winding distance | 50-90mm | ||
Available Wire length | ≤5 m (based on wire materials) | ||

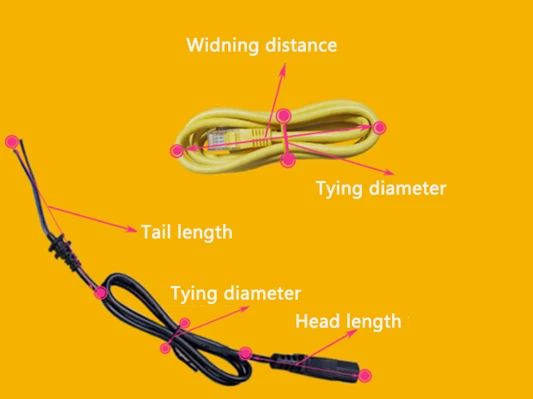

Reserved Head Length | 0-70mm | ||
Reserved Tail Length | >0 mm | ||
Bundling Diameter | ≤20mm | ||
Production Rate | 1500pcs/h | ||
Air Connection | 0.55-0.65Mpa | ||
Power Supply | 110/220VAC,50/60Hz | ||
Dimensions | about 1040L*800W*1560H | ||
