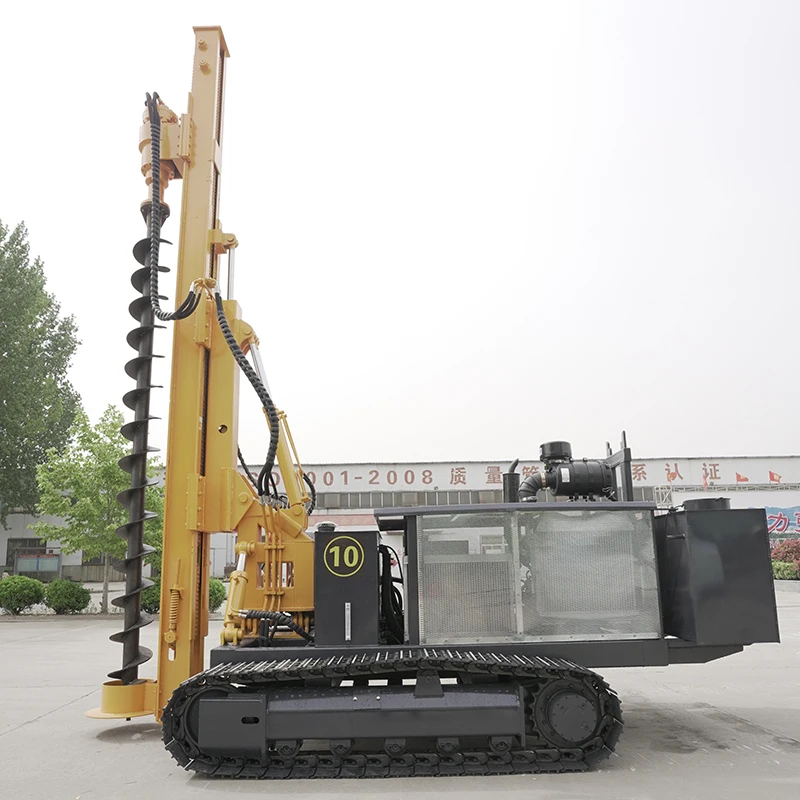

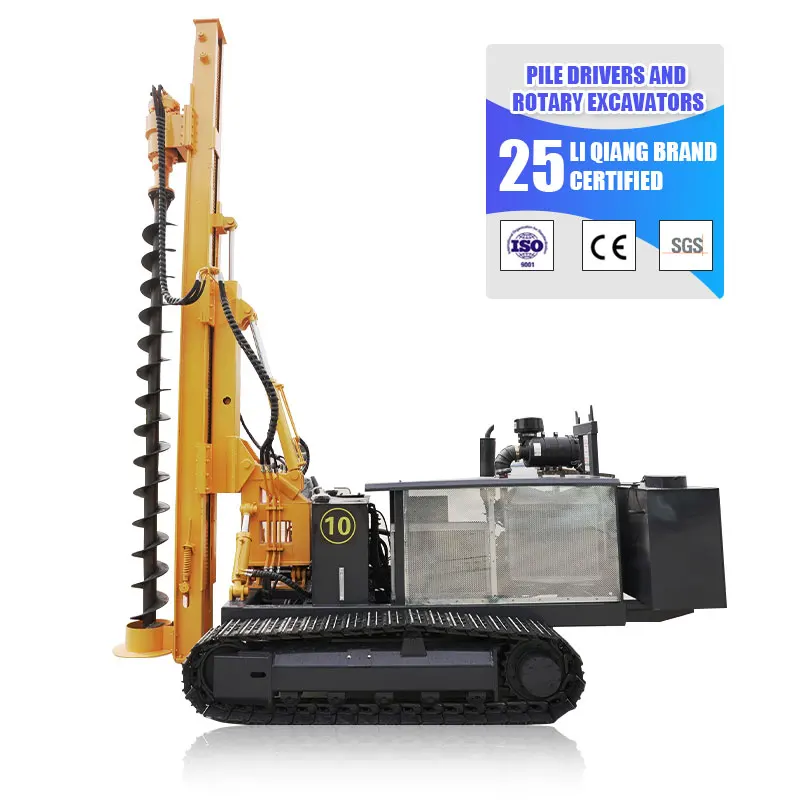

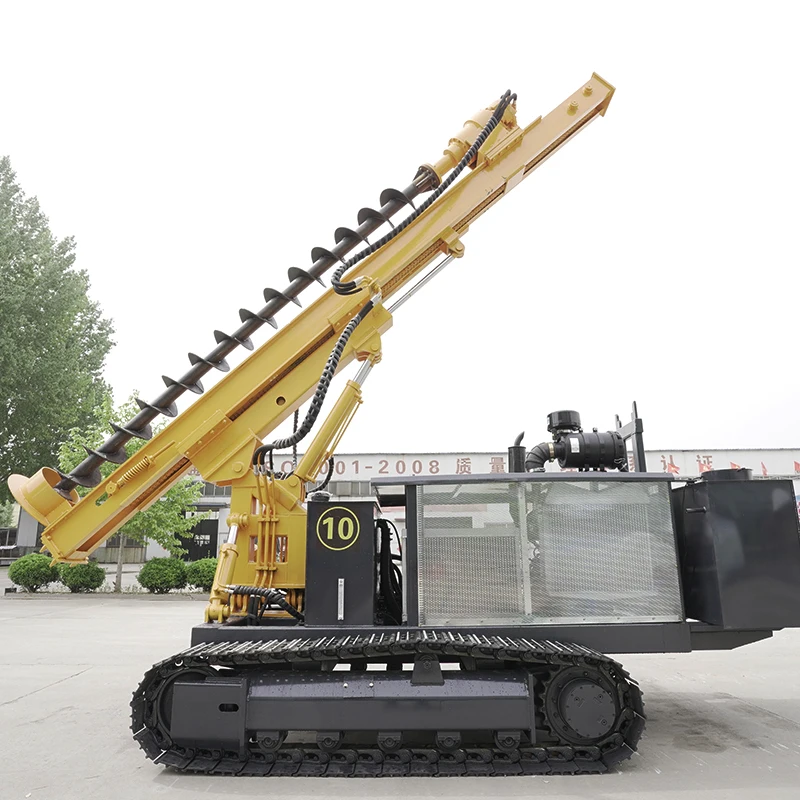

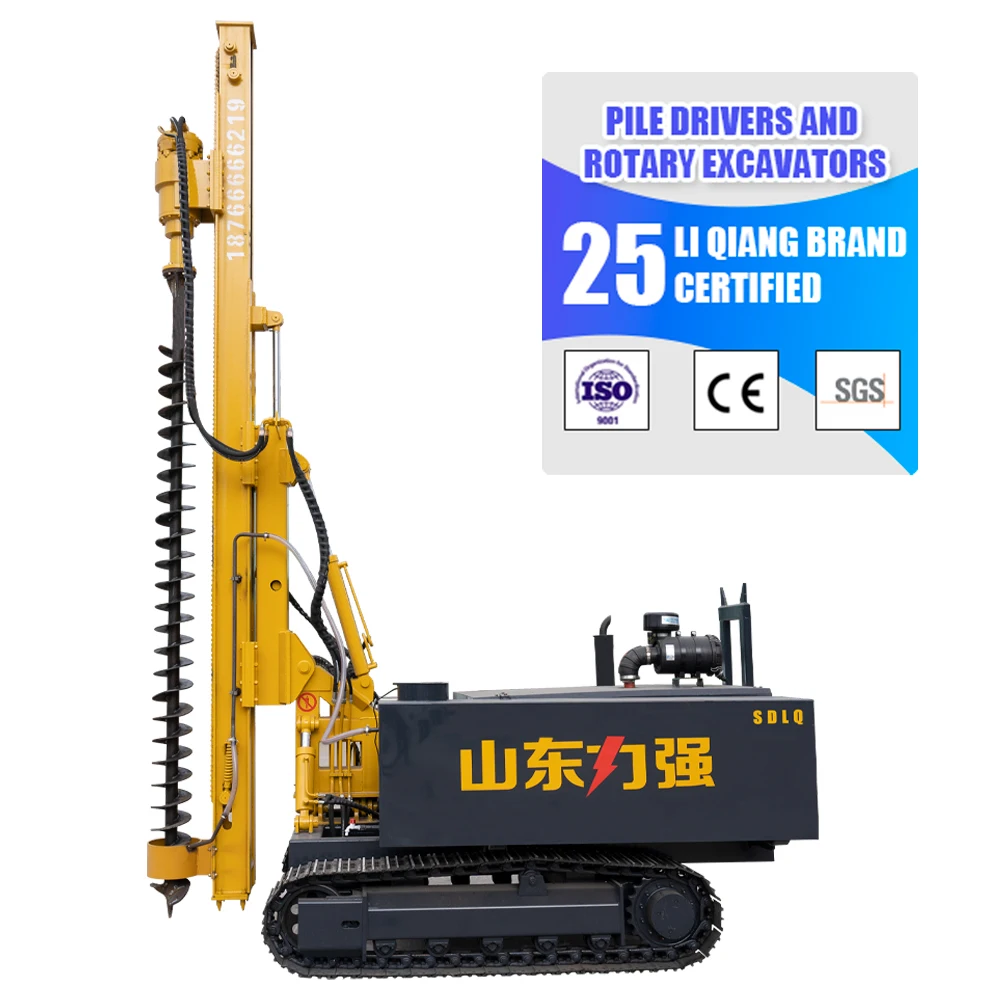

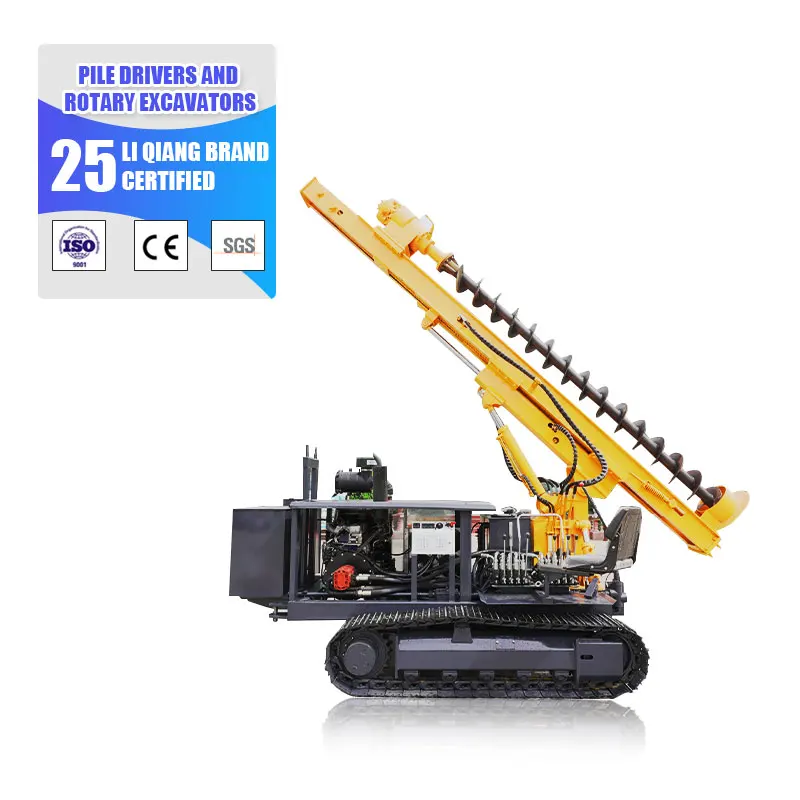

SDLQ Solar Photovoltaic Pile Driver Drilling Rig Boring Machines Piling Rotary Rock Machine Auger Bucket Screw Ground Water Pump
- Category: >>>
- Supplier: Shandong Liqiang Machinery Co. Ltd.Shandong Ltd.
Share on (1601362990057):
Product Overview
Description
VR
PV pile driver | LG3 | LG4 | LG6 | |||
1 | Engine model | YUNNEI | YUNNEI | YUNNEI | ||
2 | Engine power (KW) | 88 | 88 | 88 | ||
3 | Oil pump model | 50/50 | 50/50 | 50/50 | ||
4 | Oil pump pressure (Mpa) | 28 | 28 | 28 | ||
5 | Power head output torque（KN.M） | 3000 | 4200 | 6000 | ||
6 | Power head output speed（r/min） | 0-65 | 0-65 | 0-65 | ||
7 | Lifting force of lifting cylinder of power head（KN） | 80 | 80 | 80 | ||
8 | Deepest pile driving（mm） | 3500 | 3500 | 3500 | ||
9 | Maximum diameter（mm） | 100-500 | 100-500 | 100-500 | ||
10 | Maximum diameter of impact hammer（mm） | 200 | 200 | 200 | ||
11 | Volume of hydraulic oil tank (L) | 160 | 160 | 160 | ||
12 | Diesel tank volume (L) | 150 | 150 | 150 | ||
13 | track width (mm) | 350 | 350 | 350 | ||
14 | Speed（km/h） | 4 | 4 | 4 | ||
15 | Gradient（°） | 35 | 35 | 35 | ||
16 | Working state length * width * height(mm) | 3800*2200*5800 | 3800*2200*5800 | 3800*2200*5800 | ||
17 | Transportation statuslength * width * height(mm) | 5800*2200*2600 | 5800*2200*2600 | 5800*2200*2600 | ||
18 | Operating Weight（T） | 4.8 | 4.8 | 4.8 | ||
Optional 360 rotating track chassis | yes | |||||
Products Description
Contact Us
How to customize (design, material, packaging, logo)?
The lowest price ?
How to ensurequality ?
calculate the shipment cost ?
Contact Us For More Detail>
...
More products
Drill bit specifications available
1: Select drill bit specifications according to work requirements and soil quality
2: After determining the specifications, customize the drill bit according to the drilling diameter you need
3: The drill bit is a wearing part. Please buy as many as possible
4: The drill bit does not provide warranty
1: Select drill bit specifications according to work requirements and soil quality
2: After determining the specifications, customize the drill bit according to the drilling diameter you need
3: The drill bit is a wearing part. Please buy as many as possible
4: The drill bit does not provide warranty
about us
Production scenario
Our customers
Our certificate
Packaging and shipping
FAQ
1.Are you trading company or manufacturer?
We are a professional manufacturer with 18 years of production history. Our professional engineers provide customized services, and we welcome on-site inspections.
2. How about your machine quality?
We haveISO, CE, and SGS certificates, and each machine is inspected and shipped with a one-year warranty.
3.what can you buy from us?
Pile driver,Mini excavator,Rotary Drilling Rig
Pile driver,Mini excavator,Rotary Drilling Rig
4. What about the qaulity warranty?
We offer one-year quality warra
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW； Accepted Payment Currency:USD; Accepted Payment Type:
T/T,L/C,Credit Card,PayPal,Western Union,Cash; Language Spoken:English,Chin
T/T,L/C,Credit Card,PayPal,Western Union,Cash; Language Spoken:English,Chin
PV pile driver | LG3 | LG4 | LG6 | |||
1 | Engine model | YUNNEI | YUNNEI | YUNNEI | ||
2 | Engine power (KW) | 88 | 88 | 88 | ||
3 | Oil pump model | 50/50 | 50/50 | 50/50 | ||
4 | Oil pump pressure (Mpa) | 28 | 28 | 28 | ||
5 | Power head output torque（KN.M） | 3000 | 4200 | 6000 | ||
6 | Power head output speed（r/min） | 0-65 | 0-65 | 0-65 | ||
7 | Lifting force of lifting cylinder of power head（KN） | 80 | 80 | 80 | ||
8 | Deepest pile driving（mm） | 3500 | 3500 | 3500 | ||
9 | Maximum diameter（mm） | 100-500 | 100-500 | 100-500 | ||
10 | Maximum diameter of impact hammer（mm） | 200 | 200 | 200 | ||
11 | Volume of hydraulic oil tank (L) | 160 | 160 | 160 | ||
12 | Diesel tank volume (L) | 150 | 150 | 150 | ||
13 | track width (mm) | 350 | 350 | 350 | ||
14 | Speed（km/h） | 4 | 4 | 4 | ||
15 | Gradient（°） | 35 | 35 | 35 | ||
16 | Working state length * width * height(mm) | 3800*2200*5800 | 3800*2200*5800 | 3800*2200*5800 | ||
17 | Transportation statuslength * width * height(mm) | 5800*2200*2600 | 5800*2200*2600 | 5800*2200*2600 | ||
18 | Operating Weight（T） | 4.8 | 4.8 | 4.8 | ||
Optional 360 rotating track chassis | yes | |||||
