Product Overview
Description
Products Description

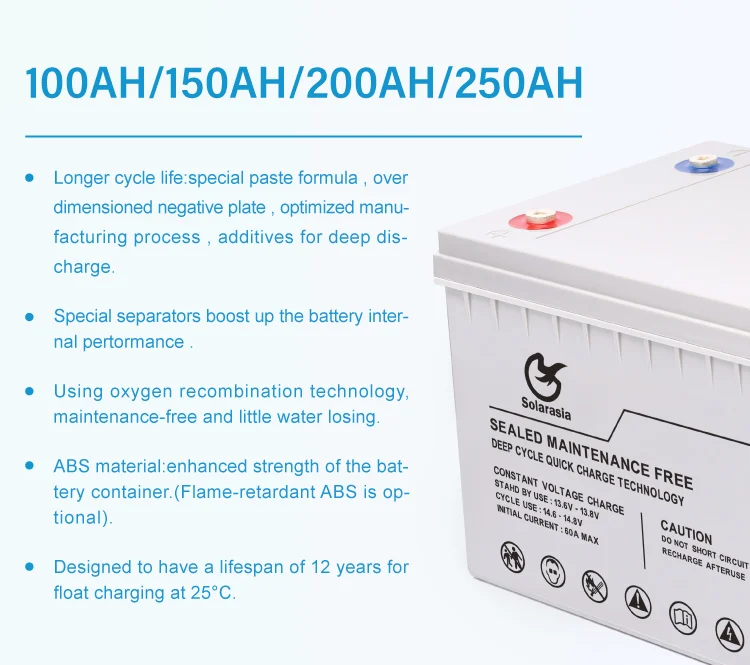

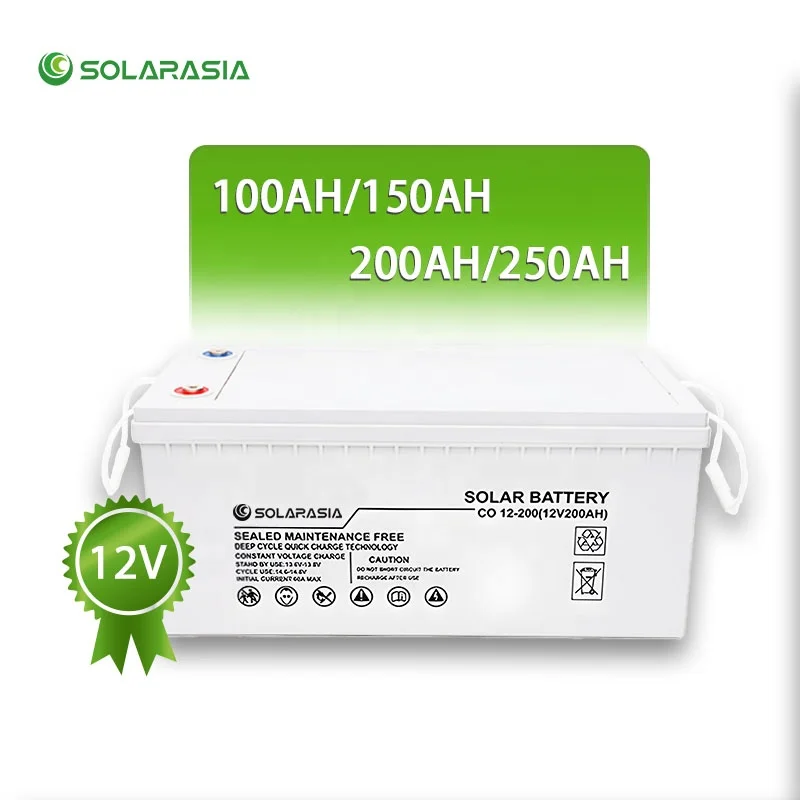

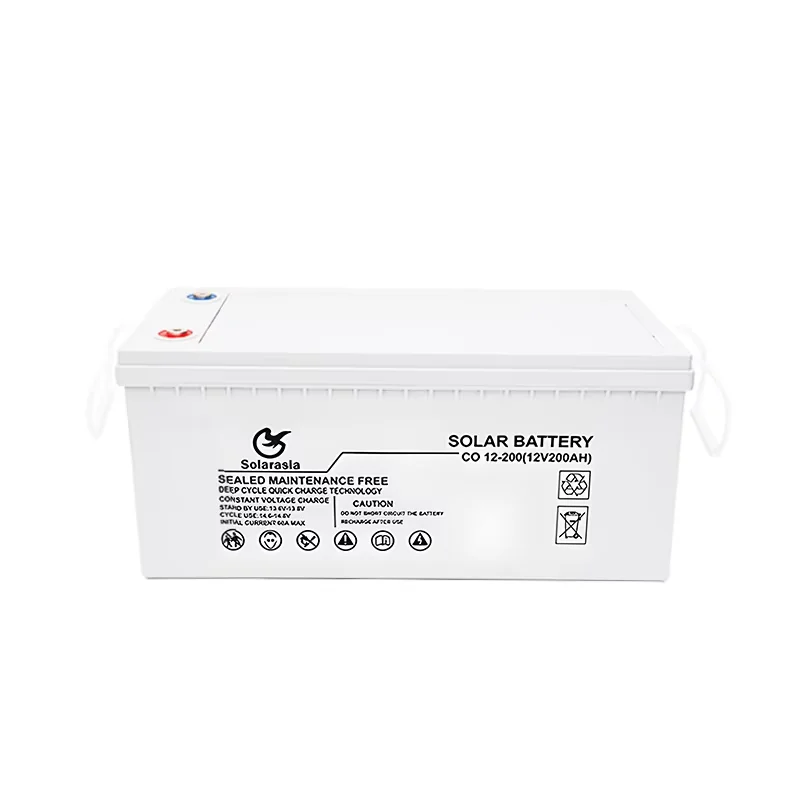

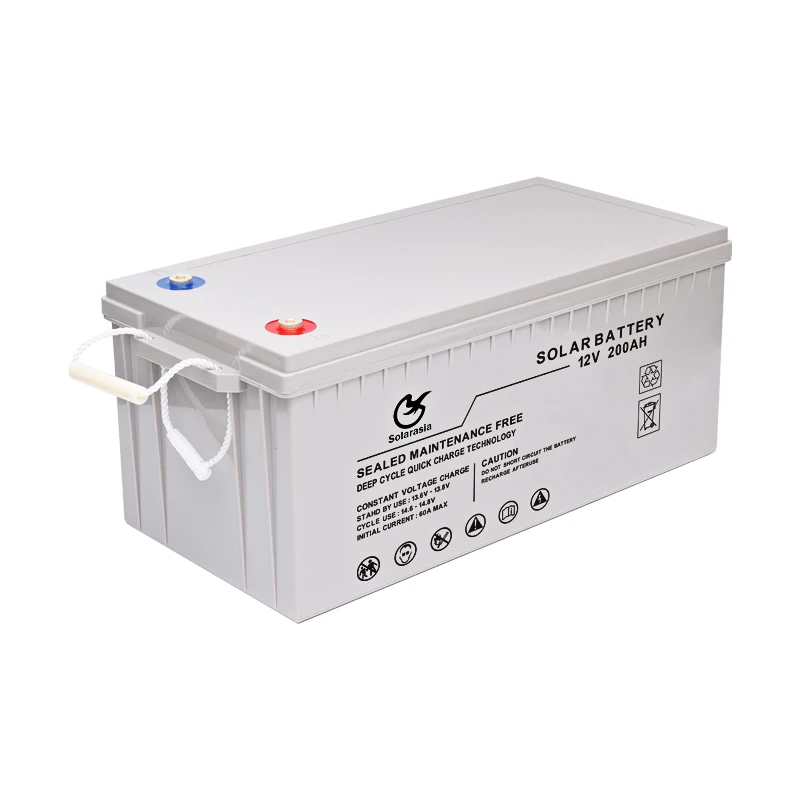

12V 100AH 150AH 200AH Solar Energy Batteries GEL Deep Cycle Battery
Detailed Parameters
Nominal Voltage | 12V | ||||||
Nominal Capacity (10 hour rate) | 100AH | 150AH | 200AH | 250AH | |||
Dimensions | 331*174*214mm | 484*171*241mm | 522*240*219mm | 521*269*220mm | |||
Net weight | 30kg±400g | 43kg±400g | 60.0 kg±500g | 69.0 kg±500g | |||
Capacity 25℃(77°F) | 20 hour rate (5.55A)/111Ah | 10 hour rate (13.6A)/136Ah | 20 hour rate (11.0A)/220Ah | 20 hour rate (13.9A)/278Ah | |||
5 hour rate (18.3A)/91.5Ah | 5 hour rate (24A)/120Ah | 5 hour rate (35.4A)/177Ah | 5 hour rate (45.7A)/228Ah | ||||
1 hour rate (66.5A)/66.5Ah | 1 hour rate (88.3A)/88.3Ah | 1 hour rate (132A)/132Ah | 1 hour rate (184.8A)/184.8Ah | ||||
Charge (Constant voltage) | Float（25.0A; 13.6-13.8V） | Float（30A; 13.6-13.8V） | Float（40A;13.6-13.8V） | Float（50A;13.6-13.8V） | |||
Cycle（25.0A;14.4-14.9V） | Cycle (30A; 14.4-14.9V | Cycle（40A;14.4-14.9V） | Cycle（50A;14.4-14.9V） | ||||
Charge (Constant voltage) | Full Charged Battery 25℃≤5.0mΩ | Full Charged Battery 25℃≤3.5mΩ | Full Charged Battery 25℃≤2.5mΩ | Full Charged Battery 25℃≤2.0mΩ | |||
Capacity affected by Temperature (10 hour ) | 40℃ (104°F) | 102% | |||||
25℃ (77°F) | 100% | ||||||
0℃ (32°F) | 85% | ||||||
-15℃ (5°F) | 65% | ||||||
Self-Discharge 25℃(77°F) Capacity | after 3 month storage | 90% | |||||
after 6 month storage | 80% | ||||||
after 12 month storage | 62% | ||||||
*Data/Computing Center,UPS,EPS；
*Standby Power for Telecom and Mobile
*Standby Power for Signaling Systems of Railway, Airport, and etc；
Highlights
*Long life design(up to 12 years)； *Reliably sealed，Maintenance free.

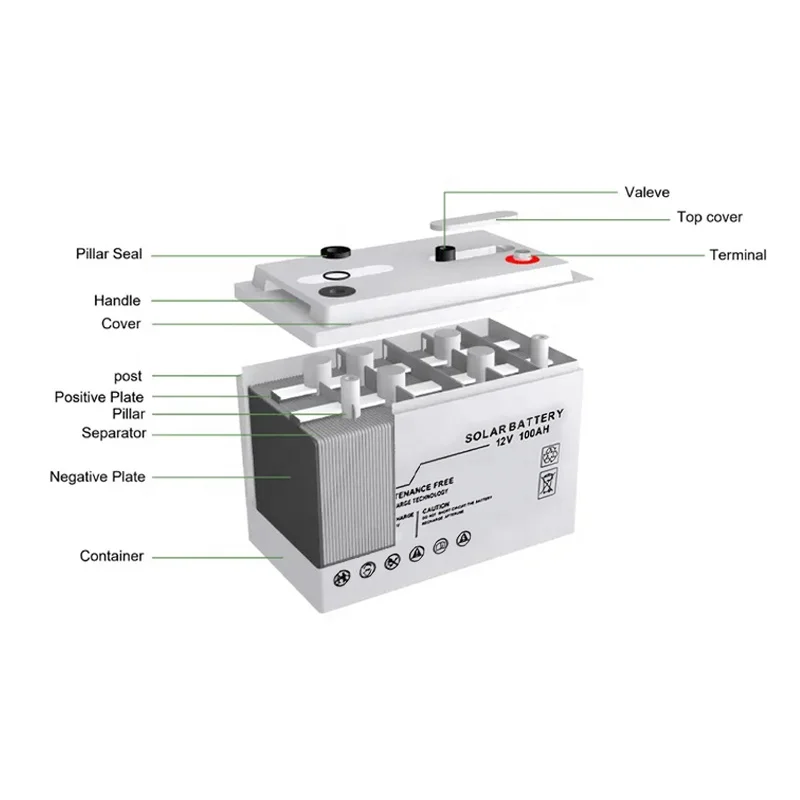

Features
*High-purity electrolytes and special agents reduce water loss;
* Impacts from earthquakes are reduced by compact seismic ABS jars and covers;
*Delicate seal technologies protect the battery from electrolyte leakage and creepage;
*The delicate construction of self-relief valves can avoid bulges and cracks;

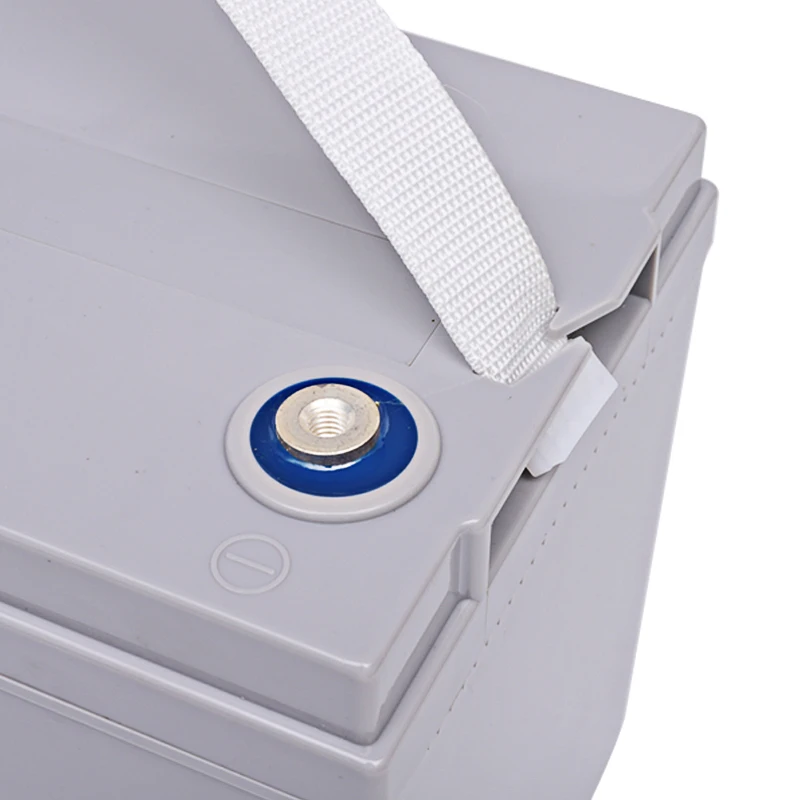

*Easy installation and maintenance are provided by round copper core terminals.
* Impacts from earthquakes are reduced by compact seismic ABS jars and covers;
*Delicate seal technologies protect the battery from electrolyte leakage and creepage;
*The delicate construction of self-relief valves can avoid bulges and cracks;
*Easy installation and maintenance are provided by round copper core terminals.

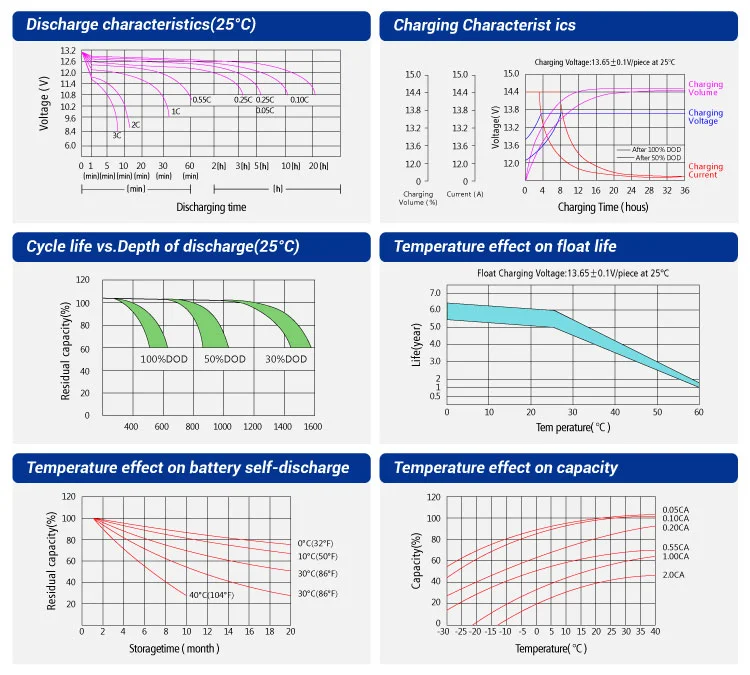

Performance

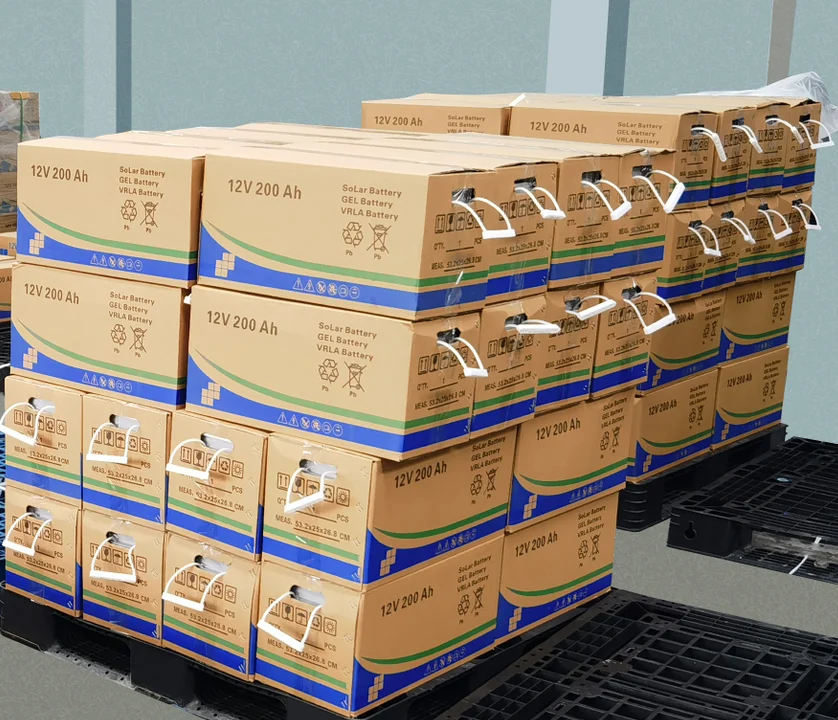

Packaging&Shipping
Certifications
