Price:$4,500.00-5,800.00

Quantity:


Product Overview

Description



Product Overview


SUPER CNC DOUBLE HEAD CCD LASER CUTTING MACHINE

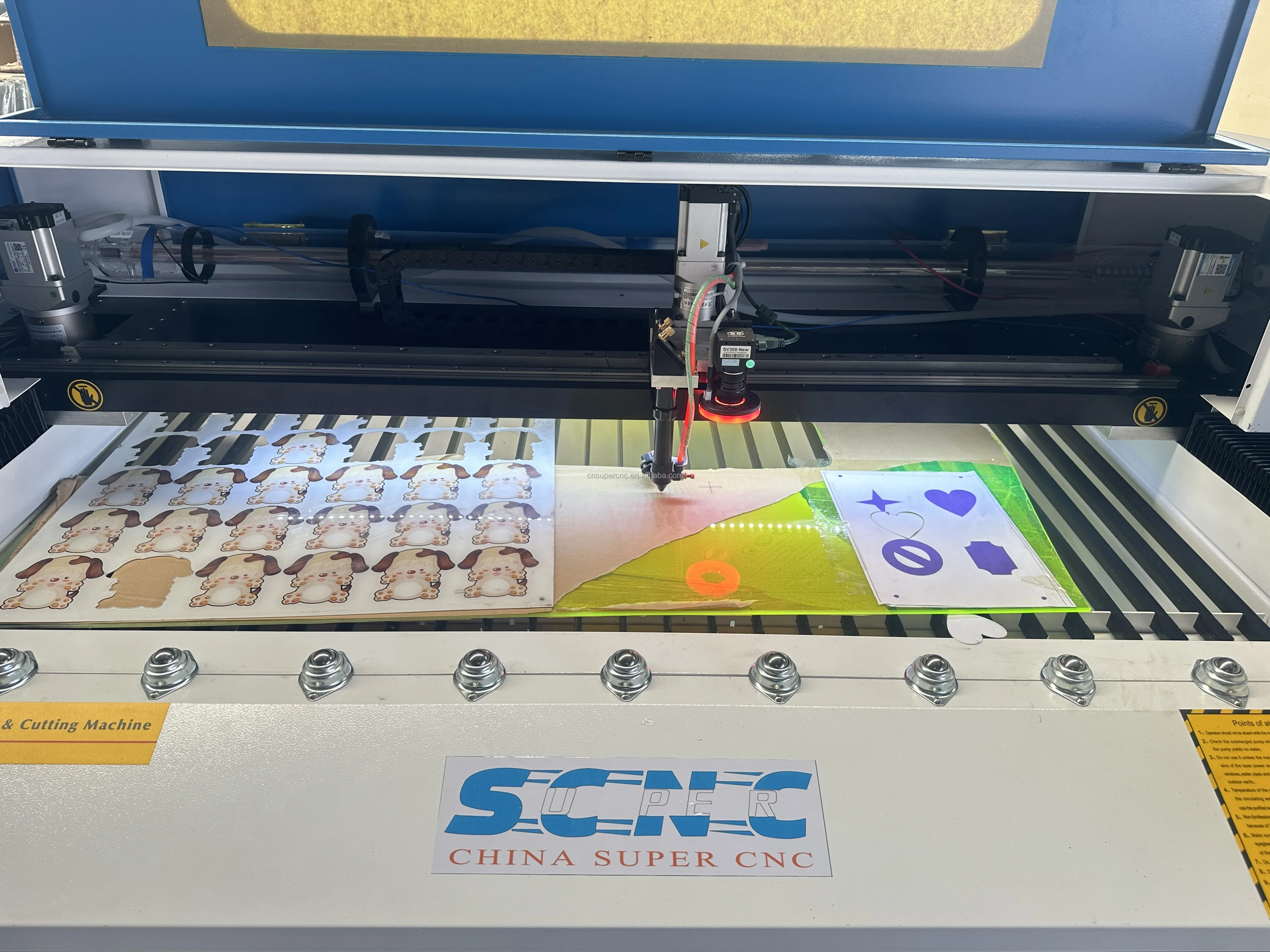

D series 1610 C02 laser machine,with double head CCD camera,double head move independently,each head with CD camera for version cutting


FEATURES AT A GLANCE


Large WORKING SIZE
New structure design
Strong heavy-duty machine structure
Europe electricity safety standard
RD6445G controller for double head working

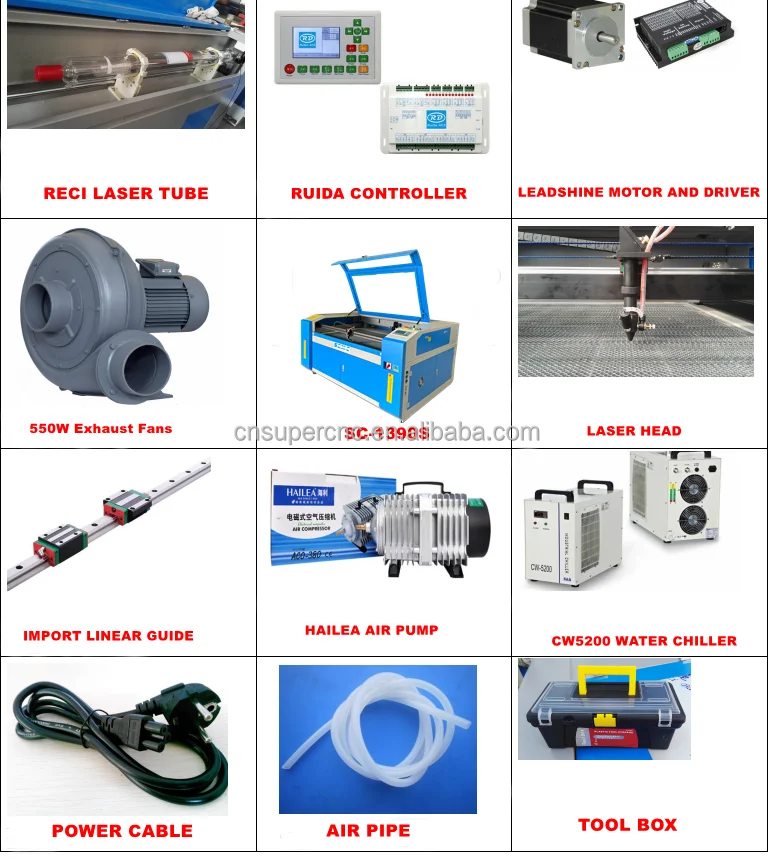

Reci laser tube
Blade and honeycomb working table
Motorized up and down

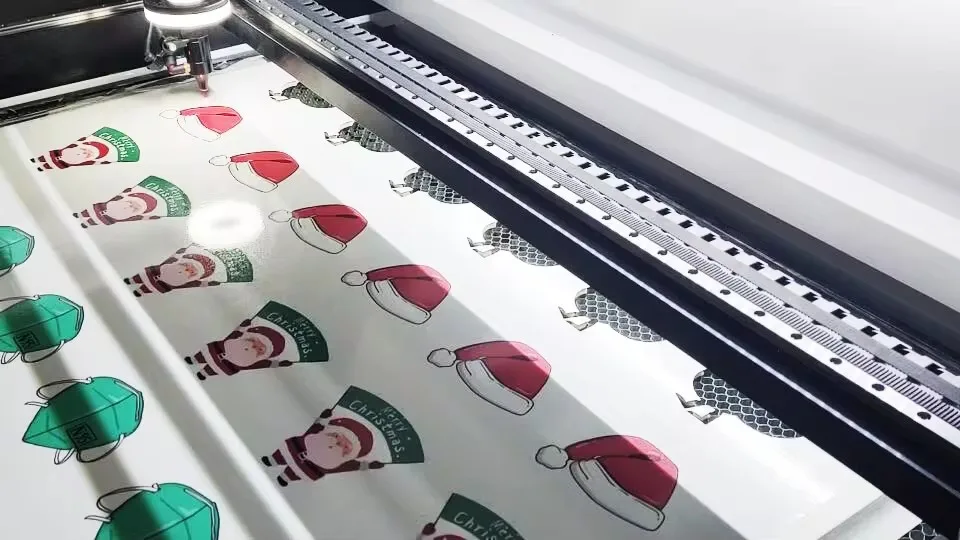

RD CCD version camera














PRODUCT CONFIGURATION


Model

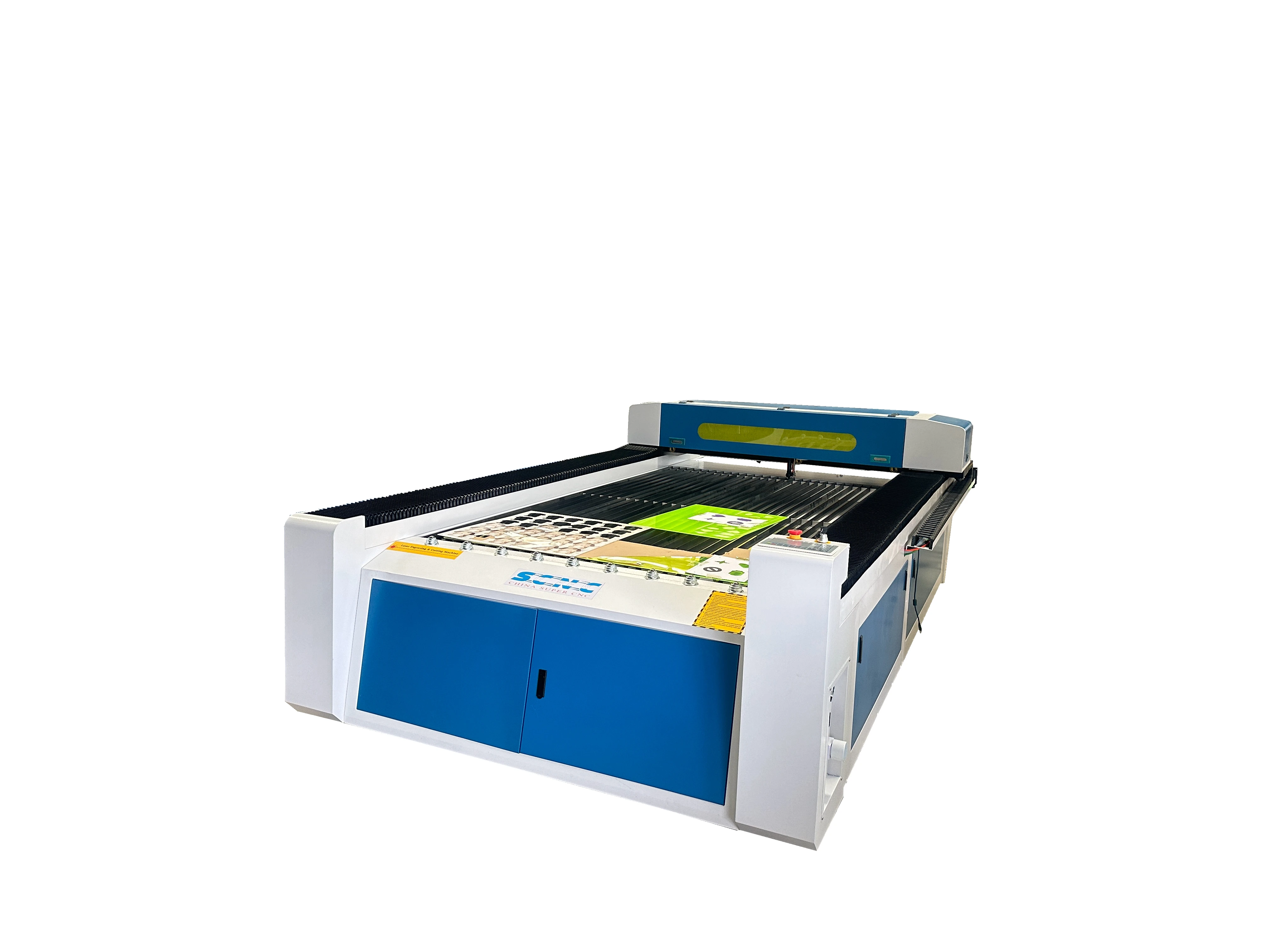

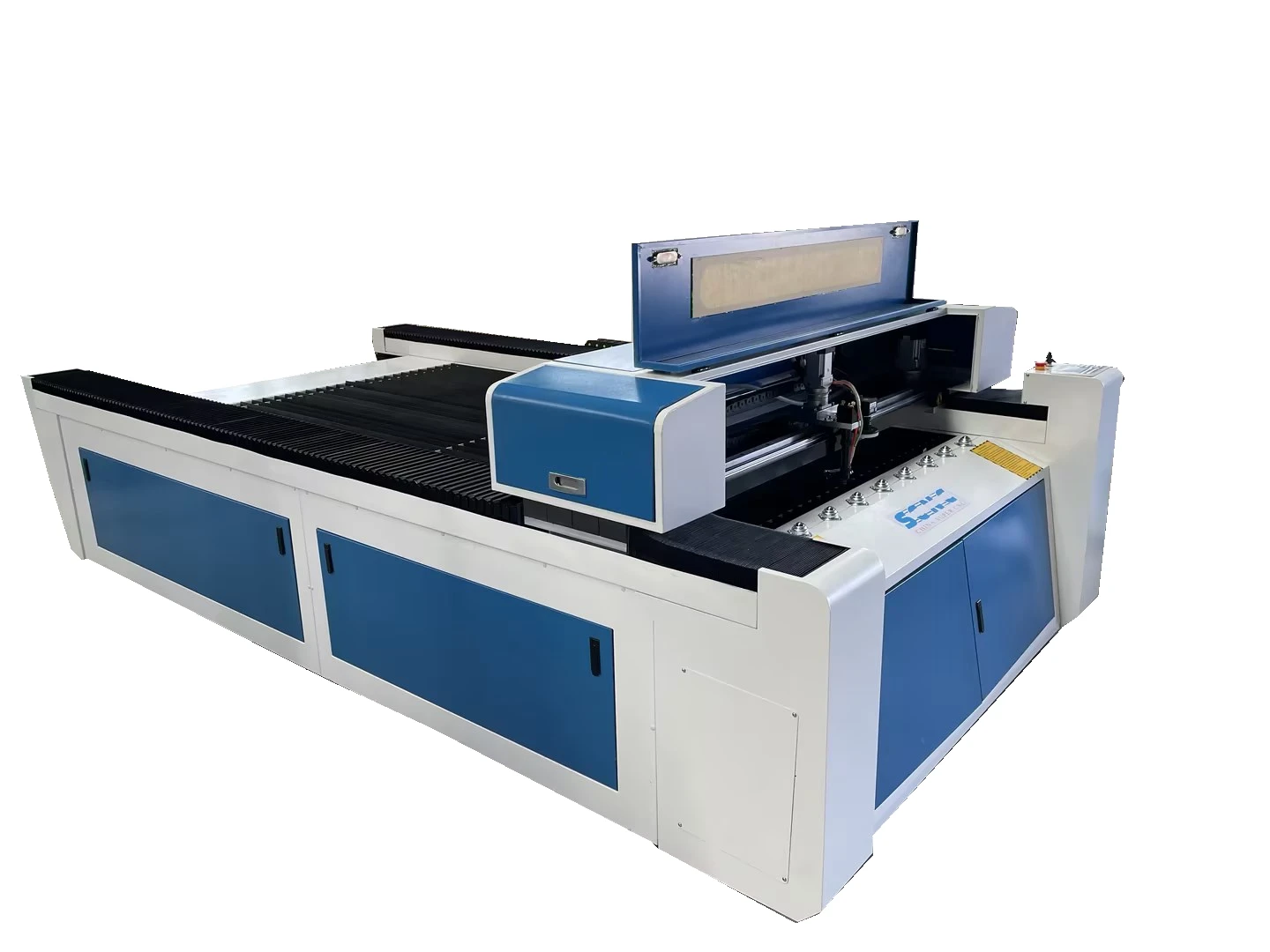

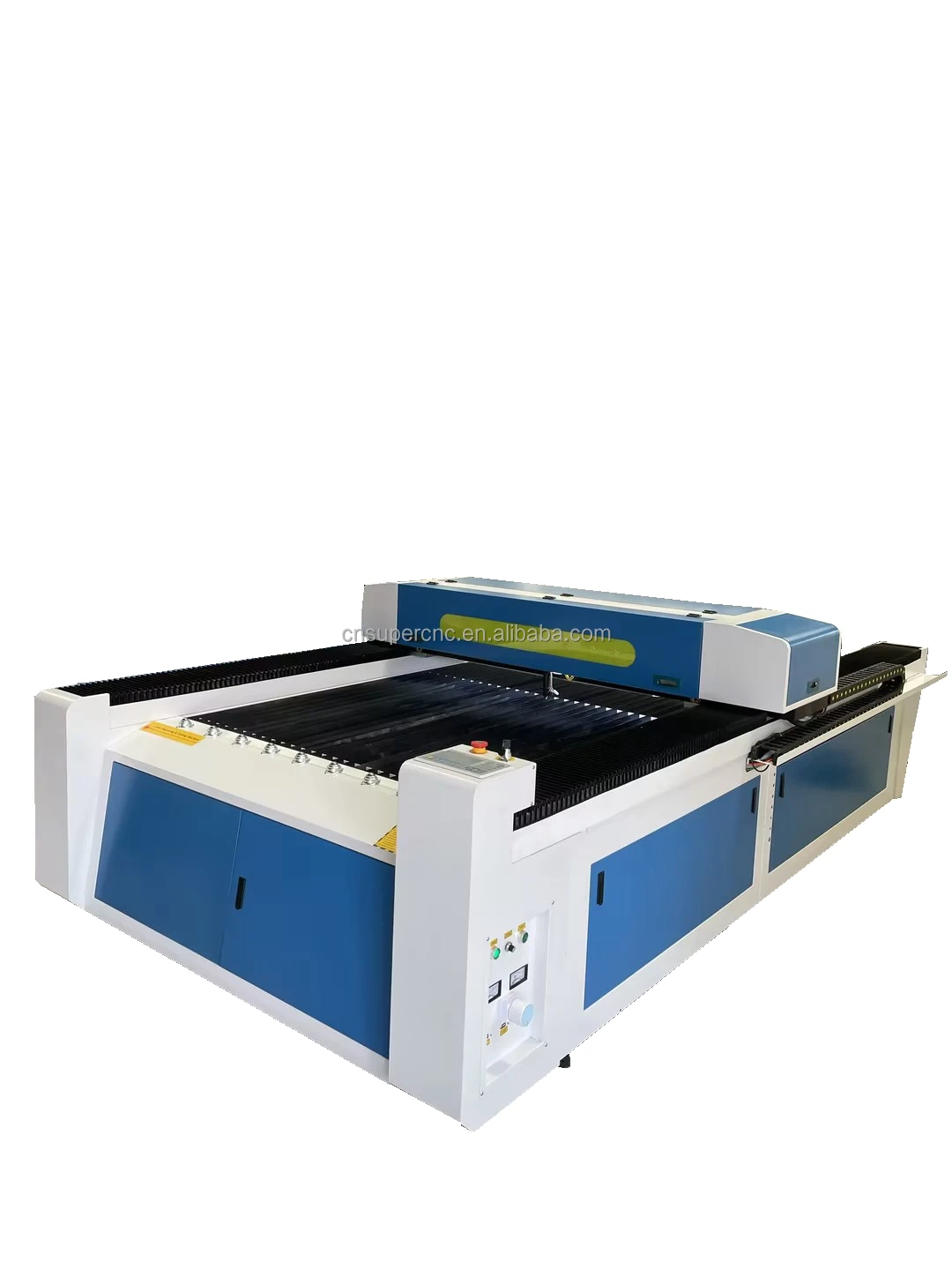

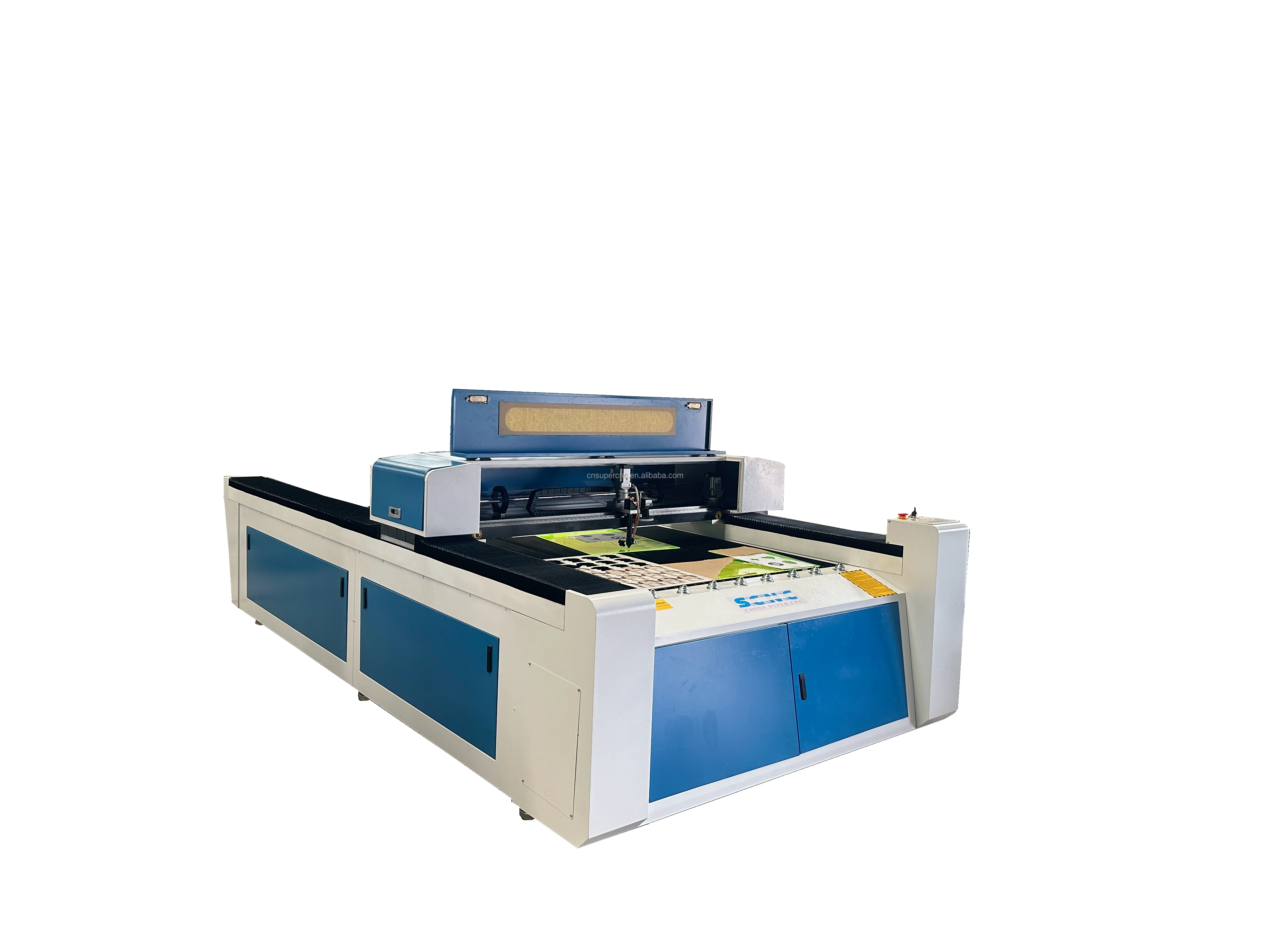

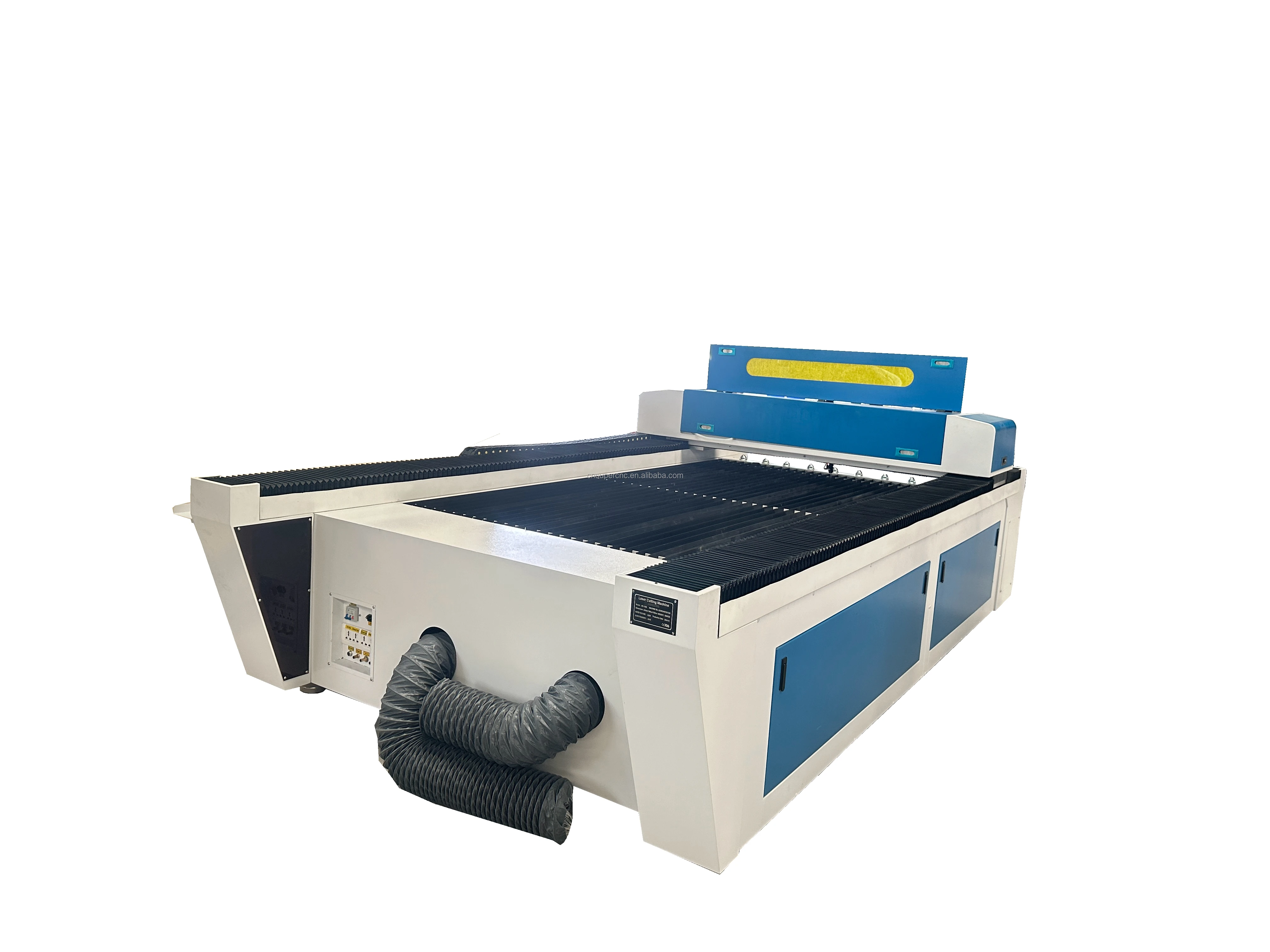

 Large format 1325 CCD CO2 laser cutting machine
Working area
1300*2500mm
Laser power
R9 150W laser tube
Laser type
CO2 laser tube
Engraving speed
0-40000mm/min
Cutting speed
0-20000mm/min
Power supply
220V/50HZ , 110V/60HZ
Position accuracy
0.01mm
Repetition accuracy
0.02mm
Graphic format supported
BMP, PLT, DST, DXF, AI
Guide rail
Hiwin from Taiwan
Transmission method
lead screw transmission
Software supported
CorelDraw, PhotoShop, AutoCAD,TAJIMA
Driving system
Stepper motors and drivers
Working Table
Blade table / Honey comb table
Optional part
Partial up-down work table, USB Port, Autofocus water chiller 3000/5000/5200

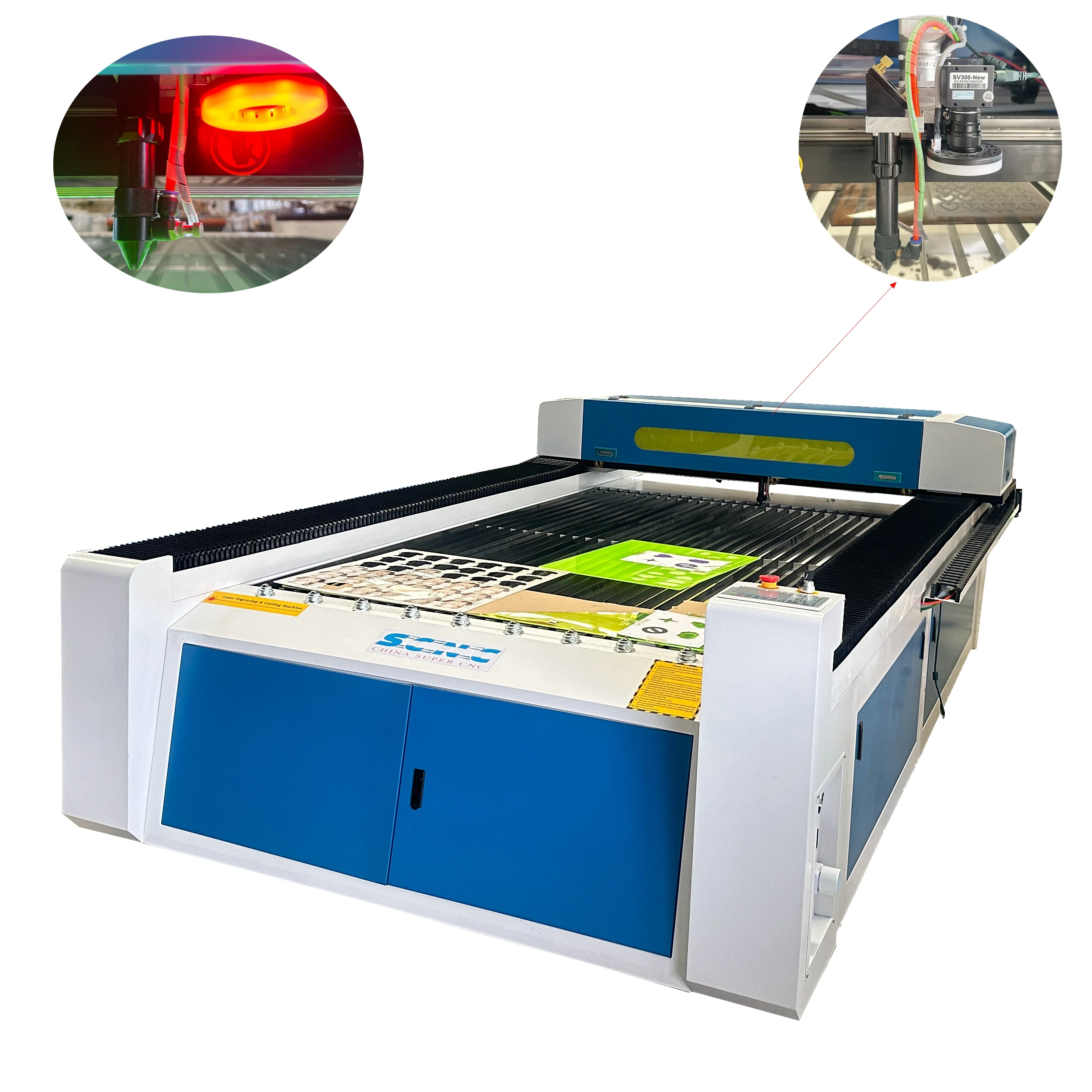

CCD camera
Leadshine Servo Motor and Reducer
Gear Rack Transmission




Gear Rack Transmission
X ,Y with Gear rack transmission,with fast working speed and high precision
Europe Safety Standard Wires
All wires are connected with one transfer board,each cable with number for marking


Multi-function Switch
laser power source,wifi connector ,CCD lamp switch,USB and PC connection,Lamp working switch
Multi-function Socket
Advanced general switch with with protection function,air pipe,water pipe,alarm signal cable


L6 Servo driver
Leadshine L6 Servo driver with PCS,X axis 400W,Y axis with 750Wx2pcs
CCD Camera driver card
Advanced Ruida CCD version card with LED driver ,process version cutting easilly




PRODUCT SPECIFICATIONS




Successful Project


Laser engraving and cutting application
Laser engraving and cutting application
Laser engraving and cutting application
