Mini ITX motherboard 12/13th gen B660 H670 dual network 6 series expandable industrial control all in one machine mainboard

Product parameter

Processor system

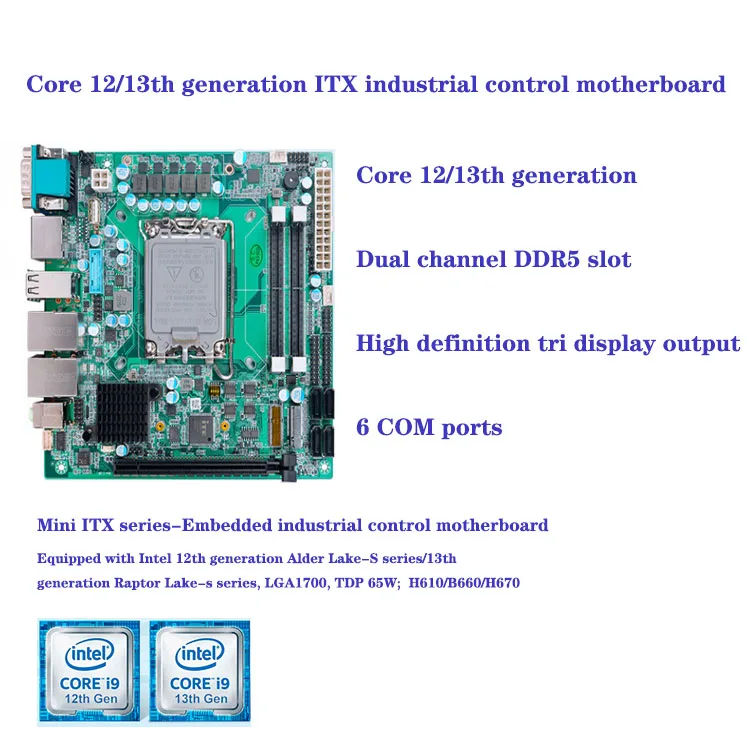

Intel 12th generation Alder Lake-S series/13th generation Raptor Lake-S series, LGA1700,TDP65W

Memory

2 * DDR5 SO-DIMM maximum 64GB (12th generation, maximum 4800MHz; 13th generation, maximum 5600MHz)

Storage

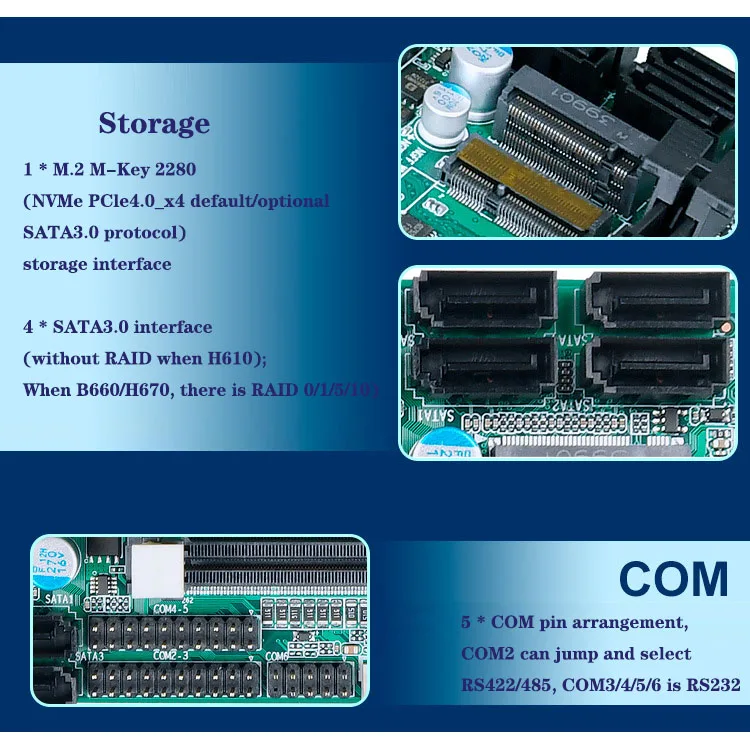

1 * M.2M-Key2280 (NVMe PCle3.0-x4 protocol) storage interface

Display

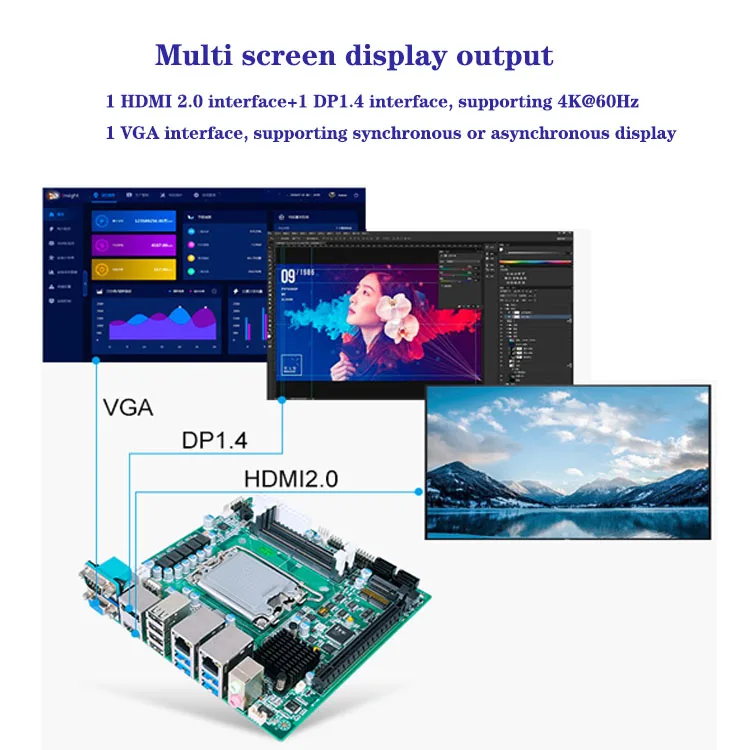

1 * HDMI 2.0 interface, supporting 4K@60Hz
1 * DP1.4 interface, supports 4K@60Hz ;1*VGA

Board edgeI/O interface

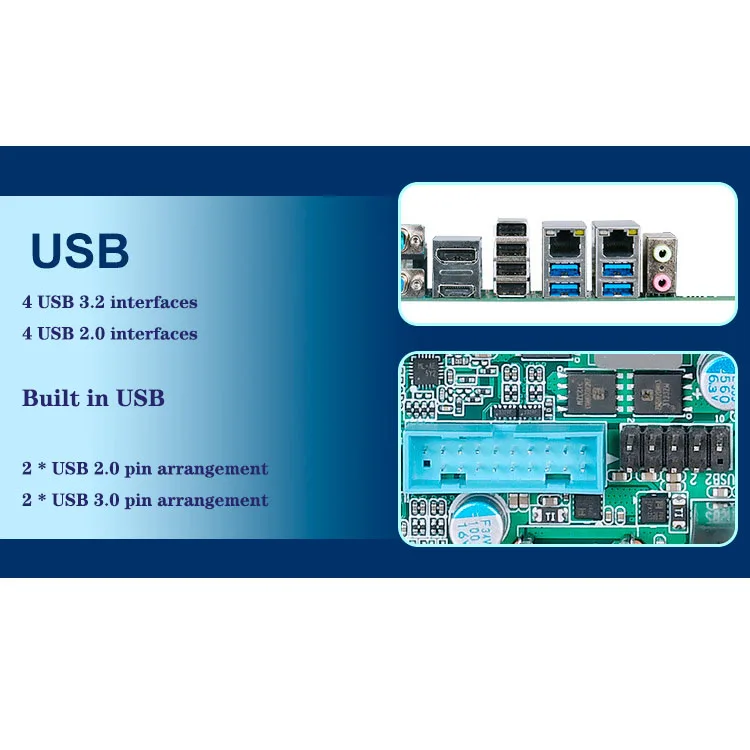

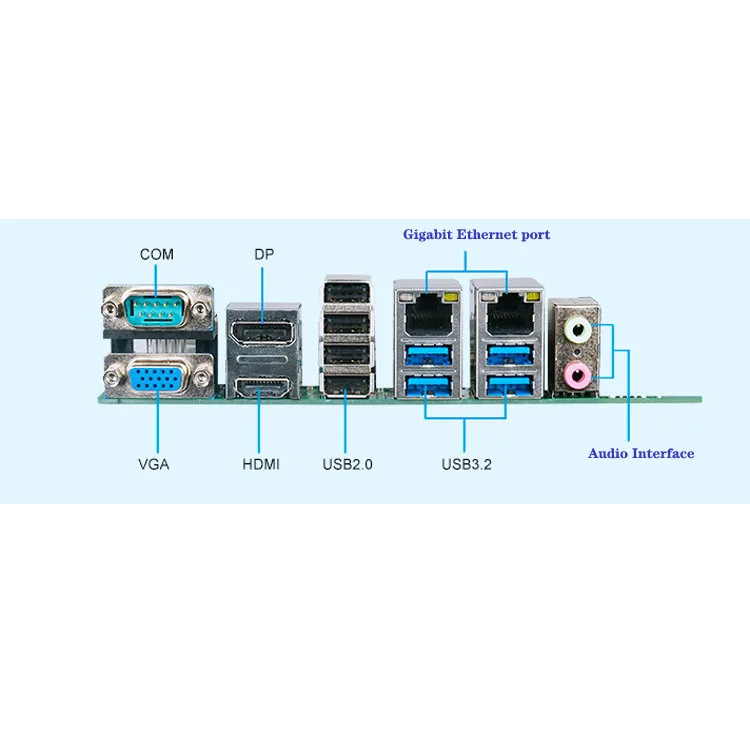

DB9 COM1 (RS232, selectable 5V/12V output) VGA、HDMI、DP 4*USB2.0; 2 * (LAN+2 * USB 3.2), 2-pin audio input/output (Line out, Mic in)

Expansion interface/function

TPM2.0 optional, default not available
1 * PCle_X16 (PCle4.0_16x protocol)
1 * M.2E-Key (PCle3.0+USB2.0 protocol, supports WIFI/BT module)

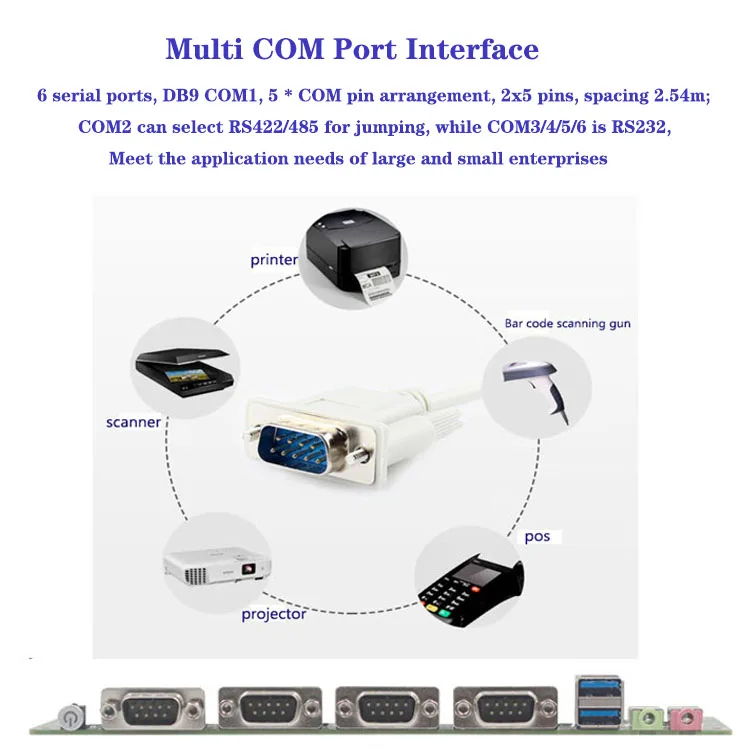

5 * COM pin arrangement, 2x5Pin, spacing 2.54m; COM2 can skip and select RS422/485, COM3/4/5/6 is RS232
1 set of 2 USB 3.0 pins with a spacing of 2.0mm (this function is not available when using H610 bridge); Only bridges with B660 and above are available
1 set of 2 USB 2.0 pins, spaced 2.54mm apart; 1 built-in vertical USB 2.0
1 * 4Pin PWM CPU fan, 1 * 4Pin system fan

Power Supply

ATX24+4Pin, above 200W (specific to actual usage environment)

Work environment

working temperature
-20℃~+60℃
Storage temperature
-40℃~+85℃
Working humidity
5% 90% relative humidity, no condensation
Storage humidity
5% 90% relative humidity, no condensation

System support

Windows10, Windows11, Linux

Size

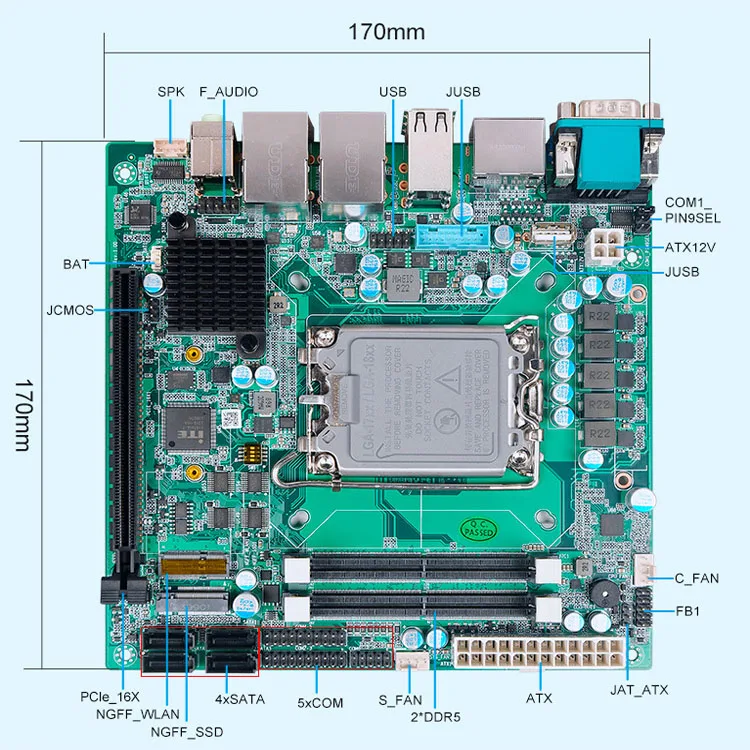

170x170 mm

Net Weight

About 400g

Authentication

CE,RoHS,FCC
