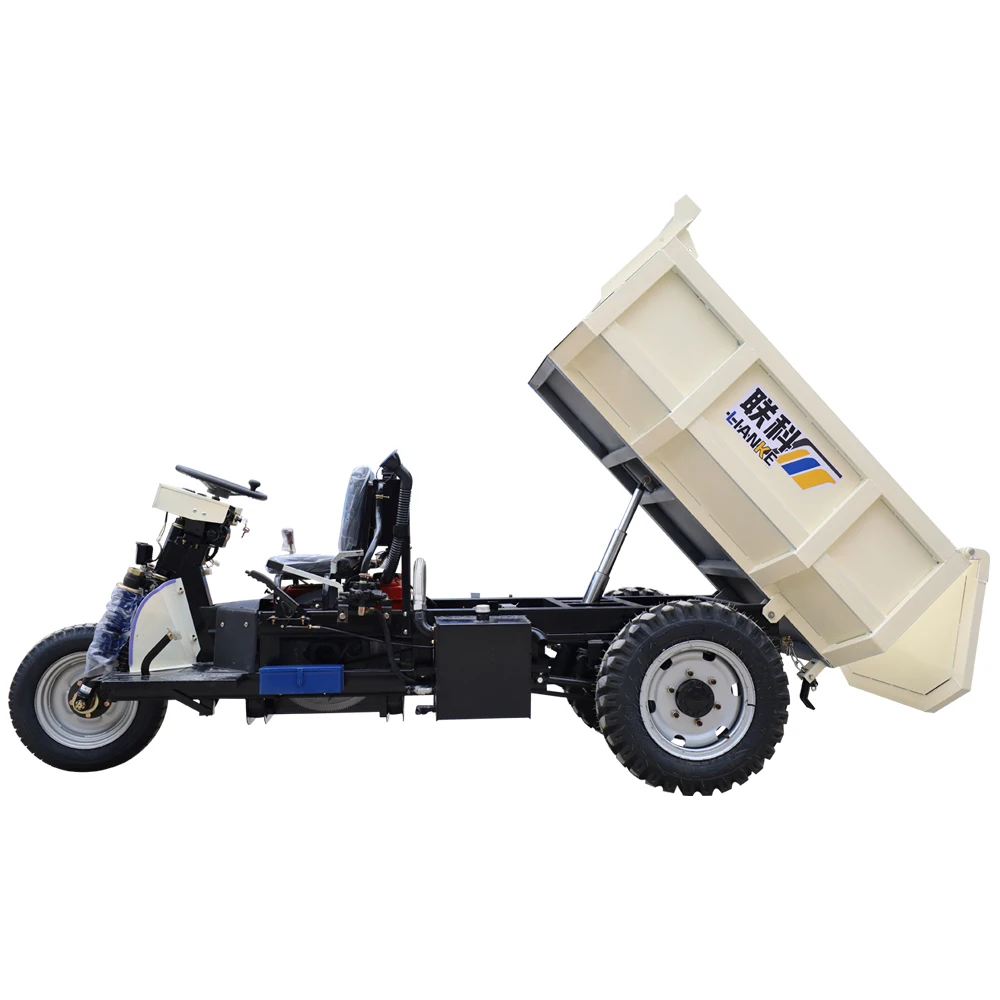

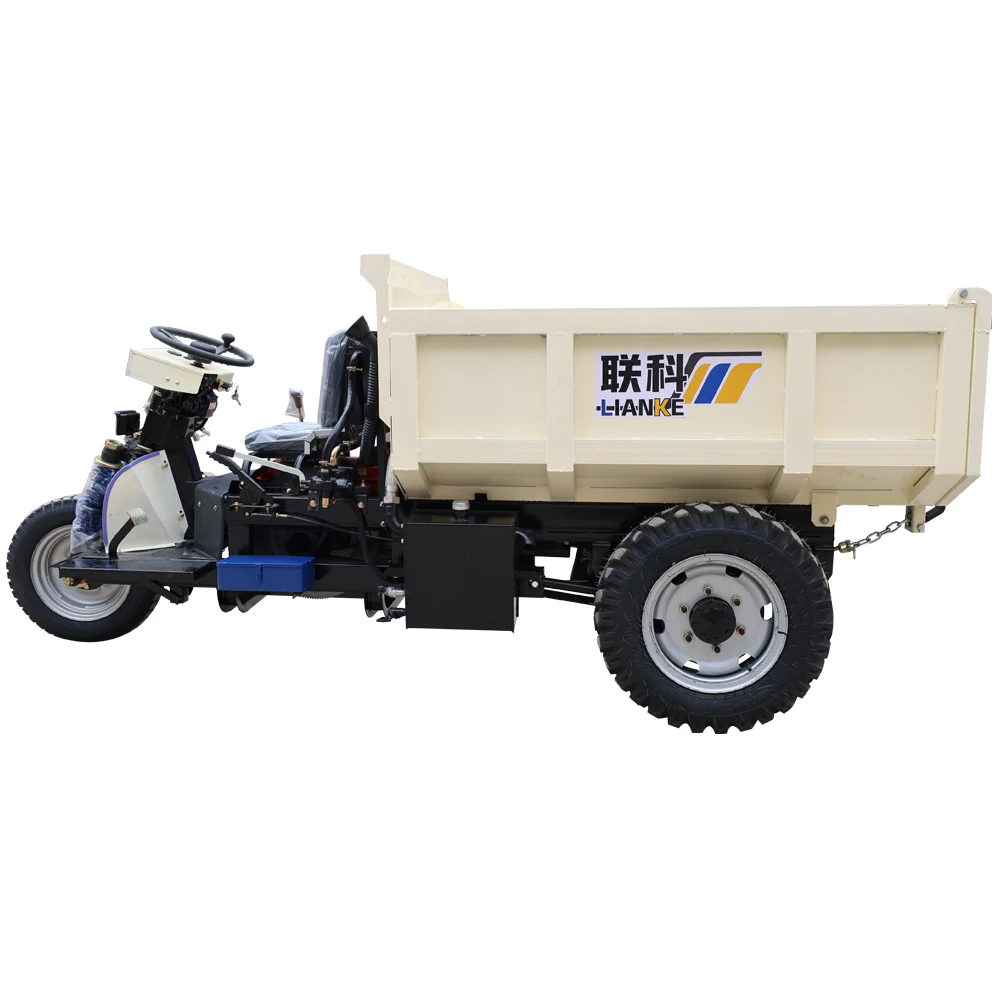

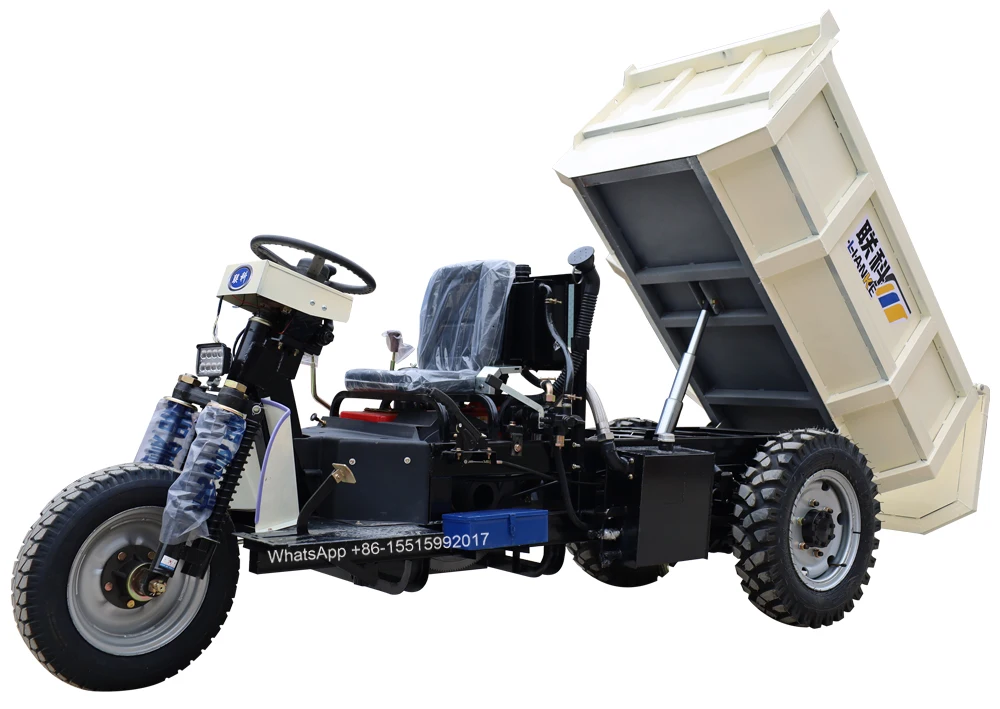

LK270D diesel dumper with cargo, 3 wheel mini diesel tricycles with big loading ,golden prince dumper truck
- Category: >>>
- Supplier: Zhengzhou Lianke Machinery Manufacture Co. Ltd.Zhengzhou Ltd.
Share on (1601363735869):
Product Overview
Description
Product Description

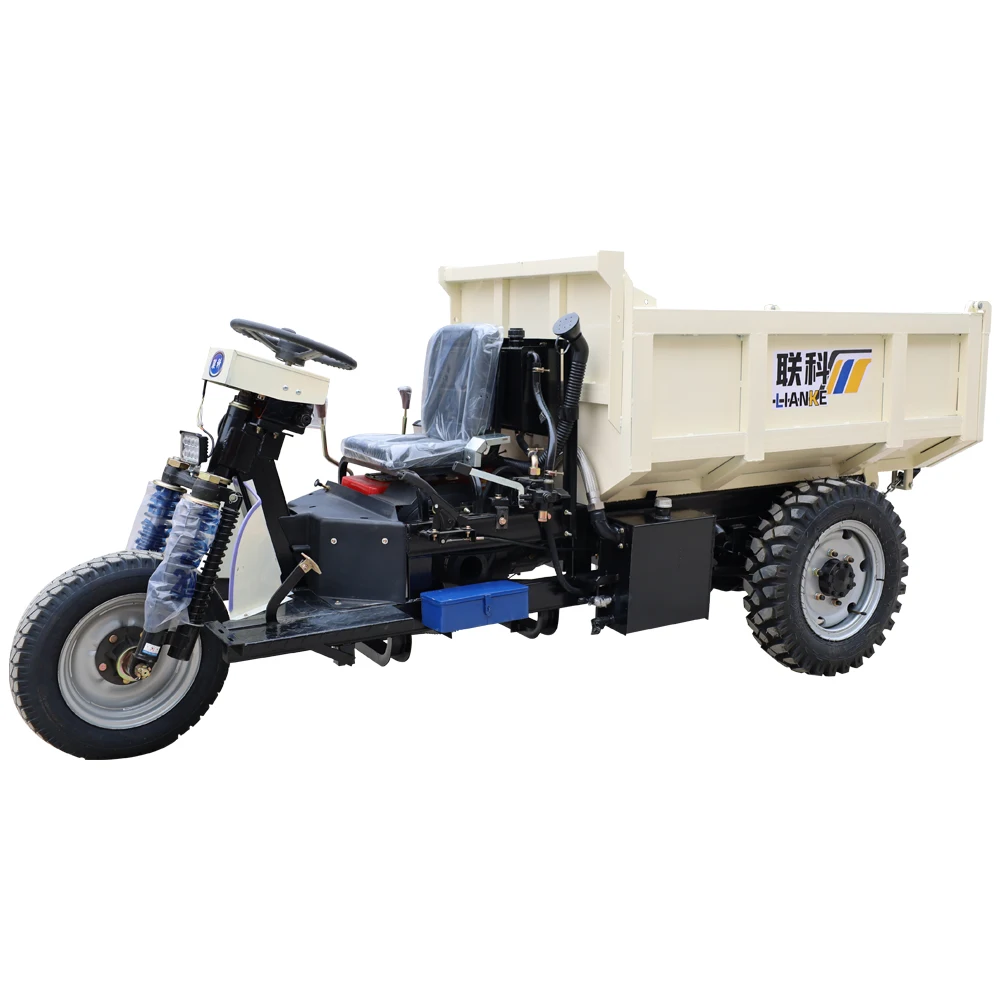

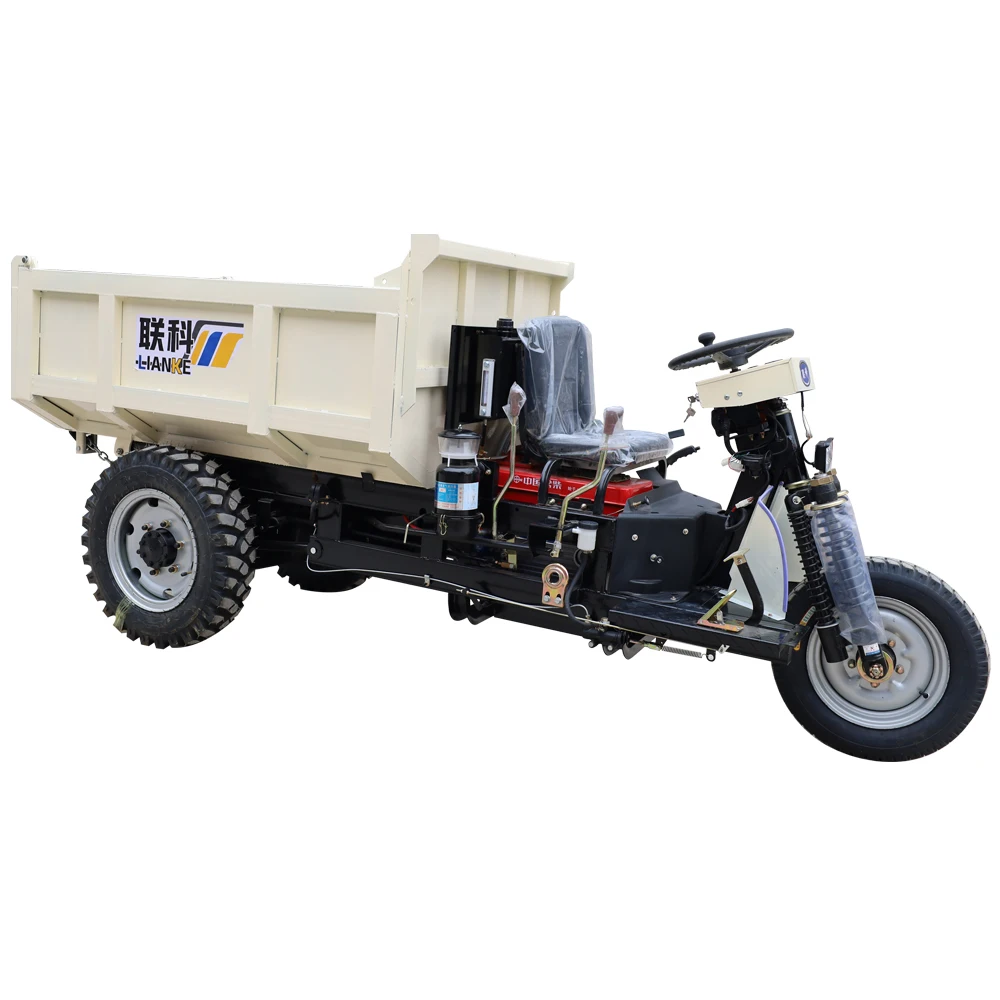

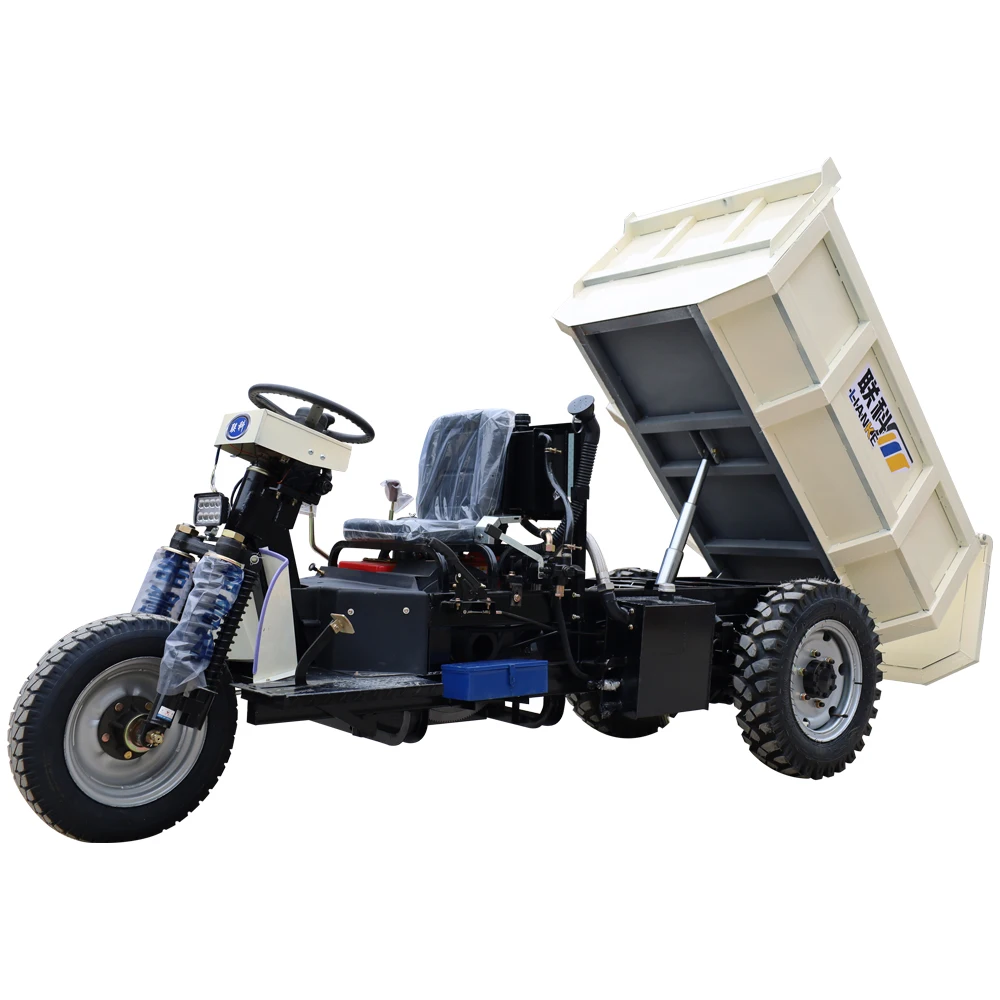

LK270D diesel dumper with cargo, 3 wheel mini diesel tricycles with big loading ,golden prince dumper truck
Our company is Zhengzhou Lianke Machinery Manufacturing Co., Ltd.,We are Alibaba's real -certified factory, our products are electric dumpers,diesel dumper ,mucking loader and other mining machinery. if you are interested in our products ,please contact us .
FCL delivery

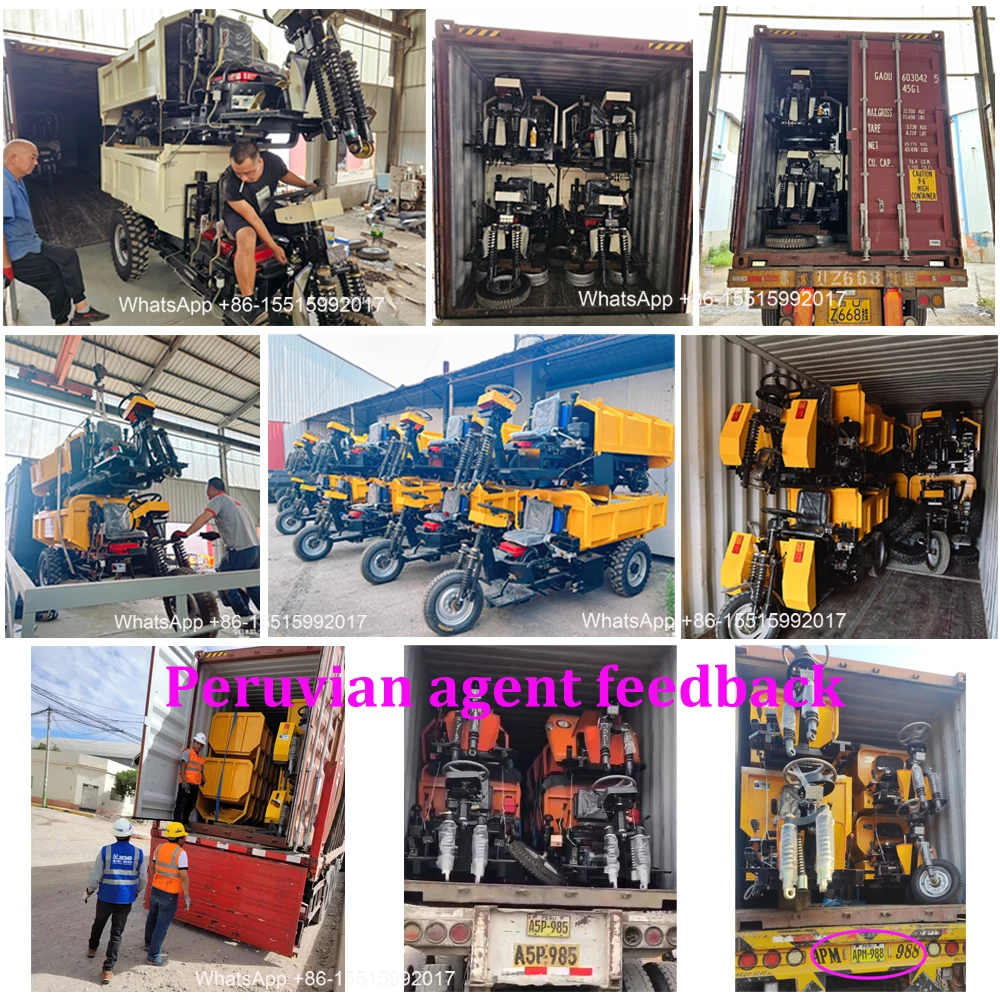

A 40'HC container can load up 16 sets LK270D diesel dumpers,Below are pictures of loading and Peruvian agent feedback.

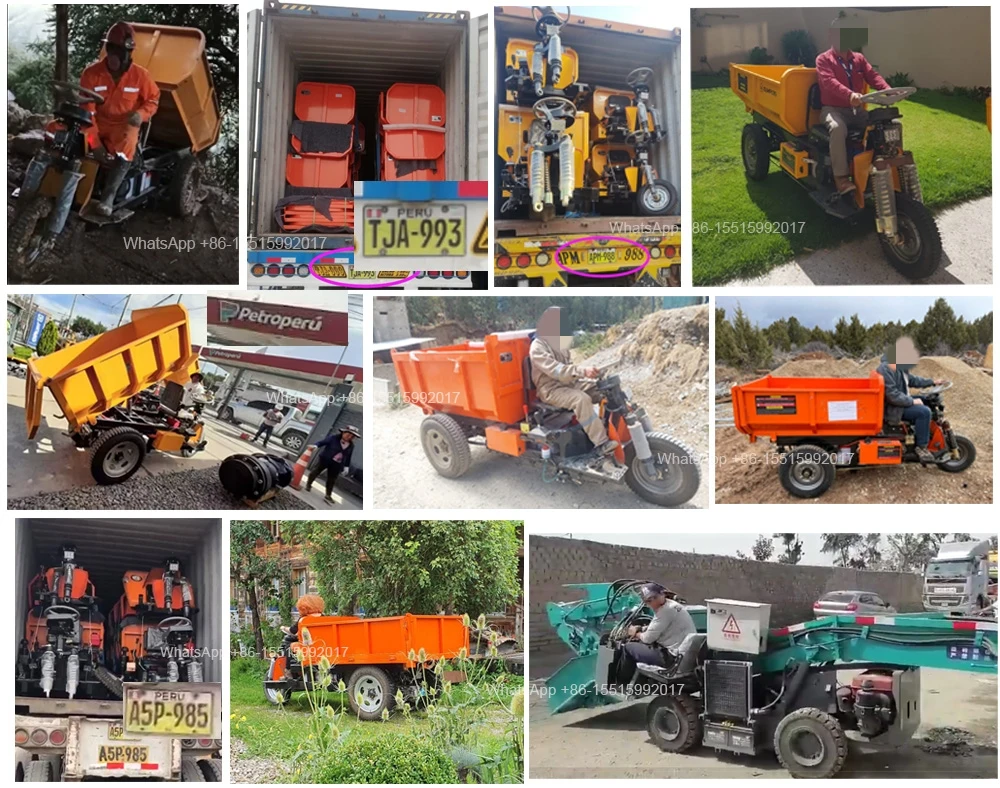

Feedback from customers
At present, our vehicles have been exported in large quantities to multiple countries such as Peru, Bolivia, Chile, Ecuador, and have received positive feedback from customers. Here is the customer's feedback
Technical parameters of Diesel dumper from Lianke machinery | ||||
Items | LK135D Diesel dumper | LK270D Diesel dumper | ||
Loading capacity | 1500kg | 2500kg | ||
Overall size | 3050*1020*1300mm | 3300*1120*1500mm | ||
Hopper size | 1450*950*450mm | 1800*1120*590mm | ||
Engine power | 18HP/22HP | 22HP/24HP/28HP/32HP | ||
Battery | Changke or Changchai | Changchai | ||
Front shock absorber | 12V80Ah | 12V105Ah | ||
Exhaust | Large shock absorption Brand:SHIFENG | Double row shock absorption Brand:SHIFENG | ||
Warranty | 15 months' warranty, Calculated after the goods arrive at the destination port.If there are urgently needed spare parts, we will send them to you through international express delivery such as DHL or FedEx. | |||
Detailed Images

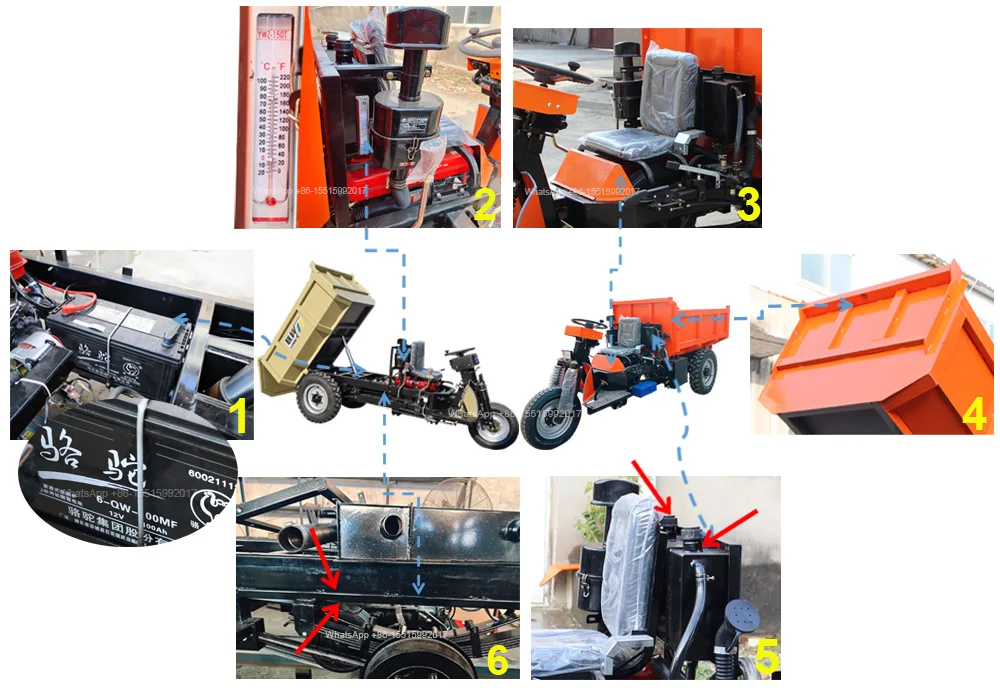

Our vehicle's advantages
1.Install high quality battery, the brand is Camel
2.Install a fuel gauge and temperature gauge to clearly observe whether diesel needs to be added
3.Add a protective cover at the flywheel position of the diesel engine
4.The gantry of the hopper uses laser cutting technology to make the hopper more sturdy

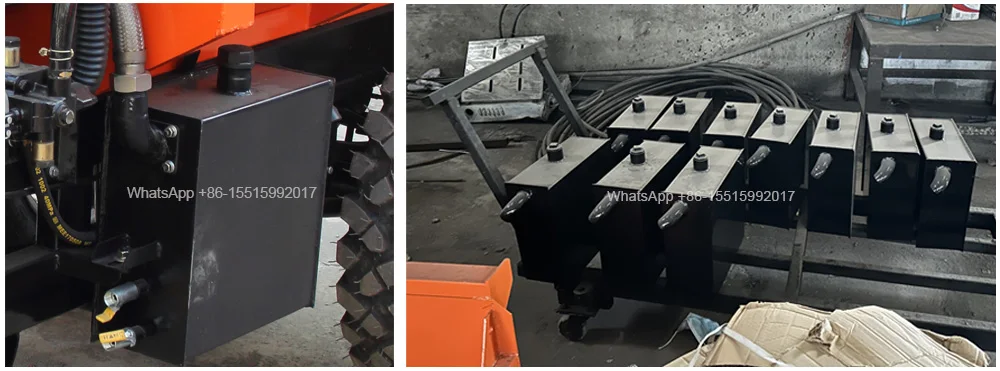

5.The hydraulic tank and fuel tank are both installed behind the backrest of the seat
6.Adding a secondary frame ，which can increase the load-bearing capacity of the whole frame
3.Add a protective cover at the flywheel position of the diesel engine
4.The gantry of the hopper uses laser cutting technology to make the hopper more sturdy
5.The hydraulic tank and fuel tank are both installed behind the backrest of the seat
6.Adding a secondary frame ，which can increase the load-bearing capacity of the whole frame

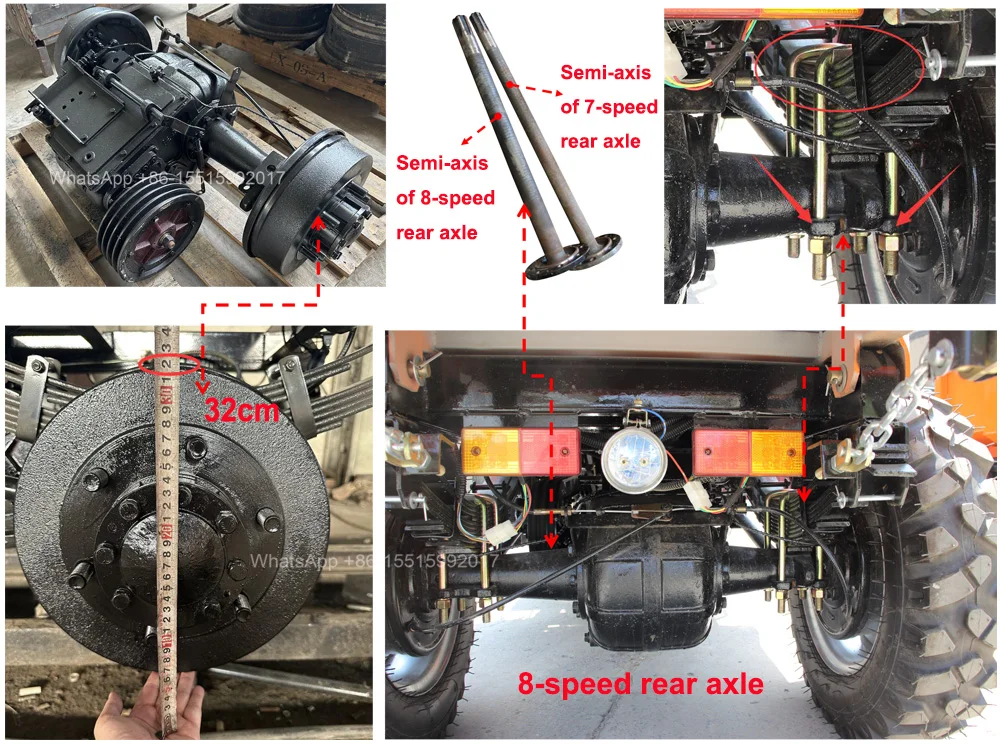

8-speed rear axle Brand:SHIFENG
LK270D equip with 8-speed rear axle,with high and low speed gear ,and Semi-axis of 8 speed rear axle is much thicker than 7- speed rear axle .
The U-shaped support is fixed on the rear axle and will not loosen after long-term use.
Use large brake pot with a diameter of 32cm ,the braking performance is better than other ones
Use large brake pot with a diameter of 32cm ,the braking performance is better than other ones

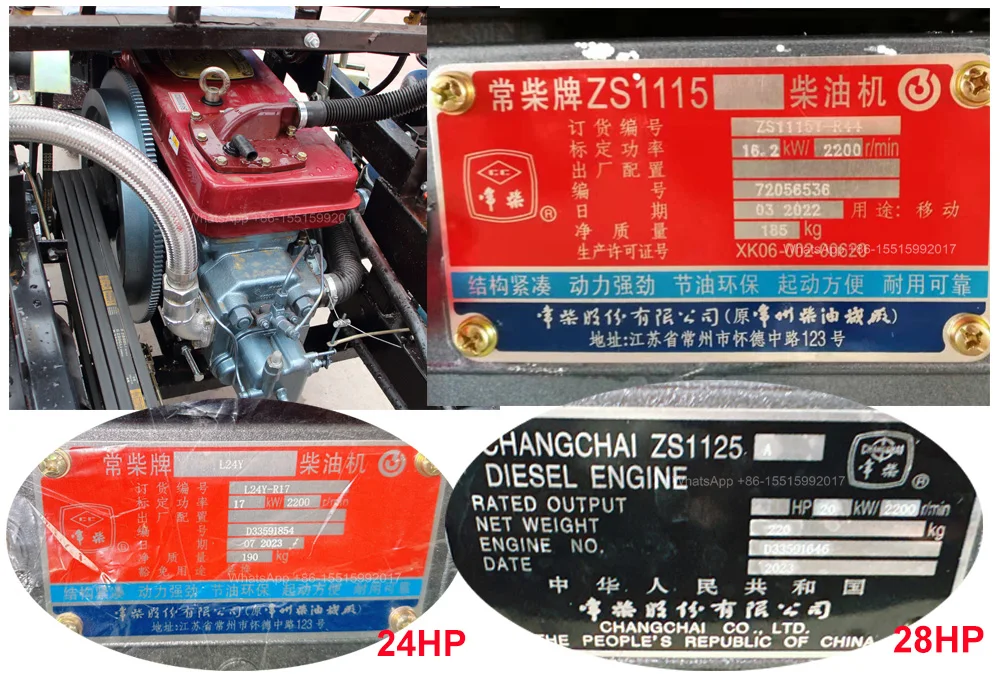

Diesel Engine, Brand (CHANGCHAI)
Engine, Brand (CHANGCHAI)
Model: L24
Model: L24
Our LK270D uses DIESEL Engine of China famous brand Changchai, 17kW/22HP.
You can also customize 22HP and 28HP Diesel engine,The prices are different

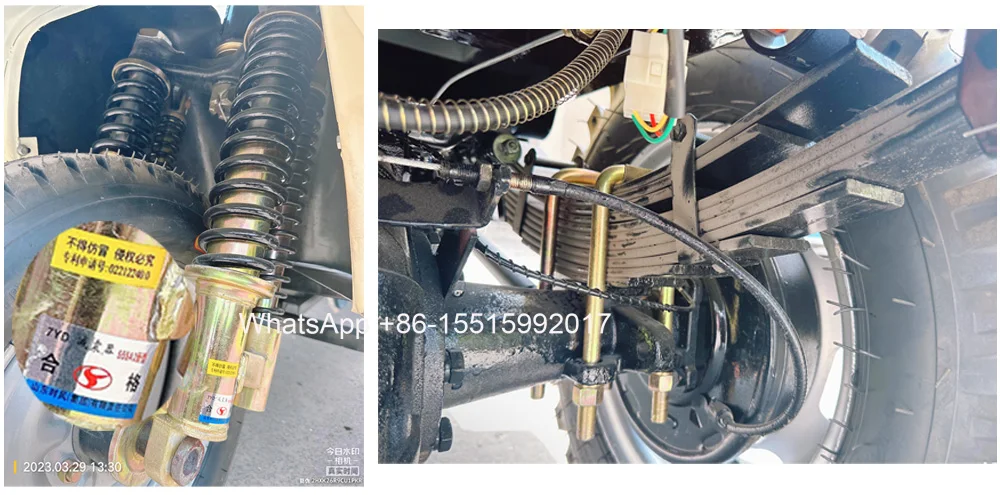

Front shock absorber and Rear spring
Double -row shock absorption, the brand is SHIFENG, please check the brand name and patent number circulating in the picture below.
Rear spring: The number of standard spring steel plates is 12 pieces. If you want morequantities, we can customize for you

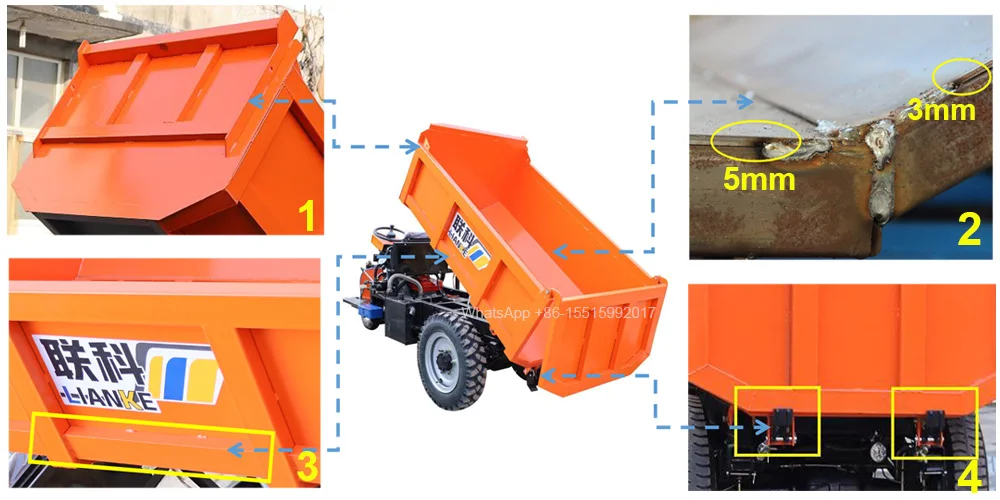

Cargo box plate
1.The gantry of the hopper is made of thickened steel plate, using laser cutting technology, and supported by rectangular tubes
and channel steel, making the hopper more sturdy.2.The thickness of the bottom plate of the LK270D hopper is 5mm, and the
thickness of the side plate is 3mm.
3.Add a channel steel on the side plate of the hopper to provide better load-bearing capacity.
4.Using cast iron self unloading hooks, resistant to deformation and breakage
and channel steel, making the hopper more sturdy.2.The thickness of the bottom plate of the LK270D hopper is 5mm, and the
thickness of the side plate is 3mm.
3.Add a channel steel on the side plate of the hopper to provide better load-bearing capacity.
4.Using cast iron self unloading hooks, resistant to deformation and breakage

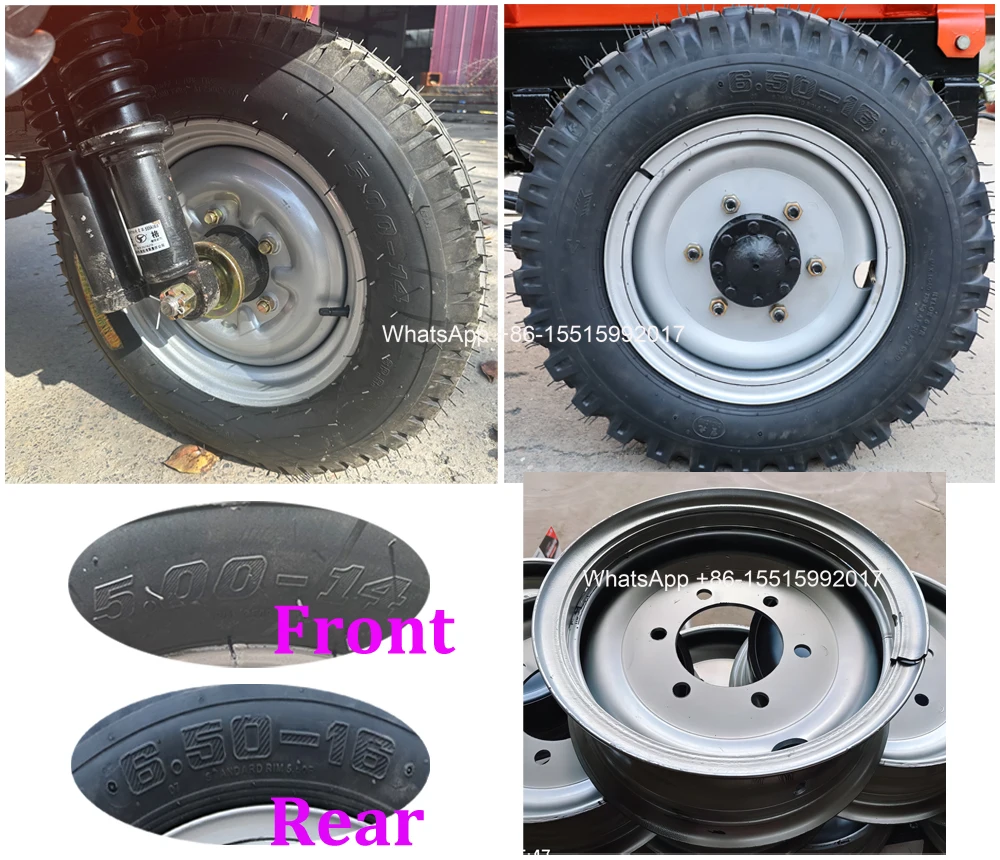

Mining tires
Front wheel:5.00-14 . Rear tire :6.50-16 .Larger tires can be customized,such as 7.00-16
The rear tire of Our LK270D uses a fully enclosed thickened steel ring, which is not easy to deform and has a strong bearing capacity.
The rear tire of Our LK270D uses a fully enclosed thickened steel ring, which is not easy to deform and has a strong bearing capacity.
Install exhaust gas treatment device
Ordinary water or sodium hydroxide solution can be added to the exhaust gas treatment box,This can purify the exhaust gas after diesel combustion, making it suitable for use in mines
