ESS 96KWH Lithium Ion LiFePO4 Battery Cabinet Commercial Energy Storage Battery 614V 157AH with 25KW 30KW 50KW Inverter
ESS 96KWH Lithium Ion LiFePO4 Battery Cabinet Commercial Energy Storage Battery 614V 157AH with 25KW 30KW 50KW Inverter
ESS 96KWH Lithium Ion LiFePO4 Battery Cabinet Commercial Energy Storage Battery 614V 157AH with 25KW 30KW 50KW Inverter
ESS 96KWH Lithium Ion LiFePO4 Battery Cabinet Commercial Energy Storage Battery 614V 157AH with 25KW 30KW 50KW Inverter
ESS 96KWH Lithium Ion LiFePO4 Battery Cabinet Commercial Energy Storage Battery 614V 157AH with 25KW 30KW 50KW Inverter
ESS 96KWH Lithium Ion LiFePO4 Battery Cabinet Commercial Energy Storage Battery 614V 157AH with 25KW 30KW 50KW Inverter
ESS 96KWH Lithium Ion LiFePO4 Battery Cabinet Commercial Energy Storage Battery 614V 157AH with 25KW 30KW 50KW Inverter

ESS 96KWH Lithium Ion LiFePO4 Battery Cabinet Commercial Energy Storage Battery 614V 157AH with 25KW 30KW 50KW Inverter

Share on (1601363852097):


Price:

Quantity:


Product Overview

Description

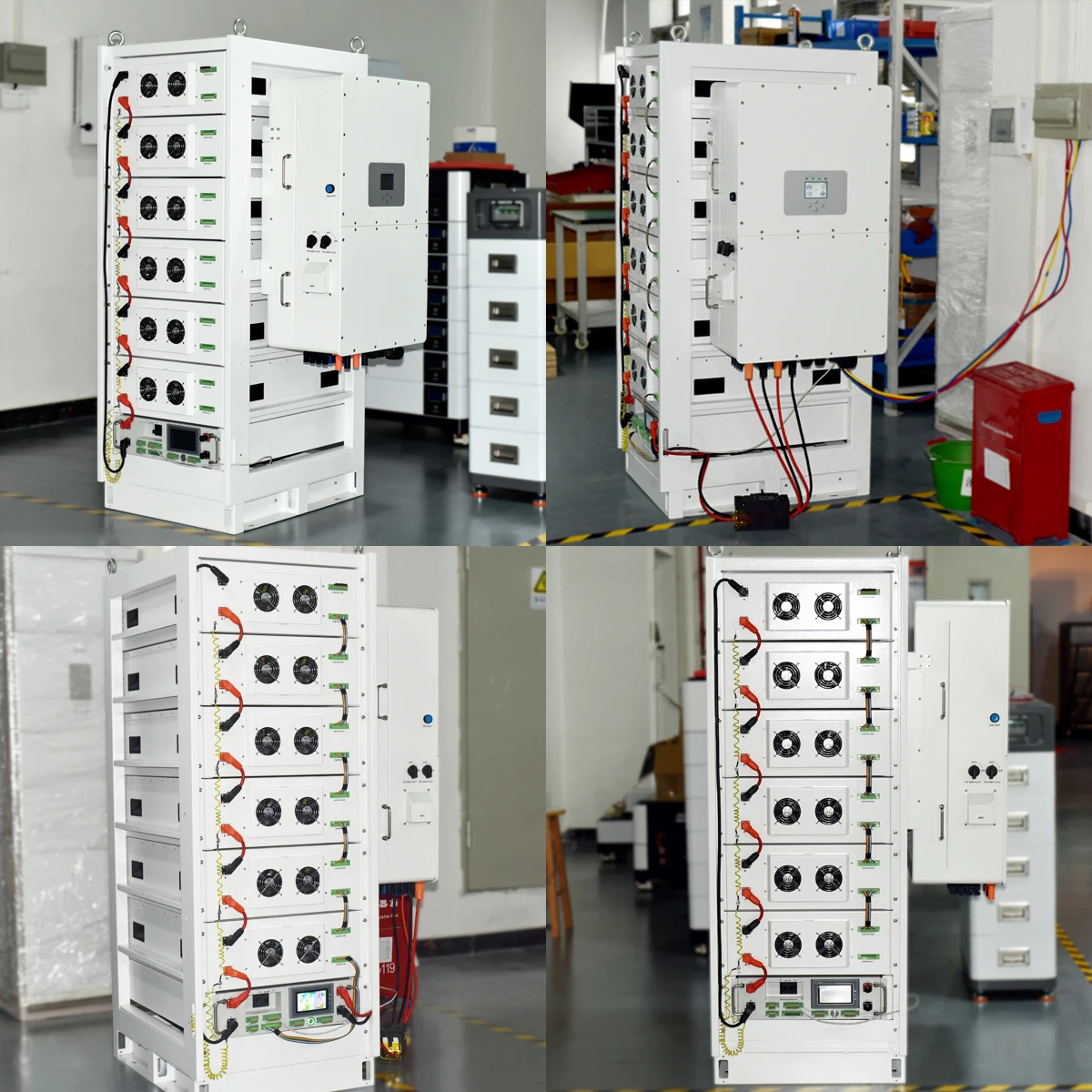

Details Images

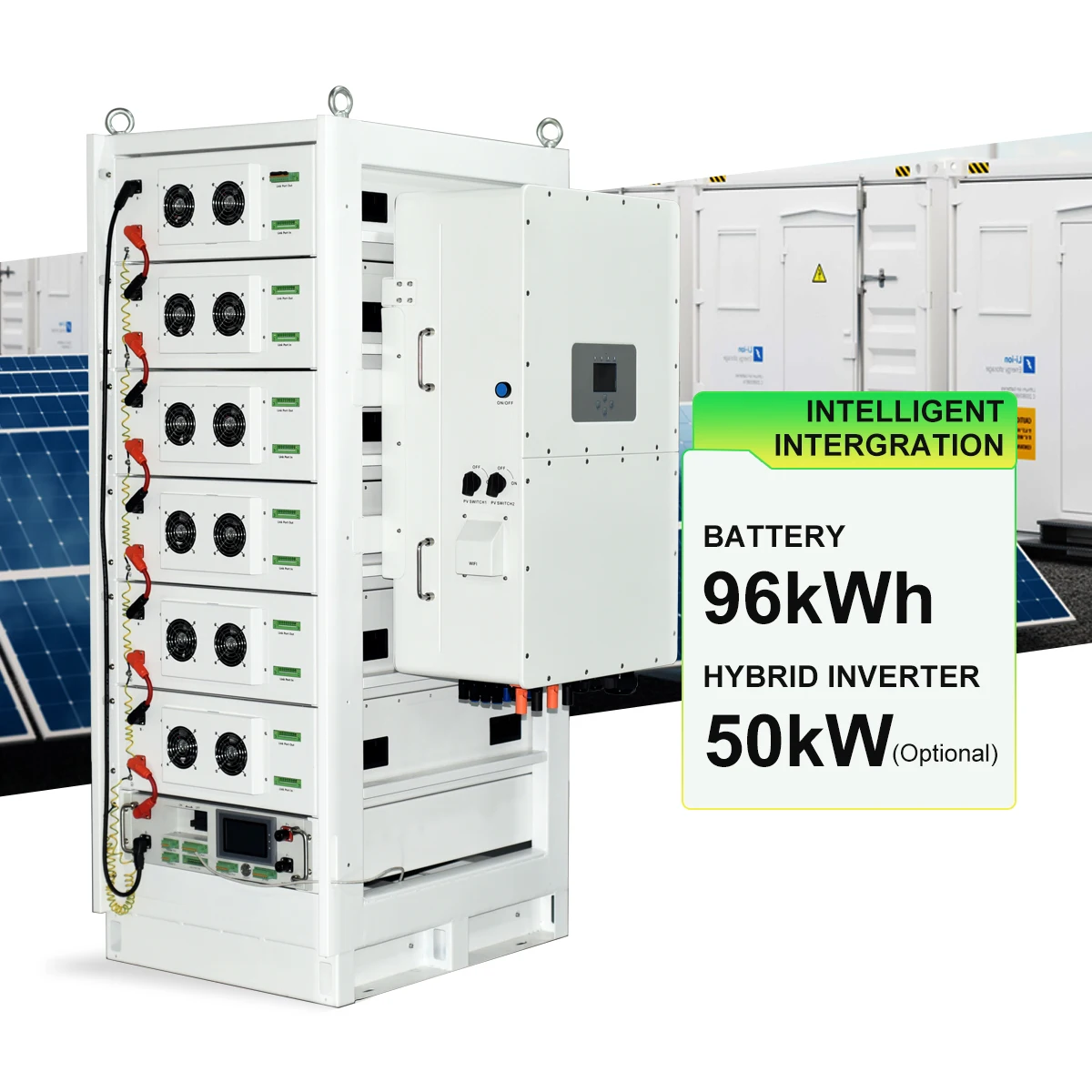

614.4V 157AH 96.46KWH High Voltage Lithium Ion LiFePO4 Battery Cabinet
◆Convenient
Quick installation, rack mounted cabinet designed module is comfortable for installation and maintenance.
◆Safe and reliable
Cathode material is made from LiFePO4 with safety performance and long cycle life, The module has less self-discharge, up to 6 months without charging it on shelf, no memory effect, excellent performance of shallow charge and discharge.
◆Intelligent BMS
It has protection functions including over-discharge, over-charge, over-current and over-high or low temperature. The system can automatically manage charge and discharge state and balance current and voltage of each cell.
◆Eco-friendly
The whole module is non-toxic, non-polluting and environmentally friendly
◆Flexible configuration
Multiple battery modules can be in parallel for expanding capacity and power.Support USB upgrade, wifi upgrade (optional), remote upgrade (Compatible with most popular inverters).
◆Wide temperature
Working temperature range is from -20°C to 55°C, with excellent discharge performance and cycle life.

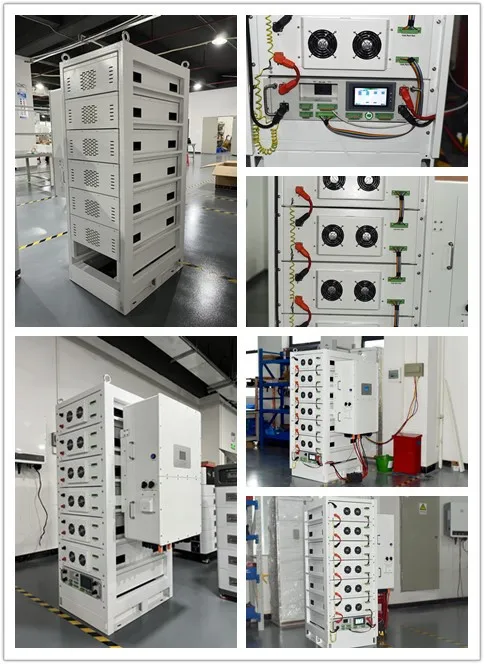

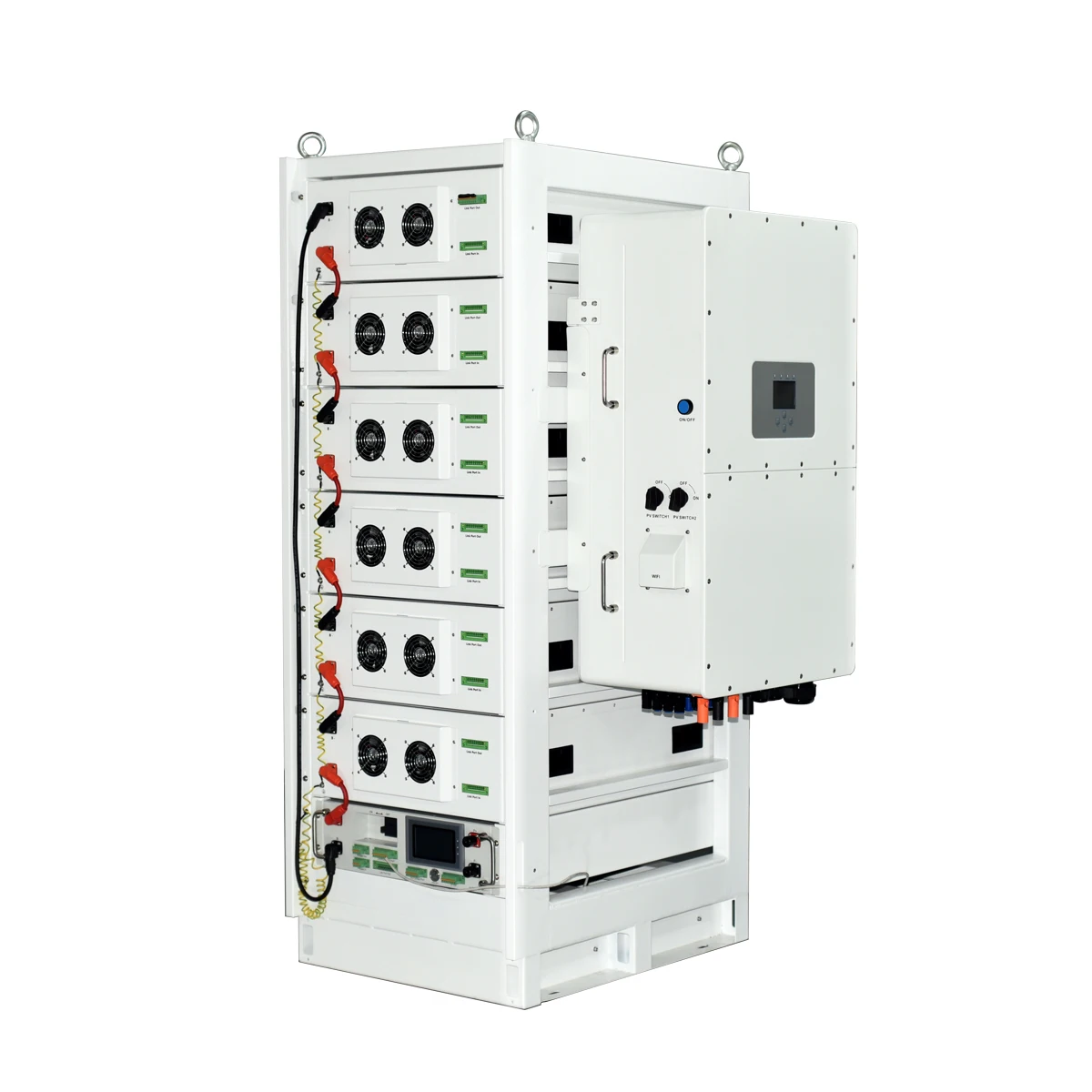

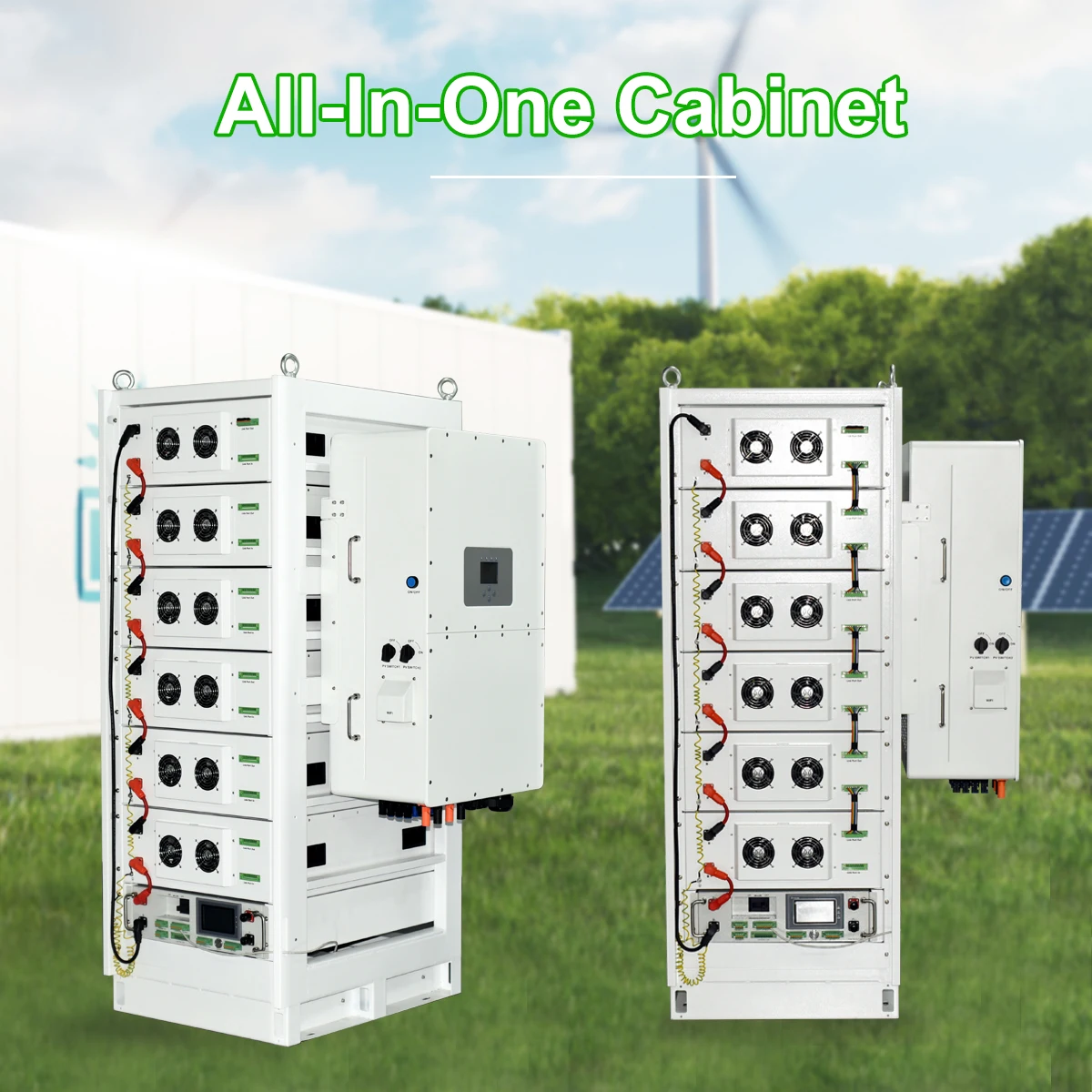

614.4V 157AH 96.46KWH High Voltage Lithium Ion LiFePO4 Battery Cabinet

→ 6PCS 102.4V 157AH LiFePO4 Battery Pack in Series
→ 1PC High Voltage 1000V Master Box(Monitoring SOC, System voltage, Current, Cell voltage, Cell temperature
→ Support 25KW 30KW 50KW High Voltage Three Phase Hybrid Grid Inverters, Compatible with Most of Inverter Brands
→ With in series Cables, Earth Cable, Communication Cables and Rack Mounted Cabinet
→ Send with Optional Inverter 25KW 30KW 50KW Inverter
→ Each Pack with Air Cooling
→ With User Manual




Product Parameter


614.4V 157AH 96.46KWH High Voltage Lithium Ion LiFePO4 Battery Cabinet
BATTERY DATA
Battery Pack
1P32S157Ah
51.2V 600AH
51.2V 628AH
Single Battery Module
Energy Capacity
16KWH
Max. Output Current
50A
600AH
628AH
Nominal Voltage
28.67KWH
30.72KWH
32.15KWH
Charge Cut-Off Voltage
102.4V
Operating Voltage
96~112V
Dimensions (L/D/H)
544mm x 781mm x 200mm
Battery System Data
Number of Modules
6
Energy Capacity
96Kwh
Standard Charge /Discharge Current
45A / 0.3C
Nominal Voltage
614.4V
Operating Voltage
576~672V
Dimensions (L/D/H)
595mm x 790mm x 1620mm
Weight
About 850KG
Battery Cell Type
LiFePO4 Battery(Lithium iron phosphate battery)
Enclosure Protection Rating
IP20
Round-trip Efficiency
≤90%
Operation Temperature
-10°C to +50°C
Applications

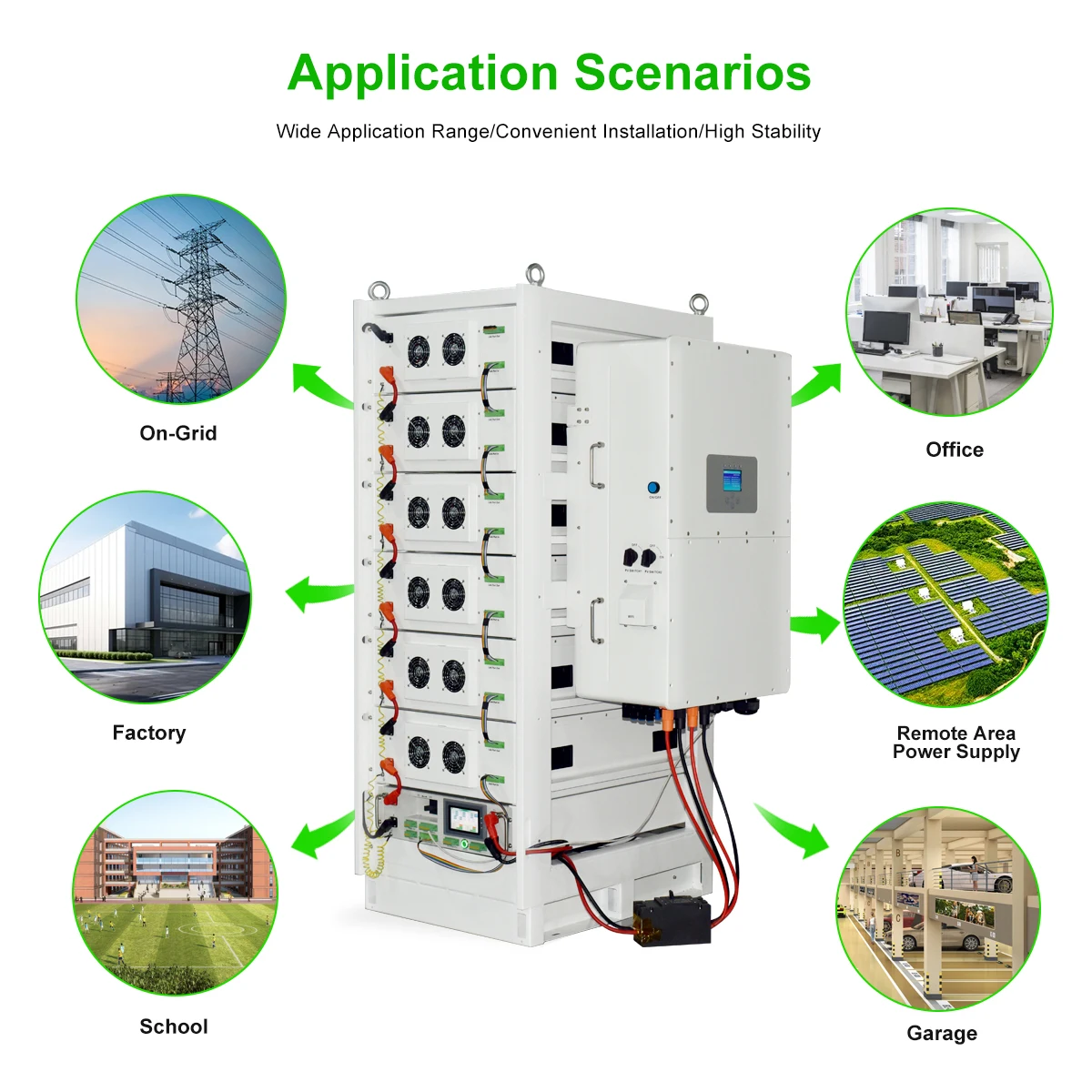

ON Grid / ON Grid + Backup / OFF Grid
Communication Port
CAN
BMS Monitoring Parameters
SOC,System voltage,Current,Cell voltage, Cell temperature
INVERTER DATA
Inverter Power
25KW
30KW
50KW
Max. PV Access Power (W)
50000W
60000W
100000W
Max. PV Input Power (W)
32500W
39000W
65000W
MPPT Range (V)
150V-850V
Rated AC Output and UPS Power (W)
25000W
30000W
50000W
Max. AC Input/Output Apparent Power(VA)
27500W
33000W
55000W
Output Frequency and Voltage
50/60Hz; 3L/N/PE 220/380, 230/400Vac
What We Can Do More
Warranty
10 YEARS WARRANTY
Battery Standard
CE, UL, IEC, RoHS, MSDS, UN38.3






Compatible Solar Partner


Compatible with Most of Popular Solar Inverters
Our BMS is a complete set of communication functions, supporting RS485, RS232 and CAN-BUS communication protocols. We can also customize the communication content according to the information which customers provide. Customers can through the host computer software to monitor the batteries, and check the working status of each cells and set specific parameters on the computer.


Advantages of DELONGTOP




10 YEARS WARRANTY
We offer 10 years truly warranty to provide after-sale service and technology support.
1> Re-sending new battery within 1st year if something is wrong with the quality of the product
2> Provide purchase accessories free within 2nd~5th years warranty
3> Provide technology support free within 6th~10th years warranty

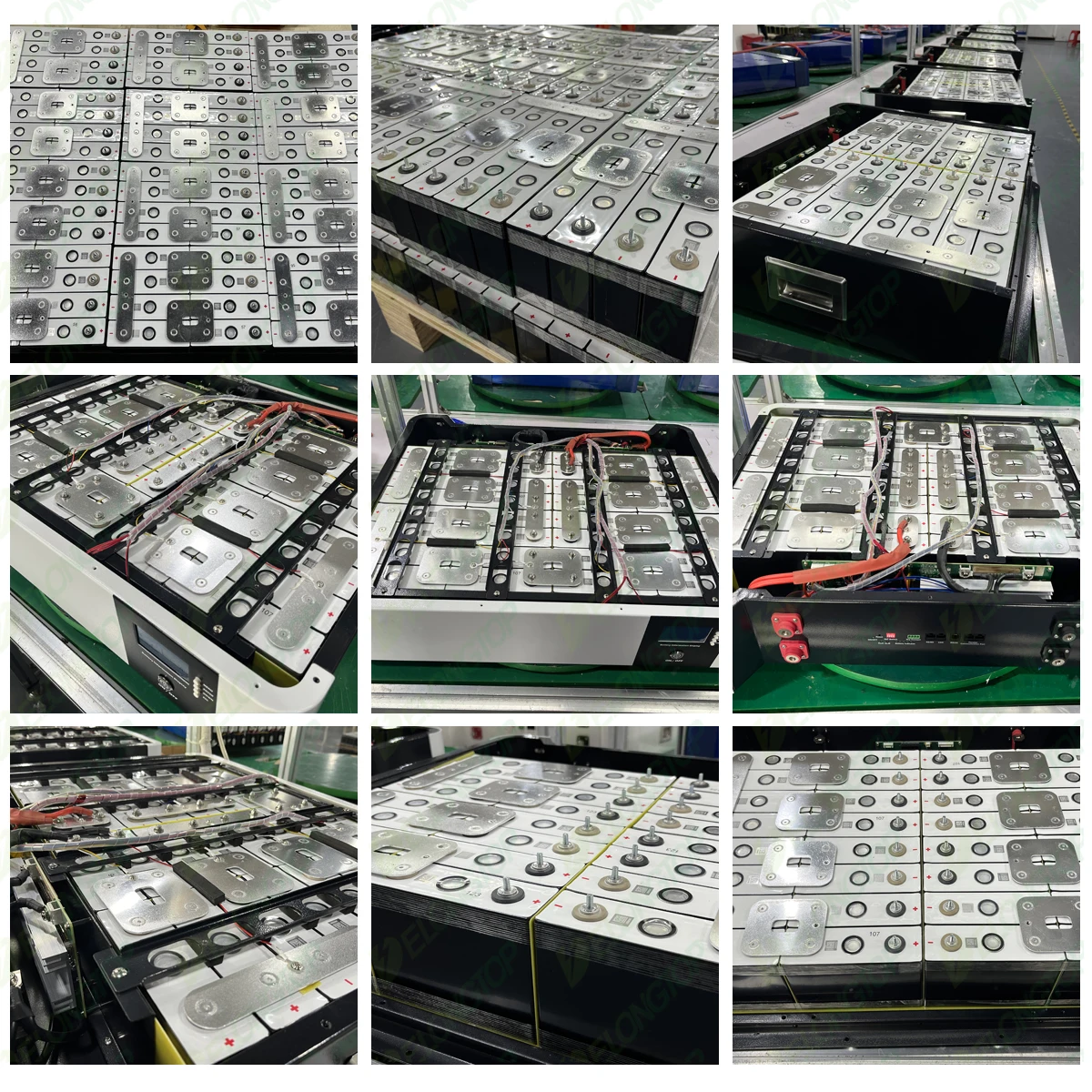

WHAT BATTERY CELL WE USE:
As a 10-year-old store engaged in the battery business, we are responsible for our customers and our brand. Using only A grade cells, the cycle life can up to 6000-8000 times: 10AH/ 25AH/ 50AH/ 100AH/ 200AH / 300AH / 560AH/ 600AH...
1> Our batteries are the primary source of supply from the original cells manufacturer, battery cells are paired and distributed before outgoing, and can be assembled directly.
2> Through a number of certification and testing, quality assurance.
3> There are two types of pouch cells and prismatic cells. The pouch cells: lighter, cheaper, and easy to customized in special sizes. The prismatic cells: not easily deformed , stable performance, mature market, more popular at present.


MAINLY MARKET AND CUSTOMERS' FEEDBACK
Our batteries are all over the world, the main markets are North America, Europe, Australia, Middle East and Southeast Asia.
Solar home energy storage LiFePO4 battery Stackable, Wall Mounted- Rack Mounted, Movable series is especially suitable for use in countries and regions where there is a shortage of mains electricity, which is environmentally friendly and safe.

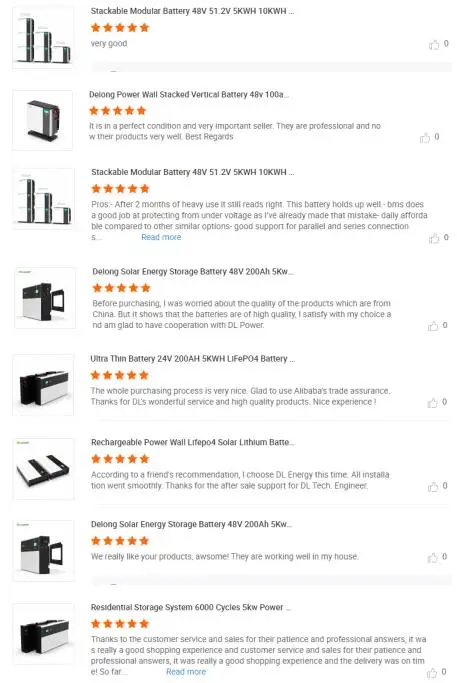

"Quality is our Culture", our batteries are worked well and received many good comments:

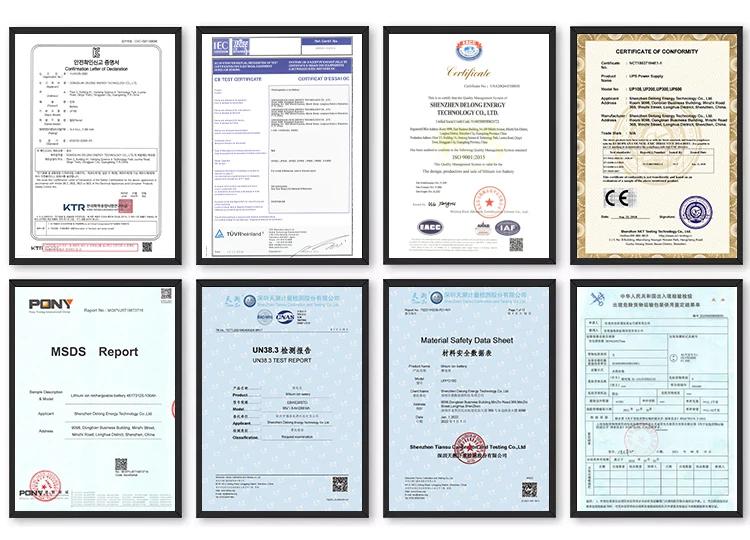

Certifications






FAQ


Q1: What are there included for a battery or pack , may I buy charger from you?
A1: Battery case, BMS, battery pack, can buy customised connector, charger

Q2: How long frequency does recharge the battery?
A2: Usually per 2 months to recharge the battery pack , to charge full the battery depends on the charger current you use. 20A charger can charge full for 12V 100Ah battery in 5 hours, fast charger 50A in 2 hours.

Q3: What's the sample lead time, and bulk order delivery. How long I can get it?
A3: Fast delivery: If small quantity, can be finished in 3-5 days days after payment, bulk in 10-25 days depends on the quantity
Shipping: sample order or small battery packs, we can ship by express through Fedex, UPS, TNT etc. If whole parcel over 50KG, can ship by air or by sea, sea shipping is more cheaper. Customer can tell your nearest airport name and sea port name for sales person to check the best option for you.

Q4. What is your warranty?
A4: We offer 10 years warranty for different situation. We ensure at least 6500 cycle life for the LiFePO4 battery pack, You can use it for at least 10 years for normal 1 time charge and discharge everyday.

Q5: Can I customize the size of battery?
A5: Of course yes if yourquantity MOQ workable.

Q6. Can we put different LiFePO4 battery pack in parallel or series by ourself?
A6: Yes. The battery can be put in parallel or series by customers. But there are few tips we need to pay attention;
1> Make sure the voltage of each battery are same before put inparallel. If they are not same, charge them to
the same rate.
2> Don't not put discharged battery and undischarged battery in parallel. This may reduce the capacity of the whole
battery pack.
3> Advise us the target capacity of the whole pack if you would like to put them in series. We will choose the
suitable BMS for each battery.
4> If you are not professional in parallel and series batteries, please don't handle the battery by yourself. It may cause danger and hurt the cycle life of battery.

Q7. Can we use it for car engine?
A7: Yes, our battery pack include BMS, you can use it for low speed car only or aux. power for standard car. Do not use it for standard car directly, that will need more complex design BMS for the pack.

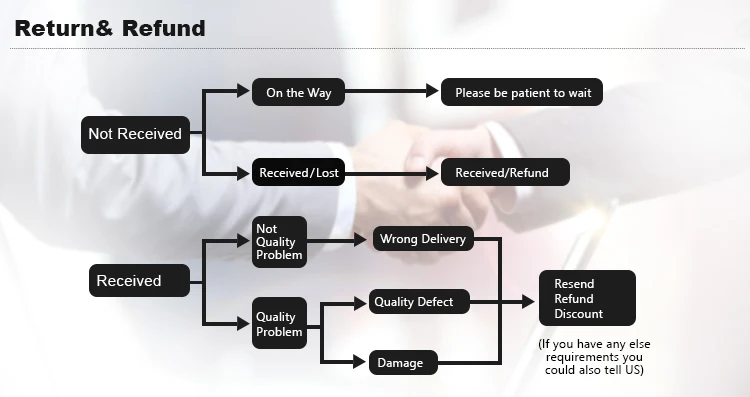

Return and Refund Policy
