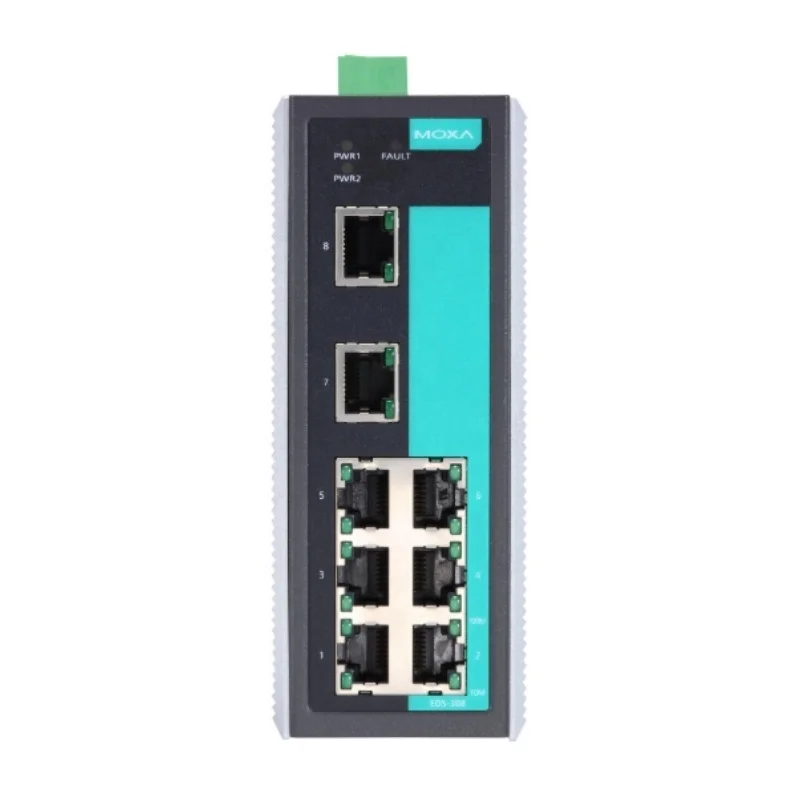

New Original EDS-308 Series 8-port unmanaged Ethernet switches

New Original EDS 308 Series 8 port unmanaged Ethernet switches

Share on (1601363886962):


Price:$129.00

Quantity:


Product Overview

Description



Product Description





















































































































Features and Benefits
Relay output warning for power failure and port break alarm
Broadcast storm protection
-40 to 75°C wide operating temperature range (-T models)
Ethernet Interface
10/100BaseT(X) Ports (RJ45 connector)EDS-308/308-T: 8
EDS-308-M-SC/308-M-SC-T/308-S-SC/308-S-SC-T/308-S-SC-80: 7
EDS-308-MM-SC/308-MM-SC-T/308-MM-ST/308-MM-ST-T/308-SS-SC/308-SS-SC-T/308-SS-SC-80: 6

All models support:
Auto negotiation speed
Full/Half duplex mode
Auto MDI/MDI-X connection
100BaseFX Ports (multi-mode SC connector)EDS-308-M-SC: 1
EDS-308-M-SC-T: 1
EDS-308-MM-SC: 2
EDS-308-MM-SC-T: 2
100BaseFX Ports (multi-mode ST connector)EDS-308-MM-ST: 2
EDS-308-MM-ST-T: 2
100BaseFX Ports (single-mode SC connector)EDS-308-S-SC: 1
EDS-308-S-SC-T: 1
EDS-308-SS-SC: 2
EDS-308-SS-SC-T: 2
100BaseFX Ports (single-mode SC connector, 80 km)EDS-308-S-SC-80: 1
EDS-308-SS-SC-80: 2
StandardsIEEE 802.3 for 10BaseT
IEEE 802.3u for 100BaseT(X) and 100BaseFX
IEEE 802.3x for flow control
Switch properties
MAC Table Size2 kbits
Packet Buffer Size768 K
Processing TypeStore and Forward
Power Parameters
Input CurrentEDS-308/308-T: 0.07 A @ 24 VDC
EDS-308-M-SC: 0.11 A @ 24 VDC
EDS-308-S-SC/308-S-SC-80: 0.12 A @ 24 VDC
EDS-308-MM-SC/MM-ST/SS-SC/308-SS-SC-80: 0.15 A @ 24 VDC
Connection1 removable 6-contact terminal block(s)
Operating Voltage9.6 to 60 VDC
Input VoltageRedundant dual inputs
12/24/48 VDC
Reverse Polarity ProtectionSupported
Overload Current ProtectionSupported
Physical Characteristics
HousingMetal
IP RatingIP30
Dimensions53.6 x 135 x 105 mm (2.11 x 5.31 x 4.13 in)
Weight790 g (1.75 lb)
InstallationDIN-rail mounting
Wall mounting (with optional kit)
