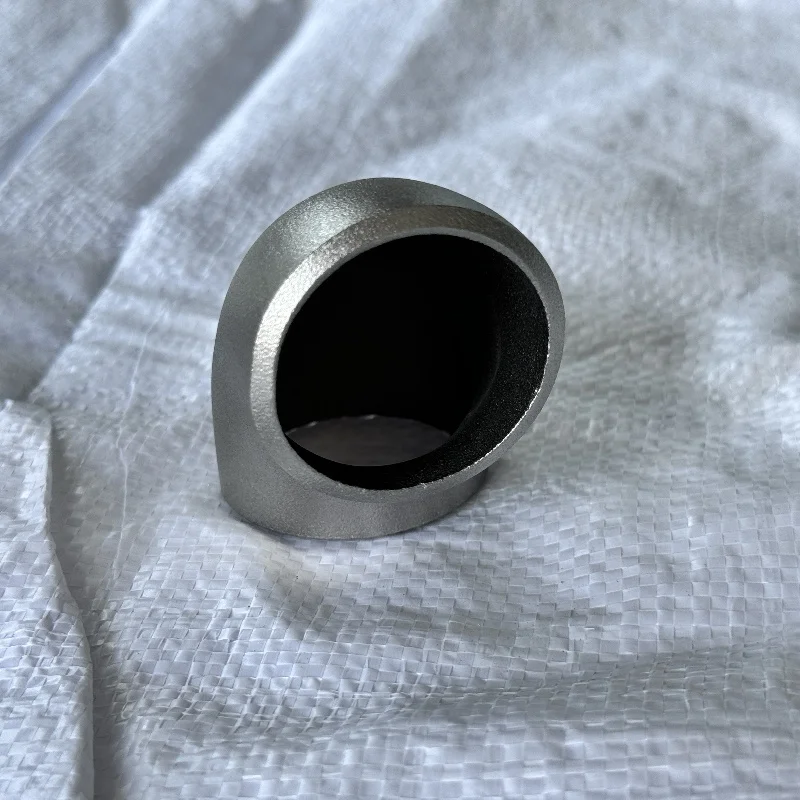

ANSI/ASTM Stainless Steel 30/45/60/90/180 Degree SS Elbow




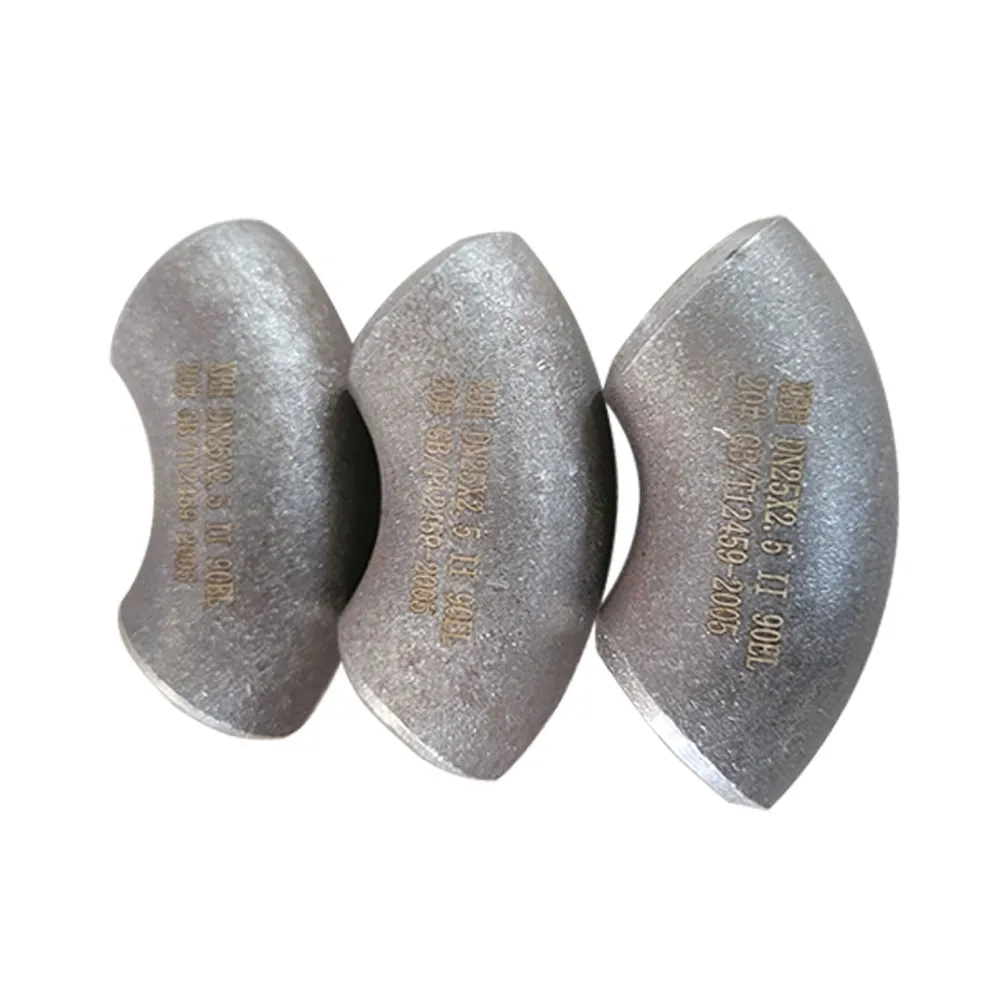

Product Description





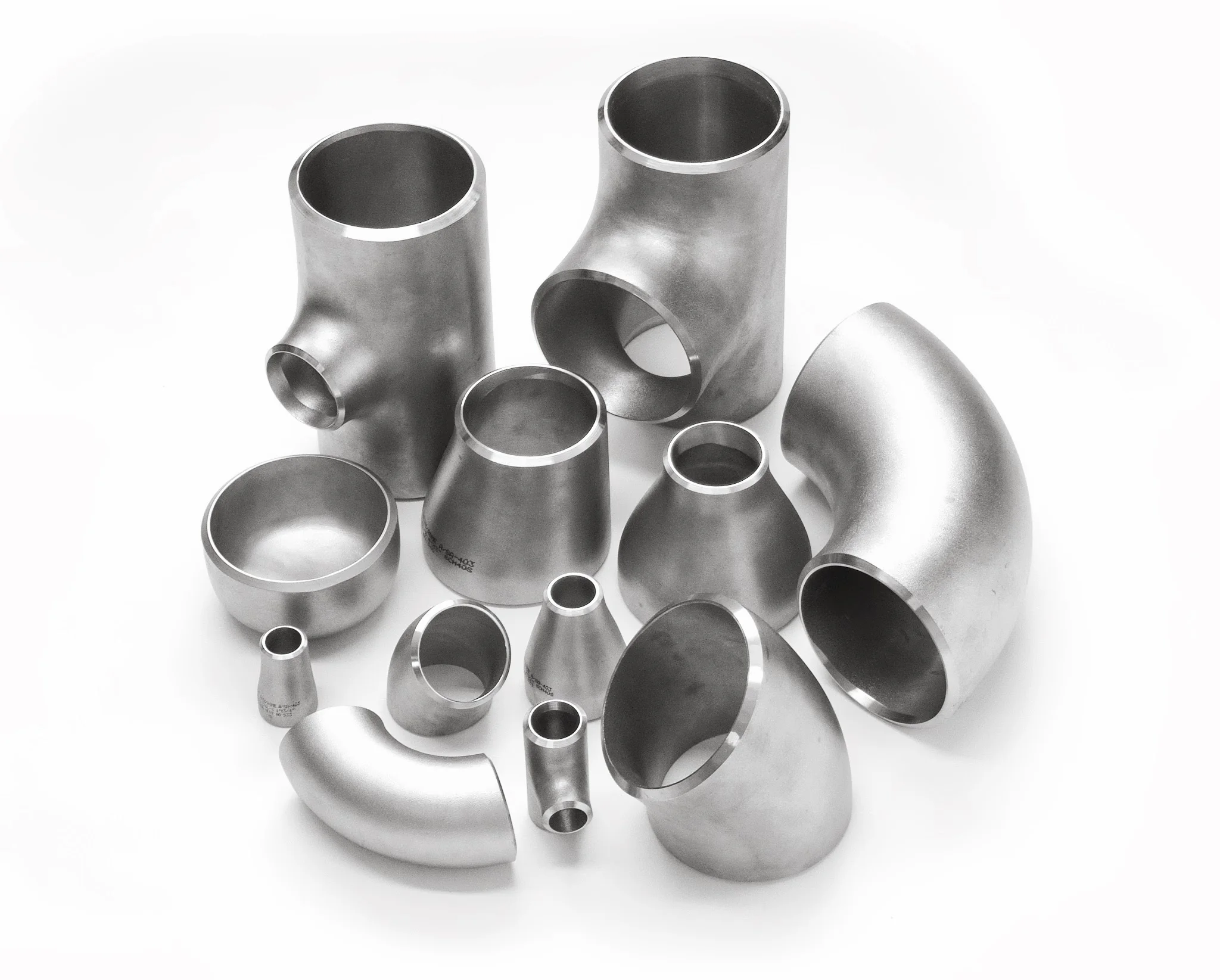

Butt Weld pipe fittings production process
Buttweld Fittings manufacturing process includes a series of steps like Annealing, Straightening, Pickling & Passivation and Polishing.




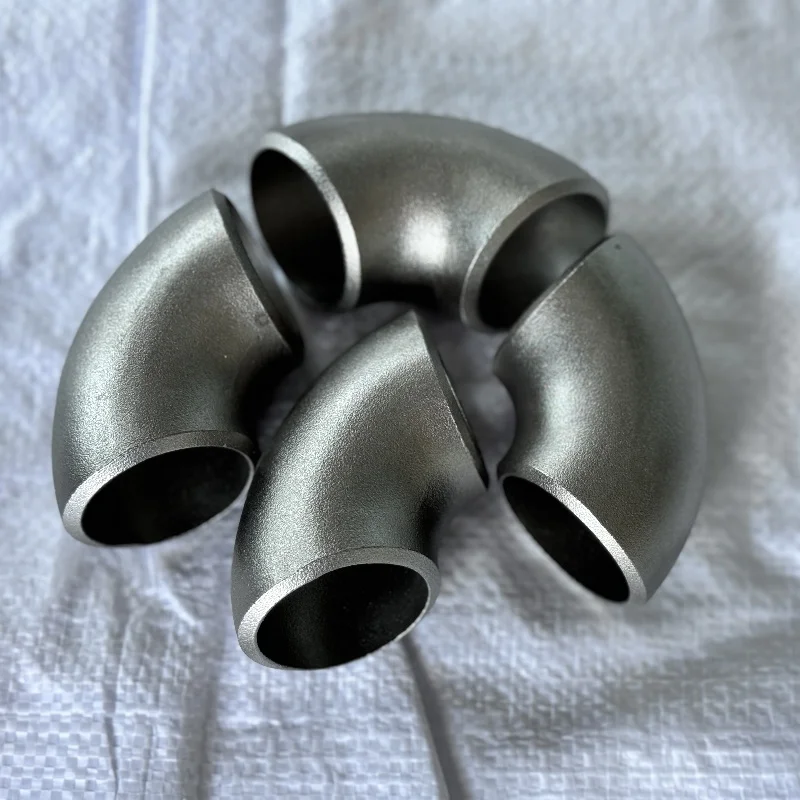

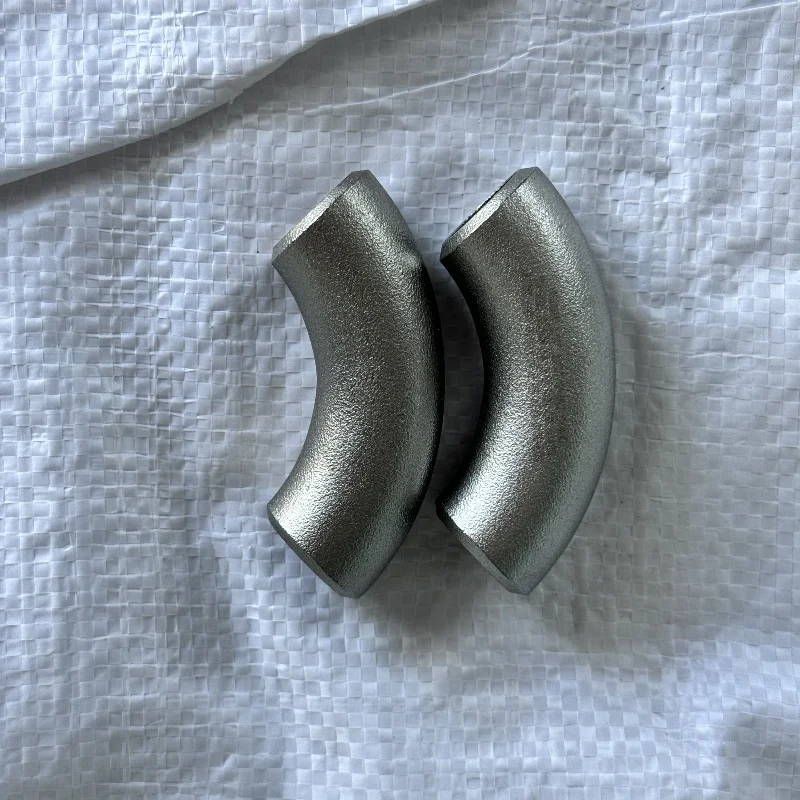

Elbows 45° - 90° - 180° LR/SR
The function of a elbow is to change direction or flow in a piping system. By default, there are 5 opportunities, the 45°, 90° and 180° elbows, all three in the long radius version, and in addition the 90° and 180° elbows both in the short radius version.




NPS
O.D.D
90° LRA
45° LRB
90° 3DA
45° 3DB
1/2
21.3
38
16


3/4
26.7
38
19
57
24
1
33.4
38
22
76
31
1.1/4
42.2
48
25
95
39
1.1/2
48.3
57
29
114
47
2
60.3
76
35
152
63
2.1/2
73
95
44
190
79
3
88.9
114
51
229
95
3.1/2
101.6
133
57
267
111
4
114.3
152
64
305
127
5
141.3
190
79
381
157
6
168.3
229
95
457
189
8
219.1
305
127
610
252
10
273
381
159
762
316
12
323.8
457
190
914
378
14
355.6
533
222
1067
441
16
406.4
610
254
1219
505
18
457
686
286
1372
568
20
508
762
318
1524
632
22
559
838
343
1676
694
24
610
914
381
1829
757
26
660
991
406
1981
821
28
711
1067
438
2134
883
30
762
1143
470
2286
946
32
813
1219
502
2438
1010
34
864
1295
533
2591
1073
36
914
1372
565
2743
1135
38
965
1448
600
2896
1200
40
1016
1524
632
3048
1264
42
1067
1600
660
3200
1326
44
1118
1676
695
3353
1389
46
1168
1753
727
3505
1453
48
1219
1829
759
3658
1516

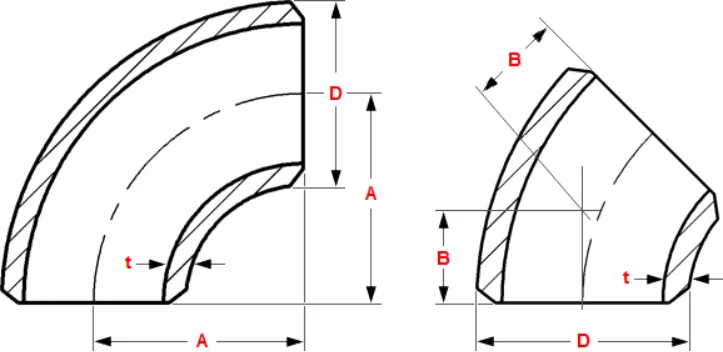

Dimensions are in millimeters unless otherwise indicated. Wall thickness (t) must be specified by customer. A & B are Center to End dimensions


Dimensional Tolerances of Butt Weld Elbows
45° & 90° LR & 3D ASME B16.9


Nominal Pipe Size
1/2 to 2.1/2
3 to 3.1/2
4
5 to 8
Outside Diameter
at Bevel (D)
+ 1.6
- 0.8
1.6
1.6
+ 2.4
- 1.6
Inside Diameter at End
0.8
1.6
1.6
1.6
Center to End LR (A/B)
2
2
2
2
Center to End 3D (A/B)
3
3
3
3
Nominal Pipe Size
10 to 18
20 to 24
26 to 30
32 to 48
Outside Diameter
at Bevel (D)
+ 4
- 3.2
+ 6.4
- 4.8
+ 6.4
- 4.8
+ 6.4
- 4.8
Inside Diameter at End
3.2
4.8
+ 6.4
- 4.8
+ 6.4
- 4.8
Center to End LR (A/B)
2
2
3
5
Center to End 3D (A/B)
3
3
6
6
Wall Thickness (t)
Not less than 87.5% of Nominal Wall Thickness


Dimensional tolerances are in millimeters unless otherwise indicated and are equal ± except as noted.


Steel Elbows Manufacturing Standards


ASME B16.9
ASME B16.28
ASME B16.49
MSS SP43
Mss SP75


Note..
MSS SP-43 only covers stainless steel buttweld fittings made for use with Schedule 5S and 10S pipe and Stub Ends suitable for use with Schedule 40S pipe, as defined in ASME B36.19. The dimensions and dimensional tolerances defined in MSS SP-43 are substantially the same as those in ASME B16.9 specifications from NPS 1/2 - NPS 24. Except with regard to the outside diameter at the bevel.


Steel Elbows Material Grades






Nickel Alloy
ASTM/ASME SB366 Alloy 200/UNS N02200, Alloy 800HT/Incoloy 800HT/UNS N08811, Alloy 400/Monel 400/UNS N04400, F904L/UNS N08904,
Alloy 800/Incoloy 800/UNS N08800, Alloy C-2000/UNS N06200, Alloy 925/Incoloy 925/UNS N09925, Alloy C-22/UNS N06022, Alloy 201/UNS
N02201, Alloy C-276/Hastelloy C-276/UNS N10276, Alloy 625/UNS N06625, Nimonic 80A/Nickel Alloy 80A/UNS N07080, Alloy K-500/Monel
K-500, Alloy 20/UNS N08020, Alloy 800H/Incoloy 800H/UNS N08810,Alloy 600/Inconel 600/UNS N06600, Alloy 31/UNS N08031,Hastelloy
C-276/UNS N10276, Alloy 825/Incoloy 825/UNS N08825,Alloy 20/N08020
Duplex and Super Duplex Steel
ASTM/ASME SA 815 WPS31803, WPS32205, WPS32750, WPS32760, WPS32550

Stainless Steel
ASTM/ASME SA403 WP 304, WP 304L, WP 304H, WP 304LN, WP 304N, ASTM/ASME A403 WP 316, WP 316L, WP 316H, WP 316LN, WP 316N, WP 316Ti,
ASTM/ASME A403 WP 321, WP 321H ASTM/ASME A403 WP 347, WP 347H
Carbon Steel
ASTM/ASME SA234 WPB
Low Temp Carbon Steel
ASTM/ASME SA420 WPL3-WPL6
Low Alloy Steel
ASTM/ASME SA 234 WP9, WP91, WP11, WP22
