Product Overview
Description
Product details
Save raw materials
No filter media, using the centrifugal force generated by tangential and axial air intake for dust removal
High dust removal rate
The height of the conical section is chosen to be the golden ratio, which reduces the possibility of dusty gas short cutting from the center of the to the outlet, and a conical reflector is installed to prevent the secondary airflow from re-entraining the separated dust.
small floor area
The cyclone dust collector has a simple structure, no moving parts in the body, no need for ancillary equipment, occupies a small area, has a low investment in manufacturing and installation.
Energy saving and low consumption
It adopts powerful energy-saving fans, which are more power-efficient than ordinary devices.[]]

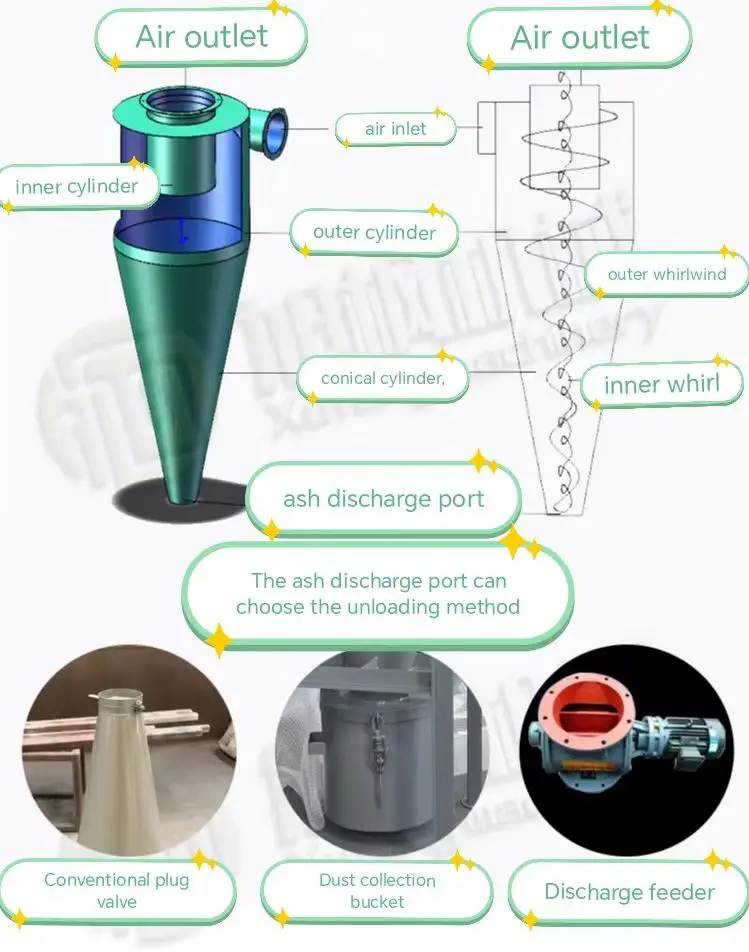

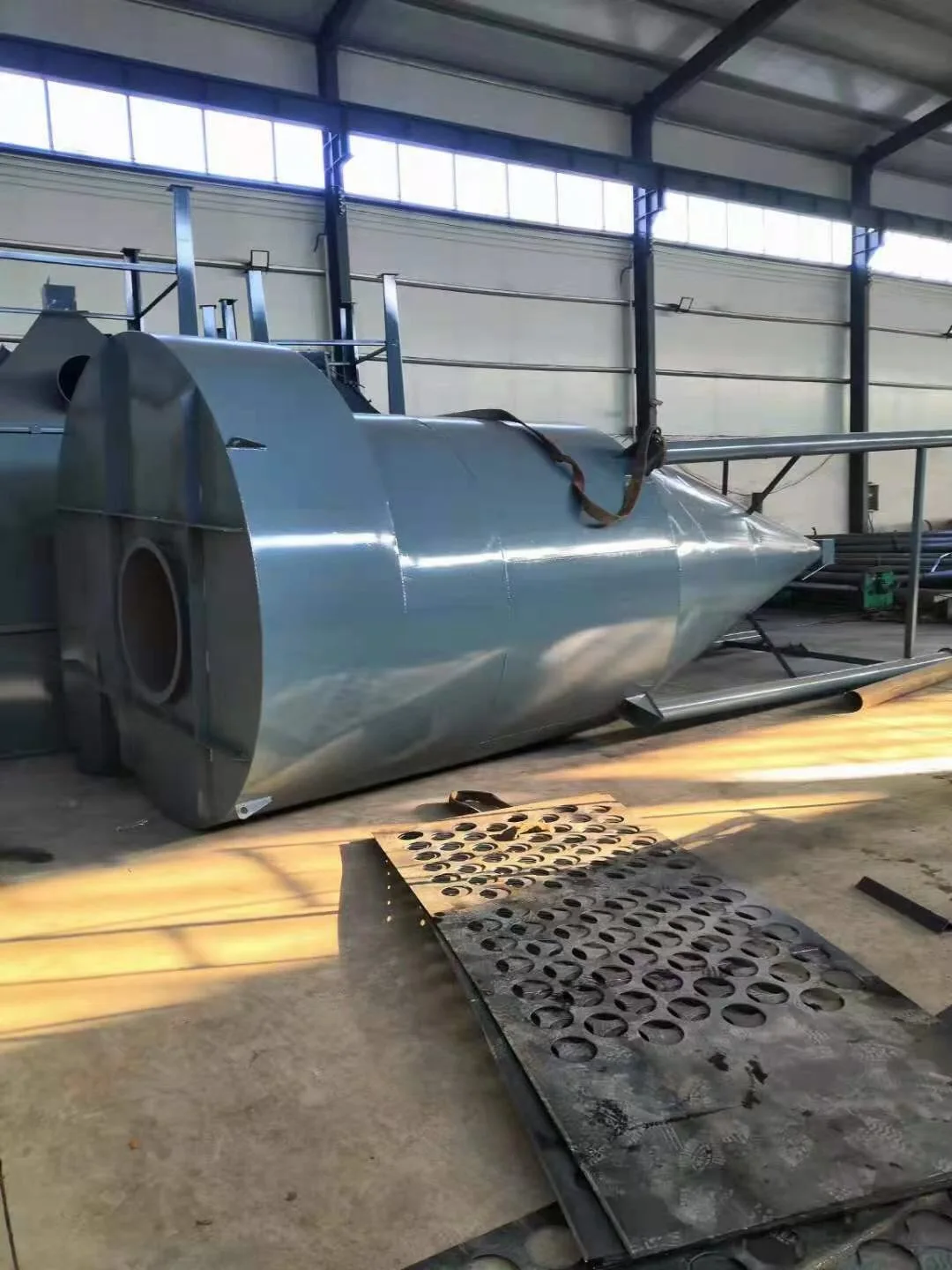

Working principle of cyclone dust collector: The dusty gas enters from the inlet with a high speed of 14-24 meters second. It is restricted by the upper cover of the outer cylinder and the ratio of the inner cylinder, forcing the gas to move in a downward rotation. This is called the outer vortex. During the rotation of the gas, a large centrifugal force is formed. Under the action
of the centrifugal force, the dust particles gradually thrown to the outer wall and, under the action of gravity, rotate down along the outer wall of the cyclone dust collector, eventually entering the ash storage. As the outer vortex rotates and descends, it is affected by the contraction of the cone, gradually moving towards the center, and at a certain point, rises, forming an inner vortex. The inner vortex does not contain large particles, so it is very clean and can be discharged into the atmosphere.
of the centrifugal force, the dust particles gradually thrown to the outer wall and, under the action of gravity, rotate down along the outer wall of the cyclone dust collector, eventually entering the ash storage. As the outer vortex rotates and descends, it is affected by the contraction of the cone, gradually moving towards the center, and at a certain point, rises, forming an inner vortex. The inner vortex does not contain large particles, so it is very clean and can be discharged into the atmosphere.
Model | diameter | air volume | height | discharge port size |
xf-300 | 300 | 1000 | 860 | 100 |
xf-400 | 400 | 2000 | 1140 | 120 |
xf-500 | 500 | 3200 | 1440 | 150 |
xf-600 | 600 | 4600 | 1690 | 200 |
xf-700 | 700 | 6000 | 1900 | 250 |
xf-800 | 800 | 8200 | 2230 | 300 |

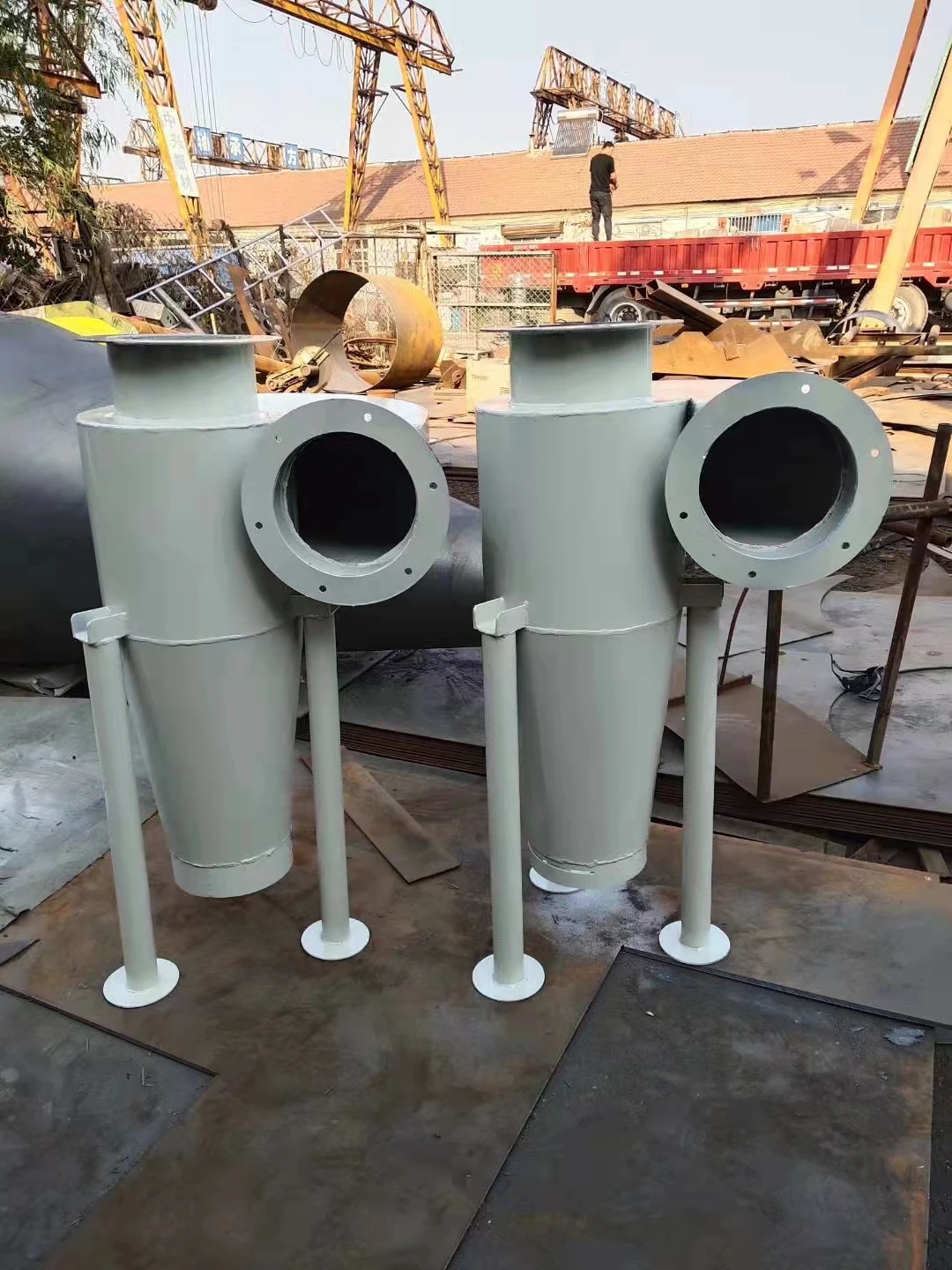

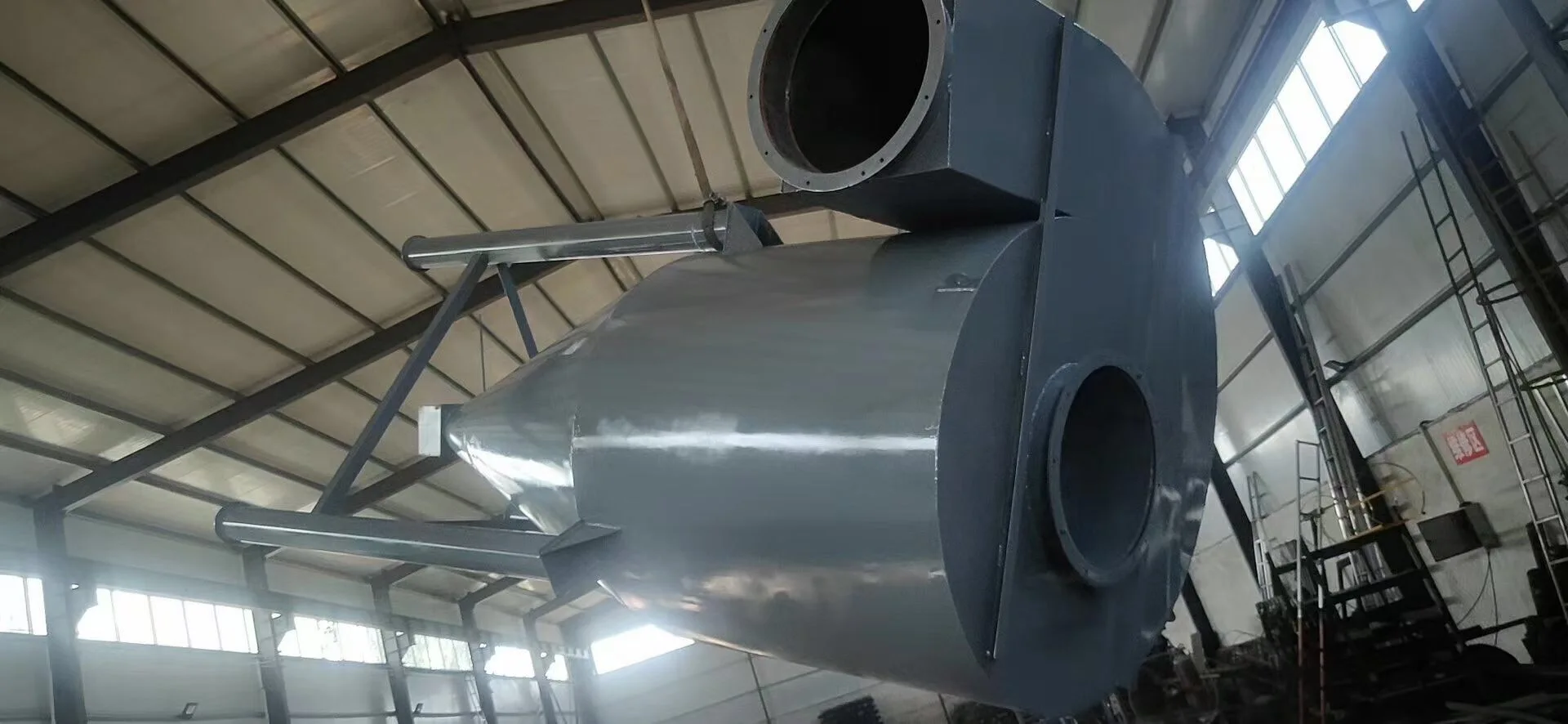

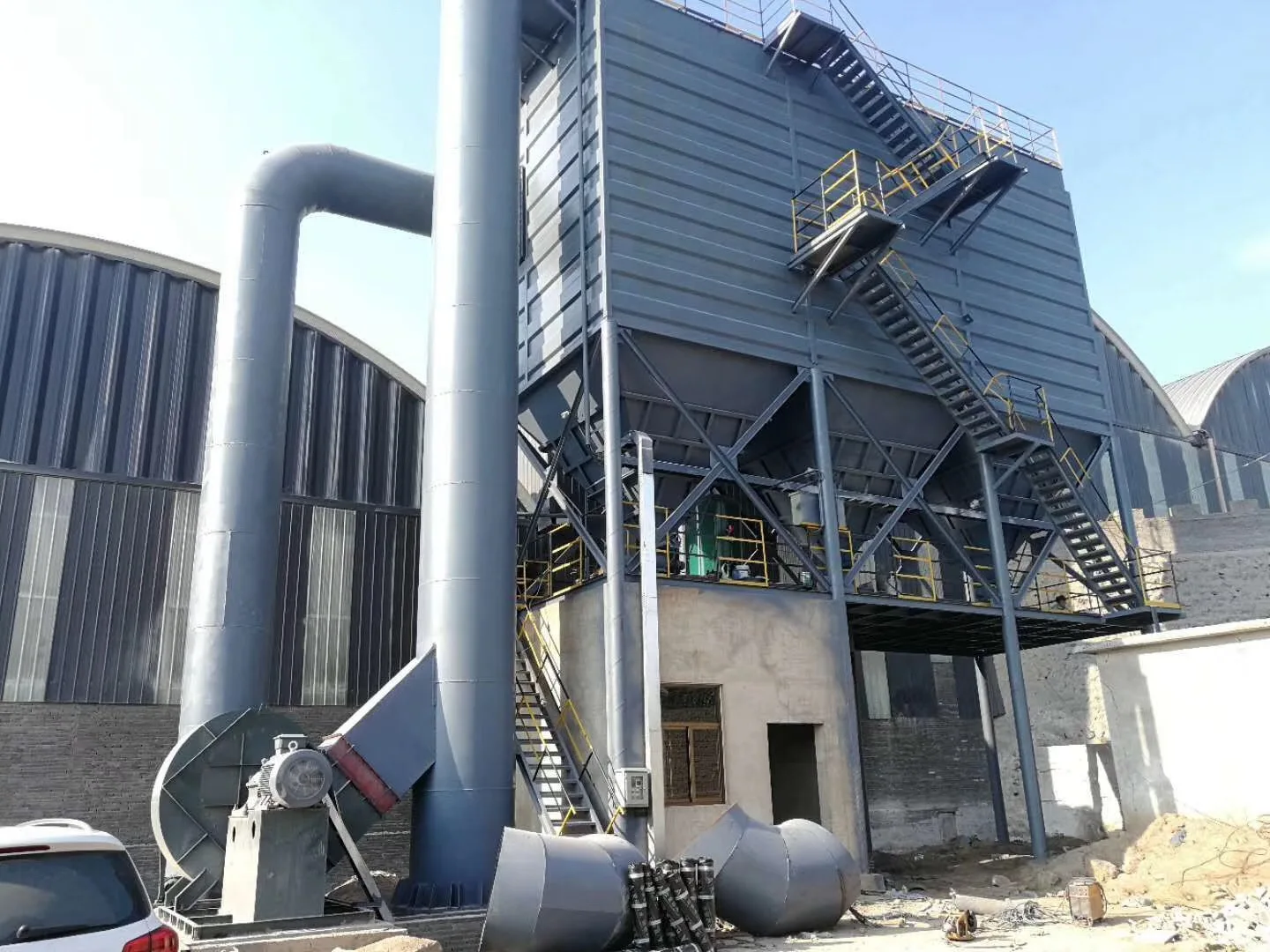

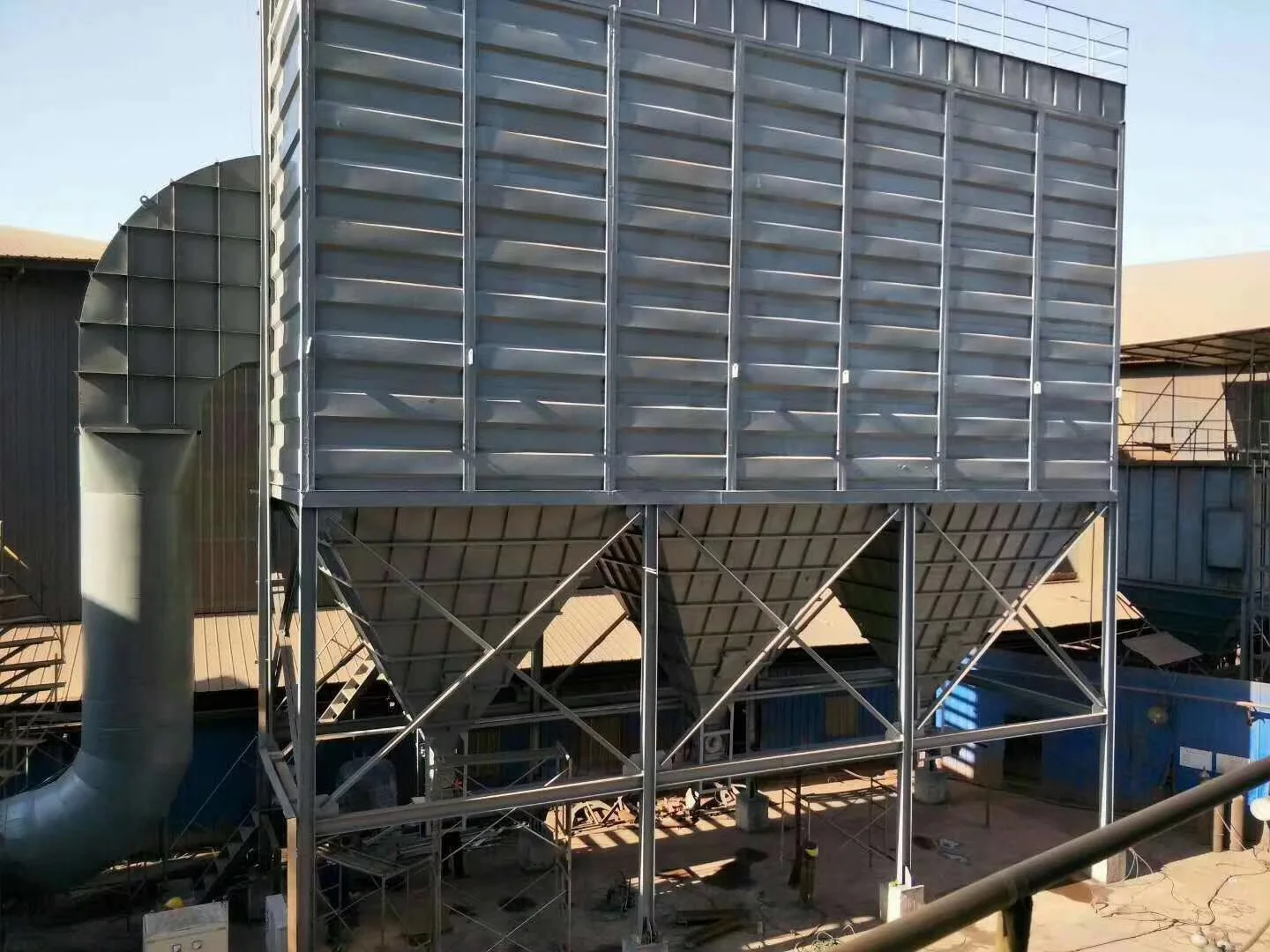

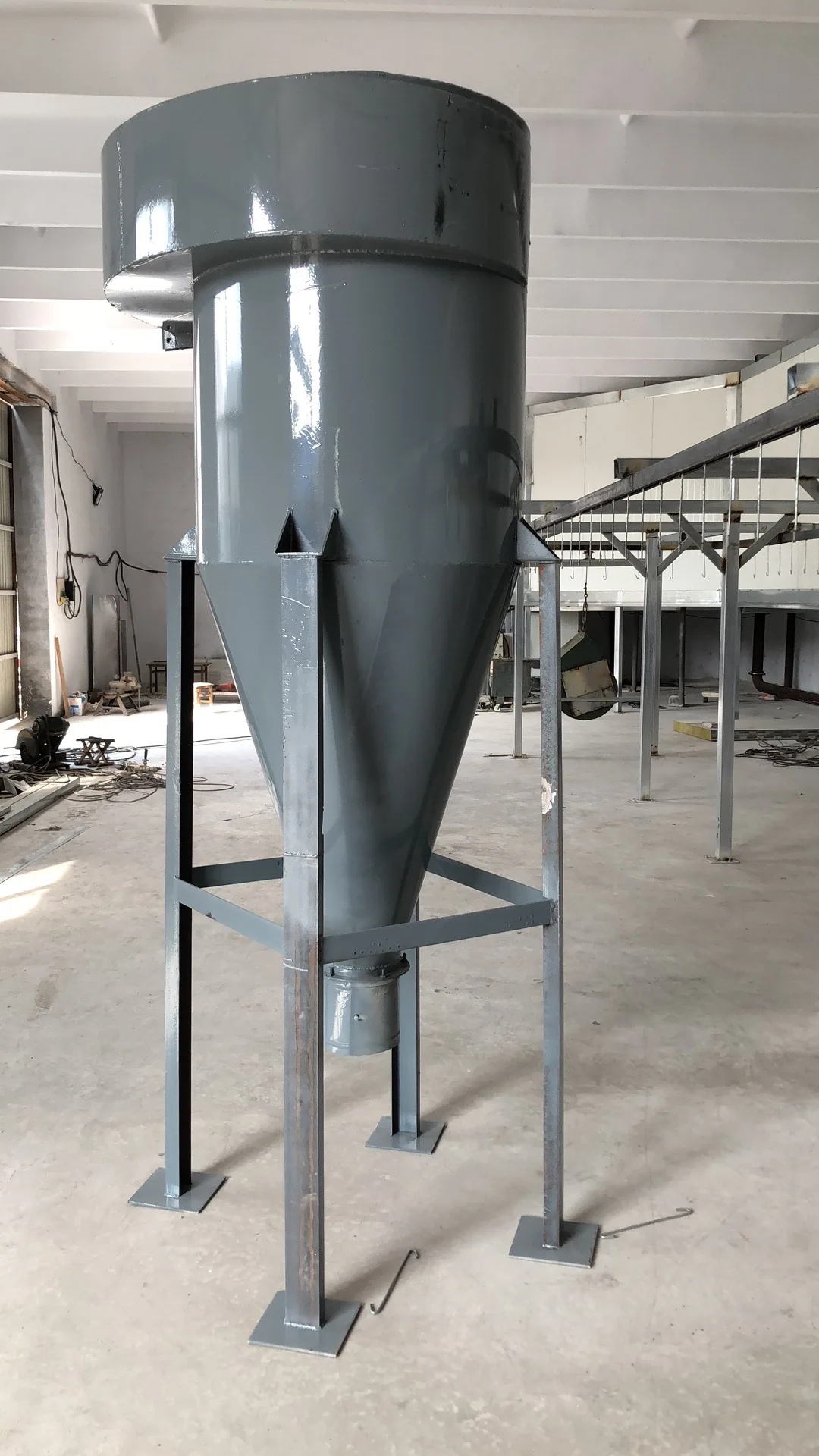

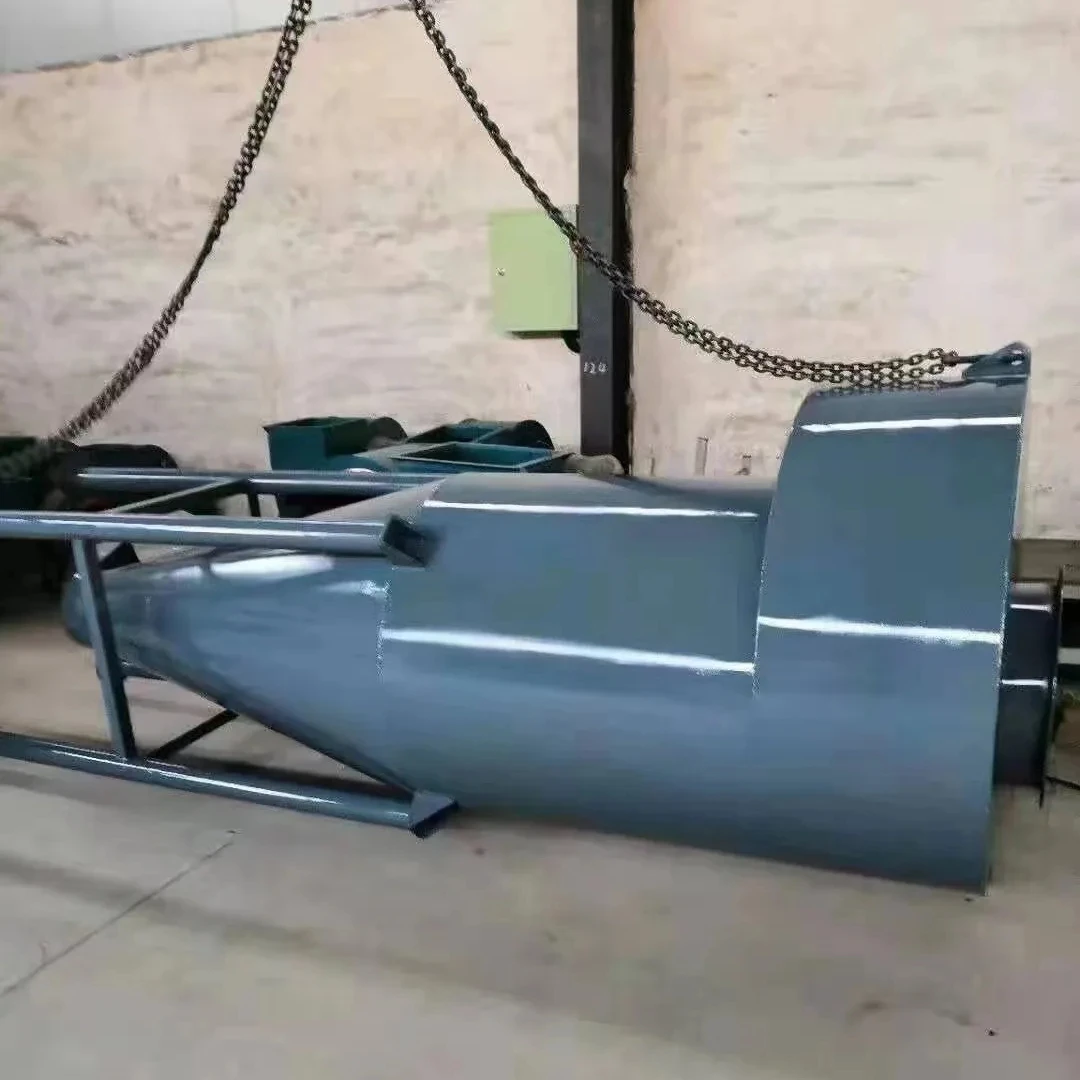

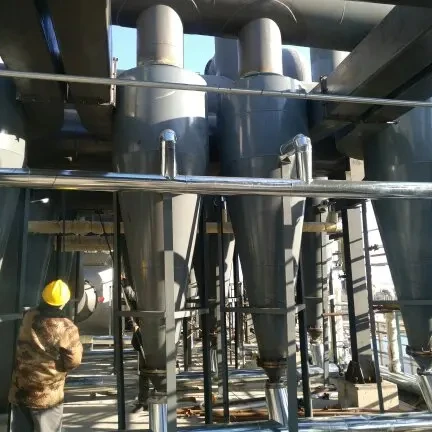

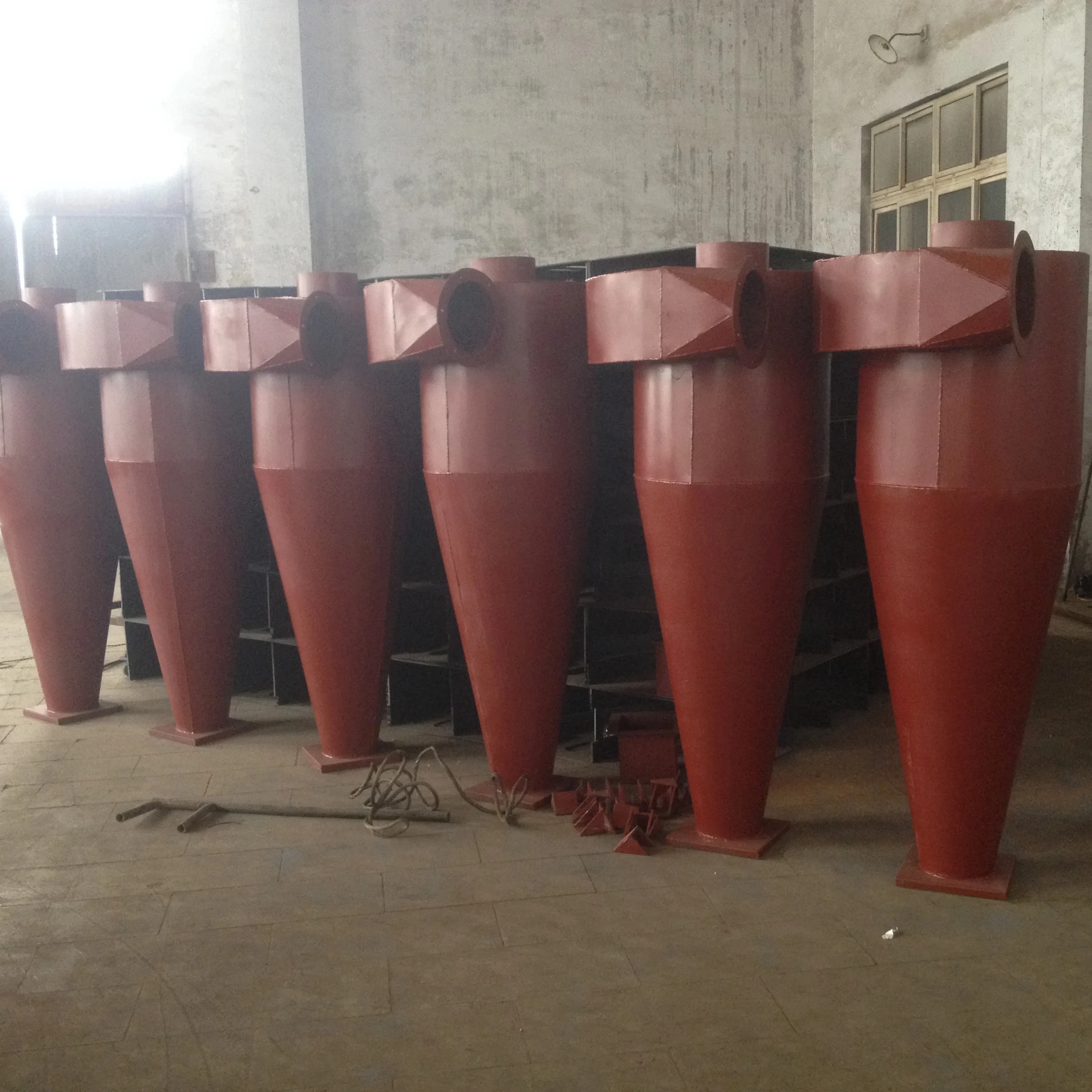

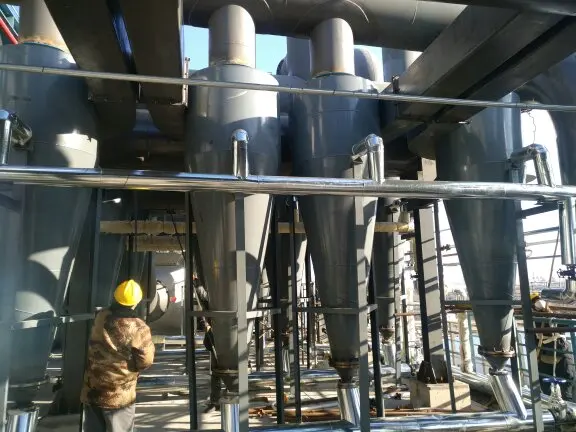

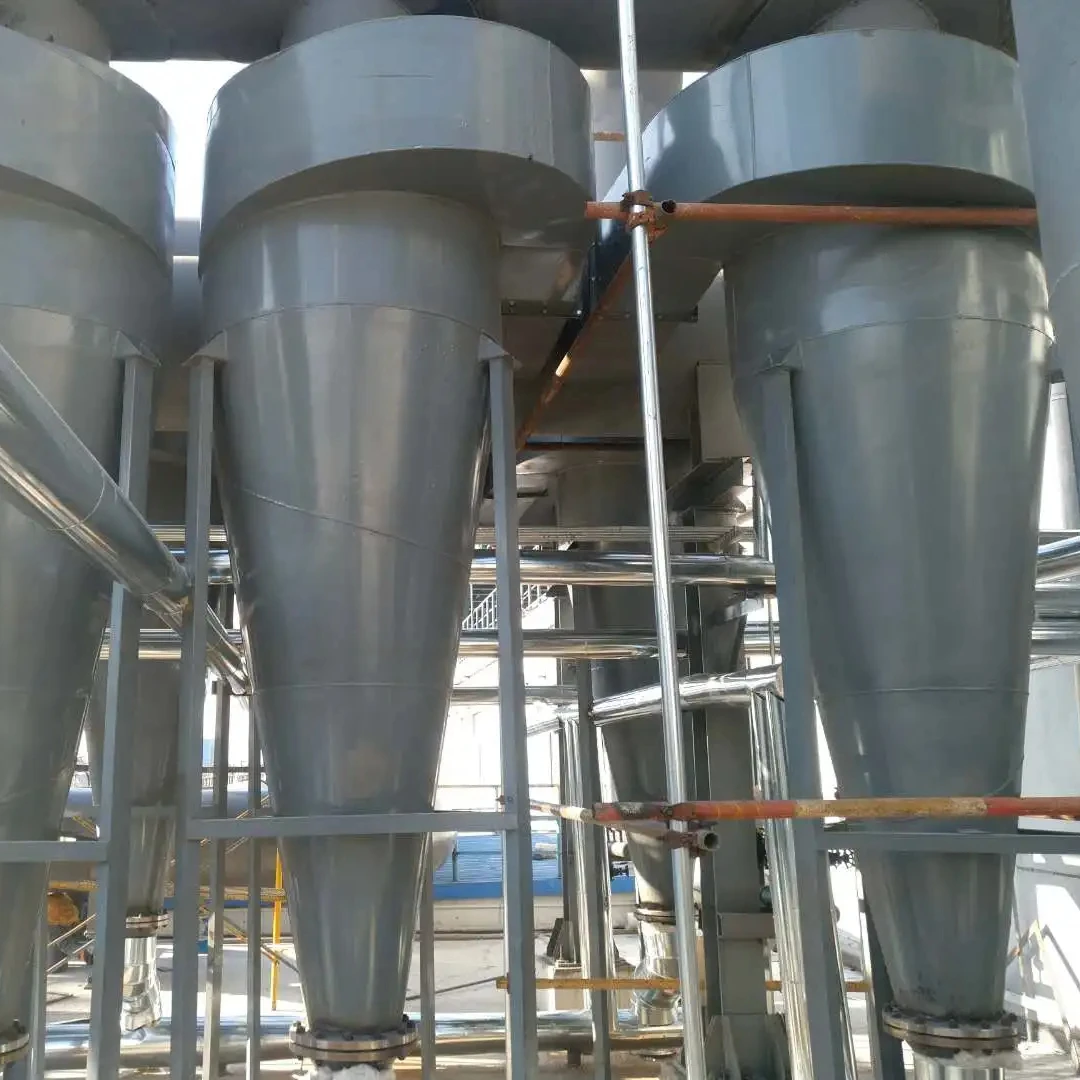

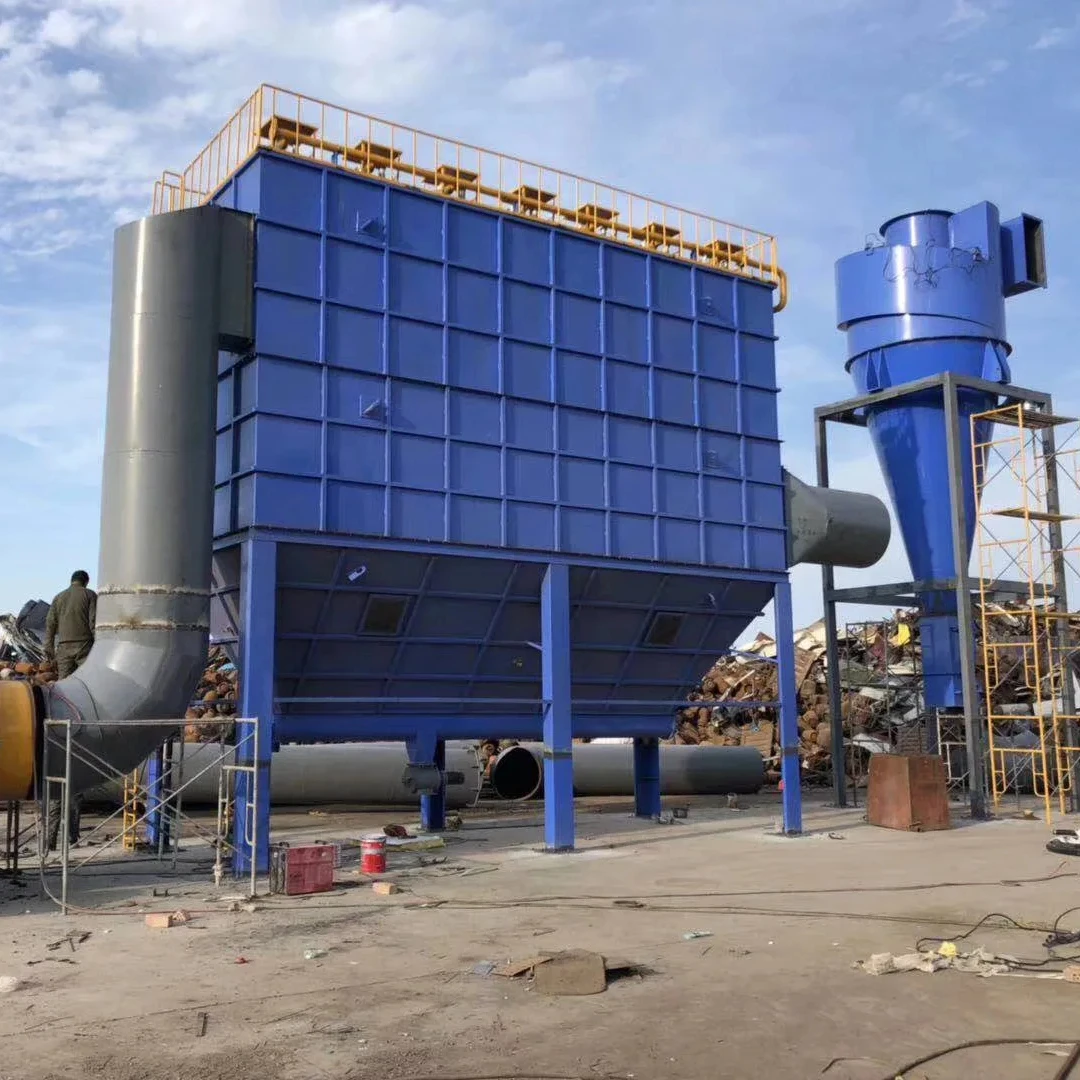

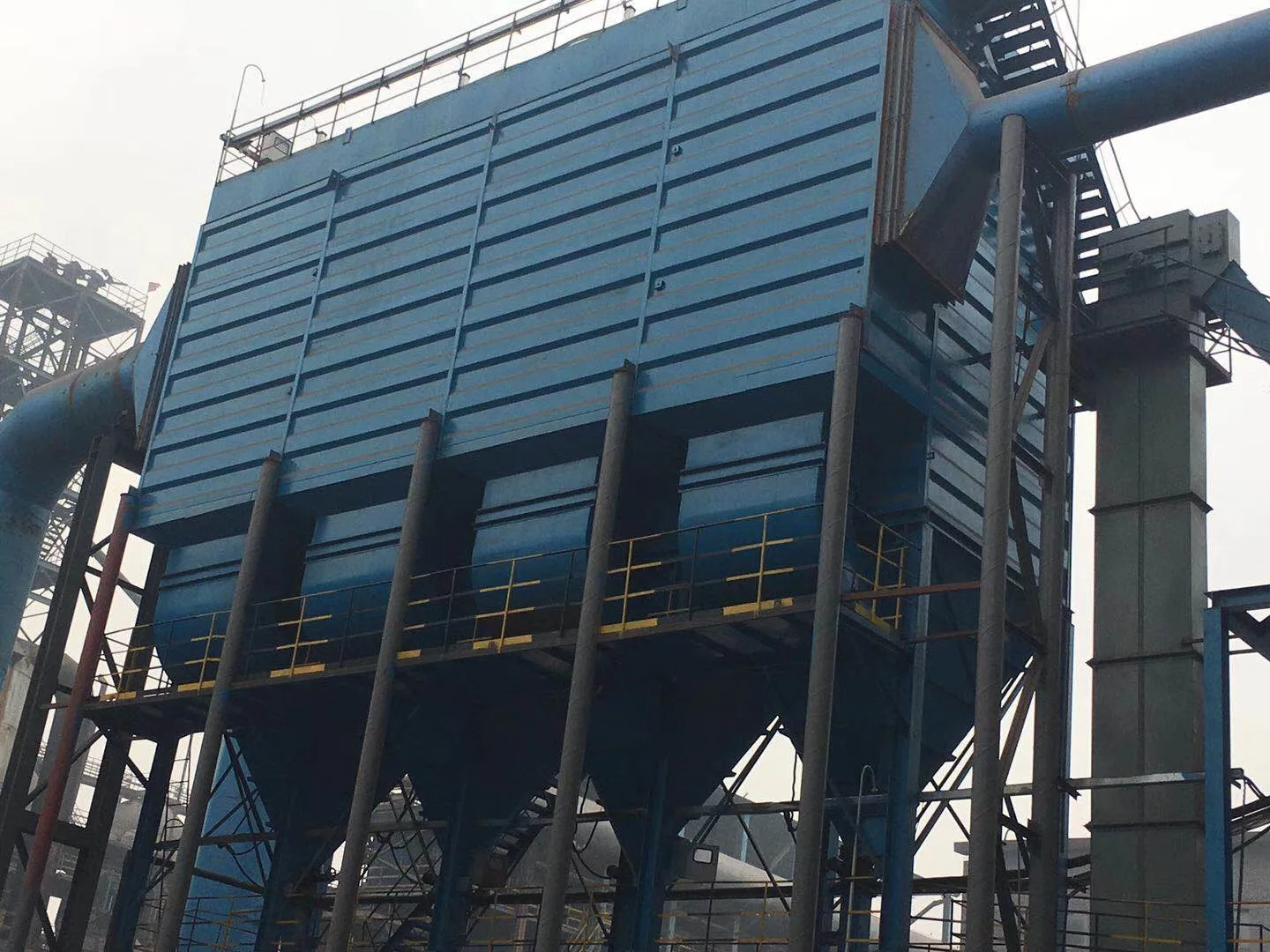

Product Exhibition
We have 15 years of experience in production and installation, and have successfully served thousands of enterprises, ensuring quality and at the same time, the price is quite favorable!
Common
Questions 1. Are you a factory and trading company?
Ans: We are a real factory with 14 of production experience and have exported products to many countries.
Question 2. What are your payment terms?
Ans: T/T 50% as a deposit 50% before delivery. We will show you the photos of the products and packaging before you pay the balance.
Question 3. Can you recommend suitable type for me?
Ans: Of course, once you provide me with the keywords. We will choose the most appropriate size to meet your needs. Question4.How is your delivery time?
Ans: Generally, it takes 7-30 days after we receive your prepayment. The specific delivery time depends the product, mode of transportation, and order quantity.
Question 5. Can you produce according to samples?
Ans: Yes, we can produce according to samples or technical drawings. We can manufacture molds and fixtures.
Question 6. Do you test all goods before delivery?
Ans: Yes, we conduct 00% testing before delivery.
Question 7: How do you maintain a long-term good relationship with our business?
Ans: 1. We maintain quality and competitive prices to ensure our customers benefit; 2. We respect every
customer, treating them like our friends. We do business and make friends sincerely, no where they come from.
customer, treating them like our friends. We do business and make friends sincerely, no where they come from.
