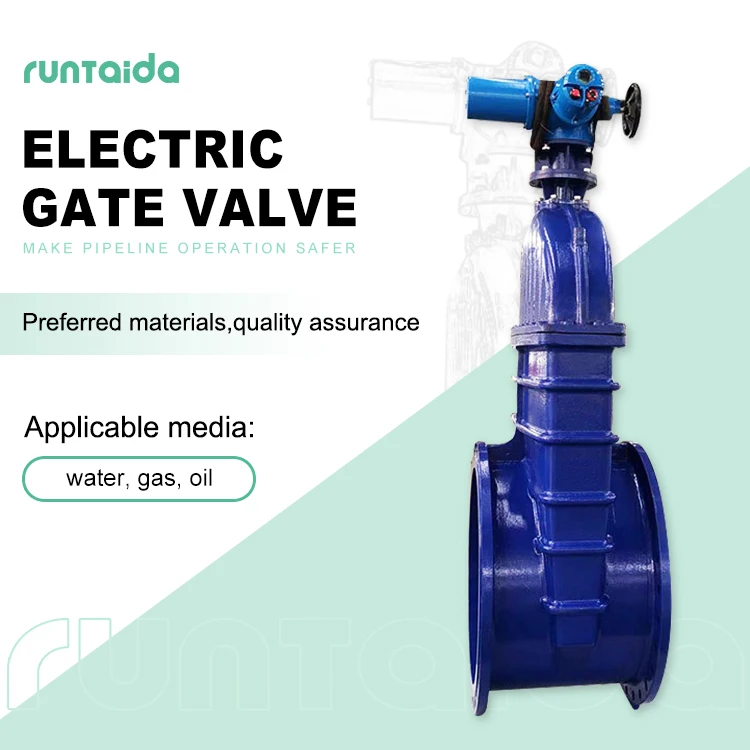

DN250 12v dc ductile iron motorized flanged electric actuator gate valve
- Category: >>>
- Supplier: Gongyi Runda Pipeline Manufacturing Co. Ltd.Gongyi Ltd.
Share on (1601364442433):
Product Overview
Description
Why Choose us
Gongyi Runda Pipeline Manufacturing Co., Ltd.
Our mission:Make the pipeline operation safer.
Our values:Quality first, service first, integrity and responsibility,Loyal to the goal, efficient execution, trust and cooperation.
The main products:bellows seal globe valve, check valve,butterfly valve,gate valve,ball valve,rubber expansion joint,repair clamp,bellow expansion joint,flexible metal hose,etc.
Our mission:Make the pipeline operation safer.
Our values:Quality first, service first, integrity and responsibility,Loyal to the goal, efficient execution, trust and cooperation.
The main products:bellows seal globe valve, check valve,butterfly valve,gate valve,ball valve,rubber expansion joint,repair clamp,bellow expansion joint,flexible metal hose,etc.
We have free samples, if you need, you can contact us on alibaba.com！
Production Introduction
Name | DN250 12v dc ductile iron motorized flanged electric actuator gate valve |
Size | DN50-DN600 |
Body | Ductile iron |
Nominal pressure | 1.0～2.5MPa |
Working temperature | 0～120℃ |
Applicable medium | water, oil, gas, etc. |
Flange standard | GB/T17241.6 GB9113 |
Test standard | GB/T13927 API598 |
Application | Municipal construction, water supply and drainage, water treatment,etc. |
Product parameter

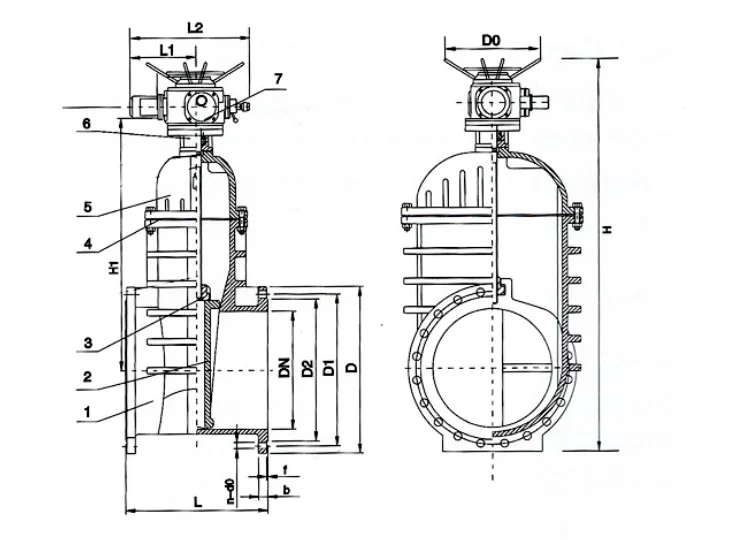

ITEM | PART NAME | MATERIAL |
1 | Valve Body | Cast iron, ductile iron, cast steel |
2 | Gate slide | Ductile iron covered with EPDM or NBR |
3 | Valve Stem | Stainless Steel |
4 | Sealing ring | EPDM or NBR |
5 | Valve Bonnet | Cast iron, ductile iron, cast steel |
6 | Bracket | Cast iron, ductile iron, cast steel |
7 | Electric head | Cast iron, aluminum alloy |
DN | L | D | D0 | D1 | b | f | H | z×Φd |
50 | 178 | 165 | 125 | 99 | 20 | 3 | 732 | 4×Φ19 |
65 | 190 | 185 | 145 | 118 | 20 | 3 | 773 | 4×Φ19 |
80 | 203 | 200 | 160 | 132 | 22 | 3 | 820 | 8×Φ19 |
100 | 229 | 220 | 180 | 156 | 24 | 3 | 870 | 8×Φ19 |
125 | 254 | 250 | 210 | 184 | 26 | 3 | 915 | 8×Φ19 |
150 | 267 | 285 | 240 | 211 | 26 | 3 | 1003 | 8×Φ23 |
200 | 229 | 340 | 295 | 266 | 26 | 3 | 1110 | 8×Φ23 |
250 | 330 | 395 | 350 | 319 | 28 | 3 | 1263 | 12×Φ23 |
300 | 356 | 445 | 400 | 370 | 28 | 4 | 1360 | 12×Φ23 |
350 | 381 | 505 | 460 | 429 | 30 | 4 | 1550 | 16×Φ23 |
400 | 406 | 565 | 515 | 480 | 32 | 4 | 1610 | 16×Φ28 |
450 | 432 | 615 | 565 | 530 | 32 | 4 | 1900 | 20×Φ28 |
500 | 457 | 670 | 620 | 582 | 34 | 4 | 1938 | 20×Φ28 |
600 | 508 | 780 | 725 | 682 | 36 | 5 | 2120 | 20×Φ31 |
Datas above are only for reference, If you want to know more details of our products,pls contact us on alibaba.com!
Product application cases
Installation instructions
1.Notice of water stop shall be issued before construction.
2.The water in the road should be avoided in the front row of construction.
3.Electricity for construction must be guaranteed.
4.It is strictly prohibited to use hand wheel, handle and transmission mechanism for hoisting and collision is strictly prohibited.
5.Lubricate the valve at least once a month if it is in frequent use.
1.Notice of water stop shall be issued before construction.
2.The water in the road should be avoided in the front row of construction.
3.Electricity for construction must be guaranteed.
4.It is strictly prohibited to use hand wheel, handle and transmission mechanism for hoisting and collision is strictly prohibited.
5.Lubricate the valve at least once a month if it is in frequent use.
Company Information

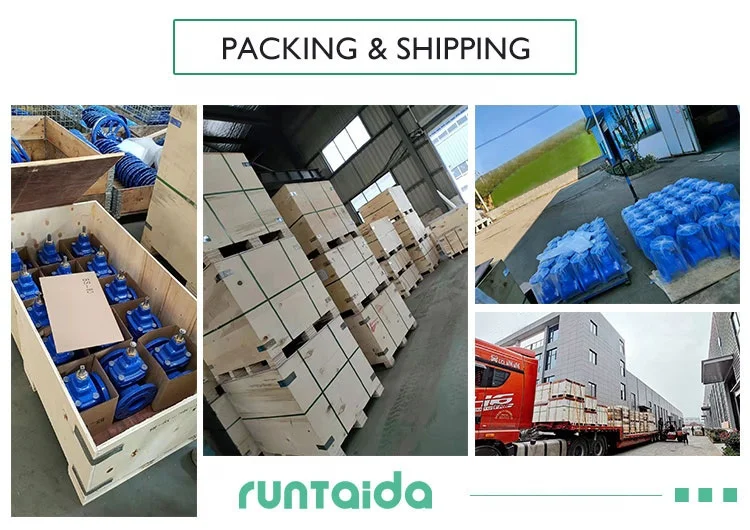

Packing & delivery
Packaging
Inside:Plastic film packaging.
Outside:Export wooden cases.
Shipping
1.Fed Ex/DHL/UPS/TNT for sample.Door-to-Door.
2.By Air or By Sea for batch goods for LCL/FCL;Airport /Port receiving.
3.Customers specified freight forwarders or negotiable shipping methods!
4.Delivery Time: a.in stock:immediately b.sample:2 days c.OEM/ODM:3-15 DAYS.
About packing and shipping,do you have special needs.pls contact us now!
FAQ
Q:Can you make the product as per client's requirement?
A:Yes, we can make it with your exact requirement.
Q:What are your payment terms?
A:T/T (30% as deposit, the rest 70% will be paid before delivery), L/C at sight.
Q:Where is your nearest loading port?
A:Shanghai, Qingdao or Tianjin, China.
Q:How can you guarantee the quality or any warranty?
A:If any quality problems during use, all the products can be returned or according to consumer's requests.
Q:Do you accept small quantity order?
A:Of course we do.
Q:And what is your shipment and delivery time?
A:By sea or air. Normally 7 to 14 Days for delivery, according to your order quantity.
Give us a trust, we will not let you down, welcome to inquire and place an order.
A:Yes, we can make it with your exact requirement.
Q:What are your payment terms?
A:T/T (30% as deposit, the rest 70% will be paid before delivery), L/C at sight.
Q:Where is your nearest loading port?
A:Shanghai, Qingdao or Tianjin, China.
Q:How can you guarantee the quality or any warranty?
A:If any quality problems during use, all the products can be returned or according to consumer's requests.
Q:Do you accept small quantity order?
A:Of course we do.
Q:And what is your shipment and delivery time?
A:By sea or air. Normally 7 to 14 Days for delivery, according to your order quantity.
Give us a trust, we will not let you down, welcome to inquire and place an order.
