Hammer Type Double Stage Crusher Motor Double Crusher Working
- Category: >>>
- Supplier: Henan Huansheng Mechanical Equipment Co. Ltd.Henan Ltd.
Share on (1601364550597):
Product Overview
Description
Products Description

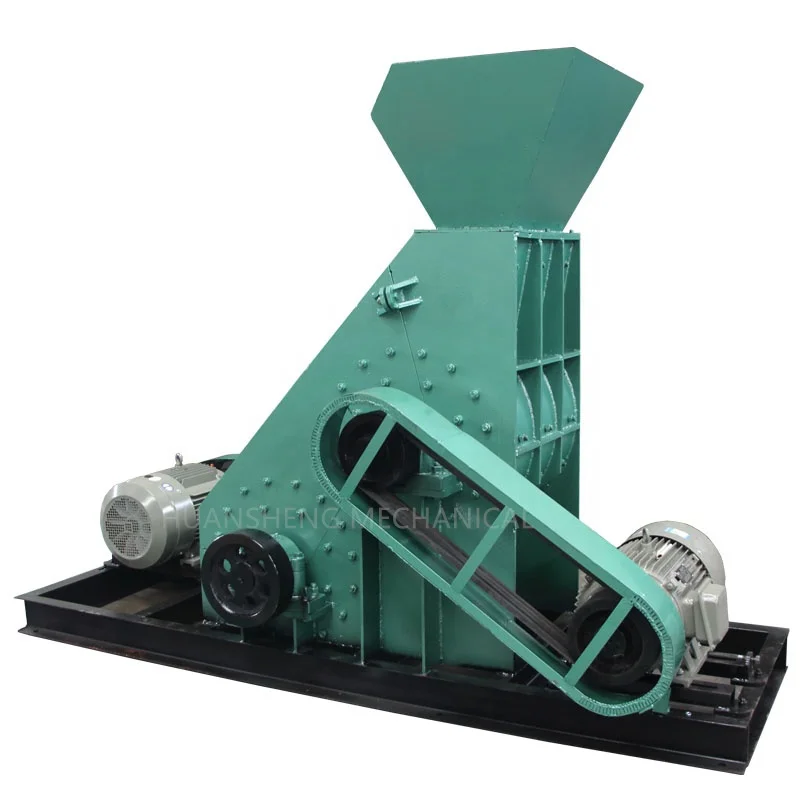

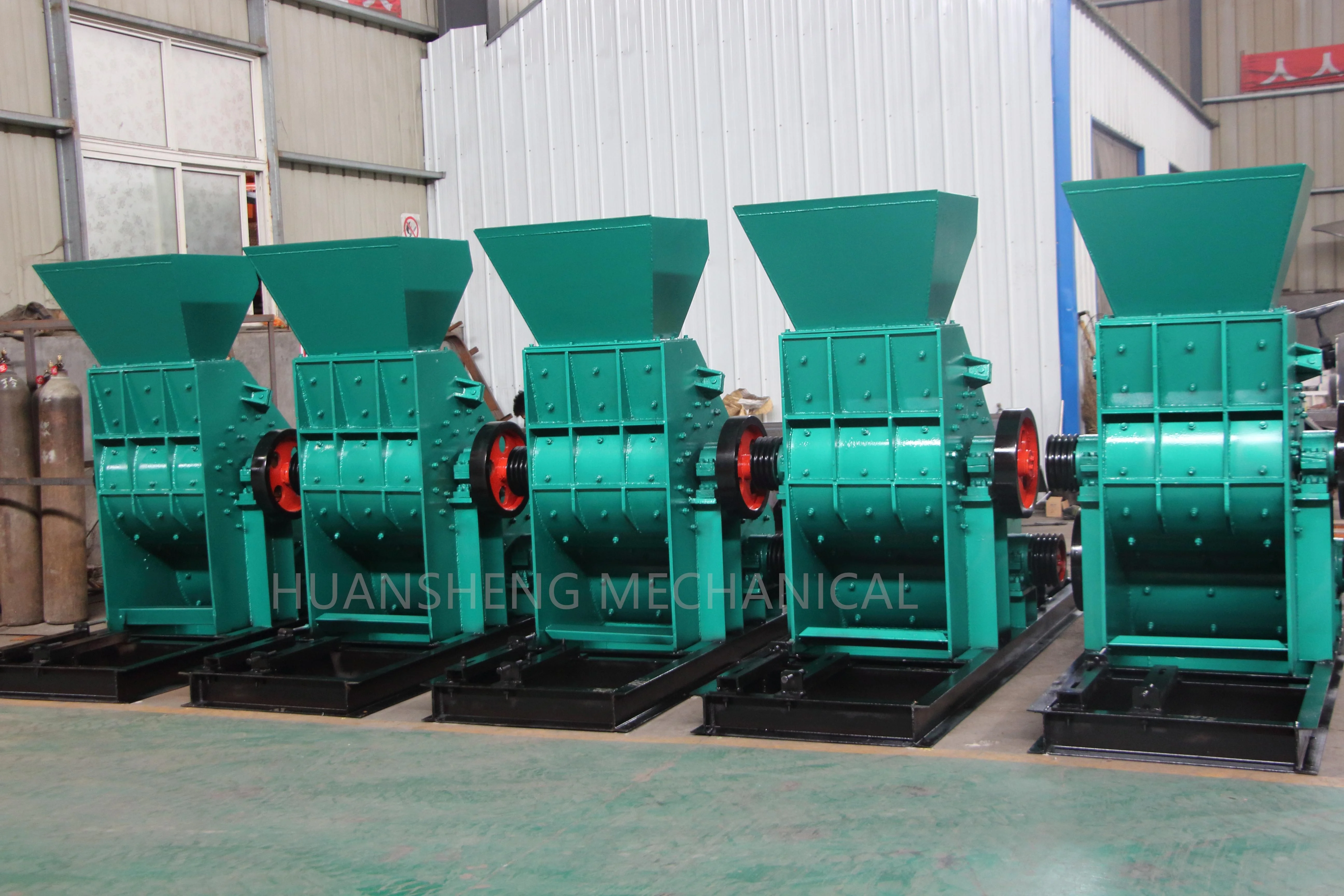

Hammer Type Double Stage Crusher Motor Double Crusher Working
The two-stage crusher also called the coal pulverizing mill is a new type of patent product for utility models which can easily
break materials with high moisture content such as gangue, shale and coal cinder etc. Two-stage crusher is used in the industriessuch as construction, chemical engineering, metallurgy, mine, ceramics and refractory matter. The two-stage crusher can be
regarded as the combination of two hammer crushers. It adopts two sets of rotors to work together.
2. Working Principle of Two Stage Hammer Crusher:

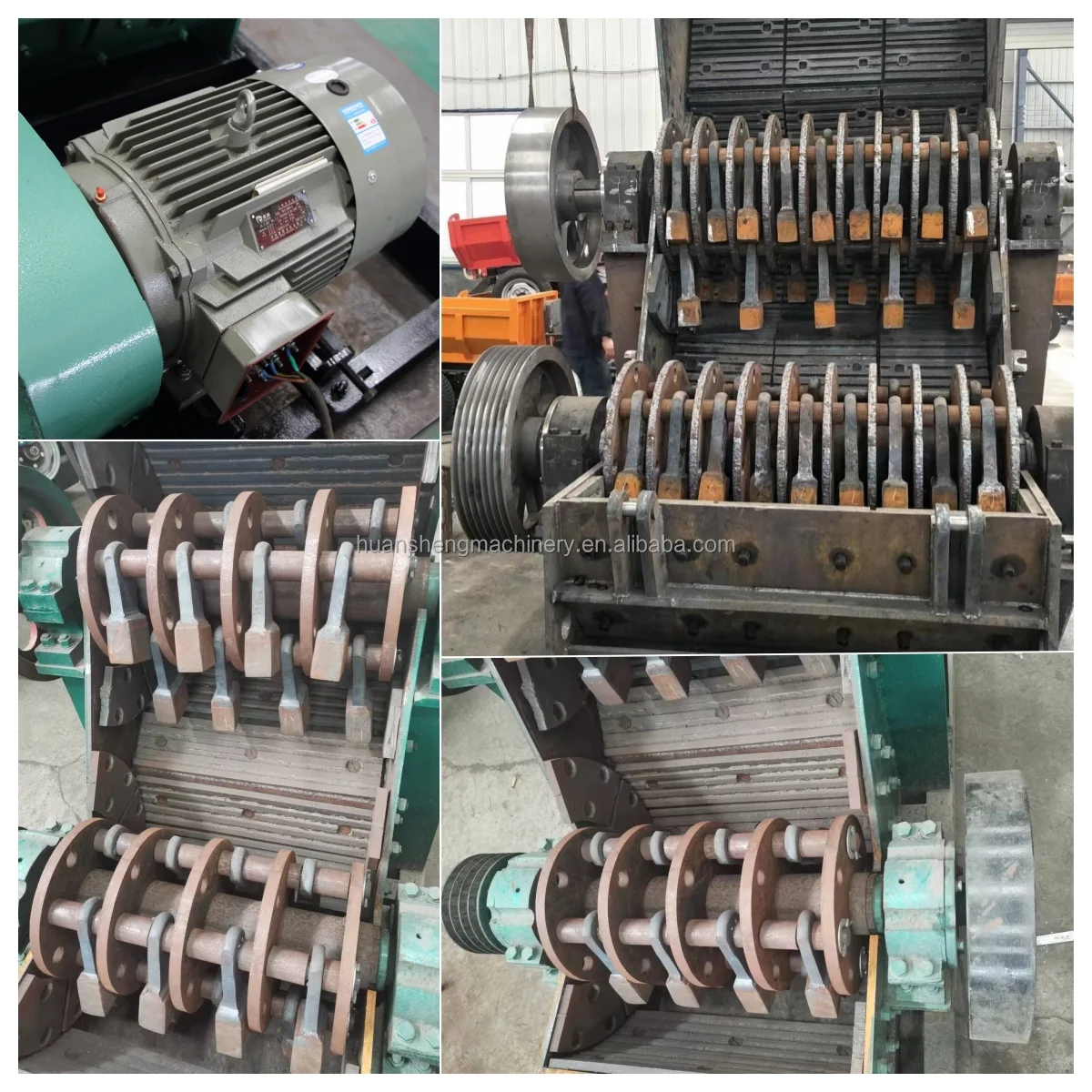

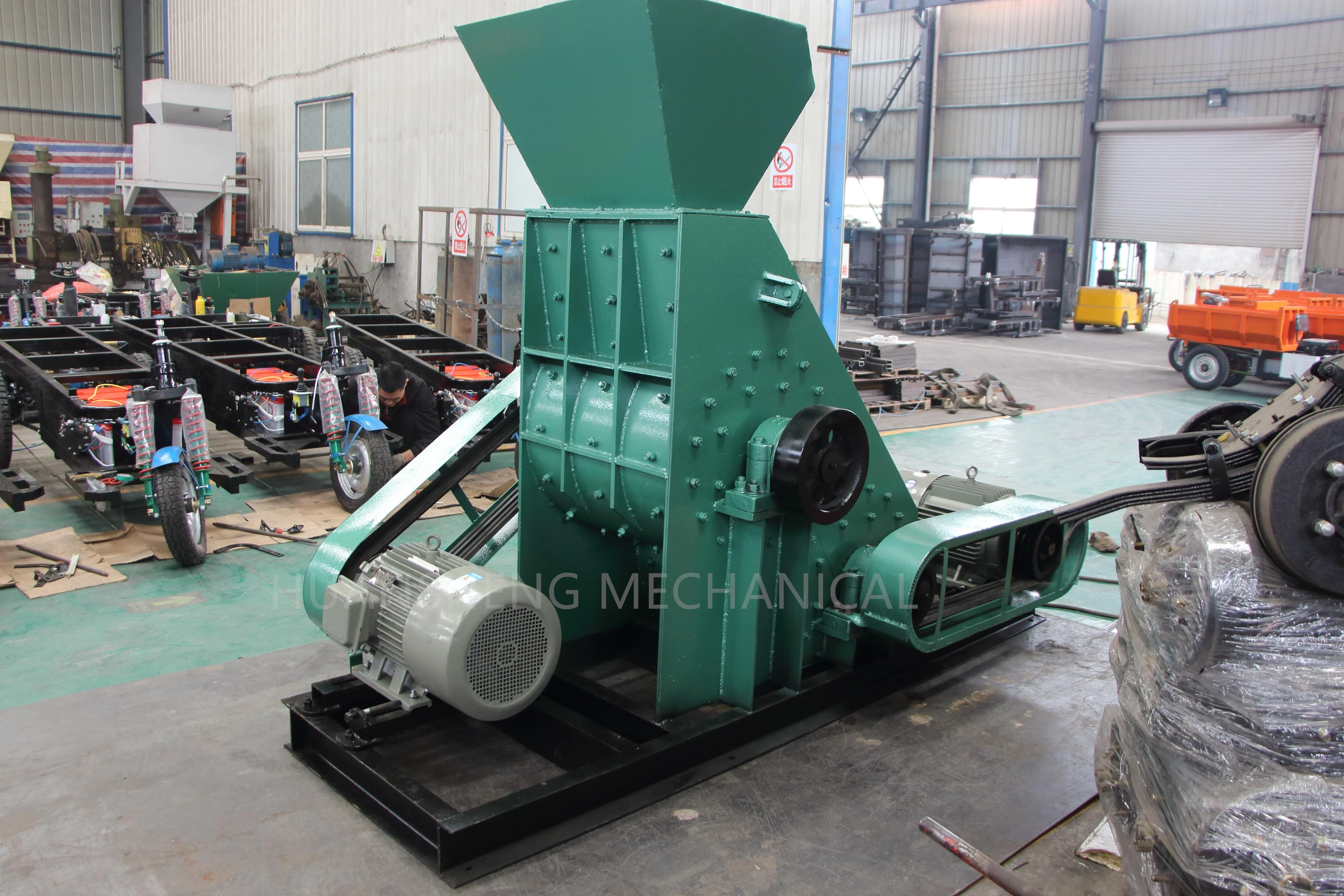

The motor drives the rotor rotates of the Hammer Crusher at a high speed through the belt, and on the rotor there are series hammers. When the materials get into the working area of hammers, they are crushed by the rotating hammers.
The Hammer Crusher with high rotation speed, the products which are crushed to meet the required size can be discharged by the outlet and become the final products, the large size products are brought back to the crushed area by the hammers of the Hammer Crusher for being re-crushed until they reached the required size.
The Hammer Crusher with high rotation speed, the products which are crushed to meet the required size can be discharged by the outlet and become the final products, the large size products are brought back to the crushed area by the hammers of the Hammer Crusher for being re-crushed until they reached the required size.
3. Characteristics of the Equipment:
1).The output particle size below 3 mm and below 2 mm accounts for more than 90%. Uniform particle adjustable, especially suitable for the production of porous brick, thin-walled brick.
2).Double - rotor two - stage grinding, not grate mesh, wet material does not plug.
3).Hammer head, liner bidirectional clearance, at any time to control the size of the discharge.
4).Double shaft and double flying wheel, stable operation, high inertia, power saving more than 20%.
5).With its own hydraulic lifting device, the replacement of hammerhead maintenance saves time and eff.
3).Hammer head, liner bidirectional clearance, at any time to control the size of the discharge.
4).Double shaft and double flying wheel, stable operation, high inertia, power saving more than 20%.
5).With its own hydraulic lifting device, the replacement of hammerhead maintenance saves time and eff.
4. Application Scope
As a new type of crushing equipment, this two-stage crusher has the advantages of reliable operation, convenient maintenance, and long service life. It is mainly suitable for calcite, limestone, cinder, slag, slag, shale, coal gangue, and construction materials from brick and tile factories. The crushing of garbage, construction waste and other materials solves the problem of using gangue and cinder as additives and internal fuel in brick factories; and the crushing of high-humidity materials using gangue and shale to produce standard bricks and hollow bricks.
Product Parameters
Type specification | Weight(T) | Output (t/h) | The number of hammerhead (PCS) | The hammerhead weight(KG/PC) | Motor type (KW) | Disharging granularity (mm) |
2PC-600*400 | 1 | 10-15 | 24 | 3.5 | 18.5+18.5 | 2-3 |
2PC-600*600 | 1.3 | 15-20 | 40 | 3.5 | 22+22 | 2-3 |
2PC-600*800 | 1.8 | 20-30 | 48 | 3.5 | 30+22 | 2-3 |
2PC-800*600 | 3 | 30-40 | 40 | 7 | 45+37 | 2-3 |
2PC-800*800 | 3.5 | 40-50 | 48 | 7 | 55+45 | 2-3 |
2PC-1000*800 | 5.5 | 50-60 | 48 | 8 | 55+57 | 2-3 |
2PC-1000*1000 | 7 | 60-90 | 52 | 8 | 90+75 | 2-3 |
2PC-1000*1200 | 8 | 70-90 | 56 | 8 | 110+90 | 2-3 |
2PC-1000*1400 | 8.5 | 100-120 | 60 | 10 | 110+132 | 2-3 |
2PC-1200*1400 | 9 | 120-130 | 60 | 12 | 132+160 | 2-3 |
2PC-1400*1600 | 13 | 130-180 | 72 | 20 | 160+200 | 2-3 |
Specific Details
Packing & Shipping
Wooden Box or Container
If your order is small, we will ship them in wooden boxes. If your order is large, they will be transported in
containers according to the quantity.
Qingdao port is the first choice of loading port for Huansheng. If you want to loading at other ports, please inform the sales before delivery.
* Pre-sale
We hope to establish a good, long-term and mutually beneficial relationship with our customers. We will understand
customers’demand so that recommend the most suitable products for them.
* In sale
Customers’ requirements will be put in the first place. During this period, we will communicate with customers in time if they have any questions need to be confirmed.
* Post-sale
We will provide technical support on the line if customers have problems.
containers according to the quantity.
Qingdao port is the first choice of loading port for Huansheng. If you want to loading at other ports, please inform the sales before delivery.
* Pre-sale
We hope to establish a good, long-term and mutually beneficial relationship with our customers. We will understand
customers’demand so that recommend the most suitable products for them.
* In sale
Customers’ requirements will be put in the first place. During this period, we will communicate with customers in time if they have any questions need to be confirmed.
* Post-sale
We will provide technical support on the line if customers have problems.
Company Profile
Henan HuanSheng Mechanical Equipment
Henan HuanSheng Mechanical Equipment CO.,LTD, is a specialized manufacturer and trade of crushers, dumper trucks, mucking loaders ect., integrating development and production. We are holding this line for more than 10 years, with well-equipped testing facilities and strong technical force. Our products are exported to many countries all over the world. With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in construction, woodworking and other industries. Our products are widely recognized and trusted by users and can meet continuously changing economic and social needs.
We welcome new and old customers from all walks of life to contact us for future business relationships and mutual success!
Warranty
(1)The Box Crusher quality assurance period for 12 months. In normal use circumstances, there is any quality problem during warranty period, we will use DHL, UPS, or other express delivery to send the accessories for customers after determine the damaged parts.
We welcome new and old customers from all walks of life to contact us for future business relationships and mutual success!
Warranty
(1)The Box Crusher quality assurance period for 12 months. In normal use circumstances, there is any quality problem during warranty period, we will use DHL, UPS, or other express delivery to send the accessories for customers after determine the damaged parts.
(2)We will try our best effort to solve, whenever customers have a problem.
