Off Grid Solar Panel System For Home 3Kw 5Kw 10Kw 20Kw Solar Panel System Off Grid Solar Power System
- Category: >>>
- Supplier: Pingdingshan Sinoshine Energy Co. Ltd.Pingdingshan Ltd.
Share on (1601364610615):
Product Overview
Description

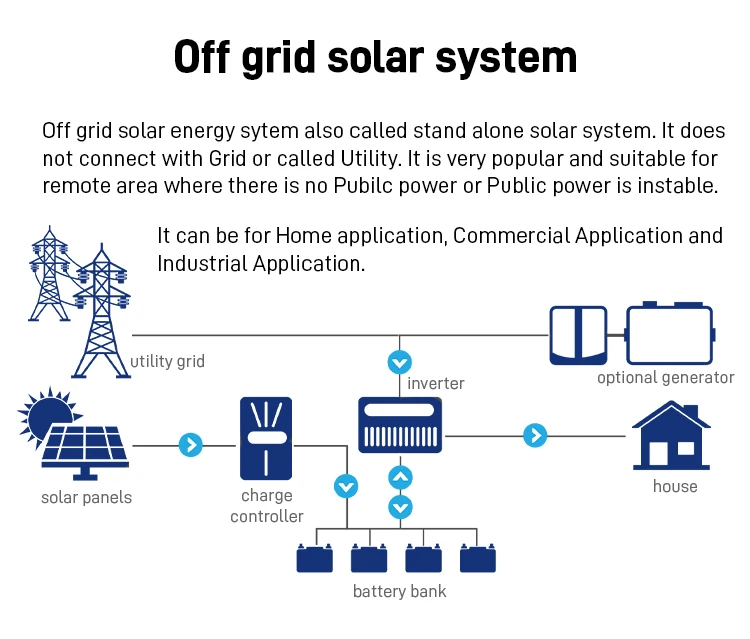

Advantages of Off-Grid-Tied Systems.
1. You become completely independent from external energy supplies
2. You can combine different energy sources such as PV, wind energy and hydropower
3.You can expand or change your system on a modular basis at any time
2. You can combine different energy sources such as PV, wind energy and hydropower
3.You can expand or change your system on a modular basis at any time
System Configuration
Type | HT-S5KW | HT-S10KW | HT-S15KW | HT-S20KW |
Solar Panel | 420W mono solar panel * 12pcs | 420W mono solar panel * 24pcs | 420W mono solar panel * 36pcs | 420W mono solar panel * 48pcs |
Controller | PWM Solar Controller: 96V/50A | PWM Solar Controller: 192V/50A | PWM Solar Controller: 240V/75A | PWM Solar Controller: 192V/100A |
Hybrid Inverter | Rated Output Capacity: 5000W AC Output: 220V/110V Frequency: 50Hz/60Hz | Rated Output Capacity: 10000W AC Output: 220V/110V Frequency: 50Hz/60Hz | Rated Output Capacity: 15000W AC Output: 220V/110V Frequency: 50Hz/60Hz | Rated Output Capacity: 20000W AC Output: 220V/110V Frequency: 50Hz/60Hz |
Battery | 12V250AH * 8 | 12V250AH * 16 | 12V150AH *40 | 12V250AH * 32 |
Bracket | Steel and aluminum material Sloping roof/Flat roof * 1 set | Steel and aluminum material Sloping roof/Flat roof * 1 set | Steel and aluminum material Sloping roof/Flat roof * 1 set | Steel and aluminum material Sloping roof/Flat roof * 1 set |
Controll Box | 4input 1output Full sets AC/DC switch Full sets proector other proection | 4input 1output Full sets AC/DC switch Full sets proector other proection | 6input 1output Full sets AC/DC switch Full sets proector other proection | 8input 1output Full sets AC/DC switch Full sets proector other proection |
AC Box | Full sets AC switch Full sets proector other proection | Full sets AC switch Full sets proector other proection | Full sets AC switch Full sets proector other proection | Full sets AC switch Full sets proector other proection |
Accessory | Full set | Full set | Full set | Full set |
Products Description

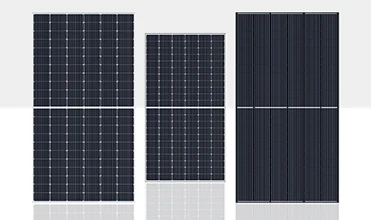

Solar Panels
> 25 years Warranty
> Highest conversion efficiency of 18.6%
> Anti-reflective and anti-soiling surface power
loss from dirt and dust
> Excellent mechanical load resistance
> PID Resistant,High salt and ammonia resistance
> Highest conversion efficiency of 18.6%
> Anti-reflective and anti-soiling surface power
loss from dirt and dust
> Excellent mechanical load resistance
> PID Resistant,High salt and ammonia resistance

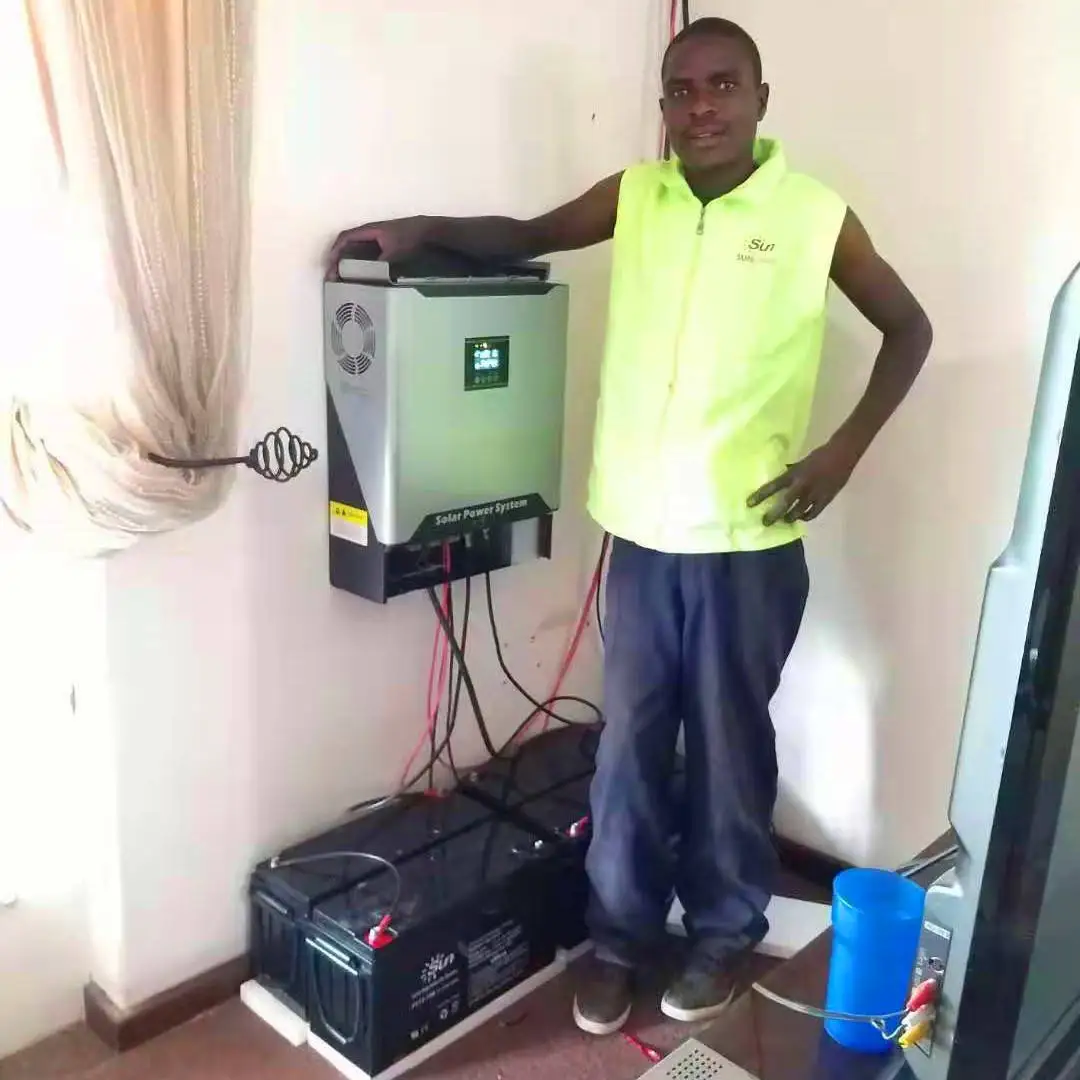

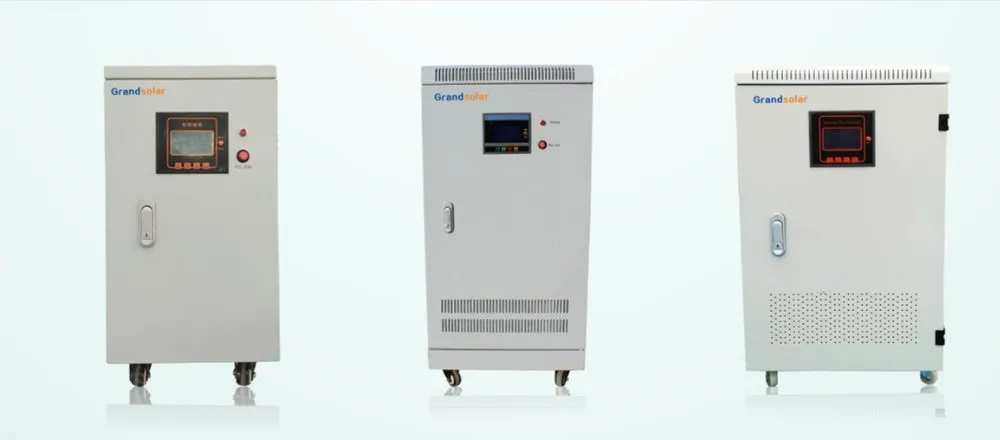

Off-Grid Tie Inverters
> Input Voltage from 12V to 492V
> Input Ampere 5A to 200A
> Output voltage 110/127V220V/230V/240V380v/400V
> Single phase and Three phase
>Efficiecny>92%
>Diesel generators and Grid input by option
>PMW controller bulid-in by option
> Input Ampere 5A to 200A
> Output voltage 110/127V220V/230V/240V380v/400V
> Single phase and Three phase
>Efficiecny>92%
>Diesel generators and Grid input by option
>PMW controller bulid-in by option

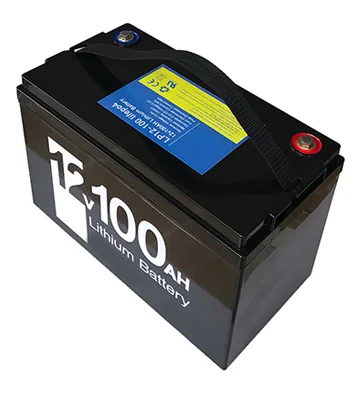

Solar Battery
>Gel AGM Battery:
>Li2FePO4 Battery
>Sanyuan Lithium Battery
>Without a battery bank (or a generator) it'll be lights out by sunset. A battery bank is essentially a group of batteries wired
together
>Li2FePO4 Battery
>Sanyuan Lithium Battery
>Without a battery bank (or a generator) it'll be lights out by sunset. A battery bank is essentially a group of batteries wired
together
Mounting Bracket
> Residential Roof(Pitched Roof)
> Commercial Roof(Flat roof&workshop roof)
> Ground Solar Mounting system
> Vertical wall solar mounting system
> All aluminum structure solar mounting system
> Car parking solar mounting system
> Commercial Roof(Flat roof&workshop roof)
> Ground Solar Mounting system
> Vertical wall solar mounting system
> All aluminum structure solar mounting system
> Car parking solar mounting system

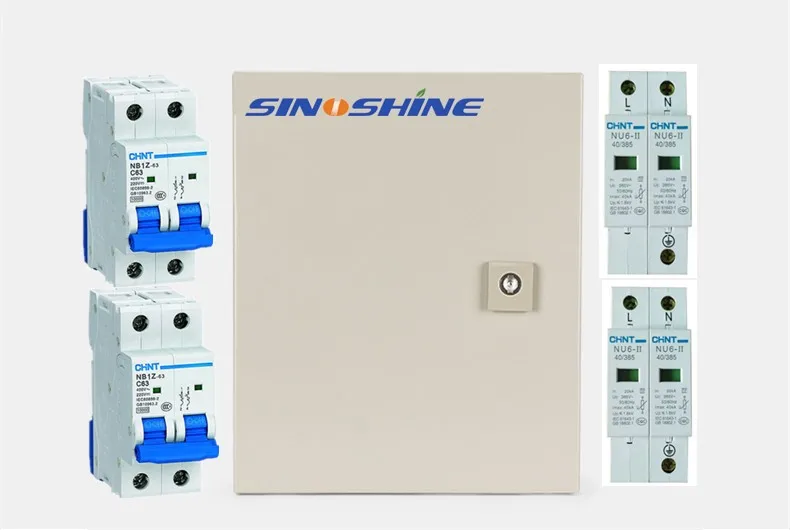

Controll Box
>Applicable for outdoor PV systems;
>Each PV array attached to DC fuse protection and anti-reverse protection optional;
>Wide DC voltage input range with maximum open-circuit voltage up to 1000V;
>High voltage lightning protection (SPD) special for PV;
>PV MC4 connector input, convenient and safe system wiring;
>PV special high voltage circuit breaker control output;
>Protection class IP65 for outdoor use;
>Monitoring feature optional for each string of PV array;
>Each PV array attached to DC fuse protection and anti-reverse protection optional;
>Wide DC voltage input range with maximum open-circuit voltage up to 1000V;
>High voltage lightning protection (SPD) special for PV;
>PV MC4 connector input, convenient and safe system wiring;
>PV special high voltage circuit breaker control output;
>Protection class IP65 for outdoor use;
>Monitoring feature optional for each string of PV array;

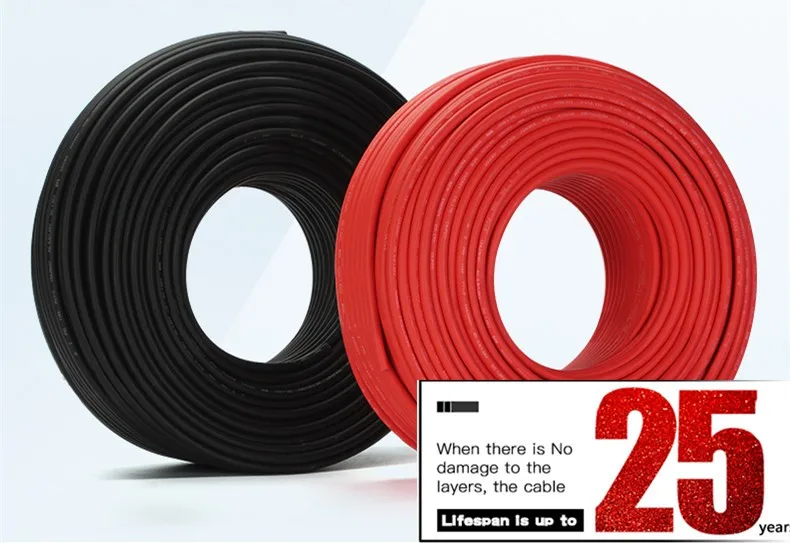

PV Cable
>TUV and UL certificate
>Standard: 2 PFG 1169 08.2007 and UL 4703
> Conductor Material : Stranded tinned copper
>Insulation and Sheath Material: XLPE
> standard: TUV 2Pfg 1169 08.07
>Rated voltage: AC Uo/U0.6~1.0KV , DC1.8KV
>The expected period of use: 25years
>Flame rated IEC60332-1-2
>Standard: 2 PFG 1169 08.2007 and UL 4703
> Conductor Material : Stranded tinned copper
>Insulation and Sheath Material: XLPE
> standard: TUV 2Pfg 1169 08.07
>Rated voltage: AC Uo/U0.6~1.0KV , DC1.8KV
>The expected period of use: 25years
>Flame rated IEC60332-1-2
Chrage Controller
>MPPT Controller
>Protetion:Overloads Overcharge reverse polarity,revese charge,overload etc.
>Efficiency:99%
>Protetion:Overloads Overcharge reverse polarity,revese charge,overload etc.
>Efficiency:99%
Power Controller
>PWM Controller with monitor on computer
>Protetion:Overloads Overcharge reverse polarity,revese charge,overload etc.
>Efficiency:92%
>Protetion:Overloads Overcharge reverse polarity,revese charge,overload etc.
>Efficiency:92%
Installation

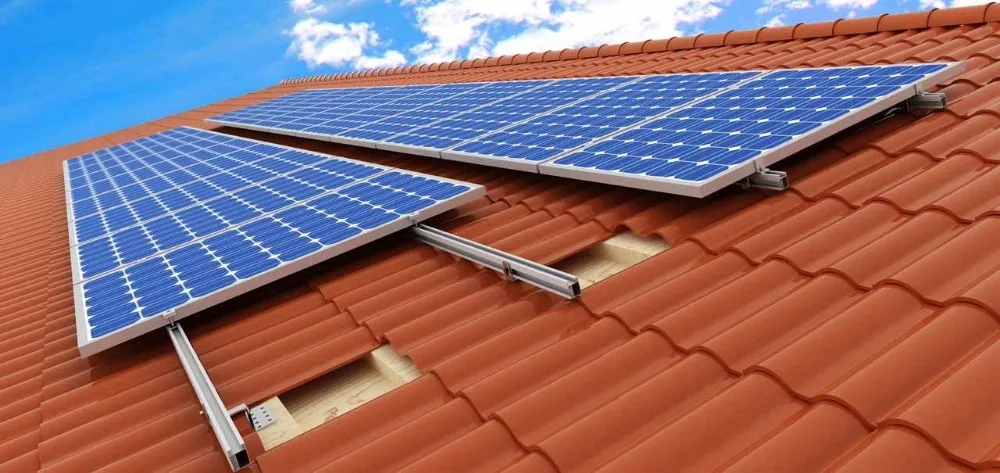

Mounting Bracket
>Drawning Force:1000N >Wind load:40m/s 32.5kg/m³ >Snow load:70kg/m³ >Warranty:25years
Color Steel Slooping Roof
Glazed Tie Roof
Flat/Ground Roof
Company Profile

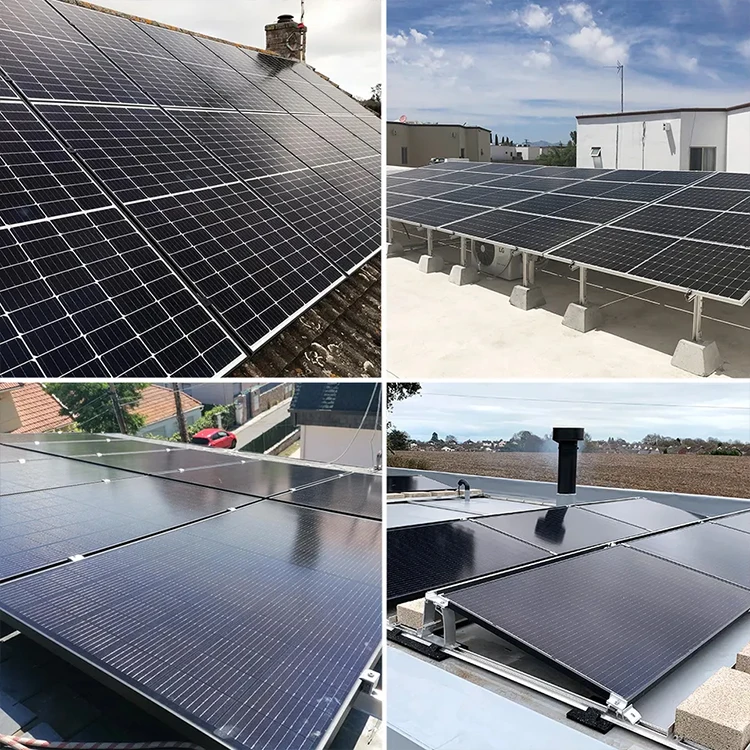

Project Case
Certifications

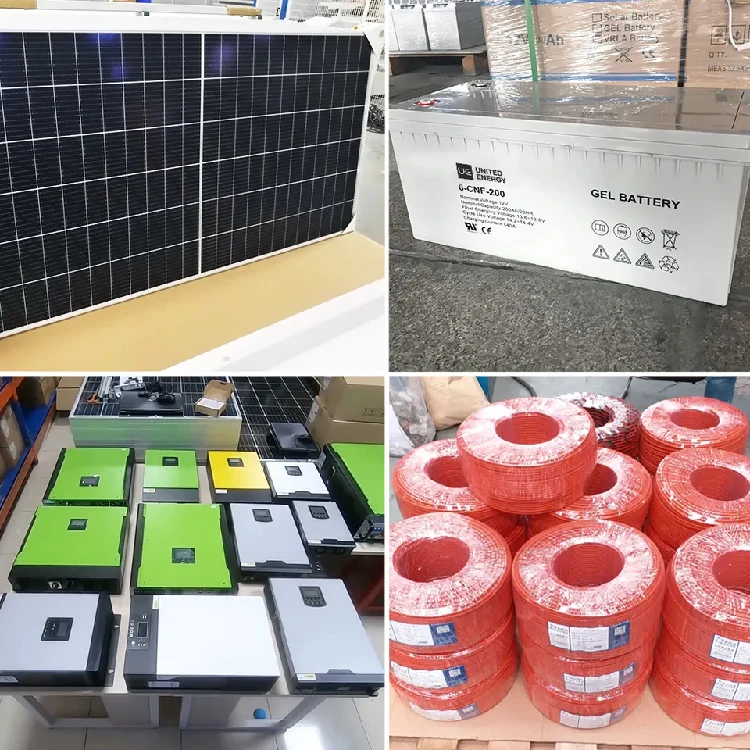

Packing & Delivery

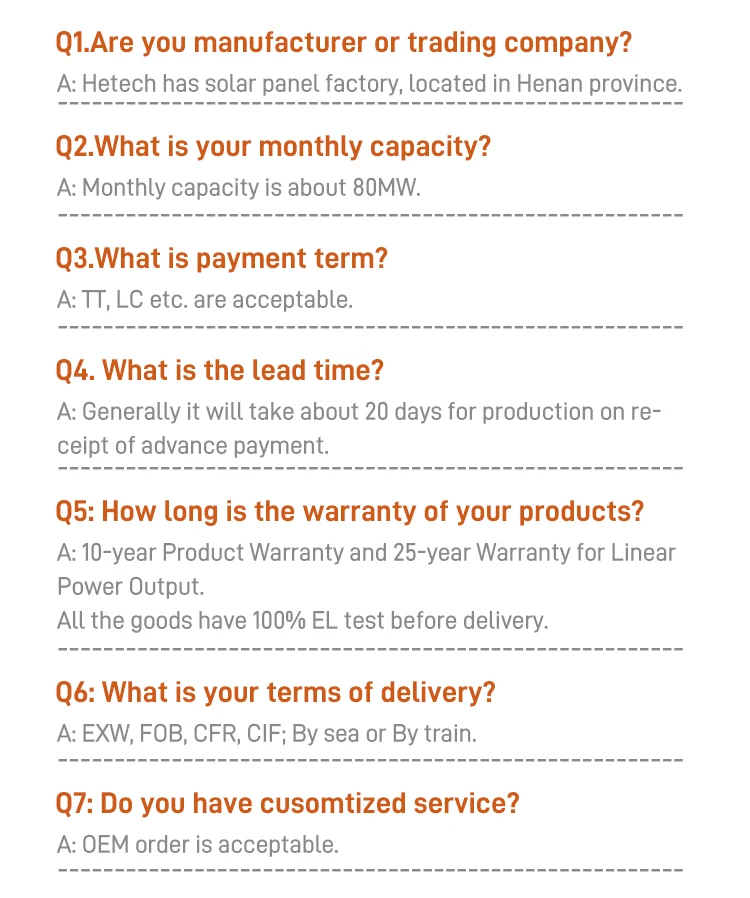

FAQ
