1suzu Foton Sinotruk Dongfeng Mini Small Heavy Refrigerator Truck Freezer Van Truck Refrigerated Van Box Truck

Product Overview

Description

1suzu Foton Sinotruk Dongfeng Mini Small Heavy Refrigerator Truck Freezer Van Truck Refrigerated Van Box Truck

The refrigerated truck is a commercial vehicle designed specifically for transporting temperature sensitive goods. With the rapid development of the logistics industry and the increasing demand for food freshness, it plays an important role in modern logistics.
It has the characteristics of high efficiency, energy conservation, safety and reliability, comfort and convenience, and is widely used in industries such as food, medicine, and chemical industry. Its special design and excellent performance ensure the freshness and quality of goods during transportation, injecting new vitality into the modern logistics industry.

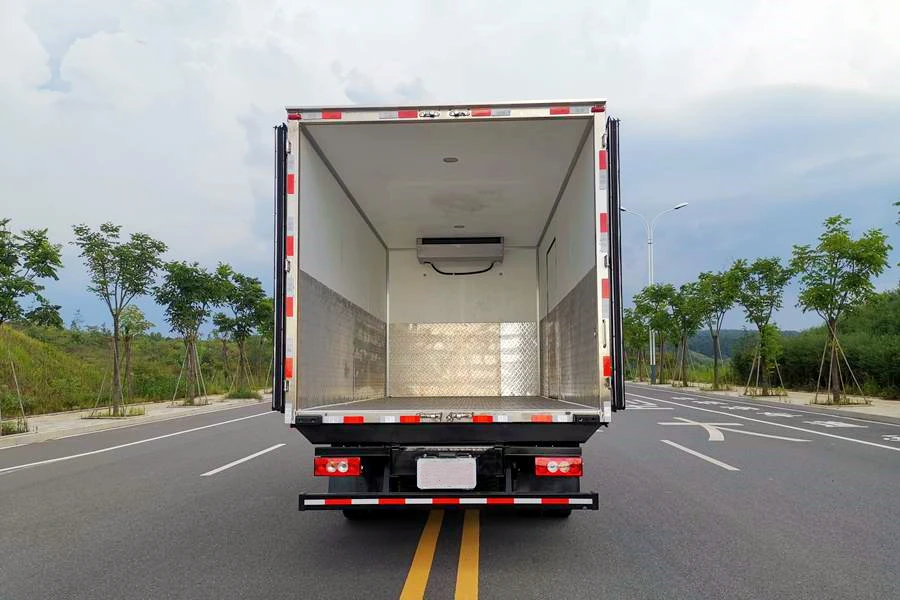

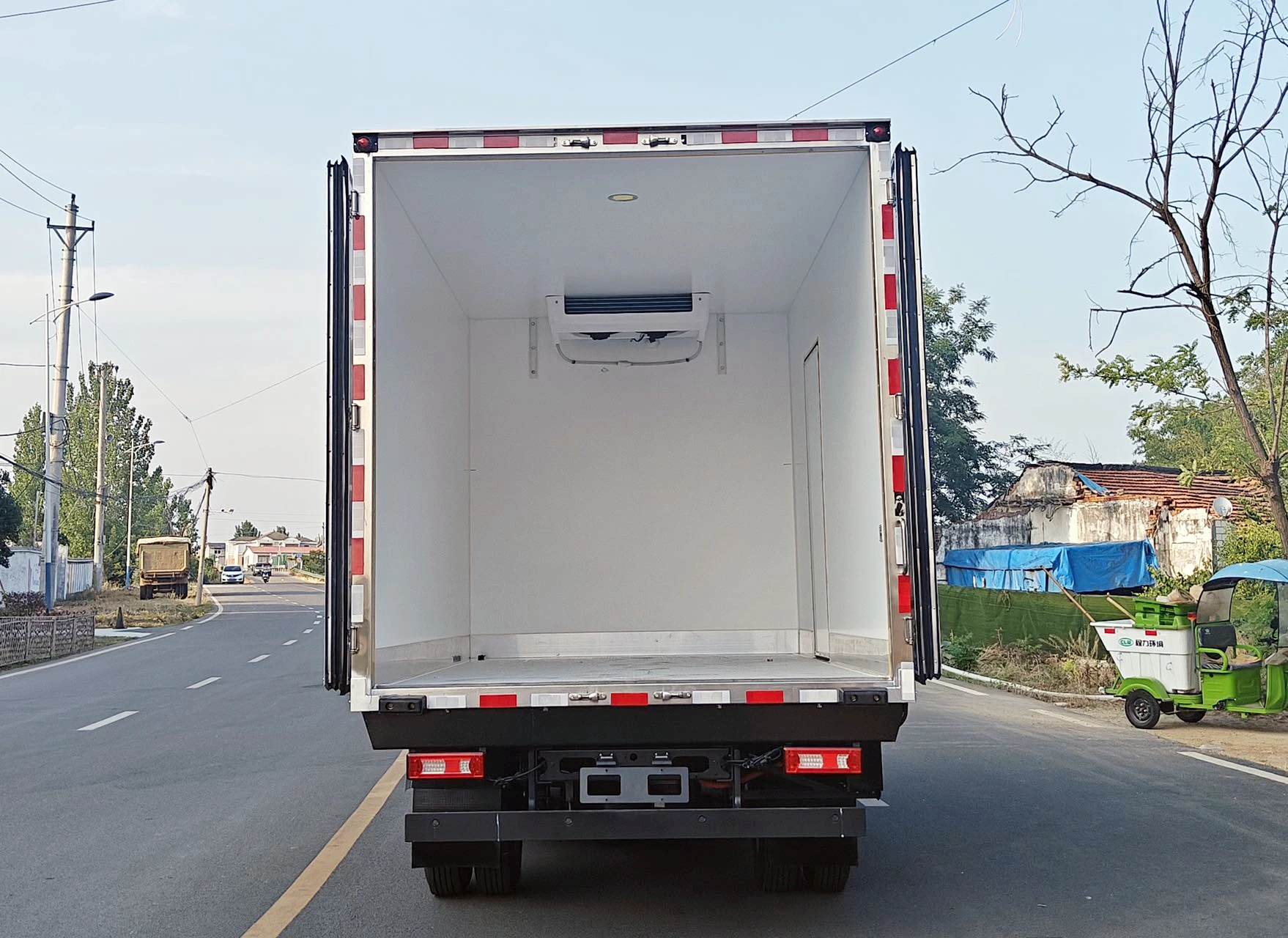

Refrigerated carriage body technology.
New technology: "Bridge insulation technology and overall structural framework"; Fully sealed box board structure, the overall box board is a sandwich structure, with no welding process throughout the box closing process. The overall box board is bonded with reinforced resin adhesive and fixed with reinforced screws, and the inner and outer fabrics are new matte thickened 3mm fiberglass; Side panel+top plate: The keel bridge is made of pine composite board; Wooden insulation structure; Sandwich is made of high-density polyurethane insulation material; Fully sealed dual combination polyurethane high; The thickness of the compartment is 8cm (meeting the national A-level standard); Galvanized corner coating; The latest widened and thickened aluminum alloy edging profile; The local thickness of the profile is 6mm (reinforced with stainless steel rivets); The interior of the compartment adopts large rectangular LED lighting and enlarged compartment width indicator lights; The rear door frame is made of 304/3mm thick stainless steel material; The door frame sealing strip is made of EPDM rubber material; Thickened 304 stainless steel hinges and locks; The auxiliary beam is made of Q710 automotive beam steel; 15mm thick beam pad skin; Install anti-collision rubber blocks; 3M reflective adhesive board; Other standard configurations, the insulation effect of the box meets the national A-level standard.

By using a large positive and negative pressure plate equipment, pressure is applied, heated, and vacuumed to form a sheet metal in one go. The polymer composite material box is made of high-strength adhesive and overlapped, making it a truly fully sealed polyurethane non-metallic insulation box.
