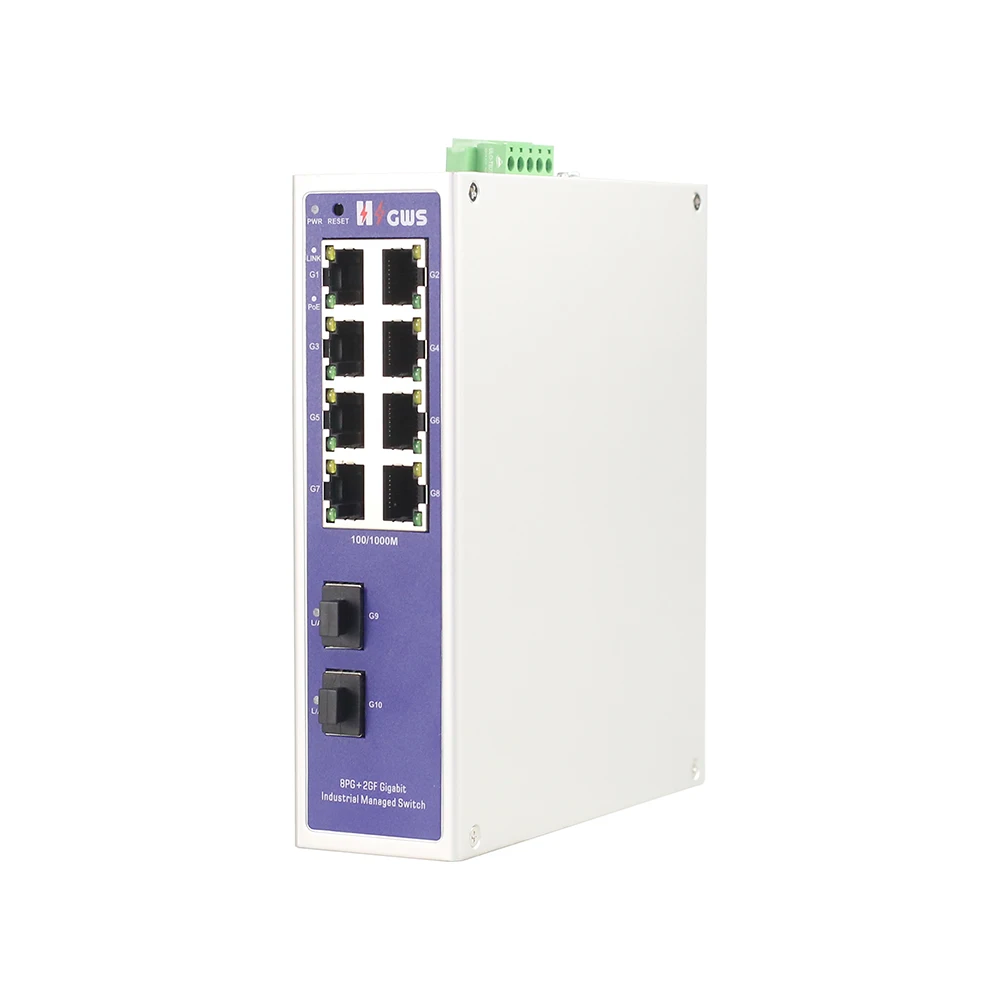

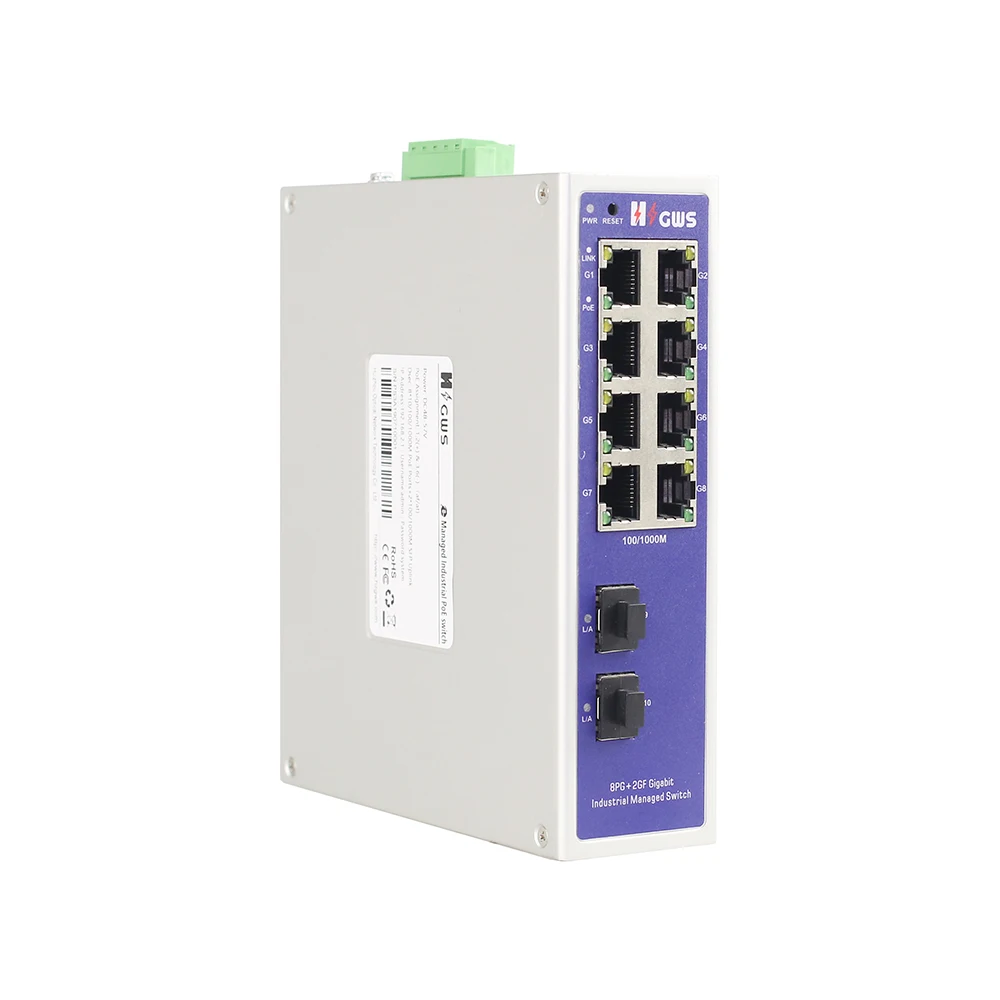

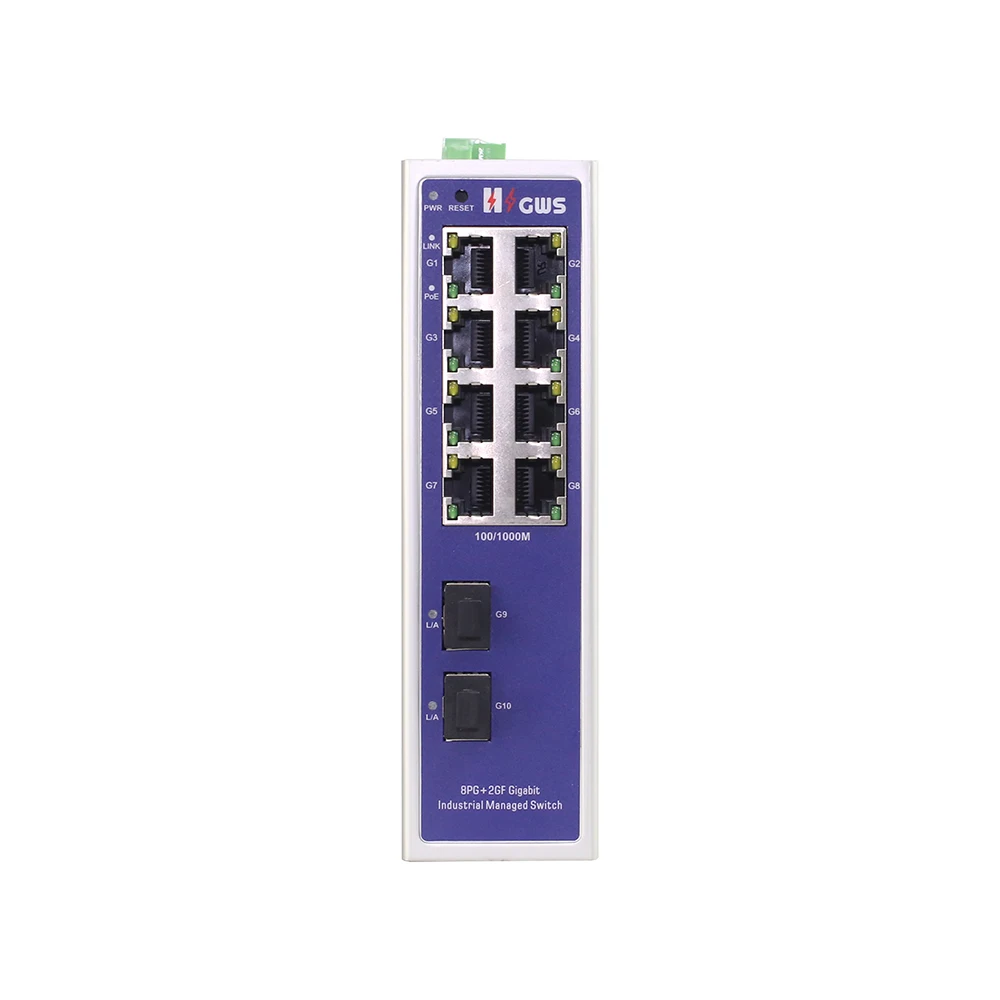

Management Industrial POE Switch 10/100/1000M 4 8 ports poe with uplink 2 ports SFP network switches for CCTV IP Camera

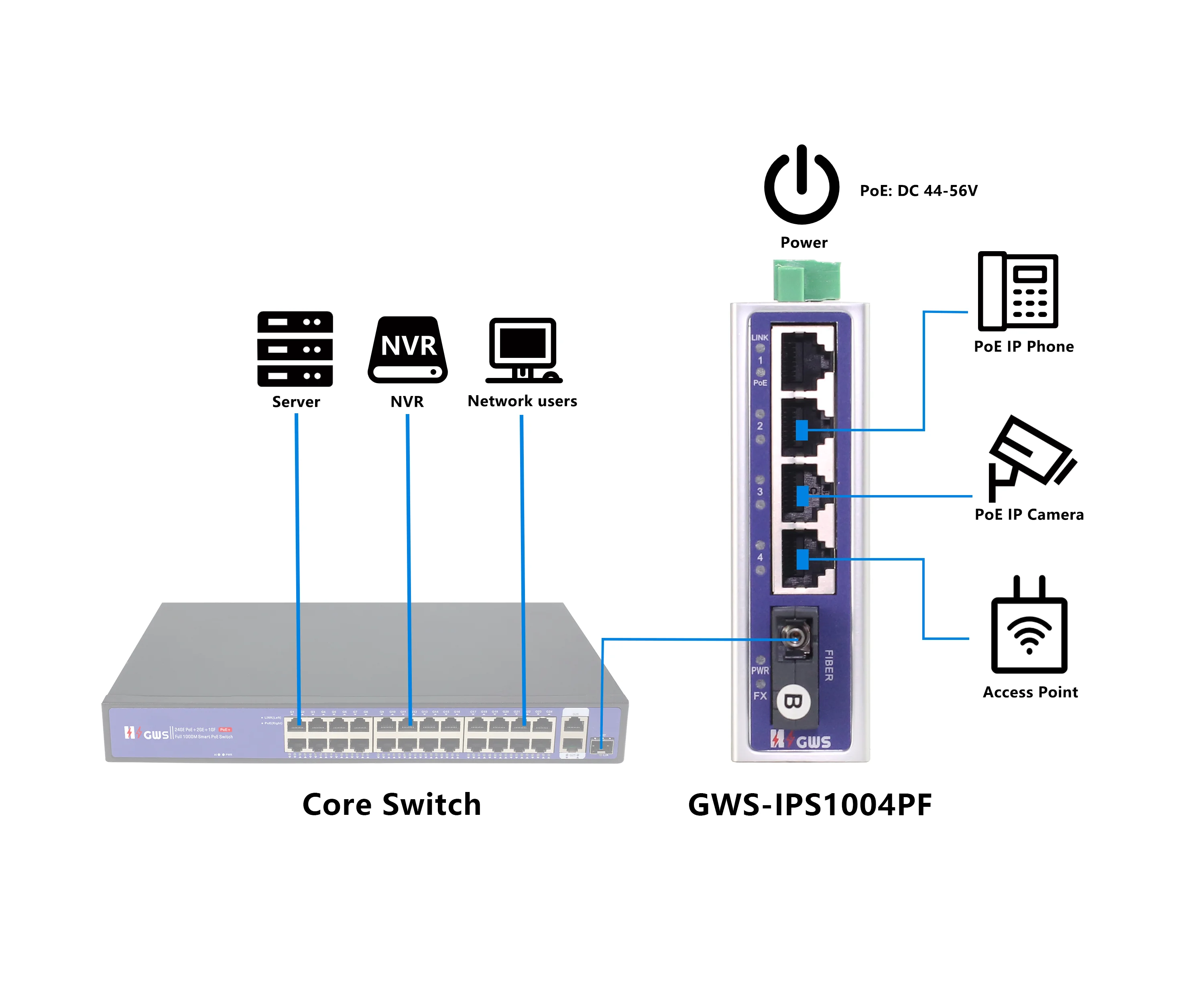

GWS-IPS1004PF

4*10/100Base-T PoE ports (Data /Power)
1*155M uplink SC port (Data)
2 groud of V+, V- redundant DC power interface (3P Phoenix terminal+DC5521 Jack)

10/100Base-TX auto-sensing, full/half duplex MDI/MDI-X self-adaption

10BASE-T: Cat3,4,5 UTP(≤100 meter)
100BASE-TX: Cat5e or later UTP(≤100 meter)

The default optical module is single-mode dual-fiber 20km, SC interface; Multi-mode dual fiber and single-mode single fiber see
product selection table

Multimode: 850nm 0 ~ 550M, 1310nm 0 ~ 2KM,
singlemode: 1310nm 0 ~ 40KM, 1550nm 0 ~ 120KM.

IEEE802.3 10BASE-T; IEEE802.3i 10Base-T;
IEEE802.3u 100Base-TX;IEEE802.3u 100Base-FX;
IEEE802.3x

Store and Forward(Full Wire Speed)

1.0Gbps (no-blocking)

0.744Mpps

2K

512Kb

2048B

Power: PWR (green), Network :Link1-4, (green); fiber port :FX (green)

Port 1 to 4 IEEE 802.3 af/at @POE

Default 1/2 (+), 3/6 (-) , optional 4/5 (+), 7/8 (-)

30W, IEEE802.3af/at

60W/48VDC

Standby<3W, Full load<60W

DC44-56V, 3P industrial Phoenix terminal+DC5521 Jack, support anti-reverse protection,short circuit protection,overcurrent
protection.

Self-purchased, optional 48V/60W or 48V/120W industrial power supply or desktop power supply

-40~+75°C;5%~90% RH Non condensing

-40~+85°C;5%~95% RH Non condensing

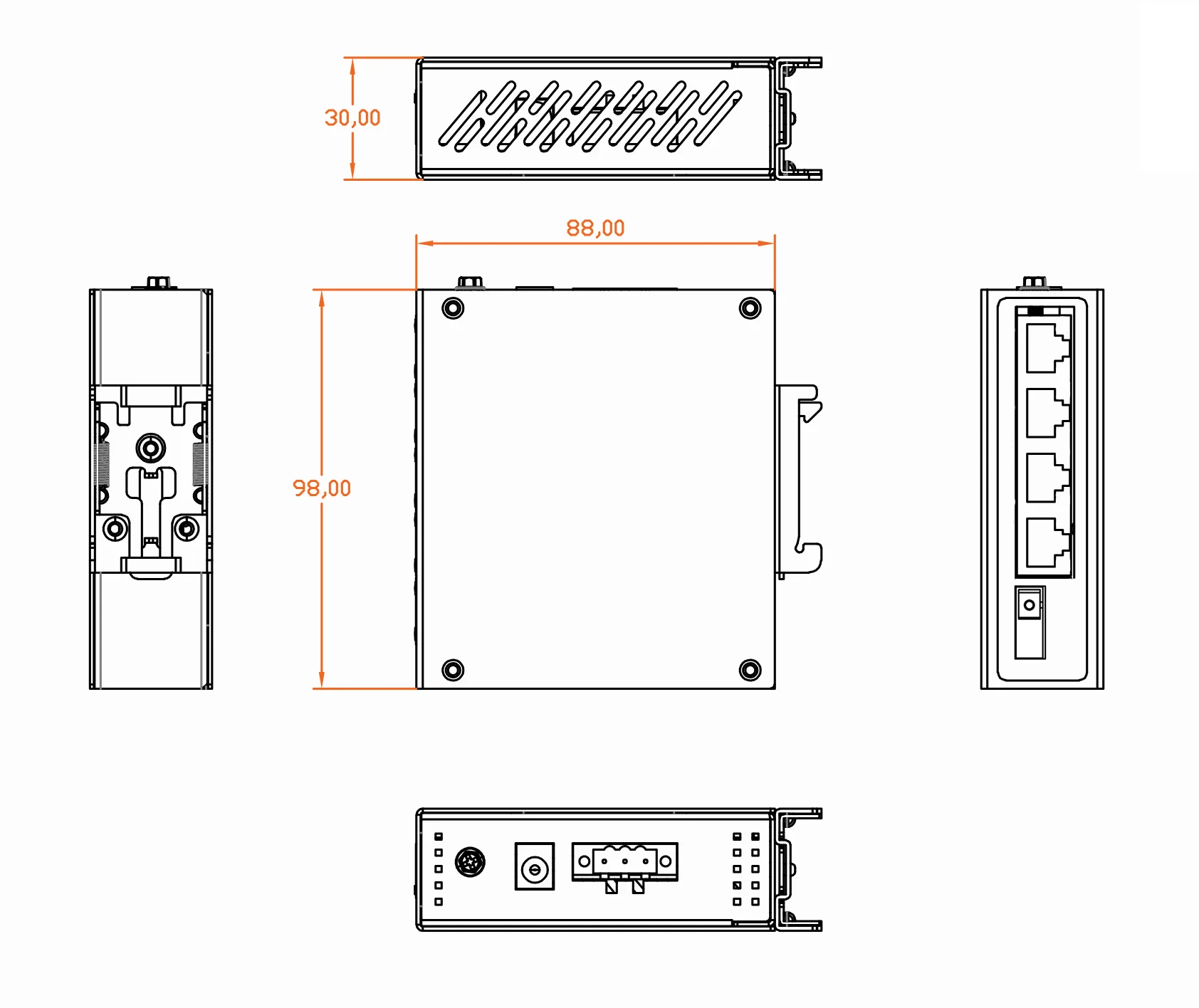

98*88*30mm

<0.2kg / <0.3kg

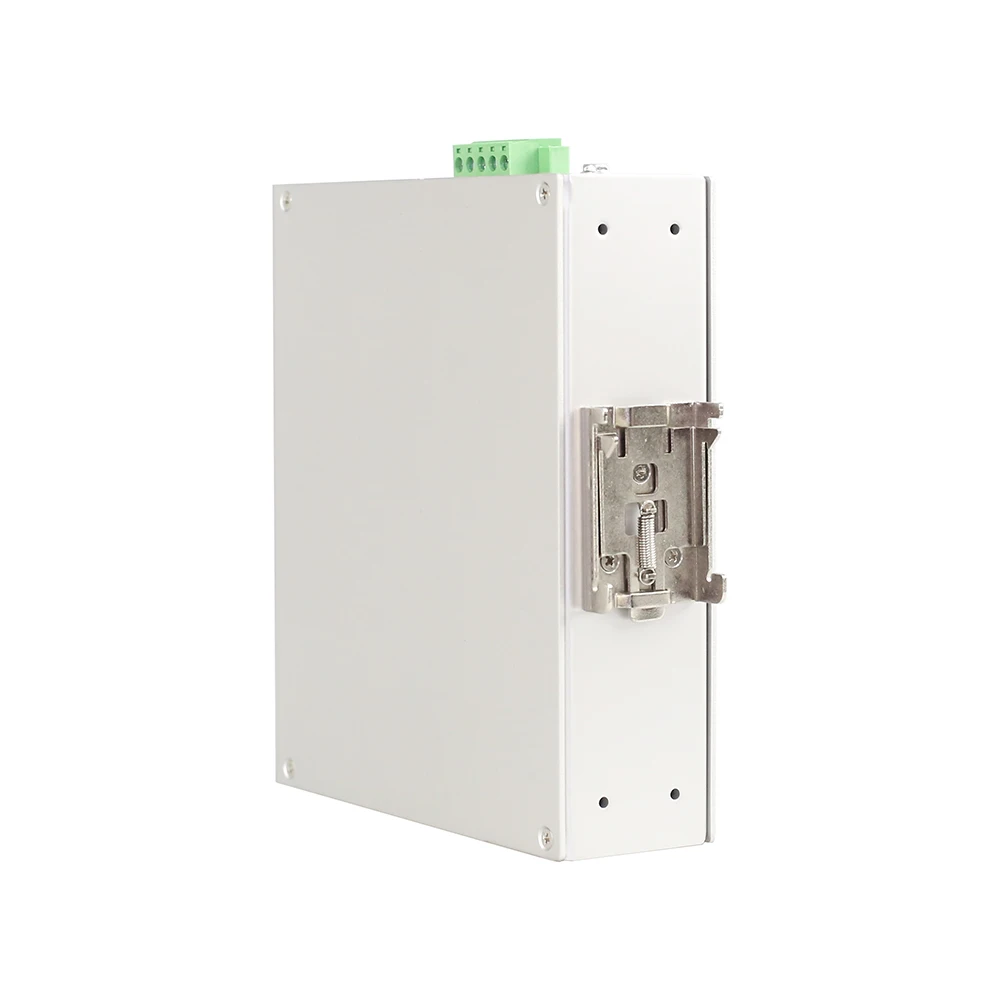

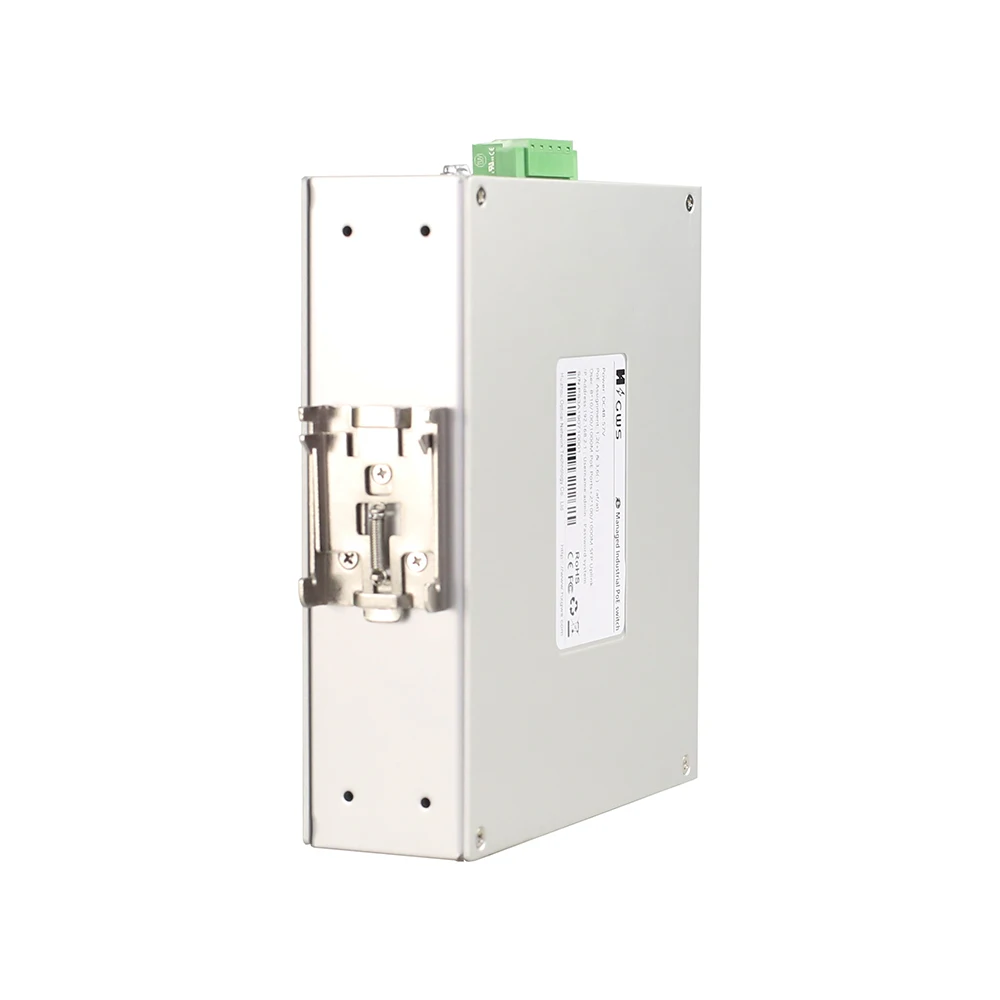

Desktop, 35mm DIN rail

Lightning protection: 6KV 8/20us;Protection level: IP30
IEC61000-4-2(ESD):±8kV contact discharge,±15kV air discharge
IEC61000-4-3(RS):10V/m(80~1000MHz)
IEC61000-4-4(EFT): power cable:±4kV; data cable:±2kV
IEC61000-4-5(Surge):power cable:CM±4kV/DM±2kV; data cable:±4kV
IEC61000-4-6(radio frequency transmission):10V(150kHz~80MHz)
IEC61000-4-8(power frequency magnetic field):100A/m;1000A/m ,1s to 3s
IEC61000-4-9(pulsed magnet field):1000A/m
IEC61000-4-10(damped oscillation):30A/m 1MHz
IEC61000-4-12/18(shockwave):CM 2.5kV,DM 1kV
IEC61000-4-16(common-mode transmission):30V; 300V,1s
FCC Part 15/CISPR22(EN55022):Class A
IEC61000-6-2(Common Industrial Standard)

IEC60068-2-6 (anti vibration), IEC60068-2-27 (anti shock), IEC60068-2-32 (free fall)

CCC;CE mark, commercial; CE/LVD EN62368-1;FCC Part 15 Class B;RoHS;

5 years , lifelong maintenance.

Unmanaged industrial PoE fiber switch with 4*10/100M PoE ports and 1*155M SC port, Port 1-4 can support PoE IEEE802.3af/at. By
default, the SC port 1310mm/20km single-mode dual-fiber module is configured. It can support dual DC redundant power input
(Phoenix terminal +DC Jack connection) and rail mounting.

60W/120W

Unmanaged industrial PoE fiber switch with 4*10/100M PoE ports and 1*155M SC port, Port 1-4 can support PoE IEEE802.3af/at. By
default, the SC port 850nm/0.5km or 1310nm/2km multi-mode dual fiber module is configured. It can support dual DC redundant power
input (Phoenix terminal +DC Jack connection) and support rail mounting.

60W/120W

Unmanaged industrial PoE fiber switch with 4*10/100M PoE ports and 1*155M uplink SC port . Port 1-4 can support IEEE 802.3af/at.
By default, the SC port 1310nm/20km single-mode single-fiber module is configured. It can support dual DC redundant power input
(Phoenix terminal +DC Jack connection) and support rail mounting.

60W/120W

Unmanaged industrial PoE fiber switch with 4*10/100M PoE ports and 1*155M uplink SC port . Port 1-4 can support IEEE 802.3af/at.
By default, the SC port 1550nm/20km single-mode single-fiber module is configured. It can support dual DC redundant power input
(Phoenix terminal +DC Jack connection) and support rail mounting.

60W/120W

Note: The power supply is not included, and needs to be purchased separately

5-port 10/100M industrial PoE fiber switch

1

SET

User Guide

1

PC

Warranty Card

1

PC

AP65-52

Desktop tape 65W single set of output power adapter;
Input Voltage:AC 100V~240V 50-60Hz,1.1A
Output Voltage:DC 52V 1.25A
Operation Temperature:-20℃—+65℃

PC

AP110-52

Desktop tape 110W single set of output power adapter;
Input Voltage:AC 100V~240V 50-60Hz,2.0A
Output Voltage:DC 52V 2.0A
Operation Temperature:-20℃—+65℃

PC

DP60-48

Din Rail type 60W single set of output power supply;
Input Voltage:AC 100V~240V 50-60Hz,1A
Output Voltage:DC 48V 1.25A
Operation Temperature:-40℃—+70℃

PC

DP120-48

Din Rail type 120W single set of output power supply;
Input Voltage:AC 100V~240V 50-60Hz,1.5A
Output Voltage:DC 48V 2.5A
Operation Temperature:-40℃—+70℃

PC
