Trustworthy Professional team Reliable quality Xingye Brand Hzs 25 35 50 75 90 120 180 M3/h Concrete Wet Batching Plant
- Category: >>>
- Supplier: Ningdu Xingye Machinery Manufacturing Co. Ltd.Ningdu Ltd.
Share on (1601364903040):
Product Overview
Description
Product Overview

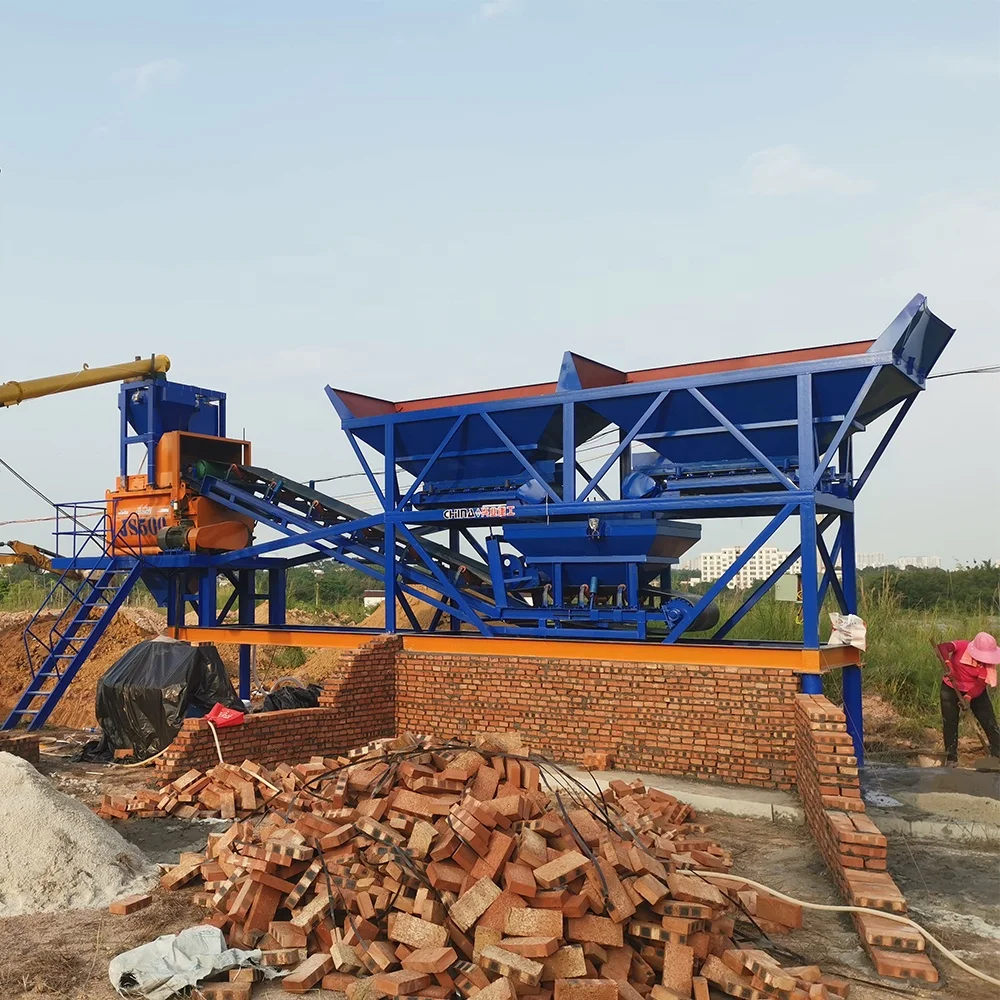

Hzs90 Electric Belt Conveyor Feeding Small Fixed New Production Line Cement Mixer Plant Beton Ready Mix Concrete Batching Plant
HZS series is a new kind of compulsory volumetric concrete mixing equipment . It includes JS concrete mixer, PLD matching machine,cement silo,conveying system and control system, accumulative system and weighing system.And also has the efficiency mixing well, high productivity can get 50m3/h ,60m3/h,75m3/h,90m3/h ,120m3/h and more high capacity as you needed.
It's have unique control room ,make all operation highly automate, flexibility, convenient , and stability.
Concrete mixing plant concrete mixing plant can be widely used in construction projects like buildings, roads, bridges, high way roads, docks, airport, water projects, hydropower station, etc. They can also be used in fibre reinforced concrete unit factories and used as commercial cyclone cement concrete mixing plant to sell high quality concrete to different buyers.
Concrete mixing plant concrete mixing plant can be widely used in construction projects like buildings, roads, bridges, high way roads, docks, airport, water projects, hydropower station, etc. They can also be used in fibre reinforced concrete unit factories and used as commercial cyclone cement concrete mixing plant to sell high quality concrete to different buyers.
Get the right equipment for your job
It is designed to offer continuous mixing of concrete ,this individual units can produce over 1,000 cubic meters of concrete per day

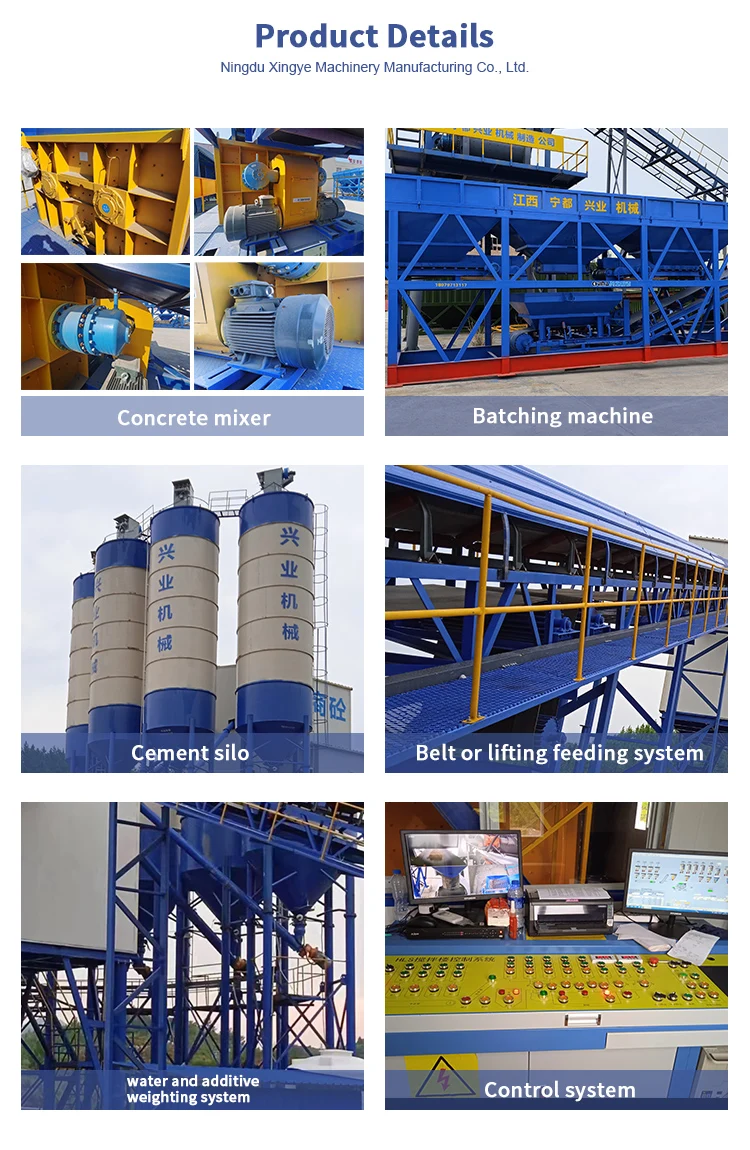

PRODUCT CONFIGURATION
Ready mixed Concrete Batching Plants consists
Aggregate weighing system
conveying system,
cement weighing system
Water weighing system,
Water weighing system,
Additive weighing system
Mixer system,
Dust removal system
Pneumatic system,
Computer control system
Cement silo.
Cement silo.
The modular design to make quickly installation and relocation; the fully automatic control system to make easily
operation and reduce the civil workers; the external packing of the mixing tower and main conveyor to reduce the dust and avoid noise
operation and reduce the civil workers; the external packing of the mixing tower and main conveyor to reduce the dust and avoid noise
Additive scale Water scale Cement scale Water inlet pipe for the water scale Water inlet pipe for the mixer Load sensor Pneumatic control Aggregate bins Weighing bin Screw conveyor Belt conveyor Vibrator Air compressor Control table
FEATURES AT A GLANCE
* stationary concrete batching plant
* belt conveyor for aggreate loading
* pre-storage bin included
* three/four bins batching machine
*single/cumulative aggregate measurement
* 60 90 120 180 240 270 cubic meters/hour production capacity
PRODUCT SPECIFICATIONS
Model | HZS25 | HZS35 | HZS50 | HZS60 | HZS75 | HZS90 | HZS120 | HZS150 | HZS180 |
Discharging Capacity (L) | 500 | 750 | 1000 | 1000 | 1500 | 1500 | 2000 | 2500 | 3000 |
Charging Capacity(L) | 800 | 1200 | 1600 | 1600 | 2400 | 2400 | 3200 | 4000 | 4800 |
Maximum Productivity(m³/h) | 25 | 35 | 50 | 60 | 75 | 90 | 120 | 150 | 180 |
Charging Model | Skip Hopper | Skip Hopper | Skip Hopper | belt conveyor | Skip Hopper | belt conveyor | belt conveyor | belt conveyor | belt conveyor |
Standard Discharging Height(m) | 1.5~3.8 | 2~4.2 | 4.2 | 4.2 | 4.2 | 4.2 | 3.8~4.5 | 4.5 | 4.5 |
Number of Species of Aggregate | 2~3 | 2~3 | 3~4 | 3~4 | 3~4 | 4 | 4 | 4 | 4 |
Maximum Aggregate Size(mm) | ≤60mm | ≤80mm | ≤80mm | ≤80mm | ≤80mm | ≤80mm | ≤120mm | ≤150mm | ≤180mm |
Cement/Powder Silo Capacity(set) | 1×100T | 2×100T | 3×100T | 3×100T | 3×100T | 3×100T | 4×100T or 200T | 4×200T | 4×200T |
Mixing Cycle Time(s) | 72 | 60 | 60 | 60 | 60 | 60 | 60 | 30 | 30 |
Total Installed Capacity(kw) | 60 | 65.5 | 85 | 100 | 145 | 164 | 210 | 230 | 288 |
NO. | Foundation-free 1500# Concrete Batching Plant Main Components | ||||||
1 | CONCRETE MIXING SYSTEM | ||||||
2 | AGGREGATE BATCHING MACHINE | ||||||
3 | INCLINED BELT CONVEYOR | ||||||
4 | AGGREGATE PRO-STORAGE BIN | ||||||
5 | CEMENT MEASURING SYSTEM | ||||||
6 | WATER MEASURING SYSTEM | ||||||
7 | ADDITIVE MEASURING SYSTEM | ||||||
8 | PNEUMATIC SYSTEM | ||||||
9 | FULL AUTOMATIC CONTROL SYSTEM | ||||||
10 | CONTROL ROOM | ||||||
11 | OTHER ACCESSORIES (CABLE & CABLE TRAY) | ||||||
12 | BOLTED CEMENT SILO (OPTIONAL) | ||||||
13 | SCREW CONVEYOR (OPTIONAL) | ||||||
Company Profile
Ningdu Xingye Machinery Manufacturing Co., Ltd.
The company has developed rapidly in recent years, and our new plant was completed and put into production in 2023, with a total area of 20,000 square meters.
We have a professional design team that can design various concrete mixing equipment for different customers.
At the same time, we also have a strict quality inspection team.
Excellent after-sales installation team makes our products exported to all over the world.
At present, it is a construction machinery manufacturer mainly engaged in the production of concrete batching plants, concrete mixer trucks and concrete pump equipment, stone crushers, screening equipment, forklifts, excavators and other construction machinery products. With technological innovation as the core driving force, it is committed to providing efficient, energy-saving and environmentally friendly mechanical equipment solutions.
Certifications
Our products concrete batching plant and concrete mixer both own CE QMS certifications.
Packing and Delivery
Our products have been exported to more than 20 countries in Southeast Asia, Middle East, Africa and so on.
SALES AND SERVICE NETWORK
Successful Project
FAQ
1. Are you a manufacturer, trading company or a third party?
We are a concrete batching plant manufacturer 15 years experience
2.Can the machine be customized as our need, such as put on our logo?
Our faithful is Get The Right Equipment for the Job ,Surely our machine can be customized as your need, Put on your logo is also available.
3. If i will need to stay in your place for few days, is that possible to book the hotel for me?
It’s always my pleasure, hotel booking service is available.
4. As the shipping period will take long time, how can you make sure the machine won’t be broken?
Our machine is film wrapped, to make sure the machine can be delivered to our customer smoothly, we will use the steel wire to fix the machine with the container.
We are a concrete batching plant manufacturer 15 years experience
2.Can the machine be customized as our need, such as put on our logo?
Our faithful is Get The Right Equipment for the Job ,Surely our machine can be customized as your need, Put on your logo is also available.
3. What is the delivery time of your machine?
In general, the delivery time of our machine is about 30 days, customized machine will be delivered as the negotiation with our clients as soon as possible.
In general, the delivery time of our machine is about 30 days, customized machine will be delivered as the negotiation with our clients as soon as possible.
3. If i will need to stay in your place for few days, is that possible to book the hotel for me?
It’s always my pleasure, hotel booking service is available.
4. As the shipping period will take long time, how can you make sure the machine won’t be broken?
Our machine is film wrapped, to make sure the machine can be delivered to our customer smoothly, we will use the steel wire to fix the machine with the container.
5.What is your minimum order quantity, can you send me samples?
Our minimum quantity is 1 set, as our product is machinery equipment, it’s difficult to send you samples, however,we can send you catalog, warmly welcome you to come visit our company.
Our minimum quantity is 1 set, as our product is machinery equipment, it’s difficult to send you samples, however,we can send you catalog, warmly welcome you to come visit our company.
6. How can i get to your factory?
We can pick you up at the airport.
7. May i know which payment will be accepted by your company?
So far 100%T/T before shipment, and 30% deposit paid by T/T, balance paid by L/C are available.
8. About the after-sale service, how can you solve the problems occurred of your overseas customer in time?
The warranty of our machine is normally 12 months, during this period, we will arrange the international express immediately, to make sure the replace parts to be delivered as soon as possible.
9. After we placing an order, will you arrange the installation of the machine at present?
All the machines will be tested well before delivered, so almost of them can be used directly, also our machine are easy to be installed, if you customer needs our assistance, we will be pleased to arrange the installation, but all the cost will be be
charged by you.
We can pick you up at the airport.
7. May i know which payment will be accepted by your company?
So far 100%T/T before shipment, and 30% deposit paid by T/T, balance paid by L/C are available.
8. About the after-sale service, how can you solve the problems occurred of your overseas customer in time?
The warranty of our machine is normally 12 months, during this period, we will arrange the international express immediately, to make sure the replace parts to be delivered as soon as possible.
9. After we placing an order, will you arrange the installation of the machine at present?
All the machines will be tested well before delivered, so almost of them can be used directly, also our machine are easy to be installed, if you customer needs our assistance, we will be pleased to arrange the installation, but all the cost will be be
charged by you.
